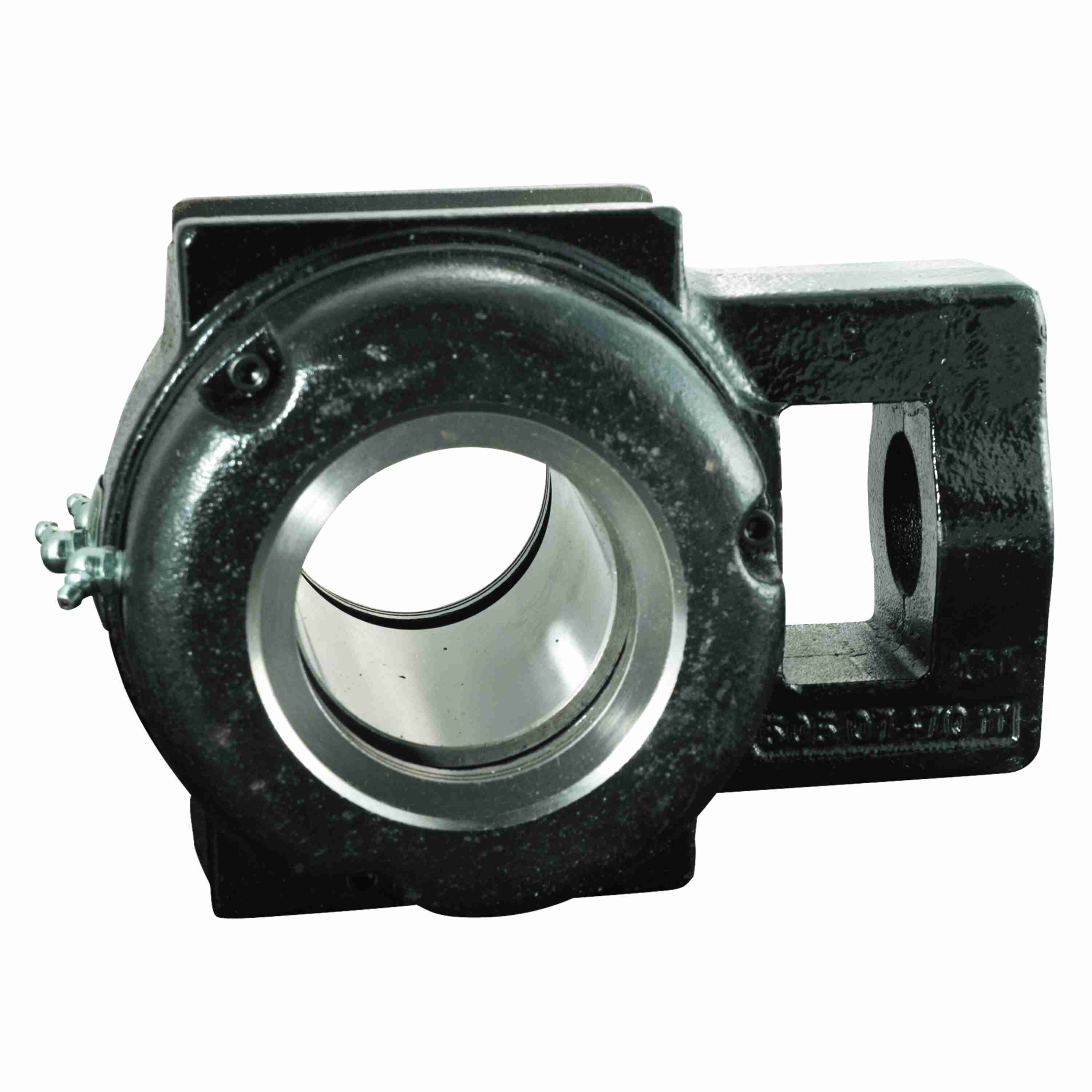

Rexnord BMT125115MM Take-up Blocks Rex Spherical Roller Bearings - BMT125115MM
Part #:10420909
Catalog #:BMT125115MM
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 8.5 in | Slot Length (in): | 8 in |
| Overall Length (in): | 13.44 in | Slot Width (in): | 2.06 in |
| Base to Center Height (in): | 8.688 in | Bore Diameter (mm): | 115 mm |
| Overall Height (in): | 10.38 in | Housing Width (in): | 4.25 in |
| Adjustment Pad Height (in): | 6.38 in | Slot Spacing (in): | 9.5 in |
| Adjustment Slot Width (in): | 2.13 in | Locking Collar Outside Diameter (in): | 6.19 in |
| Adjusting Screw Square Nut Seat Height (in): | 3.38 in | Adjusting Screw Clearance Hole Diameter (in): | 2.13 in |
| Inner Ring Outside Diameter (in): | 5.032 in | Length Through Bore (in): | 8.5 in |
| Centerline to Cap Face (in): | 4.25 in | Housing Outside Diameter to Cast Square Nut Slot Face (in): | 9.81 in |
| Housing Cast Face to Outermost Bearing Face (in): | 2.19 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Housing Color: | Black |
| Cage Material: | Engineered Polymer | Static Load Rating (lb): | 159,300 lb |
| Housing Material: | Cast Iron | Housing Type: | Take Up, Wide Slot |
| Shaft Locking Type: | Double Set Collar | Misalignment Type: | Dynamic |
| Rolling Element: | Spherical Roller | Seal Type: | Heavy Contact Seal |
| Housing Construction: | Solid | Product: | ZT5000 |
| Fixed/Expansion: | Fixed | Series: | Take-up Blocks |
| Housing Style: | Take-Up Block | Radial Dynamic Load Capacity (lb): | 149,500 lb |
| Maximum Speed (RPM): | 1100 rpm | Setscrew Torque (in-lbs): | 1350 in/lbs |
| Ability to Relubricate: | Yes | Seal Kit: | MS12Y |
| Allowable Working Load [2/3 Yield Strength] (lb): | 53,700 lb | Microlock Kit: | ML4 |
| Grease Fitting Thread Size: | 1/4 NPT | Insert: | 5115MMU |
| Housing Coating: | POWDER COATED | Auxiliary Seals: | 1 OPEN 1 CLOSED CAP CAST IRON |
| Vibration Frequency Roller Spin: | 0.0568 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Size Code: | 12 |
| Vibration Frequency Inner Ring Defect: | 0.1901 cps | Locking Device Kit: | SC12Y QTY 2 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (F): | 225 °F | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Outer Ring Defect: | 0.1433 cps |
General Specifications
| UPC: | 793699379631 | Weight: | 90.00 LB |
| Country of Origin: | Mexico |
