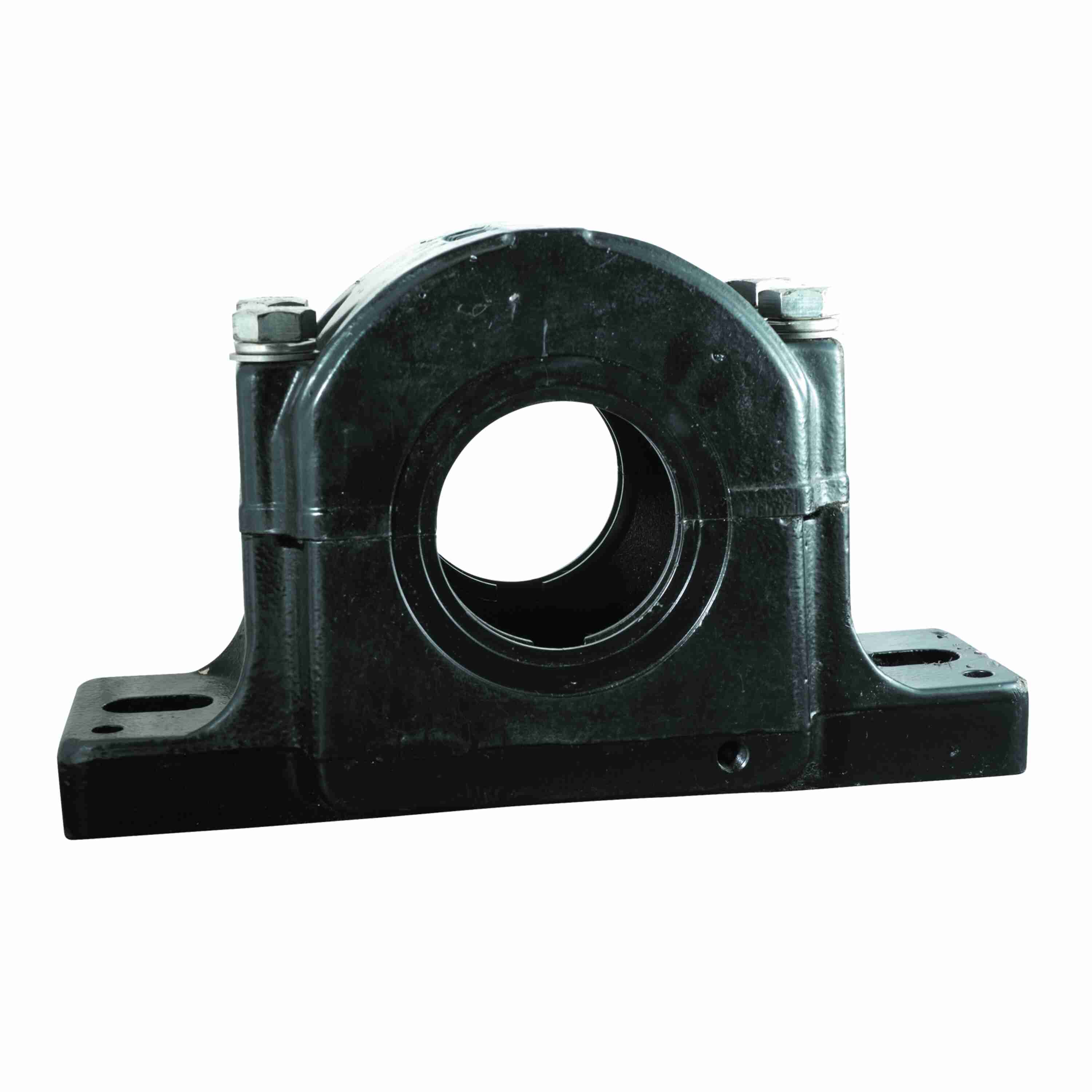

Link-Belt BPLB6847C Split-housed Pillow Blocks Link-Belt Spherical Roller Bearings - BPLB6847C
Part #:10431317
Catalog #:BPLB6847C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 13 in | Foot Height (in): | 1.25 in |
| Base Width (in): | 3.5 in | Base to Center Height (in): | 3.75 in |
| Bolt Size (in): | 3/4 in | Bore Diameter (in): | 2.9375 in |
| Overall Height (in): | 7.31 in | Overall Width (in): | 5 in |
| Required Distance for Cap Removal (in): | 10 in | Bolt Spacing Max (in): | 11 in |
| Centerline to Shaft Face for Closed End Unit (in): | 1.59 in | Expansion Capability (in): | 0.38 in |
| Bolt Spacing Min (in): | 9.88 in | Base Length (in): | 13 in |
Technical Specifications
| Product: | BPLB6800 | Series: | Split-housed Pillow Blocks |
| Radial Dynamic Load Capacity (lb): | 58,500 lb | Housing Type: | Pillow Block, Two Bolt, SAF Style |
| Housing Color: | Black | Cage Material: | Bronze |
| Misalignment Type: | Dynamic | Fixed/Expansion: | Fixed/Expansion |
| Radial Clearance: | C3 STANDARD | Seal Type: | T-Water Seal |
| Housing Style: | Pillow Block | Shaft Locking Type: | Adapter Mount |
| Housing Construction: | Split | Housing Material: | Cast Iron |
| Static Load Rating (lb): | 73,500 lb | Rolling Element: | Spherical Roller |
| Maximum Speed (RPM): | 650 rpm | Ability to Relubricate: | Yes |
| Cap Bolt Torque (ft-lbs): | 90-100 ft/lbs | C-Spacer: | 68484 |
| Available Seal Type: | T Water Seal | Seal Kit: | LB68473T (qty 1) |
| Grease Fitting Thread Size: | 1/8 NPT | Size Code: | 22217 |
| Primary Seal: | T WATER SEAL | Auxiliary Seals: | CAST CLOSED END |
| Vibration Frequency Roller Spin: | 0.0523 cps | Housing Kit: | BPLB6847TC02 |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | NYLON COATED |
| Vibration Frequency Inner Ring Defect: | 0.173 cps | Vibration Frequency Outer Ring Defect: | 0.1269 cps |
| Misalignment Capability: | ±0.5° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Insert: | 22217LBKC3 | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Locking Device Kit: | H317047 |
General Specifications
| UPC: | 793699003468 | Weight: | 48.20 LB |
| Packaged Length: | 13.75 IN | Packaged Width: | 7.63 IN |
| Packaged Height: | 7.50 IN | HTC: | 8483208080 |
| Country of Origin: | China |
