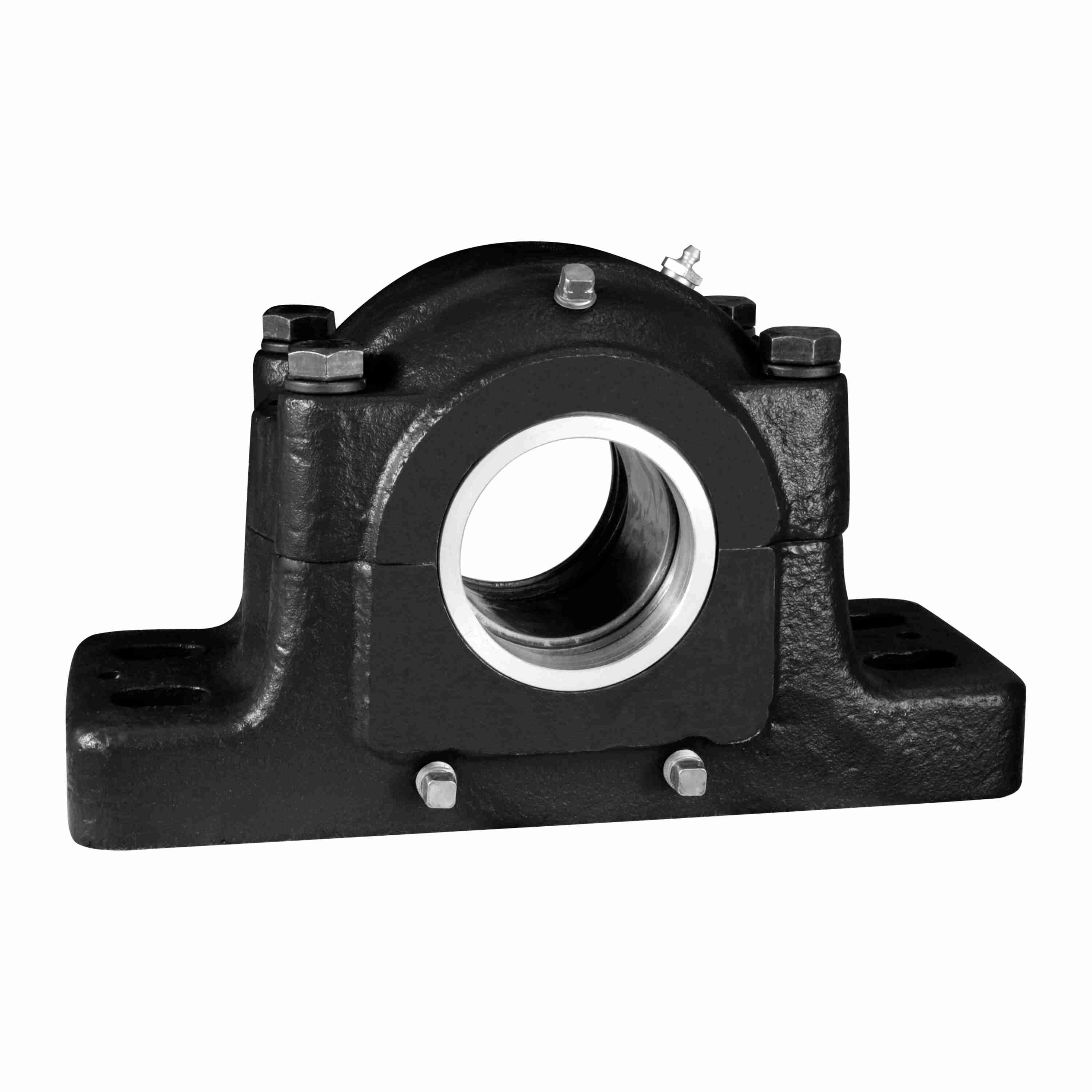

Link-Belt BPLB68M75F Split-housed Pillow Blocks Link-Belt Spherical Roller Bearings - BPLB68M75F
Part #:10420788
Catalog #:BPLB68M75F
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 7.31 in | Bolt Size (in): | 5/8 in |
| Foot Height (in): | 1.25 in | Overall Length (in): | 13 in |
| Overall Width (in): | 5 in | Base to Center Height (in): | 3.75 in |
| Base Width (in): | 3.5 in | Bore Diameter (mm): | 75 mm |
| Expansion Capability (in): | 0.38 in | Centerline to Shaft Face for Closed End Unit (in): | 1.59 in |
| Bolt Spacing Max (in): | 11 in | Bolt Spacing Min (in): | 9.88 in |
| Base Length (in): | 13 in | Bolt Spacing Width (in): | 2 in |
Technical Specifications
| Series: | Split-housed Pillow Blocks | Cage Material: | Bronze |
| Housing Style: | Pillow Block | Housing Type: | Pillow Block, Four Bolt, SAF Style |
| Fixed/Expansion: | Fixed/Expansion | Shaft Locking Type: | Adapter Mount |
| Misalignment Type: | Dynamic | Radial Clearance: | C3 STANDARD |
| Static Load Rating (lb): | 73,500 lb | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | Seal Type: | T-Water Seal |
| Product: | BPLB6800 | Housing Construction: | Split |
| Radial Dynamic Load Capacity (lb): | 58,500 lb | Housing Color: | Black |
| Cap Bolt Torque (ft-lbs): | 90-100 ft/lbs | Seal Kit: | LB68473T (qty 2) |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 650 rpm |
| Locking Device Kit: | H317047 | Primary Seal: | T WATER SEAL |
| Size Code: | 22217 | Housing Kit: | BPLB68M75F02 |
| Housing Coating: | NYLON COATED | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Vibration Frequency Roller Spin: | 0.0523 cps | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Inner Ring Defect: | 0.173 cps | Vibration Frequency Outer Ring Defect: | 0.1269 cps |
| Max Operating Temperature (C): | 107 °C | Misalignment Capability: | ±0.5° Misalignment - Dynamic |
| Insert: | 22217LBKC3 | Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 793699466928 | Weight: | 45.00 LB |
