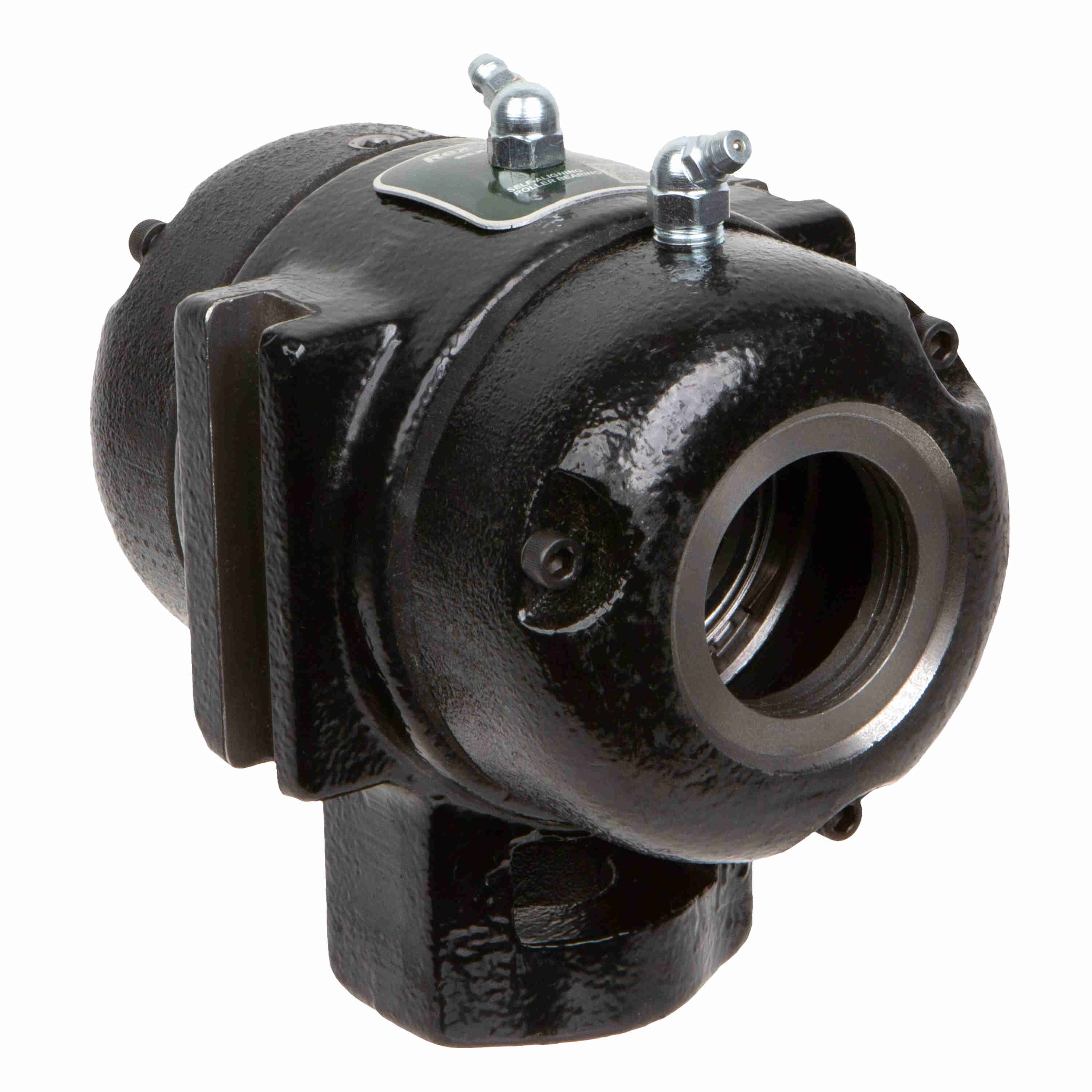

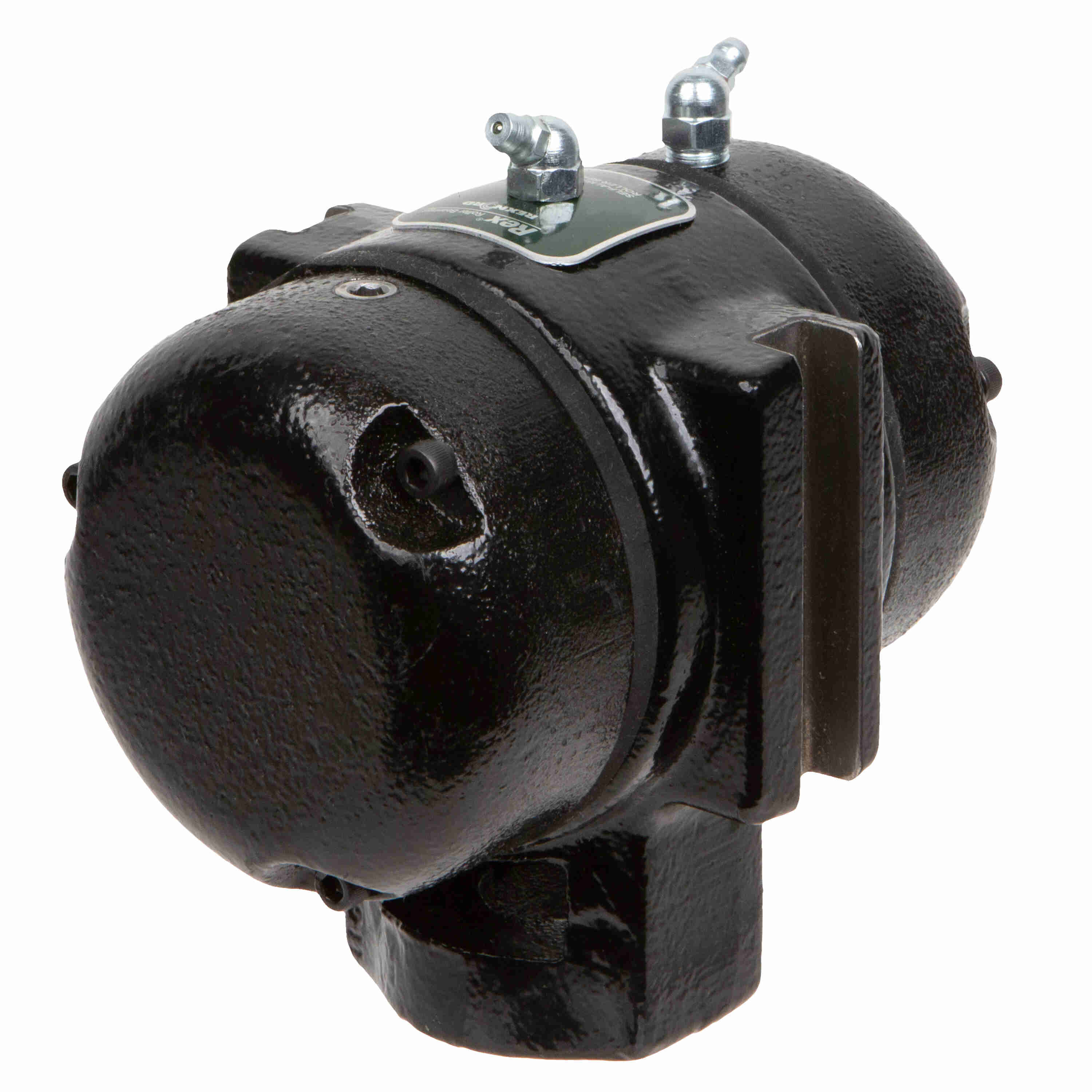

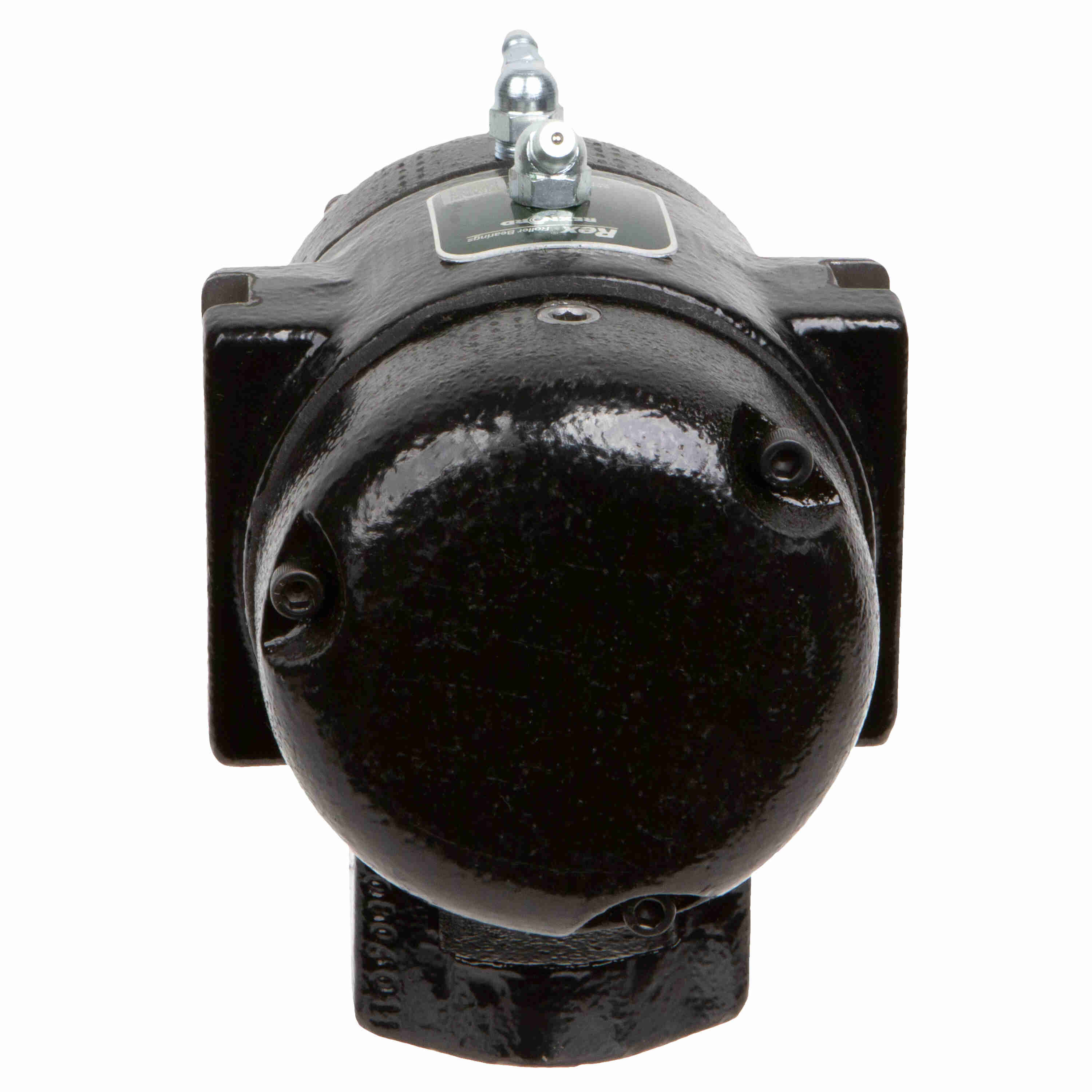

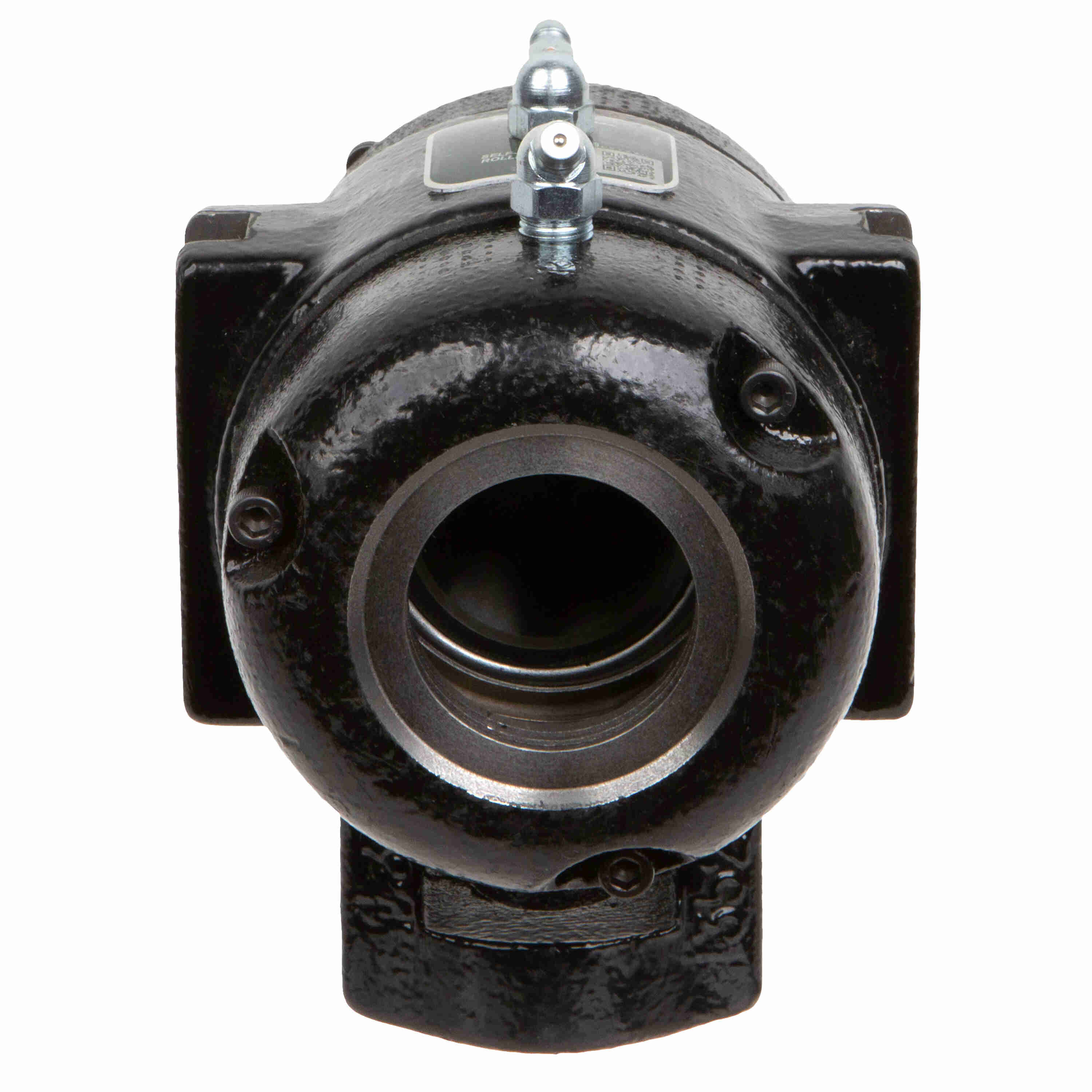

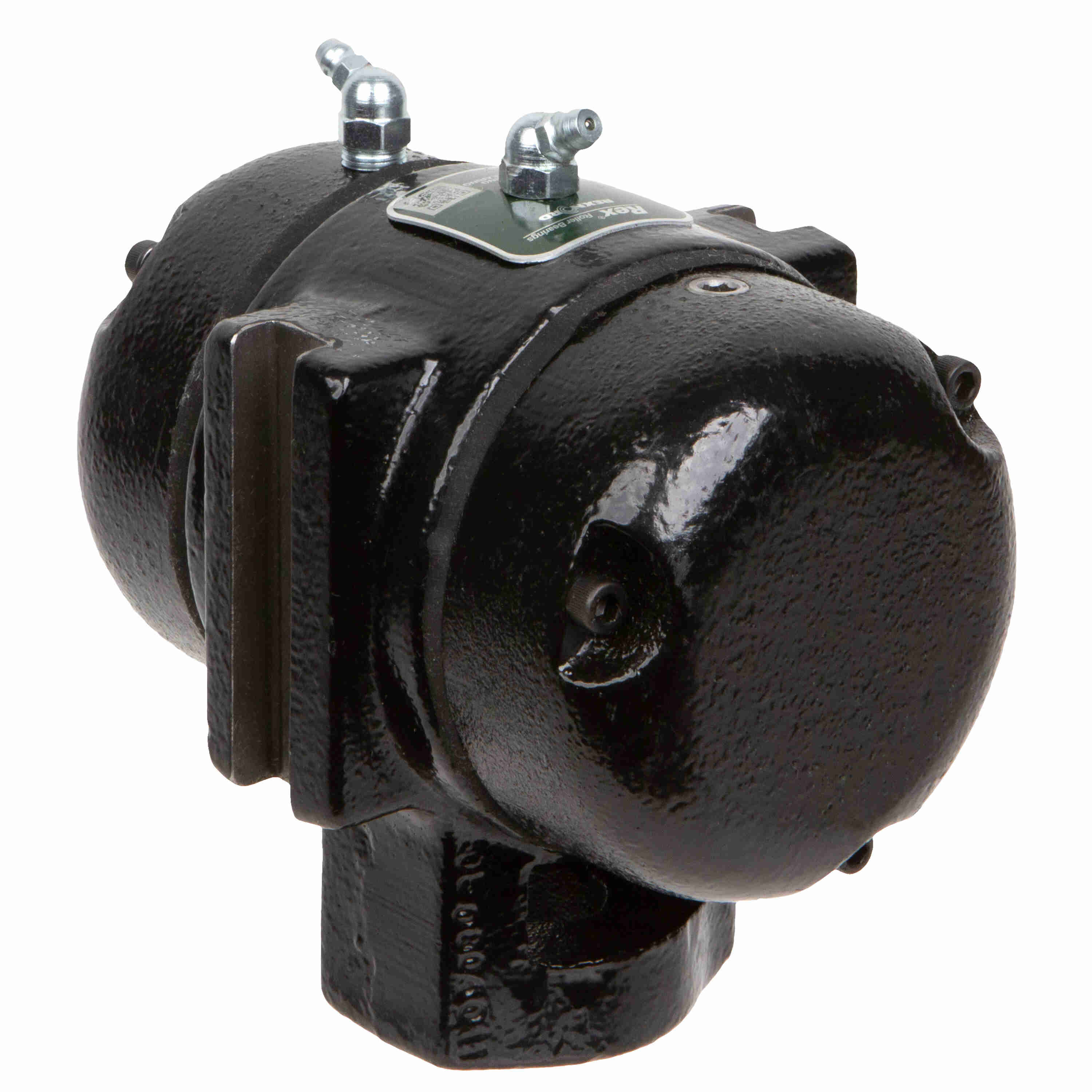

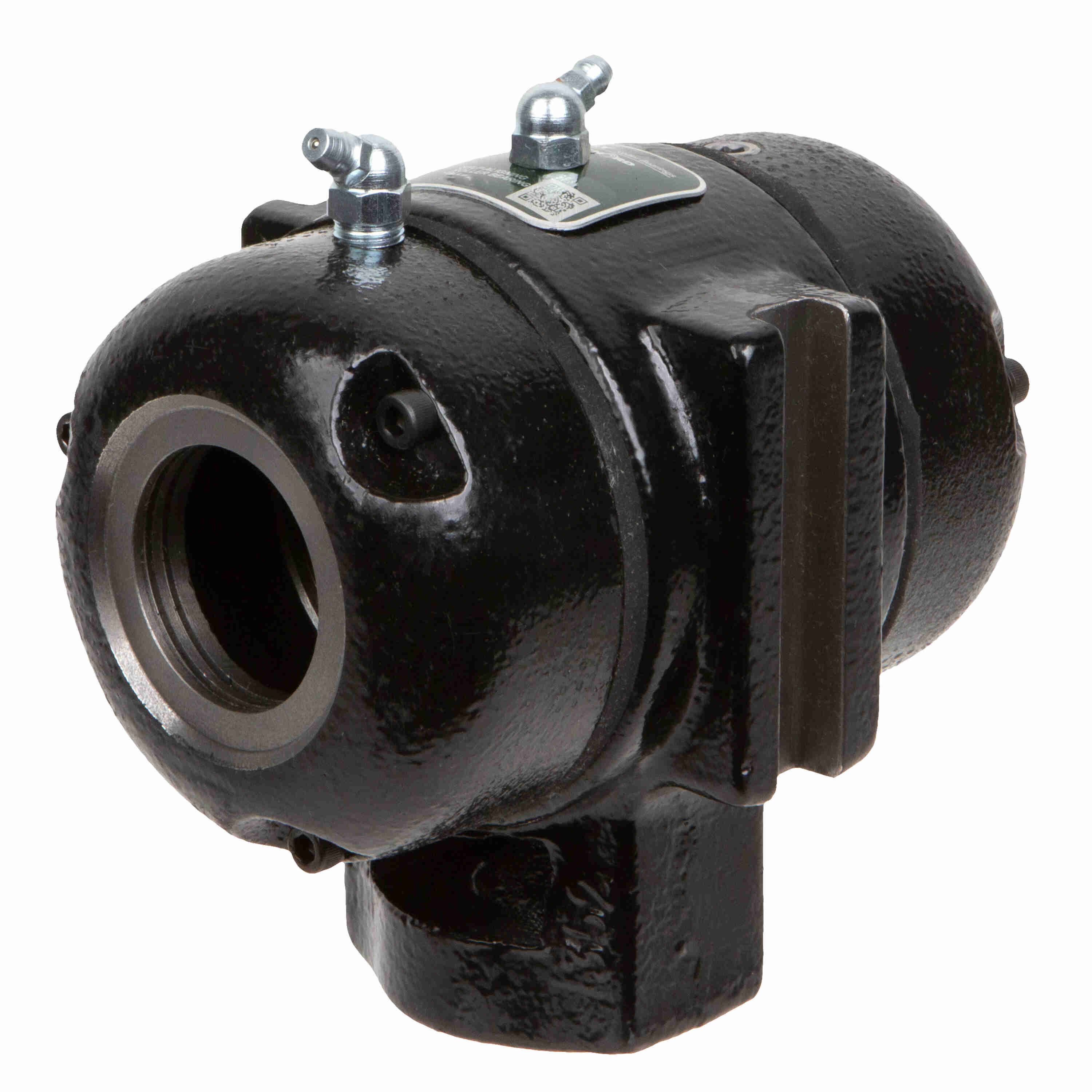

Rexnord BZT42107 Take-up Blocks Rex Spherical Roller Bearings - BZT42107
Part #:10413438
Catalog #:BZT42107
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 2.75 in | Bore Diameter (in): | 1.4375 in |
| Housing Width (in): | 2.19 in | Slot Width (in): | 0.53 in |
| Overall Height (in): | 4.13 in | Base to Center Height (in): | 3.25 in |
| Overall Width (in): | 5.31 in | Overall Length (in): | 5.06 in |
| Adjusting Screw Clearance Hole Diameter (in): | 0.88 in | Adjusting Screw Square Nut Seat Height (in): | 1.44 in |
| Locking Collar Outside Diameter (in): | 2.31 in | Slot Spacing (in): | 3.5 in |
| Adjustment Pad Height (in): | 2.44 in | Adjustment Slot Width (in): | 0.63 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.56 in | Inner Ring Outside Diameter (in): | 1.745 in |
| Housing Outside Diameter to Cast Square Nut Slot Face (in): | 3.75 in | Length Through Bore (in): | 5.31 in |
| Centerline to Cap Face (in): | 2.69 in | Centerline to Outermost Bearing Face (in): | 1.78 in |
Technical Specifications
| Cage Material: | Engineered Polymer | Fixed/Expansion: | Fixed |
| Product: | ZT2000 | Static Load Rating (lb): | 20,900 lb |
| Housing Type: | Take Up, Wide Slot | Seal Type: | Clearance Seal |
| Shaft Locking Type: | Single Set Collar | Series: | Take-up Blocks |
| Rolling Element: | Spherical Roller | Housing Material: | Cast Iron |
| Radial Clearance: | C3 STANDARD | Housing Style: | Take-Up Block |
| Housing Construction: | Solid | Misalignment Type: | Dynamic |
| Housing Color: | Black | Radial Dynamic Load Capacity (lb): | 19,860 lb |
| Auxiliary Cap Kit: | A4107, B4 | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 325 in/lbs | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Allowable Working Load [2/3 Yield Strength] (lb): | 7,600 lb | Microlock Kit: | B436MLK |
| Maximum Speed (RPM): | 5250 rpm | Seal Kit: | ZS4 |
| Auxiliary Seals: | 1 OPEN 1 CLOSED CAP CAST IRON | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Inner Ring Defect: | 0.1445 cps | Locking Device Kit: | SC4 |
| Size Code: | 4 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
| Insert: | 2107U | Vibration Frequency Roller Spin: | 0.0499 cps |
| Housing Coating: | POWDER COATED | Vibration Frequency Fundamental Train: | 0.007 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Outer Ring Defect: | 0.1055 cps |
| Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 698210862954 | Weight: | 9.70 LB |
| Packaged Length: | 6.50 IN | Packaged Width: | 6.00 IN |
| Packaged Height: | 6.38 IN | Country of Origin: | Mexico |
