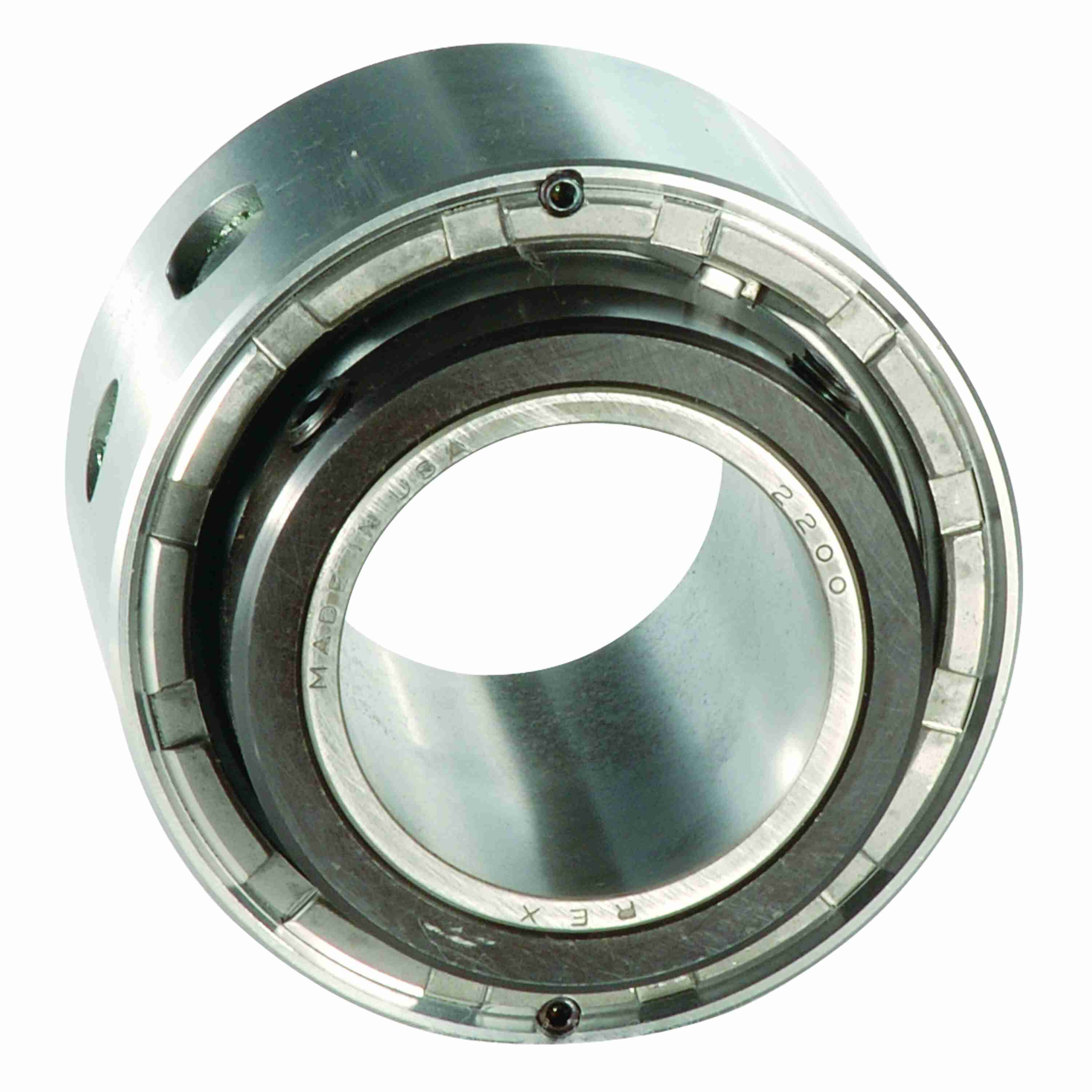

Link-Belt CSEB224M100H Cartridge Blocks Link-Belt Spherical Roller Bearings - CSEB224M100H
Part #:10413465
Catalog #:CSEB224M100H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 5.06 in | Overall Height (in): | 7.38 in |
| Bore Diameter (mm): | 100 mm | Housing Width (in): | 4 in |
| Outside Diameter (in): | 7.375 in | Overall Length (in): | 7.38 in |
| Locking Collar Outside Diameter (in): | 5.63 in | Length Through Bore (in): | 5.06 in |
| Centerline to Outermost Bearing Face (in): | 3.06 in | Inner Ring Outside Diameter (in): | 4.561 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.06 in |
Technical Specifications
| Seal Type: | Clearance Seal | Cage Material: | Steel |
| Housing Material: | Steel | Misalignment Type: | Dynamic |
| Product: | CSEB22400 | Radial Dynamic Load Capacity (lb): | 96,500 lb |
| Static Load Rating (lb): | 137,000 lb | Series: | Cartridge Blocks |
| Housing Style: | Cartridge Block | Rolling Element: | Spherical Roller |
| Housing Construction: | Solid | Radial Clearance: | C0 STANDARD |
| Fixed/Expansion: | Fixed | Shaft Locking Type: | Single Set Collar |
| Ability to Relubricate: | Yes | Seal Kit: | B464HS |
| Setscrew Torque (in-lbs): | 1350 in/lbs | Maximum Speed (RPM): | 1400 rpm |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Vibration Frequency Inner Ring Defect: | 0.1717 cps |
| Locking Device Kit: | B464SC | Vibration Frequency Outer Ring Defect: | 0.1283 cps |
| Vibration Frequency Roller Spin: | 0.0548 cps | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Max Operating Temperature (C): | 107 °C | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Primary Seal: | STEEL CLEARANCE SEAL | Max Operating Temperature (F): | 225 °F |
| Lubricant: | Lithium Complex NLGI 2 Grease | Size Code: | B464 |
General Specifications
| UPC: | 662327416782 | Weight: | 32.90 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 6.13 IN |
| Packaged Height: | 8.00 IN | Country of Origin: | Mexico |
