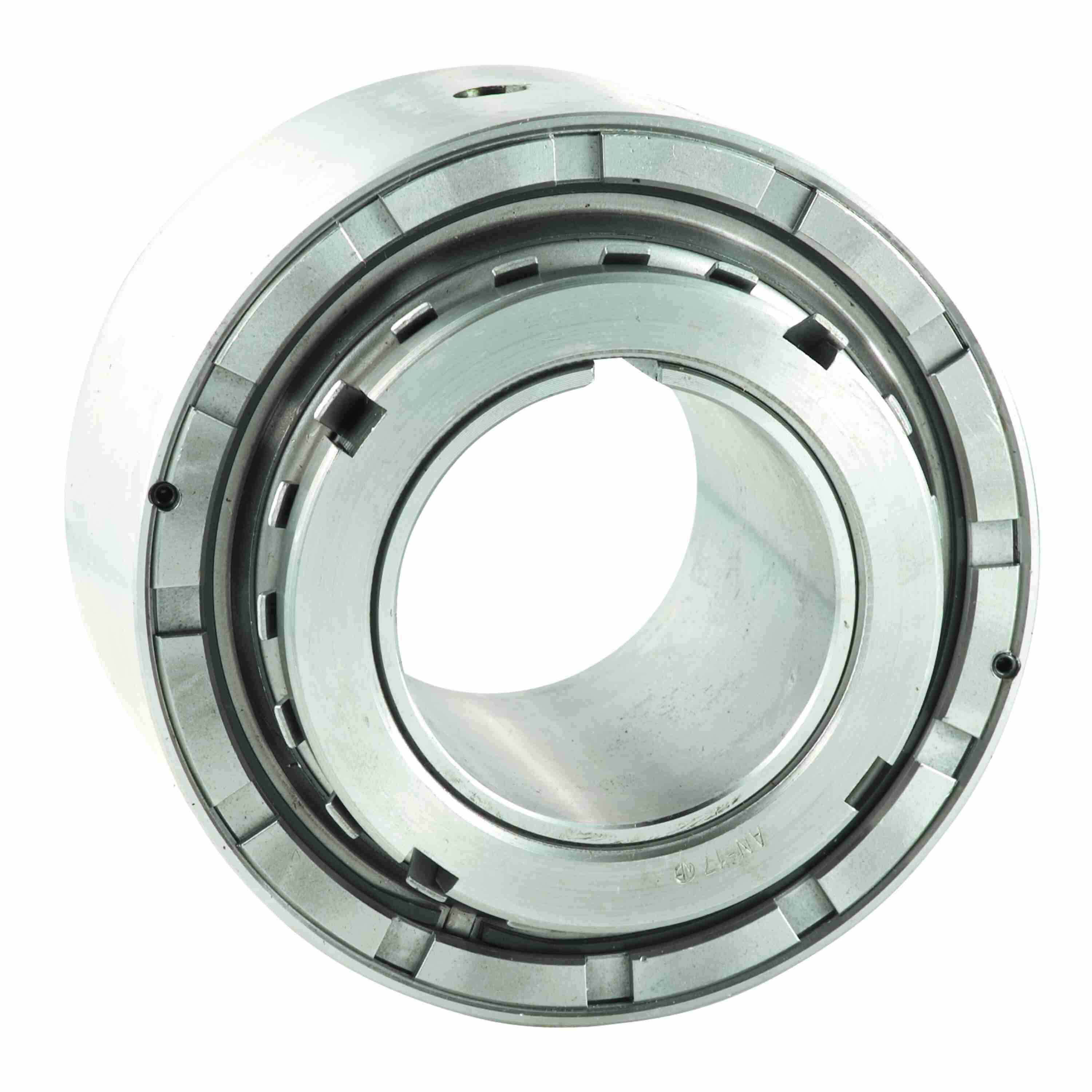

Link-Belt CSEB22655HK54 Cartridge Blocks Link-Belt Spherical Roller Bearings - CSEB22655HK54
Part #:10416466
Catalog #:CSEB22655HK54
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Outside Diameter (in): | 6.194 in | Housing Width (in): | 3.44 in |
| Overall Length (in): | 6.19 in | Overall Width (in): | 4.31 in |
| Bore Diameter (in): | 3.4375 in | Overall Height (in): | 6.19 in |
| Locking Collar Outside Diameter (in): | 4.94 in | Length Through Bore (in): | 4.29 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.88 in | Centerline to Outermost Bearing Face (in): | 2.58 in |
| Inner Ring Outside Diameter (in): | 3.975 in |
Technical Specifications
| Series: | Cartridge Blocks | Fixed/Expansion: | Fixed |
| Housing Construction: | Solid | Shaft Locking Type: | Adapter Mount |
| Housing Material: | Steel | Cage Material: | Steel |
| Radial Dynamic Load Capacity (lb): | 62,300 lb | Radial Clearance: | C4 INCREASED |
| Seal Type: | Clearance Seal | Rolling Element: | Spherical Roller |
| Static Load Rating (lb): | 90,700 lb | Misalignment Type: | Dynamic |
| Product: | CSEB22600 | Housing Style: | Cartridge Block |
| Seal Kit: | B456HS | Maximum Speed (RPM): | 1650 rpm |
| Ability to Relubricate: | Yes | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | STEEL CLEARANCE SEAL | Lubricant: | PRESERVATIVE ONLY - NO GREASE |
| Vibration Frequency Roller Spin: | 0.0628 cps | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | SNW655 | Locking Device Kit: | SNW655 |
| Vibration Frequency Inner Ring Defect: | 0.1784 cps | Lube Fill Percent: | 0% FILL |
| Size Code: | B655 |
General Specifications
| UPC: | 793699991208 | Weight: | 17.30 LB |
| Packaged Length: | 6.88 IN | Packaged Width: | 4.88 IN |
| Packaged Height: | 6.88 IN | HTC: | 84833080 |
