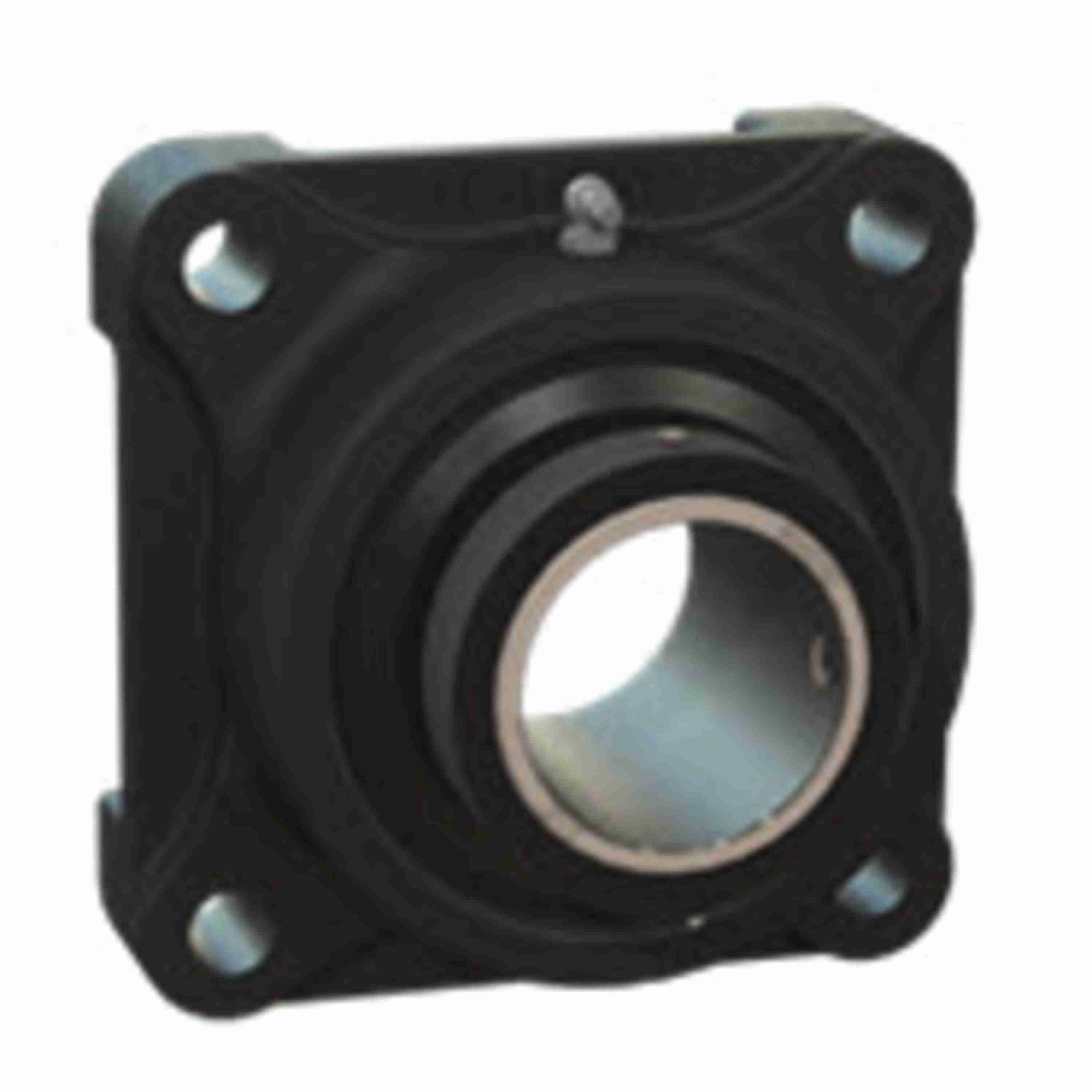

Rexnord EFB115CE Flange Blocks PT Select Spherical Roller Bearings - EFB115CE
Part #:10479804
Catalog #:EFB115CE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.62 in | Overall Length (in): | 5.63 in |
| Foot Height (in): | 1.18 in | Bolt Size (in): | 1/2 in |
| Overall Height to End Cap (in): | 3.89 in | Housing Width (in): | 5.63 in |
| Bore Diameter (in): | 1.9375 in | Locking Collar Outside Diameter (in): | 2.88 in |
| Square Distance Between Bolt Holes (in): | 4.38 in | Standoff Distance (in): | 0.78 in |
| Bolt Spacing (in): | 4.38 in | Length Through Bore (in): | 2.84 in |
| Bolt Circle (in): | 6.188 in | Expansion Capability (in): | 0.26 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.09 in | Mounting Surface to Cap Face on Backside (in): | 0.55 in |
Technical Specifications
| Seal Type: | Clearance Seal | Cage Material: | Steel |
| Misalignment Type: | Dynamic | Housing Style: | Flange Block |
| Shaft Locking Type: | Single Set Collar | Housing Type: | Flange, Four Bolt |
| Housing Color: | Black | Radial Dynamic Load Capacity (lb): | 21,000 lb |
| Static Load Rating (lb): | 24,710 lb | Housing Construction: | Solid |
| Rolling Element: | Spherical Roller | Series: | Flange Blocks |
| Product: | EFB | End Cap: | SEE AUX CAP KIT |
| Fixed/Expansion: | Expansion | Housing Material: | Cast Iron |
| Maximum Speed (RPM): | 3540 rpm | Setscrew Torque (in-lbs): | 325 in/lbs |
| Ability to Relubricate: | Yes | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | POWDER COATED |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Roller Spin: | 0.0522 cps |
| Vibration Frequency Outer Ring Defect: | 0.127 cps | Max Operating Temperature (F): | 225 °F |
| Size Code: | 6 | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Lubricant: | Lithium Complex NLGI 2 Grease | Primary Seal: | STEEL CLEARANCE SEAL |
| Vibration Frequency Fundamental Train: | 0.0071 cps | Vibration Frequency Inner Ring Defect: | 0.173 cps |
| Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 782934930300 | Weight: | 7.86 LB |
| Packaged Length: | 5.50 IN | Packaged Width: | 4.13 IN |
| Packaged Height: | 5.50 IN | HTC: | 8483208080 |
| Country of Origin: | China |
