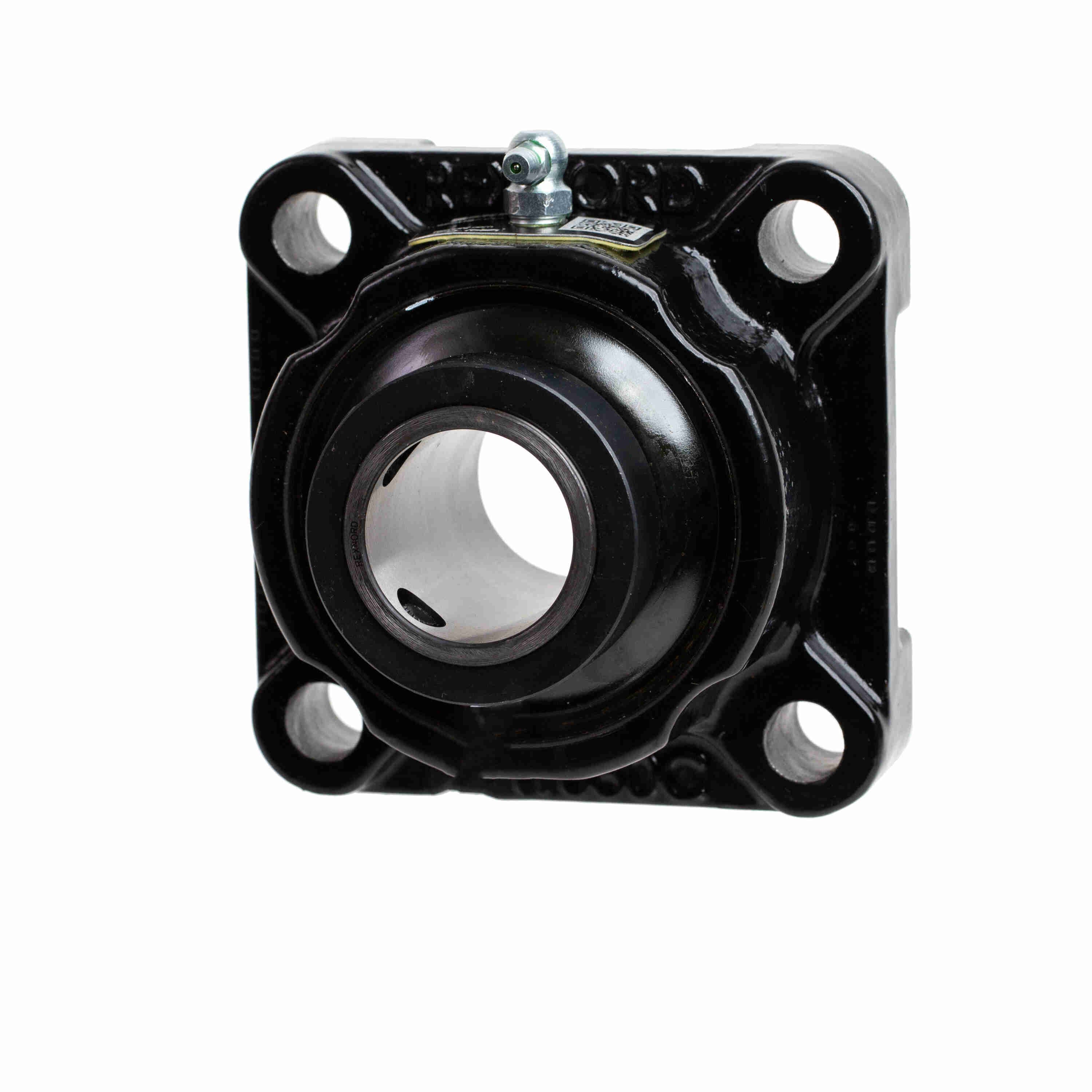

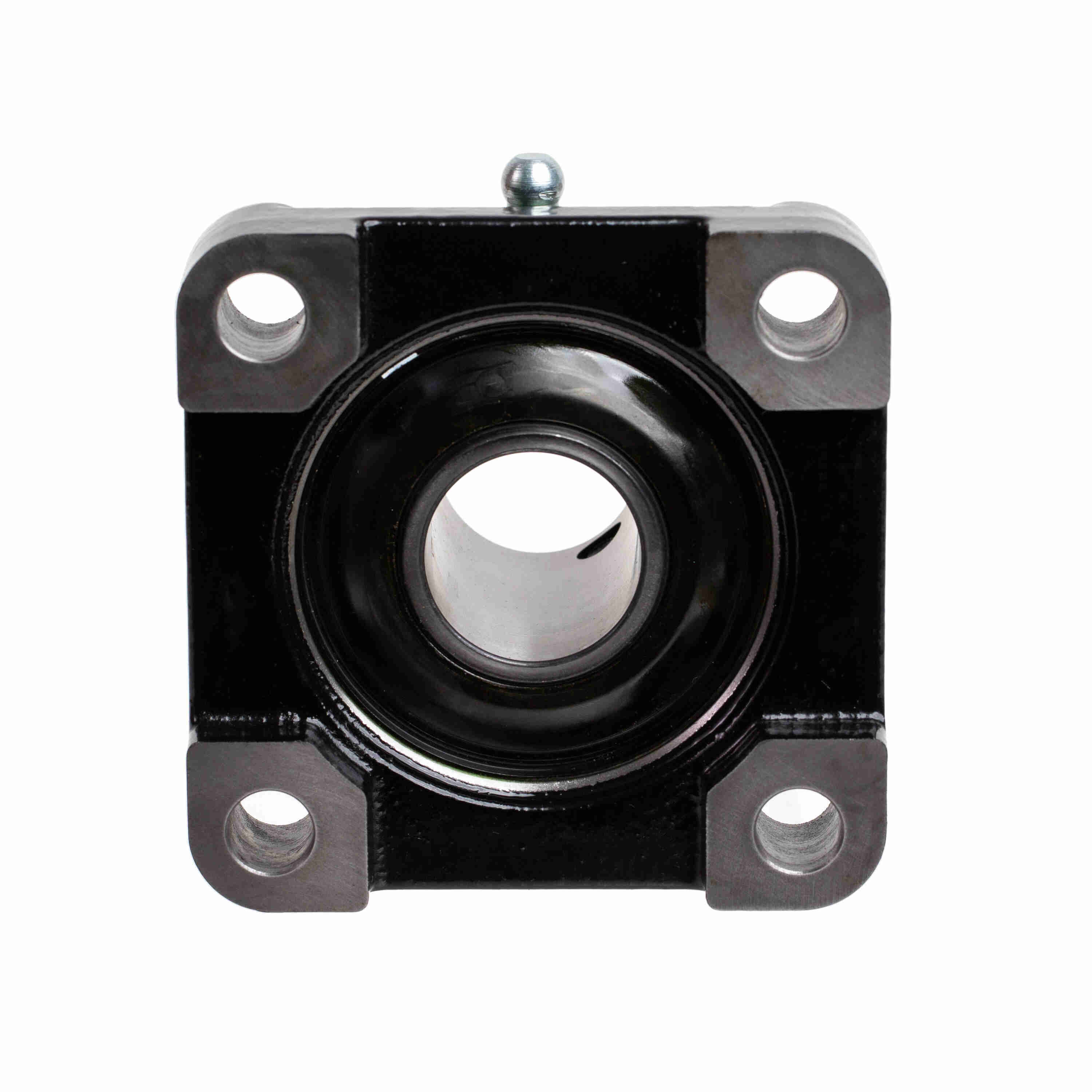

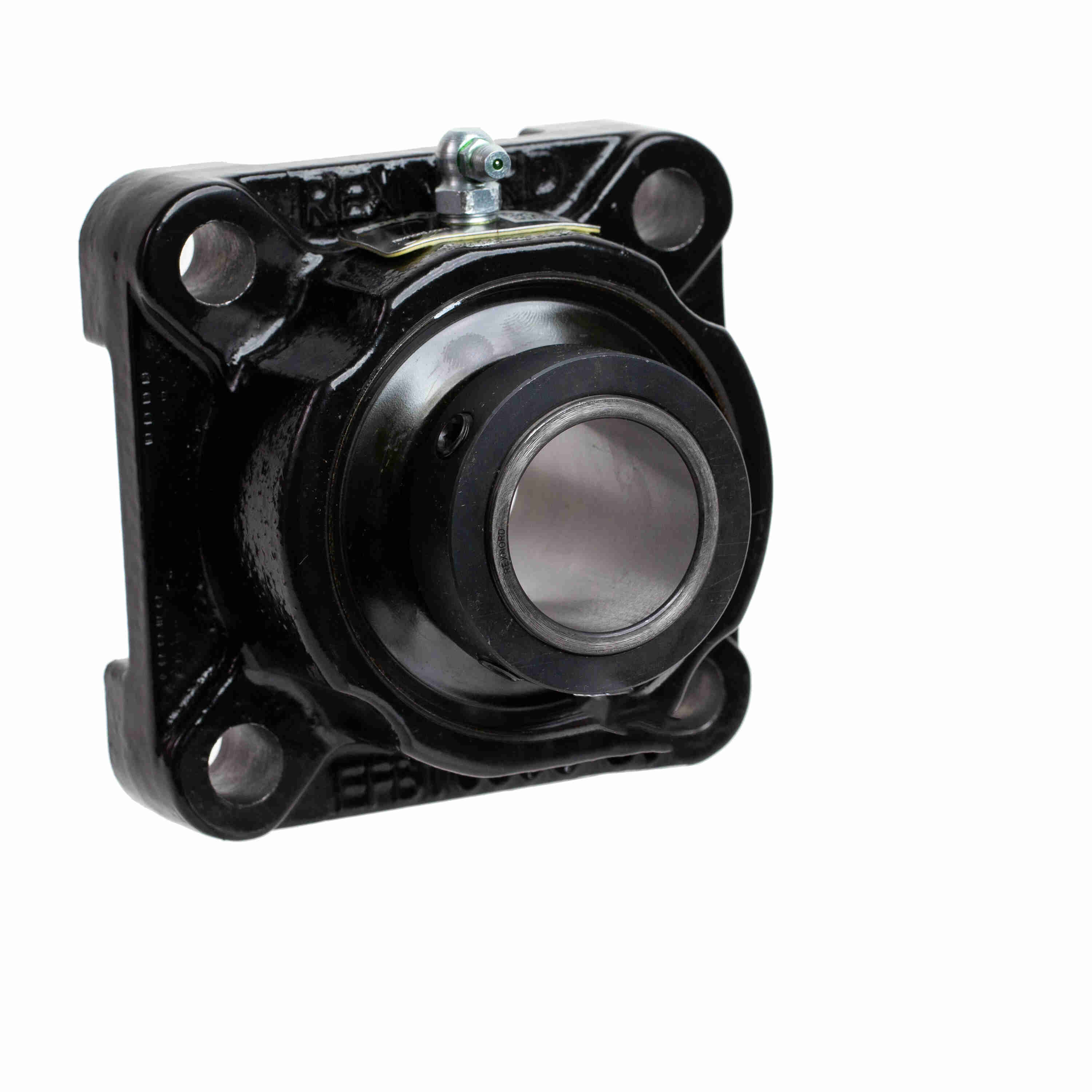

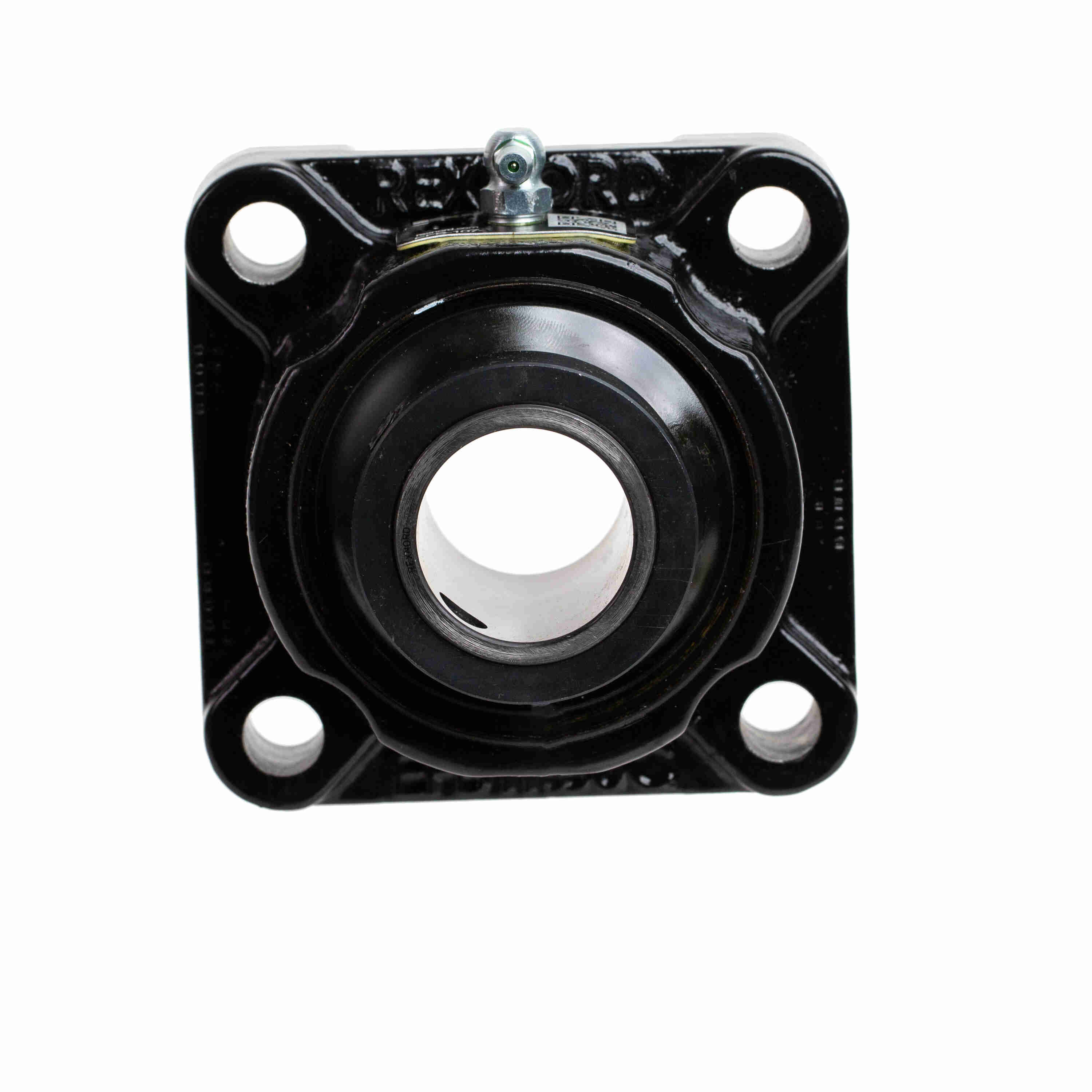

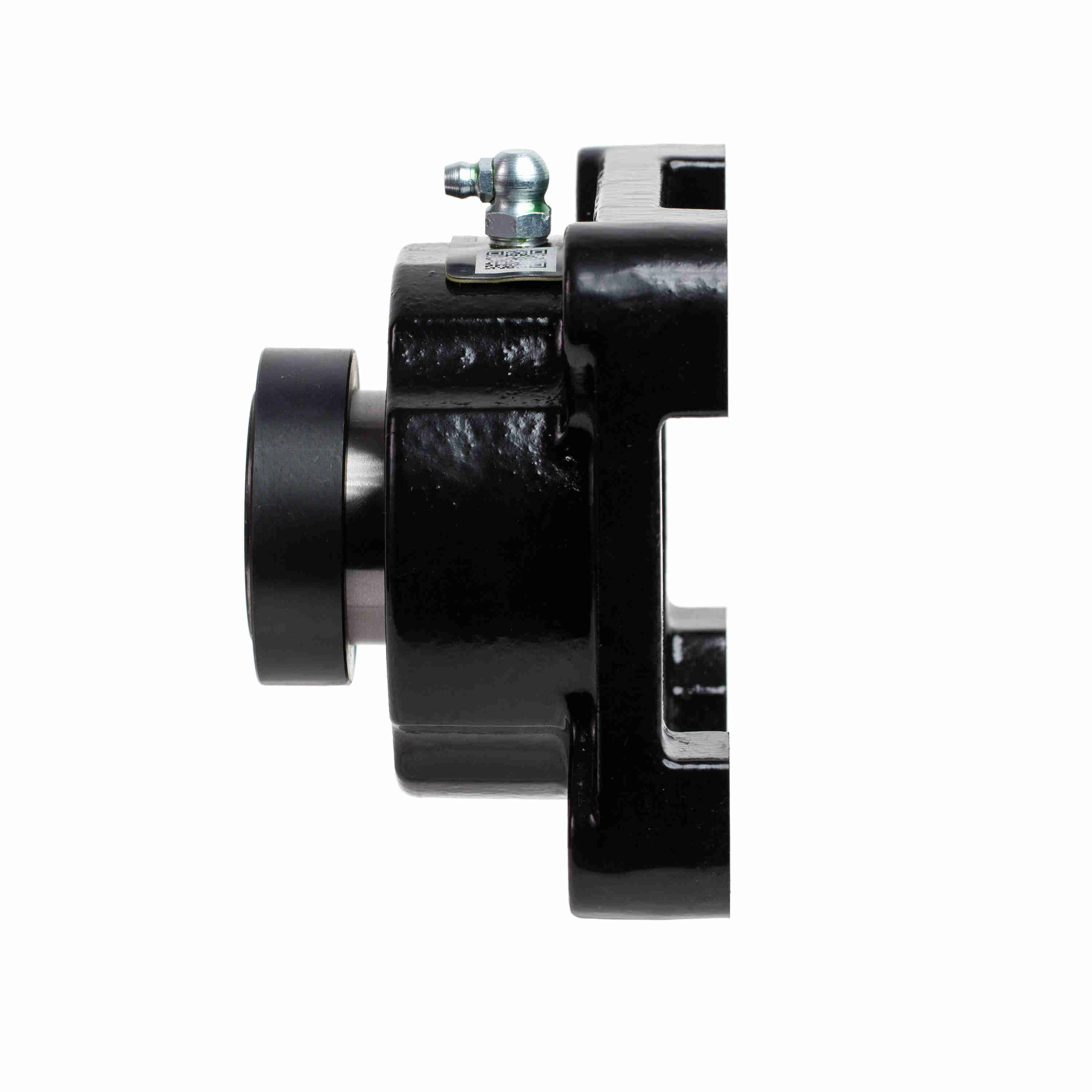

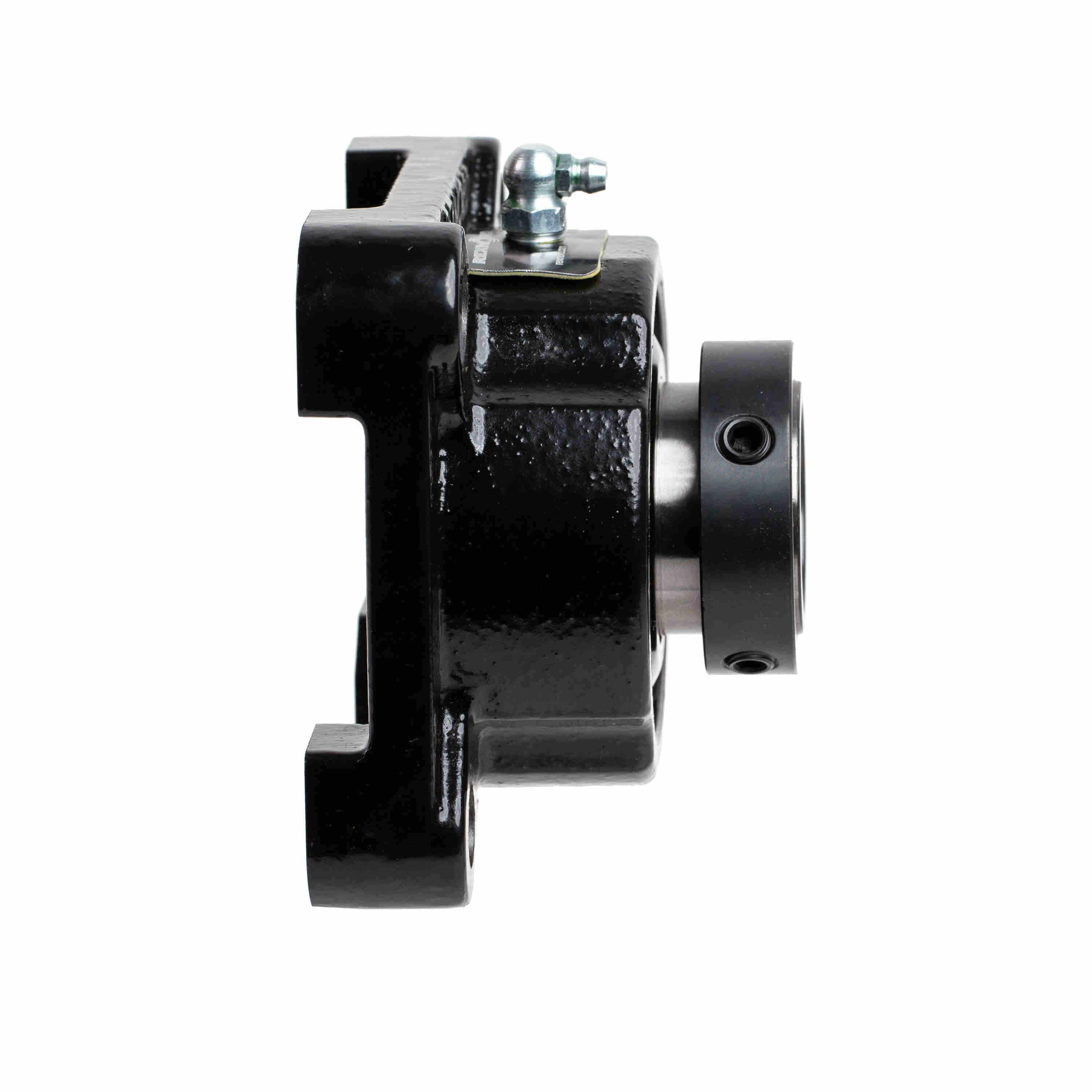

Rexnord EFB207CE Flange Blocks PT Select Spherical Roller Bearings - EFB207CE
Part #:10479812
Catalog #:EFB207CE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 5/8 in | Overall Height to End Cap (in): | 4.8 in |
| Overall Length (in): | 6.87 in | Overall Width (in): | 6.87 in |
| Bore Diameter (in): | 2.4375 in | Foot Height (in): | 1.5 in |
| Overall Height (in): | 4.53 in | Housing Width (in): | 6.88 in |
| Square Distance Between Bolt Holes (in): | 5.37 in | Standoff Distance (in): | 0.98 in |
| Locking Collar Outside Diameter (in): | 3.55 in | Bolt Spacing (in): | 5.38 in |
| Mounting Surface to Cap Face on Backside (in): | 0.59 in | Length Through Bore (in): | 3.55 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.29 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Expansion Capability (in): | 0.34 in |
Technical Specifications
| Radial Dynamic Load Capacity (lb): | 38,400 lb | Series: | Flange Blocks |
| Housing Type: | Flange, Four Bolt | Housing Material: | Cast Iron |
| Misalignment Type: | Dynamic | End Cap: | SEE AUX CAP KIT |
| Housing Construction: | Solid | Cage Material: | Steel |
| Product: | EFB | Seal Type: | Clearance Seal |
| Rolling Element: | Spherical Roller | Housing Color: | Black |
| Fixed/Expansion: | Expansion | Shaft Locking Type: | Single Set Collar |
| Static Load Rating (lb): | 43,870 lb | Housing Style: | Flange Block |
| Maximum Speed (RPM): | 2670 rpm | Setscrew Torque (in-lbs): | 680 in/lbs |
| Ability to Relubricate: | Yes | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Size Code: | 8 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Roller Spin: | 0.0507 cps | Max Operating Temperature (C): | 107 °C |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Fundamental Train: | 0.007 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Inner Ring Defect: | 0.164 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Housing Coating: | POWDER COATED |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Vibration Frequency Outer Ring Defect: | 0.1193 cps |
General Specifications
| UPC: | 782934930225 | Weight: | 15.07 LB |
| Packaged Length: | 6.88 IN | Packaged Width: | 4.88 IN |
| Packaged Height: | 6.88 IN | HTC: | 8483204080 |
| Country of Origin: | China |
