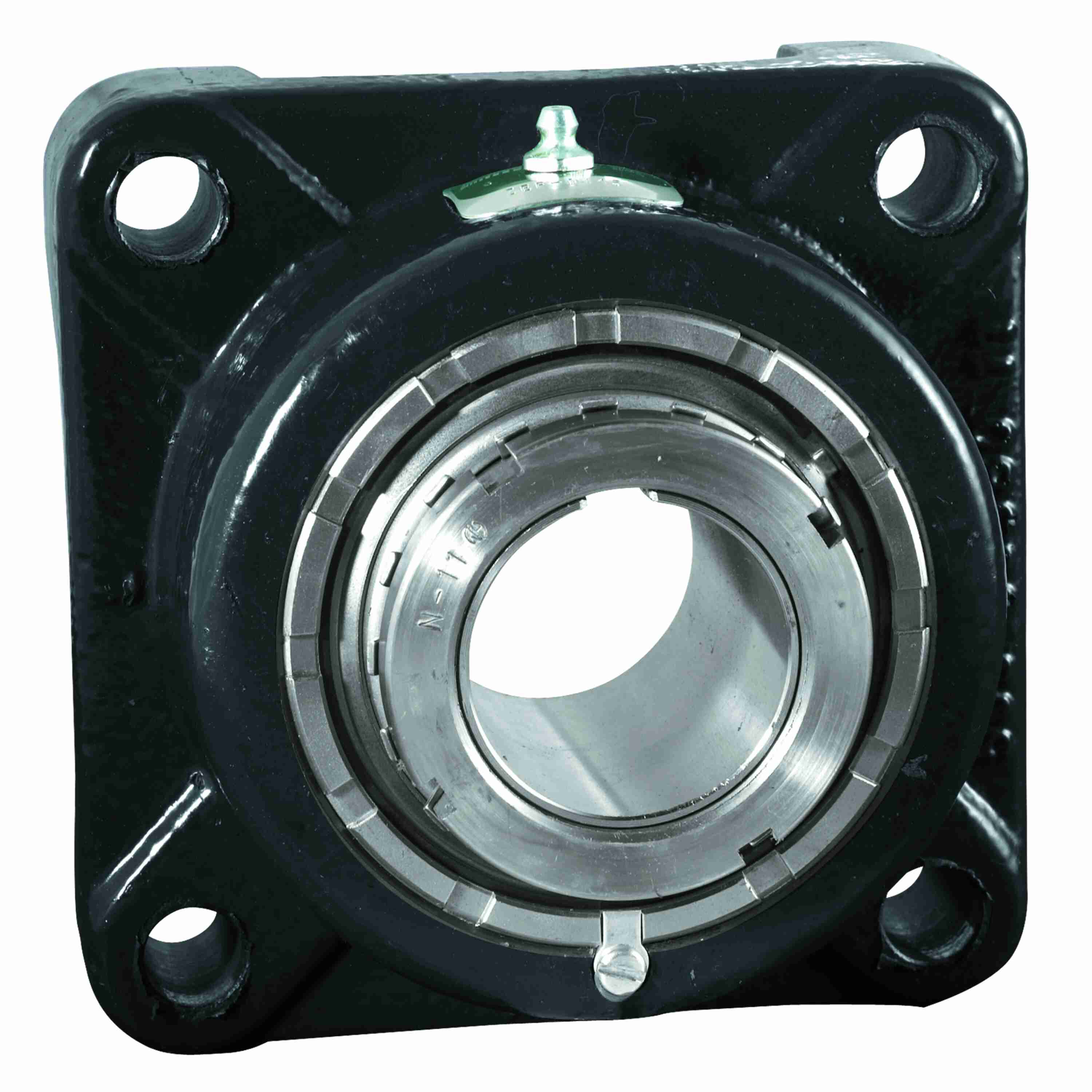

Link-Belt EFB22635E7 Flange Blocks Link-Belt Spherical Roller Bearings - EFB22635E7
Part #:10407488
Catalog #:EFB22635E7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1.56 in | Overall Height (in): | 4.09 in |
| Bolt Size (in): | 5/8 in | Bore Diameter (in): | 2.1875 in |
| Overall Width (in): | 6.25 in | Housing Height (in): | 3.5 in |
| Housing Width (in): | 6.25 in | Overall Length (in): | 6.25 in |
| Standoff Distance (in): | 1.47 in | Locking Collar Outside Diameter (in): | 3.16 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Bolt Spacing (in): | 4.88 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.63 in | Bolt Circle (in): | 6.891 in |
| Length Through Bore (in): | 3.16 in |
Technical Specifications
| Radial Dynamic Load Capacity (lb): | 32,500 lb | Housing Material: | Cast Iron |
| Shaft Locking Type: | Adapter Mount | Housing Style: | Flange Block |
| End Cap: | B436DTC | Rolling Element: | Spherical Roller |
| Cage Material: | Steel | Misalignment Type: | Dynamic |
| Static Load Rating (lb): | 44,400 lb | Fixed/Expansion: | Fixed |
| Series: | Flange Blocks | Housing Construction: | Solid |
| Seal Type: | Multi-Lip Contact Seal | Product: | EFB22600 |
| Housing Color: | Black | Housing Type: | Flange, Four Bolt |
| Radial Clearance: | C0 STANDARD | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Maximum Speed (RPM): | 1075 rpm | Ability to Relubricate: | Yes |
| Microlock Kit: | B436MLK | Seal Kit: | B436E7S |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Inner Ring Defect: | 0.179 cps |
| Housing Coating: | POWDER COATED | Size Code: | B635 |
| Max Operating Temperature (C): | 107 °C | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Outer Ring Defect: | 0.1377 cps |
| Insert: | B635L | Locking Device Kit: | SNW635 |
| Vibration Frequency Roller Spin: | 0.0606 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Shaft Locking Collar Kit/Adapter Assembly: | SNW635 |
| Primary Seal: | BUNA TRIPLE LIP SEAL |
General Specifications
| UPC: | 793699509984 | Weight: | 15.00 LB |
| Packaged Length: | 7.75 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 7.88 IN | HTC: | 84833080 |
