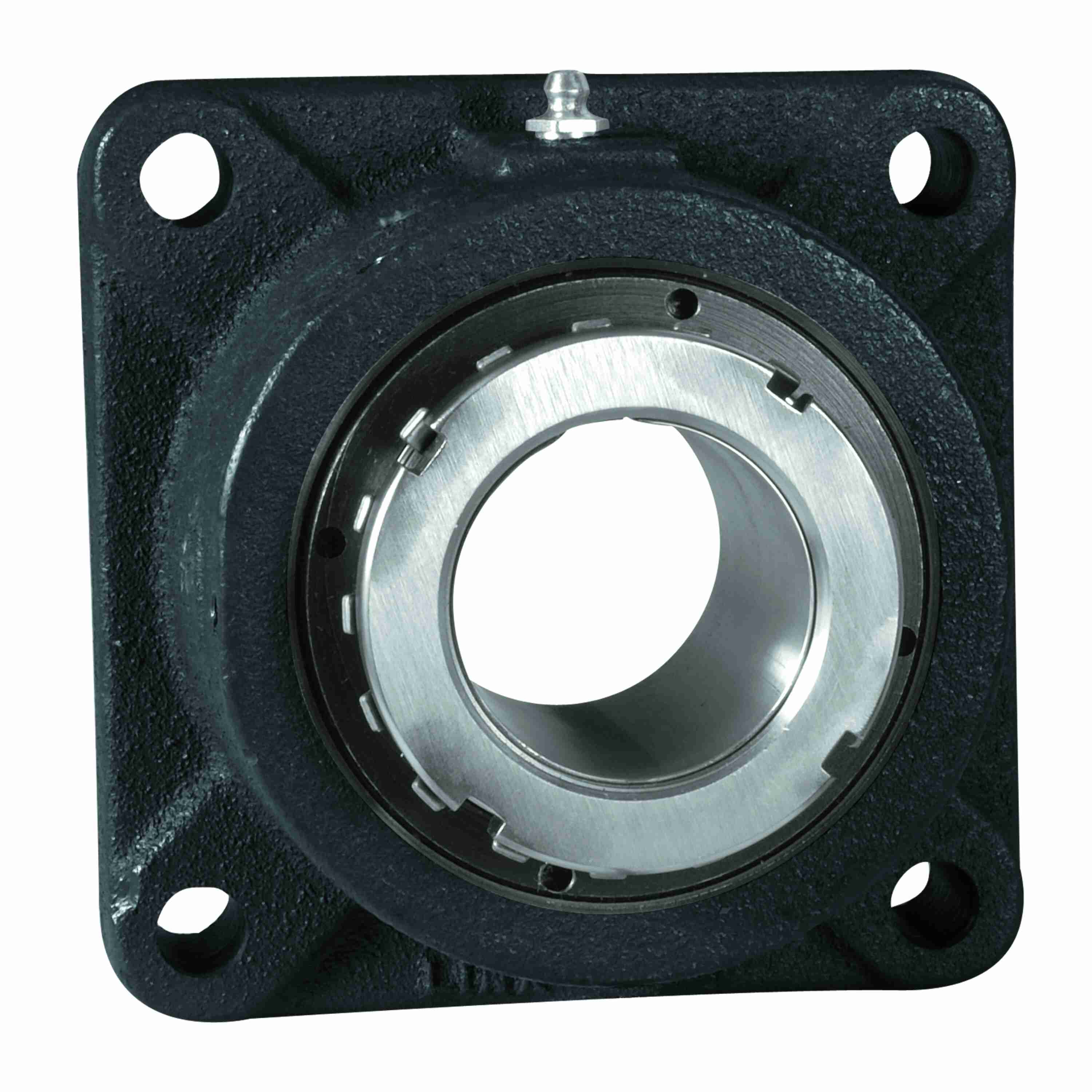

Link-Belt EFEB22639E Flange Blocks Link-Belt Spherical Roller Bearings - EFEB22639E
Part #:10426929
Catalog #:EFEB22639E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Housing Width (in): | 6.88 in | Housing Height (in): | 3.72 in |
| Bore Diameter (in): | 2.4375 in | Overall Height (in): | 4.34 in |
| Overall Length (in): | 6.88 in | Overall Width (in): | 6.88 in |
| Bolt Size (in): | 5/8 in | Foot Height (in): | 1.72 in |
| Locking Collar Outside Diameter (in): | 3.63 in | Bolt Spacing (in): | 5.38 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Length Through Bore (in): | 3.28 in |
| Bolt Circle (in): | 7.594 in | Expansion Capability (in): | 0.38 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.63 in |
Technical Specifications
| Series: | Flange Blocks | Rolling Element: | Spherical Roller |
| Housing Color: | Black | Product: | EFB22600 |
| Radial Dynamic Load Capacity (lb): | 38,300 lb | Shaft Locking Type: | Adapter Mount |
| Static Load Rating (lb): | 53,500 lb | Fixed/Expansion: | Expansion |
| Housing Construction: | Solid | Housing Material: | Cast Iron |
| Housing Style: | Flange Block | Housing Type: | Flange, Four Bolt |
| Misalignment Type: | Dynamic | Cage Material: | Steel |
| Radial Clearance: | C0 STANDARD | Seal Type: | Heavy Contact Seal |
| Maximum Speed (RPM): | 1750 rpm | Seal Kit: | B440ES |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Ability to Relubricate: | Yes |
| Shaft Locking Collar Kit/Adapter Assembly: | SNW639 | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Insert: | CSEB22639E |
| Lubricant: | Lithium Complex NLGI 2 Grease | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Vibration Frequency Roller Spin: | 0.0607 cps | Expansion Lock Plug: | B224408A |
| Locking Device Kit: | SNW639 | Max Operating Temperature (F): | 225 °F |
| Housing Coating: | POWDER COATED | Size Code: | B639 |
General Specifications
| UPC: | 793699091441 | Weight: | 18.00 LB |
| Packaged Length: | 7.75 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 7.88 IN | Country of Origin: | Mexico |
