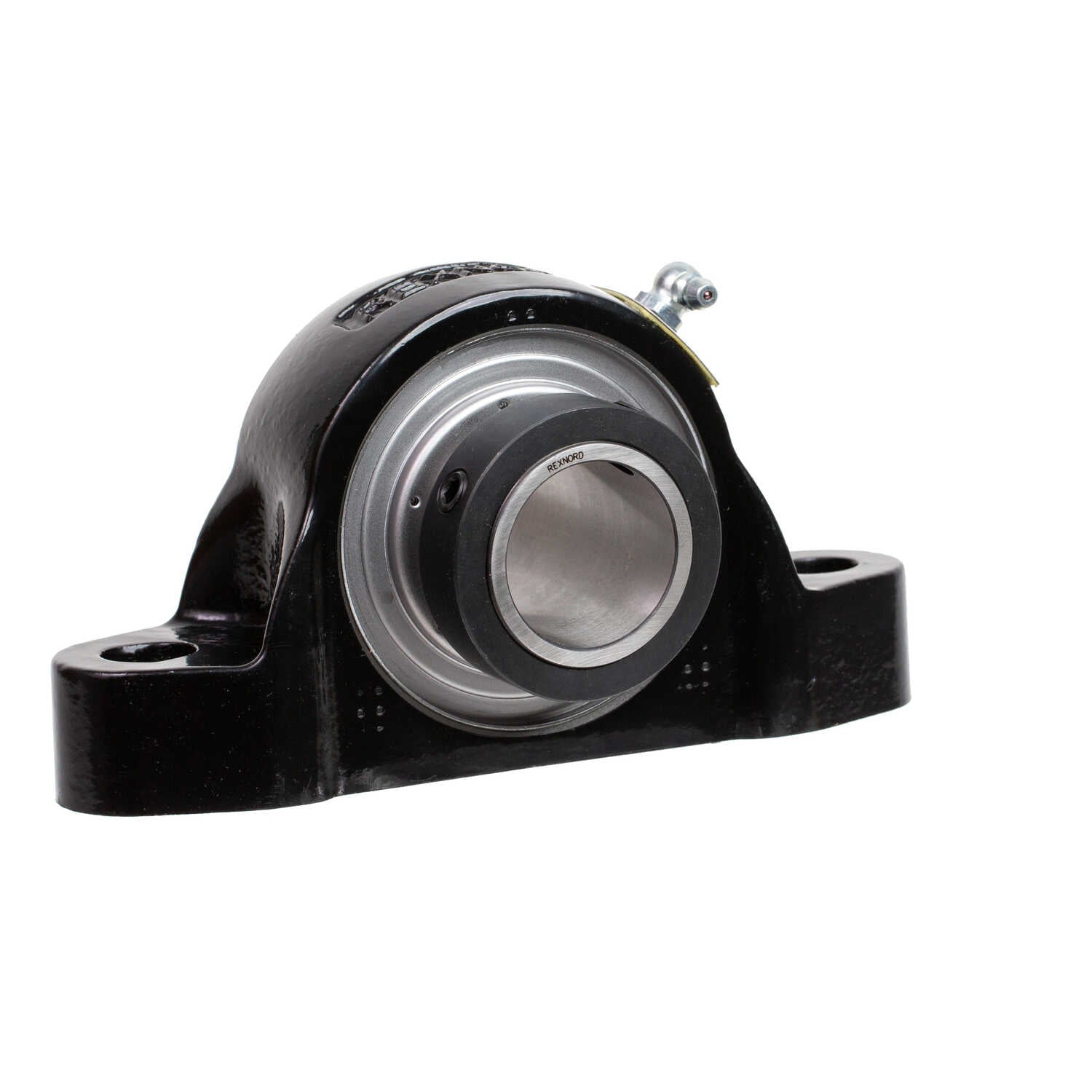

Rexnord EP2B107C Solid-housed Pillow Blocks PT Select Spherical Roller Bearings - EP2B107C
Part #:10479714
Catalog #:EP2B107C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 7.3 in | Overall Width (in): | 2.71 in |
| Foot Height (in): | 1.13 in | Slot Length (in): | 0.75 in |
| Base to Center Height (in): | 1.875 in | Bolt Size (in): | 1/2 in |
| Overall Height (in): | 3.85 in | Bore Diameter (in): | 1.4375 in |
| Base Width (in): | 1.95 in | Locking Collar Outside Diameter (in): | 2.3 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.99 in | Bolt Spacing Min (in): | 5.63 in |
| Centerline to Outermost Bearing Face (in): | 1.83 in | Length Through Bore (in): | 2.71 in |
| Bolt Spacing Max (in): | 5.88 in | Base Length (in): | 7.3 in |
Technical Specifications
| Shaft Locking Type: | Single Set Collar | Fixed/Expansion: | Fixed |
| Misalignment Type: | Dynamic | Series: | Solid-housed Pillow Blocks |
| Housing Material: | Cast Iron | Housing Construction: | Solid |
| Housing Style: | Pillow Block | Seal Type: | Clearance Seal |
| Static Load Rating (lb): | 21,360 lb | Housing Type: | Pillow Block, Two Bolt, Type E |
| Rolling Element: | Spherical Roller | End Cap: | SEE AUX CAP KIT |
| Radial Dynamic Load Capacity (lb): | 20,000 lb | Product: | EP2B |
| Housing Color: | Black | Cage Material: | Steel |
| Maximum Speed (RPM): | 4040 rpm | Ability to Relubricate: | Yes |
| Available Seal Type: | C Clearance Seal; T Triple Lip Seal | Setscrew Torque (in-lbs): | 325 in/lbs |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0431 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Grease Fitting Thread Size: | 1/8 NPT | Size Code: | 4 |
| Vibration Frequency Outer Ring Defect: | 0.102 cps | Max Operating Temperature (F): | 225 °F |
| Housing Coating: | POWDER COATED | Lubricant: | Lithium Complex NLGI 2 Grease |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Vibration Frequency Inner Ring Defect: | 0.148 cps |
General Specifications
| UPC: | 782934931208 | Weight: | 4.99 LB |
| Packaged Length: | 8.50 IN | Packaged Width: | 3.50 IN |
| Packaged Height: | 4.50 IN | HTC: | 8483204080 |
| Country of Origin: | China |
