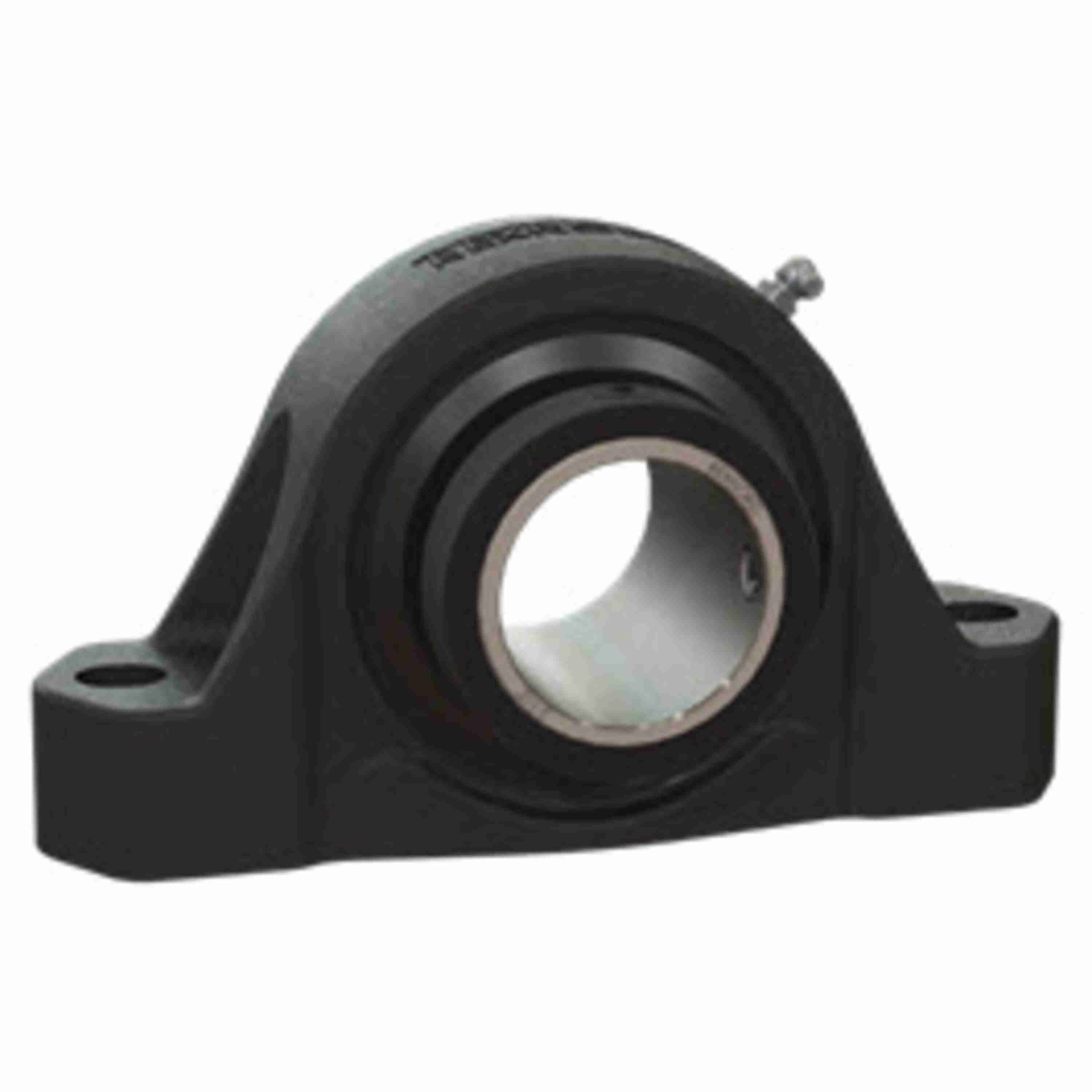

Rexnord EP2B208TE Solid-housed Pillow Blocks PT Select Spherical Roller Bearings - EP2B208TE
Part #:10479737
Catalog #:EP2B208TE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 0.87 in | Overall Length (in): | 8.86 in |
| Bolt Size (in): | 5/8 in | Overall Width (in): | 3.55 in |
| Bore Diameter (in): | 2.5000 in | Base Width (in): | 2.87 in |
| Foot Height (in): | 1.63 in | Base to Center Height (in): | 2.75 in |
| Overall Height (in): | 5.59 in | Locking Collar Outside Diameter (in): | 3.55 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.3 in | Centerline to Outermost Bearing Face (in): | 2.42 in |
| Bolt Spacing Min (in): | 8.38 in | Bolt Spacing Max (in): | 8.62 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Base Length (in): | 10.17 in |
| Length Through Bore (in): | 3.55 in | Expansion Capability (in): | 0.34 in |
Technical Specifications
| Housing Color: | Black | Housing Type: | Pillow Block, Two Bolt, Type E |
| Housing Construction: | Solid | Cage Material: | Steel |
| Series: | Solid-housed Pillow Blocks | Radial Dynamic Load Capacity (lb): | 38,400 lb |
| Seal Type: | Multi-Lip Contact Seal | Static Load Rating (lb): | 43,870 lb |
| Fixed/Expansion: | Expansion | Housing Material: | Cast Iron |
| End Cap: | SEE AUX CAP KIT | Shaft Locking Type: | Single Set Collar |
| Housing Style: | Pillow Block | Product: | EP2B |
| Misalignment Type: | Dynamic | Rolling Element: | Spherical Roller |
| Maximum Speed (RPM): | 2310 rpm | Setscrew Torque (in-lbs): | 680 in/lbs |
| Ability to Relubricate: | Yes | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Vibration Frequency Outer Ring Defect: | 0.1193 cps | Max Operating Temperature (F): | 225 °F |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lubricant: | Lithium Complex NLGI 2 Grease |
| Size Code: | 8 | Vibration Frequency Roller Spin: | 0.0507 cps |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Vibration Frequency Inner Ring Defect: | 0.164 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Housing Coating: | POWDER COATED | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.007 cps |
General Specifications
| UPC: | 782934930973 | Weight: | 14.12 LB |
| Packaged Length: | 6.56 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 10.56 IN | HTC: | 8483204080 |
| Country of Origin: | China |
