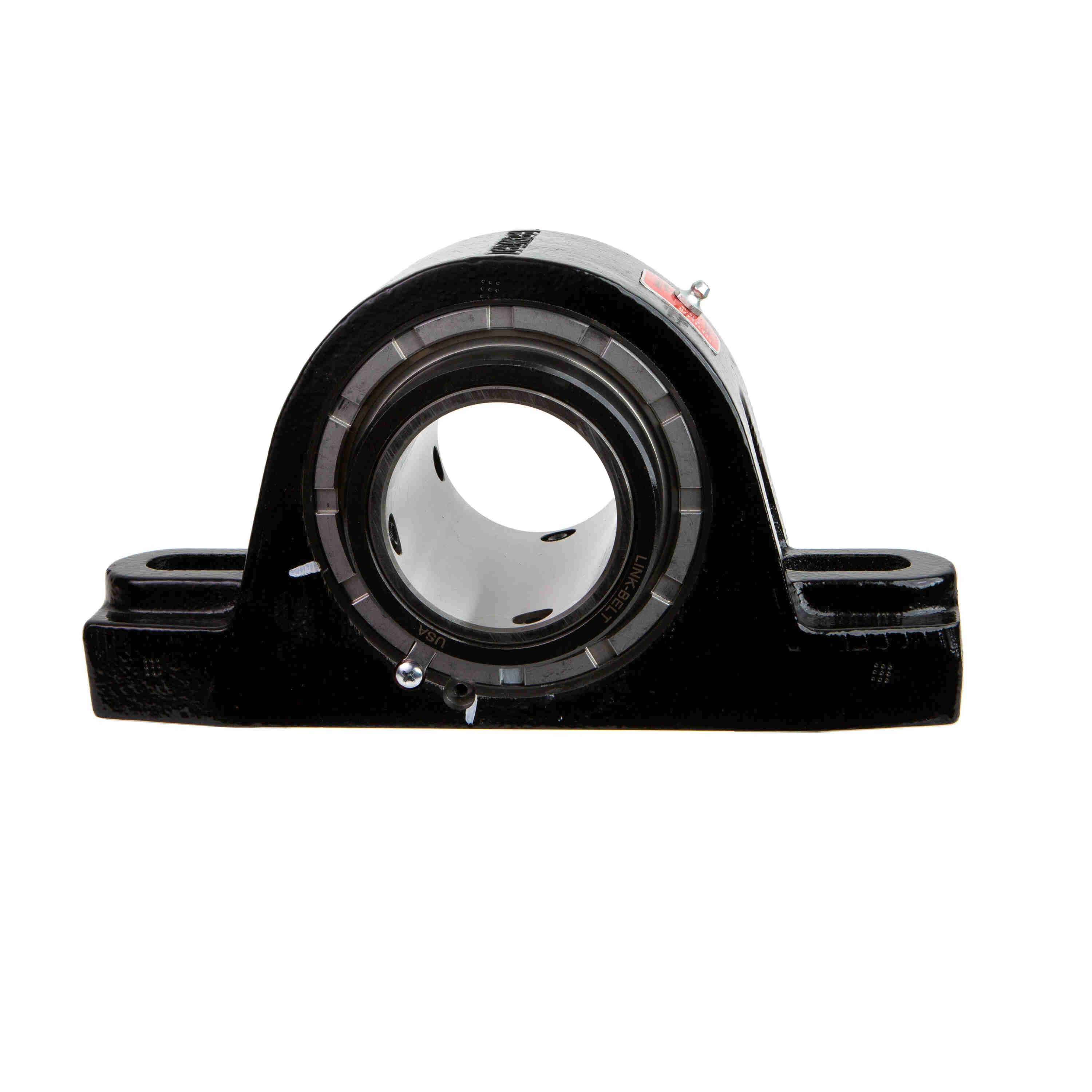

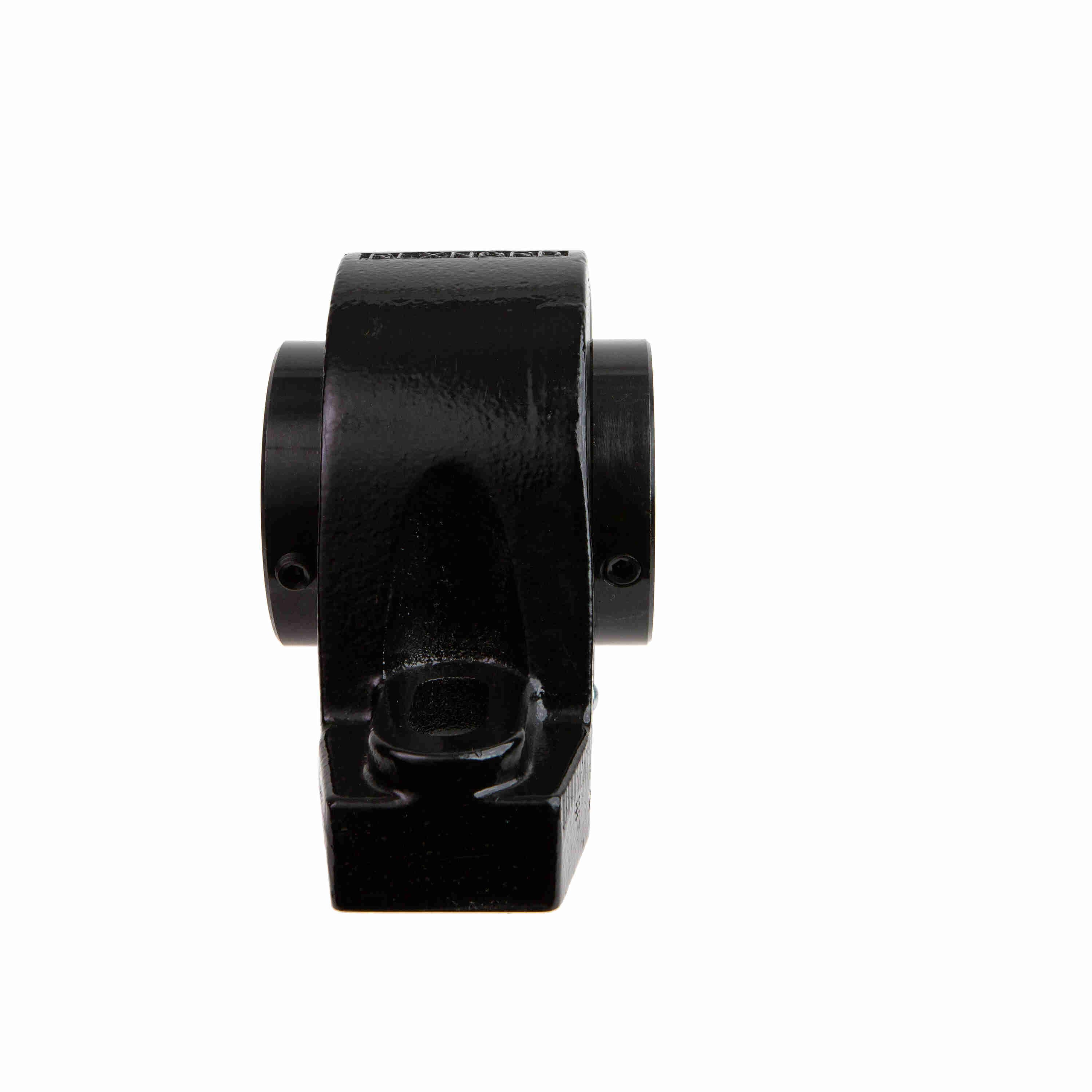

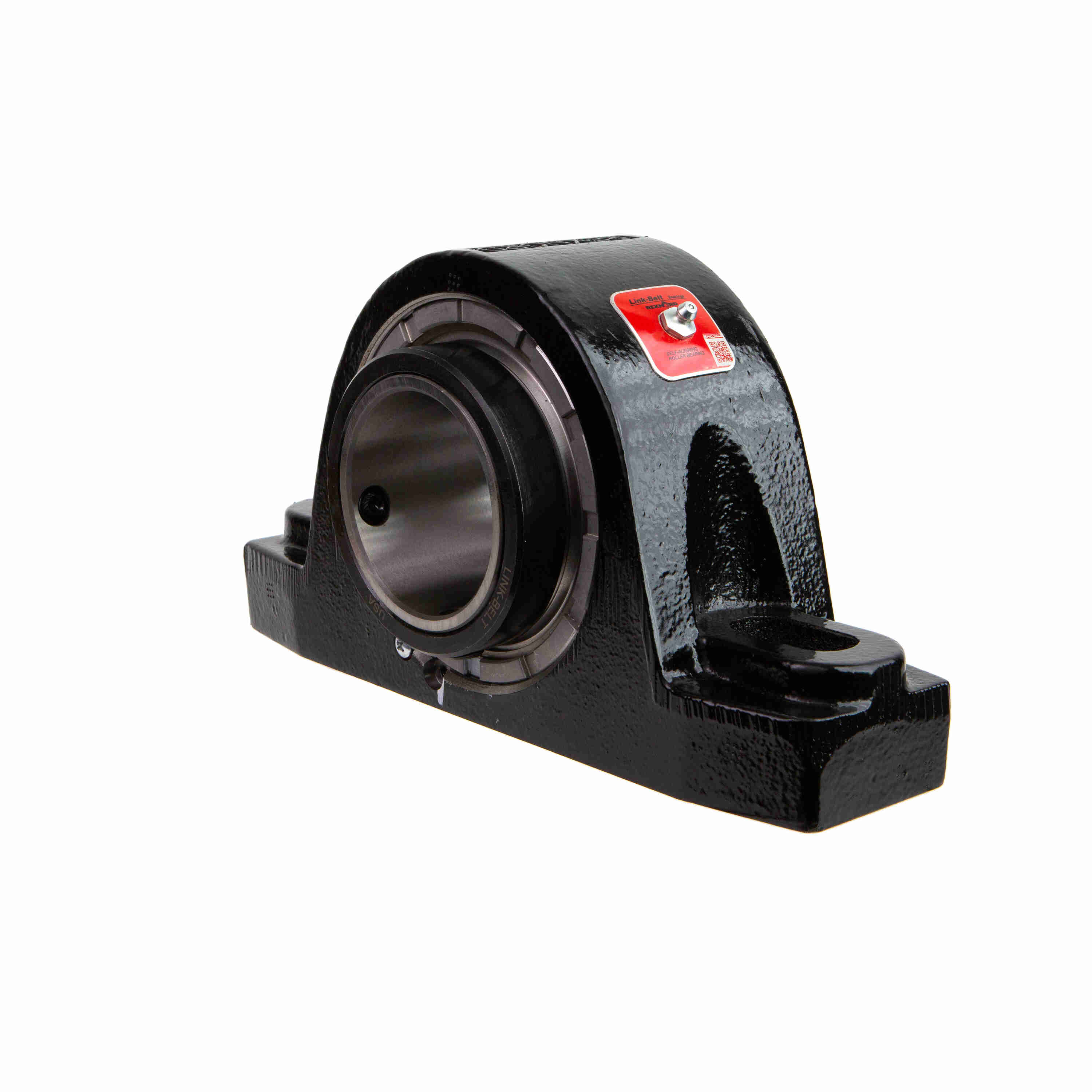

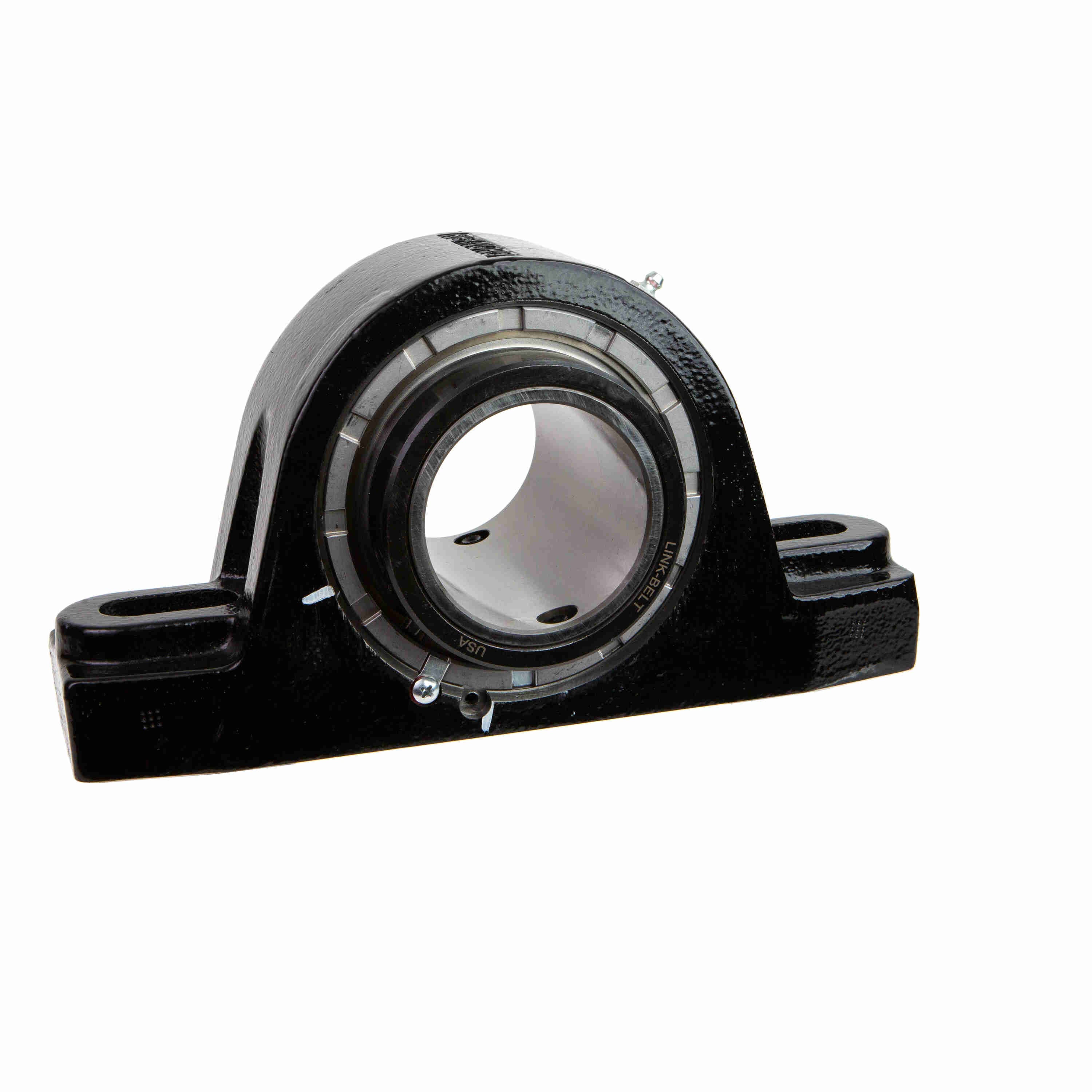

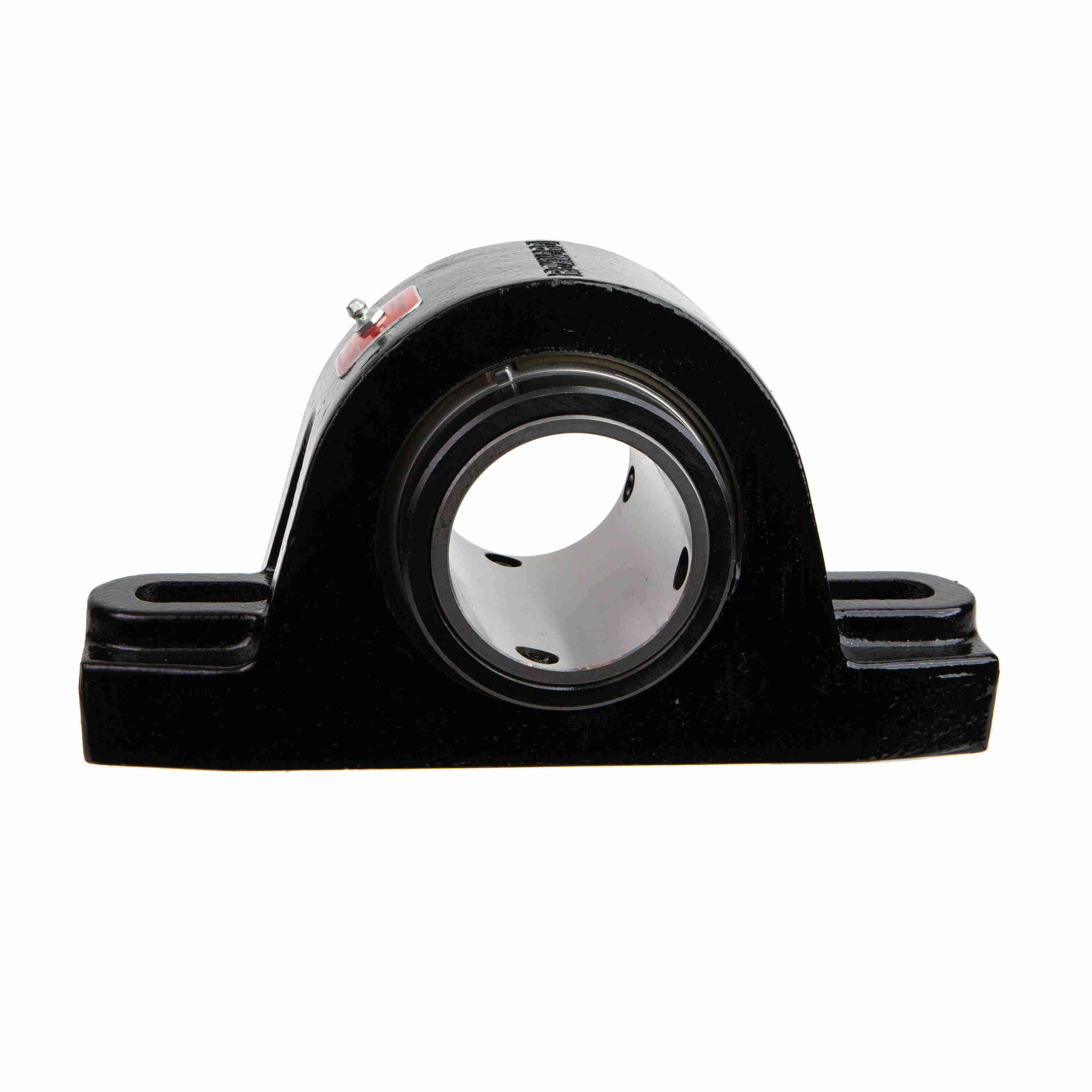

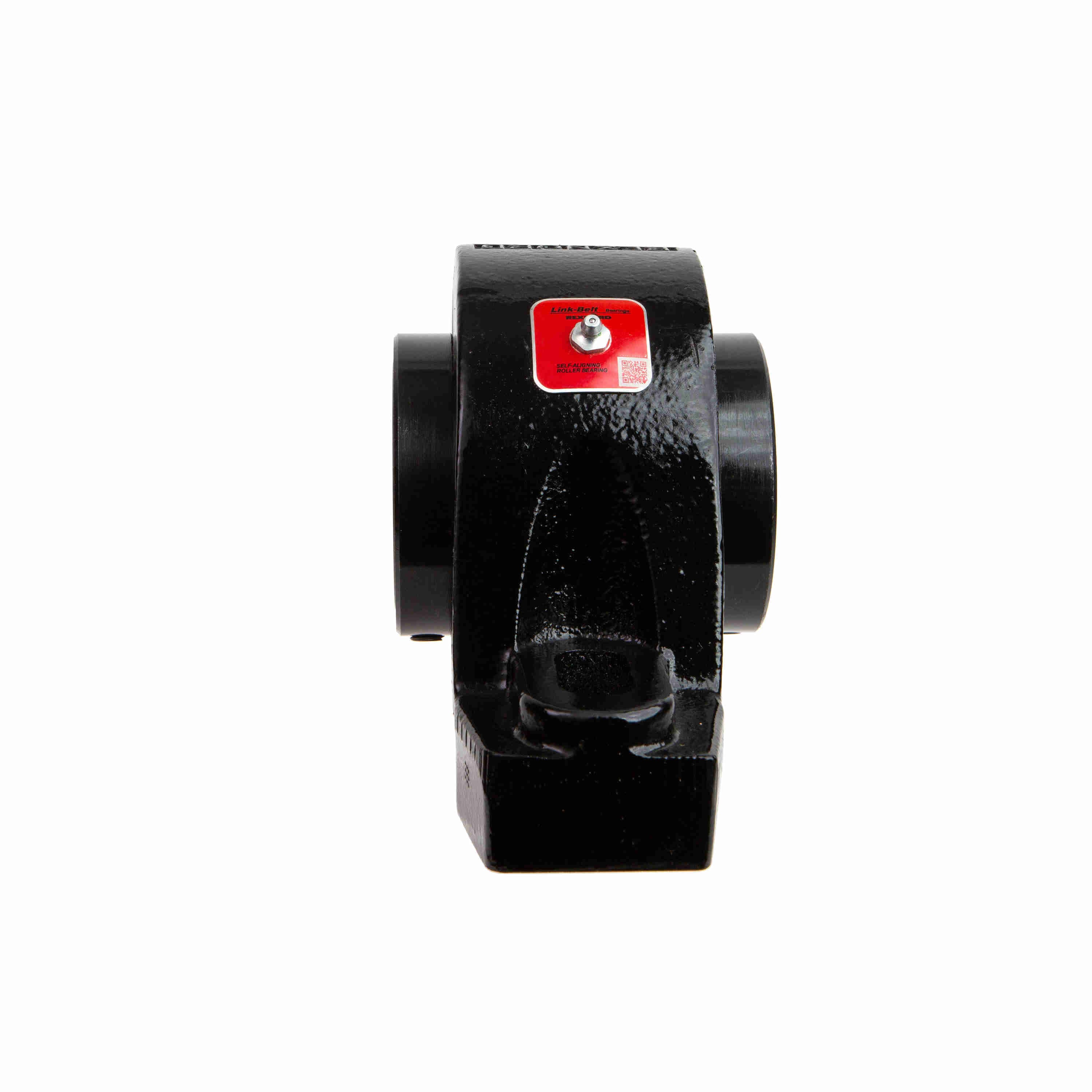

Link-Belt EPB22547H Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - EPB22547H
Part #:10416494
Catalog #:EPB22547H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 3.81 in | Overall Height (in): | 6.31 in |
| Bore Diameter (in): | 2.9375 in | Base to Center Height (in): | 3.125 in |
| Foot Height (in): | 1.88 in | Bolt Size (in): | 3/4 in |
| Overall Length (in): | 11.69 in | Overall Width (in): | 4.88 in |
| Locking Collar Outside Diameter (in): | 4.06 in | Base Length (in): | 11.69 in |
| Centerline to Outermost Bearing Face (in): | 2.44 in | Length Through Bore (in): | 4.88 in |
| Bolt Spacing Min (in): | 7.81 in | Housing Cast Face to Outermost Bearing Face (in): | 0.84 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Bolt Spacing Max (in): | 9.75 in |
Technical Specifications
| Rolling Element: | Spherical Roller | Seal Type: | Clearance Seal |
| Cage Material: | Steel | Housing Material: | Cast Iron |
| Housing Construction: | Solid | Housing Color: | Black |
| Product: | EPB22500 | Shaft Locking Type: | Double Set Collar |
| Static Load Rating (lb): | 71,500 lb | Housing Type: | Pillow Block, Two Bolt, Type E |
| End Cap: | B448DTC | Radial Dynamic Load Capacity (lb): | 51,100 lb |
| Misalignment Type: | Dynamic | Series: | Solid-housed Pillow Blocks |
| Housing Style: | Pillow Block | Fixed/Expansion: | Fixed |
| Radial Clearance: | C0 STANDARD | Setscrew Torque (in-lbs): | 680 in/lbs |
| Maximum Speed (RPM): | 1950 rpm | Microlock Kit: | B448MLK |
| Seal Kit: | B448HS | Ability to Relubricate: | Yes |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Insert: | B547L |
| Max Operating Temperature (C): | 107 °C | Size Code: | B548 |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 1/8 NPT | Housing Coating: | POWDER COATED |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Locking Device Kit: | B448SC QTY 2 |
| Vibration Frequency Roller Spin: | 0.0591 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 662327025366 | Weight: | 29.26 LB |
| Packaged Length: | 7.25 IN | Packaged Width: | 5.50 IN |
| Packaged Height: | 13.50 IN | Country of Origin: | Mexico |
