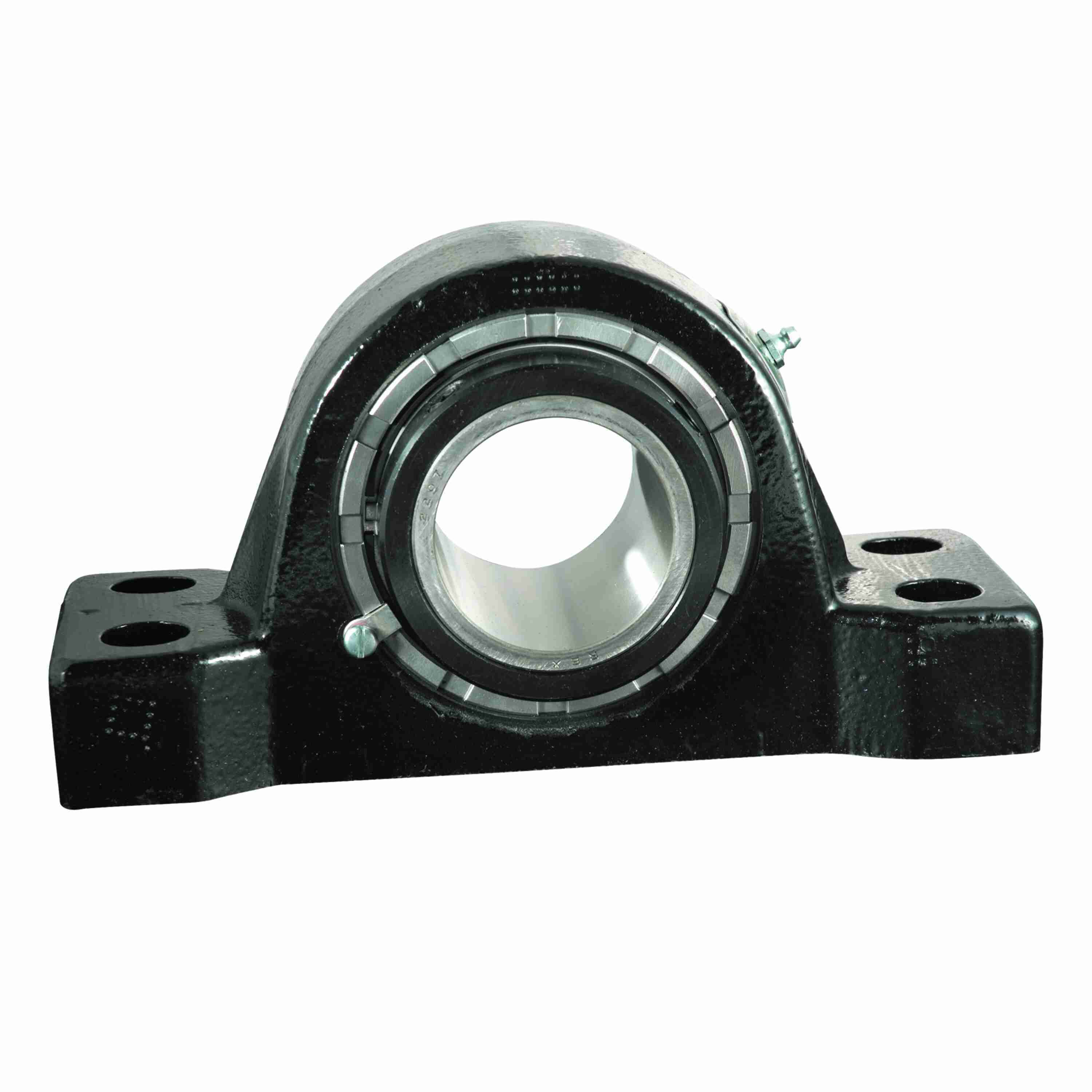

Link-Belt EPEB22539FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - EPEB22539FH
Part #:10415004
Catalog #:EPEB22539FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Locking Collar Outside Diameter (in): | 3.56 in | Overall Width (in): | 4.38 in |
| Overall Length (in): | 10.5 in | Bore Diameter (in): | 2.4375 in |
| Foot Height (in): | 1.63 in | Base Width (in): | 3.63 in |
| Bolt Size (in): | 5/8 in | Base to Center Height (in): | 2.75 in |
| Overall Height (in): | 5.88 in | Bolt Spacing Width (in): | 1.88 in |
| Bolt Spacing Min (in): | 6.94 in | Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Length Through Bore (in): | 4.38 in |
| Base Length (in): | 10.5 in | Centerline to Outermost Bearing Face (in): | 2.19 in |
| Expansion Capability (in): | 0.38 in | Bolt Spacing Max (in): | 8.75 in |
Technical Specifications
| Cage Material: | Steel | Ability to Relubricate: | Yes |
| Maximum Speed (RPM): | 2300 rpm | Rolling Element: | Spherical Roller |
| Shaft Locking Type: | Double Set Collar | Setscrew Torque (in-lbs): | 680 in/lbs |
| Housing Construction: | Solid | Housing Type: | Pillow Block, Four Bolt, Type E |
| Seal Kit: | B440HS | Housing Material: | Cast Iron |
| Seal Type: | Clearance Seal | Fixed/Expansion: | Expansion |
| Misalignment Type: | Dynamic | Static Load Rating (lb): | 53,500 lb |
| Radial Dynamic Load Capacity (lb): | 38,300 lb | Series: | Solid-housed Pillow Blocks |
| Product: | EPEB22500F | Housing Style: | Pillow Block |
| Housing Color: | Black | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Size Code: | B540 |
| Max Operating Temperature (F): | 225 °F | Locking Device Kit: | B440SC QTY 2 |
| Vibration Frequency Roller Spin: | 0.0607 cps | Max Operating Temperature (C): | 107 °C |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Expansion Lock Plug: | B224408A |
| Primary Seal: | STEEL CLEARANCE SEAL | Insert: | CSEB22539H |
| Housing Coating: | Powder Coated | Grease Fitting Thread Size: | 1/8 NPT |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
General Specifications
| UPC: | 662327025779 | Weight: | 22.00 LB |
| Country of Origin: | Mexico |
