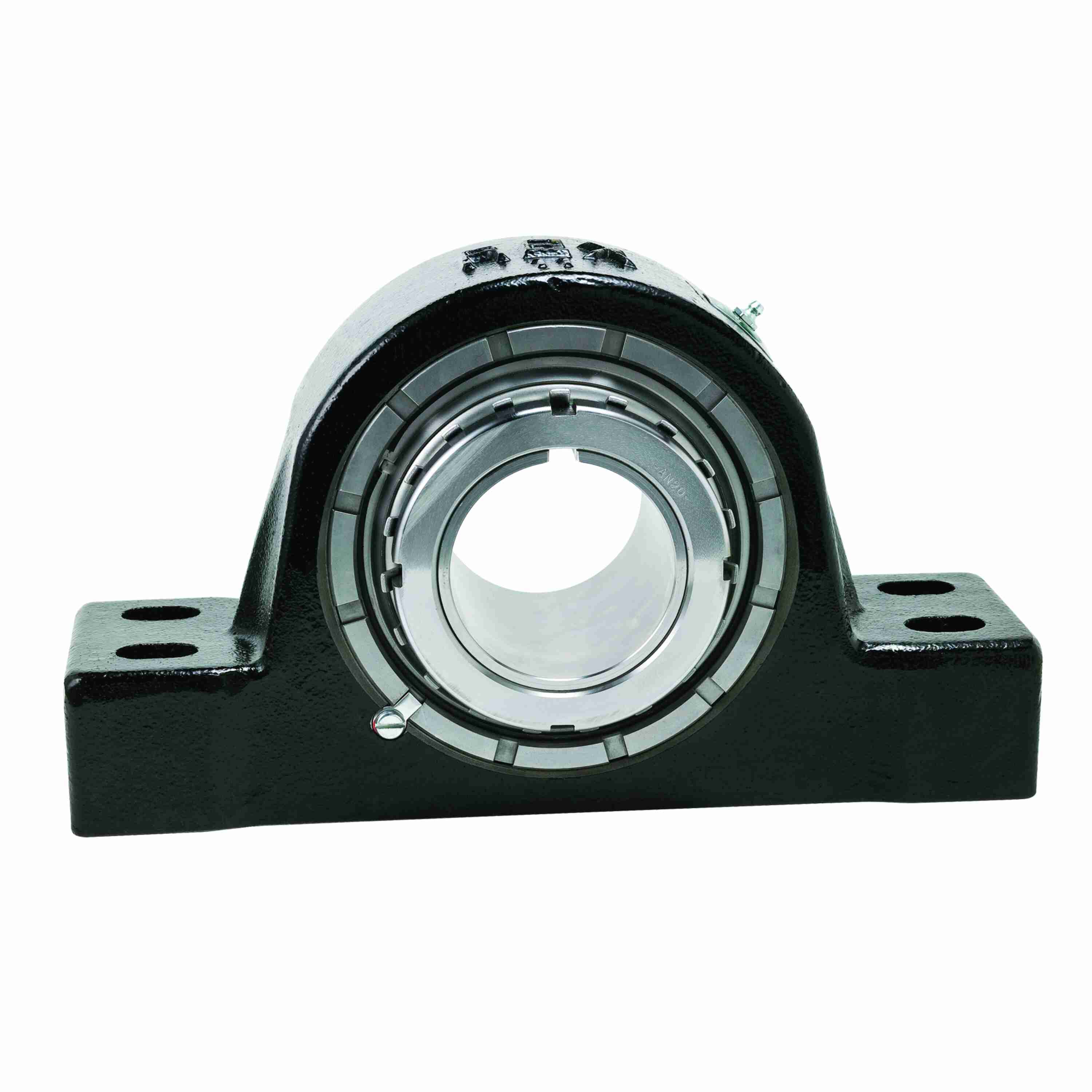

Link-Belt EPEB22639FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - EPEB22639FH
Part #:10442381
Catalog #:EPEB22639FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 5.5 in | Base to Center Height (in): | 2.75 in |
| Base Width (in): | 3.63 in | Bolt Size (in): | 5/8 in |
| Foot Height (in): | 1.63 in | Overall Width (in): | 3.63 in |
| Overall Length (in): | 10.5 in | Bore Diameter (in): | 2.4375 in |
| Locking Collar Outside Diameter (in): | 3.63 in | Expansion Capability (in): | 0.38 in |
| Centerline to Outermost Bearing Face (in): | 1.97 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.63 in | Bolt Spacing Width (in): | 1.88 in |
| Base Length (in): | 10.5 in | Length Through Bore (in): | 3.28 in |
| Bolt Spacing Max (in): | 8.75 in | Bolt Spacing Min (in): | 6.94 in |
Technical Specifications
| Housing Style: | Pillow Block | Seal Type: | Clearance Seal |
| Fixed/Expansion: | Expansion | Cage Material: | Steel |
| Static Load Rating (lb): | 53,500 lb | Housing Type: | Pillow Block, Four Bolt, Type E |
| Housing Material: | Cast Iron | Radial Dynamic Load Capacity (lb): | 38,300 lb |
| Shaft Locking Type: | Adapter Mount | Housing Construction: | Solid |
| Rolling Element: | Spherical Roller | Misalignment Type: | Dynamic |
| Product: | EPEB22600F | Housing Color: | Black |
| Radial Clearance: | C0 STANDARD | Series: | Solid-housed Pillow Blocks |
| Maximum Speed (RPM): | 2300 rpm | Ability to Relubricate: | Yes |
| Seal Kit: | B448HS | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Primary Seal: | STEEL CLEARANCE SEAL | Shaft Locking Collar Kit/Adapter Assembly: | SNW639 |
| Size Code: | B639 | Insert: | CSEB22639H |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Housing Coating: | POWDER COATED | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Expansion Lock Plug: | B224408A | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | SNW639 |
| Vibration Frequency Roller Spin: | 0.0607 cps | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 793699016130 | Weight: | 20.32 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 3.56 IN |
| Packaged Height: | 6.75 IN | Country of Origin: | Mexico |
