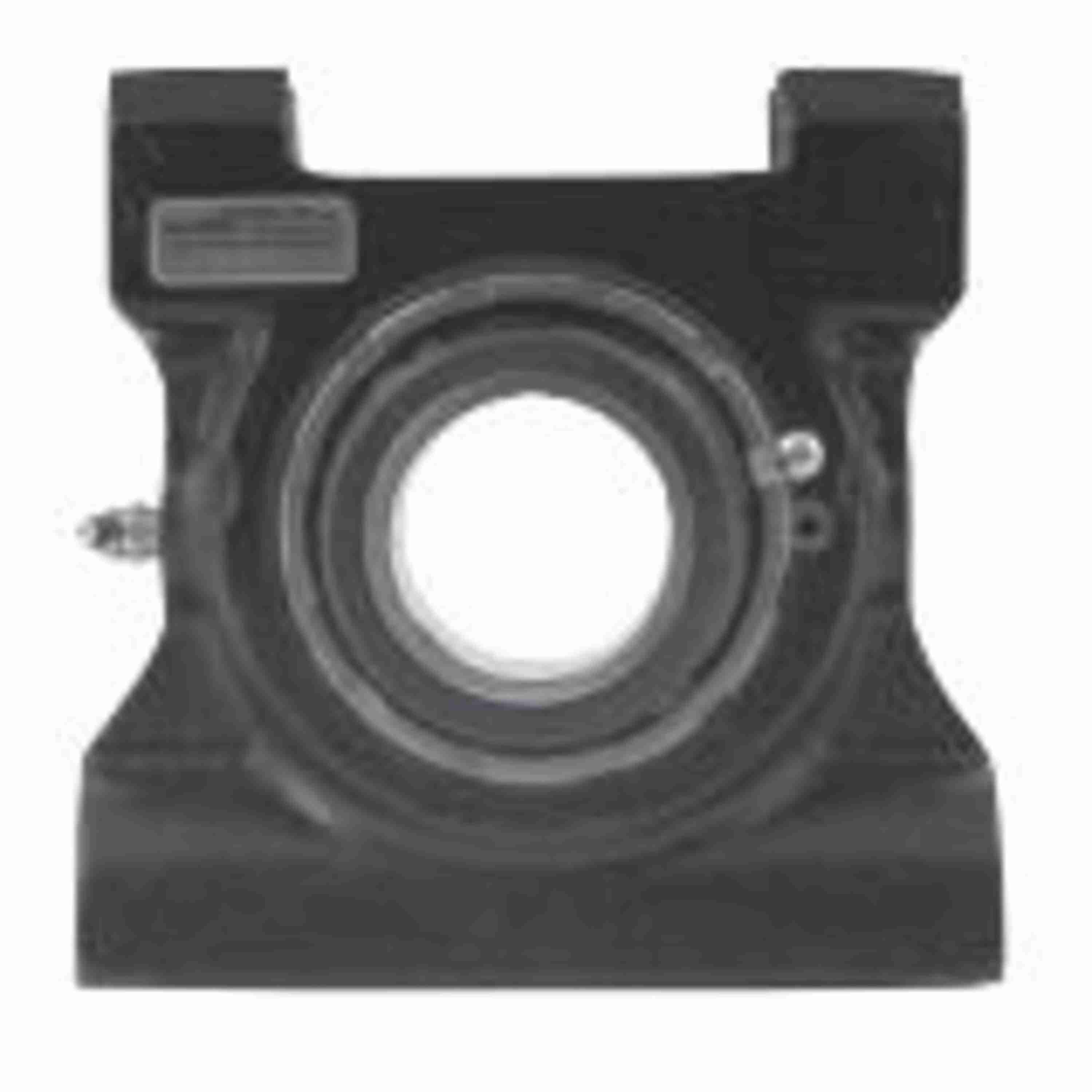

Link-Belt ETPB22431H Take-up Blocks Link-Belt Spherical Roller Bearings - ETPB22431H
Part #:10436361
Catalog #:ETPB22431H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Width (in): | 0.94 in | Base to Center Height (in): | 3.219 in |
| Slot Length (in): | 4.5 in | Overall Height (in): | 6.44 in |
| Overall Width (in): | 3.13 in | Bore Diameter (in): | 1.9375 in |
| Overall Length (in): | 6.5 in | Slot Spacing (in): | 4 in |
| Channel Radius (in): | 0.81 in | Slot Depth (in): | 1.38 in |
| Locking Collar Outside Diameter (in): | 2.88 in | Bottom Channel Outside Width (in): | 2.38 in |
| Top Housing Length (in): | 6 in | Housing Top Width (in): | 2.41 in |
| Bottom Housing Length (in): | 6.5 in | Bottom Take Up Slot to Centerline of Bearing (in): | 2 in |
| Inner Ring Outside Diameter (in): | 2.307 in | Length Through Bore (in): | 3.13 in |
Technical Specifications
| Seal Type: | Clearance Seal | Misalignment Type: | Dynamic |
| Static Load Rating (lb): | 33,200 lb | Housing Type: | Take Up, Top Angle |
| Cage Material: | Steel | Shaft Locking Type: | Single Set Collar |
| Housing Construction: | Solid | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | End Cap: | B432DTC |
| Radial Dynamic Load Capacity (lb): | 25,900 lb | Series: | Take-up Blocks |
| Housing Style: | Take-Up Block | Fixed/Expansion: | Fixed |
| Housing Color: | Black | Product: | ETPB22400 |
| Radial Clearance: | C0 STANDARD | Seal Kit: | B432HS |
| Maximum Speed (RPM): | 2800 rpm | Setscrew Torque (in-lbs): | 325 in/lbs |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Ability to Relubricate: | Yes |
| Microlock Kit: | B436MLK | Housing Coating: | POWDER COATED |
| Vibration Frequency Roller Spin: | 0.0559 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Size Code: | B432 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Insert: | B431L |
| Vibration Frequency Outer Ring Defect: | 0.1217 cps | Locking Device Kit: | B432SC |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.1617 cps |
General Specifications
| UPC: | 793699321418 | Weight: | 14.38 LB |
| Packaged Length: | 6.63 IN | Packaged Width: | 3.75 IN |
| Packaged Height: | 6.63 IN | HTC: | 8483204080 |
| Country of Origin: | Mexico |
