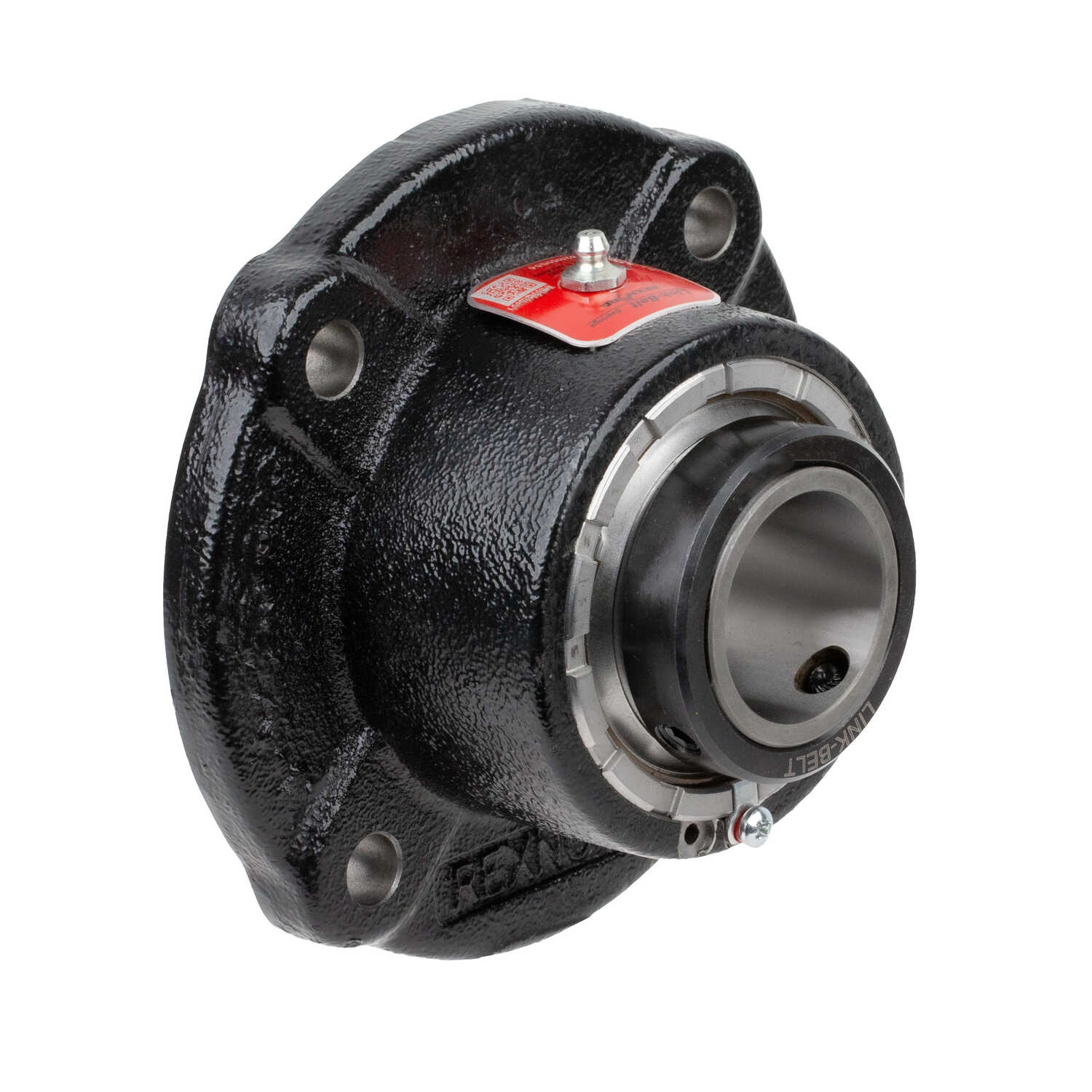

Link-Belt FB22427H Flange Blocks Link-Belt Spherical Roller Bearings - FB22427H
Part #:10424031
Catalog #:FB22427H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 1.6875 in | Bolt Size (in): | 1/2 in |
| Foot Height (in): | 0.63 in | Overall Height (in): | 3.16 in |
| Overall Width (in): | 6.75 in | Overall Length (in): | 6.75 in |
| Locking Collar Outside Diameter (in): | 2.59 in | Standoff Distance (in): | 0.03 in |
| Housing Outside Diameter (in): | 6.75 in | Bolt Circle (in): | 5.5 in |
| Inner Ring Outside Diameter (in): | 2.027 in | Length Through Bore (in): | 3.13 in |
| Bolt Spacing (in): | 5.89 in | Housing Cast Face to Outermost Bearing Face (in): | 0.66 in |
Technical Specifications
| Series: | Flange Blocks | Housing Material: | Cast Iron |
| Misalignment Type: | Dynamic | Shaft Locking Type: | Single Set Collar |
| Rolling Element: | Spherical Roller | Housing Color: | Black |
| Radial Dynamic Load Capacity (lb): | 24,700 lb | Housing Type: | Flange, Four Bolt |
| Housing Construction: | Solid | Fixed/Expansion: | Fixed |
| Cage Material: | Steel | Radial Clearance: | C0 STANDARD |
| Product: | FB22400 | Static Load Rating (lb): | 28,700 lb |
| Housing Style: | Flange Block | End Cap: | B428DTC |
| Seal Type: | Clearance Seal | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Seal Kit: | B428HS | Ability to Relubricate: | Yes |
| Setscrew Torque (in-lbs): | 325 in/lbs | Maximum Speed (RPM): | 3100 rpm |
| Microlock Kit: | B436MLK | Locking Device Kit: | B428SC |
| Vibration Frequency Outer Ring Defect: | 0.0972 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Fundamental Train: | 0.0069 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Insert: | B427L | Size Code: | B428 |
| Housing Coating: | POWDER COATED | Max Operating Temperature (F): | 225 °F |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Roller Spin: | 0.0466 cps |
| Vibration Frequency Inner Ring Defect: | 0.1361 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic |
General Specifications
| UPC: | 662327026387 | Weight: | 9.34 LB |
| Packaged Length: | 6.63 IN | Packaged Width: | 3.75 IN |
| Packaged Height: | 6.63 IN | HTC: | 8483204080 |
| Country of Origin: | Mexico |
