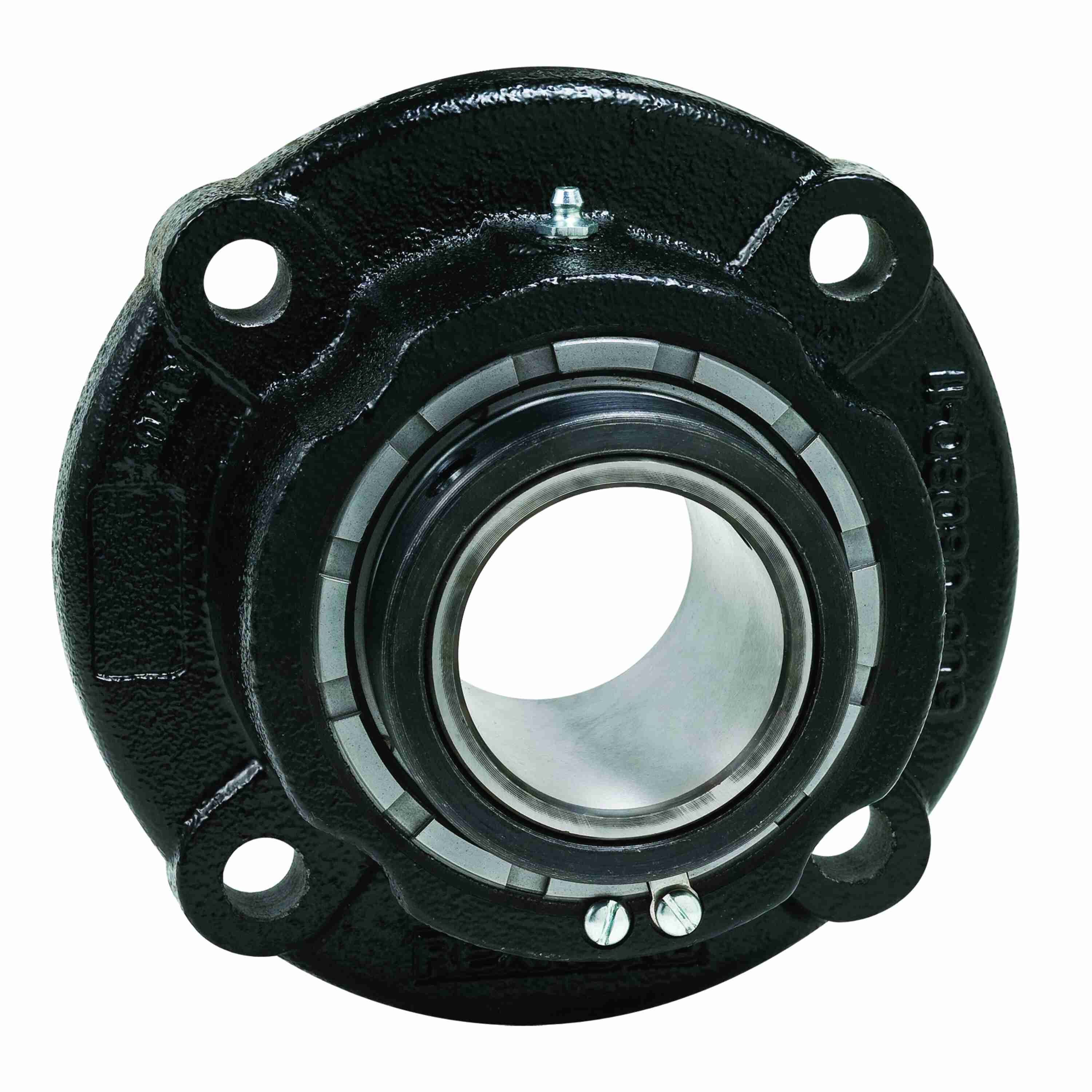

Link-Belt FB22439E7E7C Flange Blocks Link-Belt Spherical Roller Bearings - FB22439E7E7C
Part #:10415083
Catalog #:FB22439E7E7C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 3.97 in | Overall Width (in): | 8.13 in |
| Bolt Size (in): | 5/8 in | Overall Height to End Cap (in): | 3.97 in |
| Bore Diameter (in): | 2.4375 in | Overall Length (in): | 8.13 in |
| Foot Height (in): | 0.75 in | Standoff Distance (in): | 0.09 in |
| Housing Outside Diameter (in): | 8.13 in | Locking Collar Outside Diameter (in): | 3.56 in |
| Length Through Bore (in): | 3.5 in | Housing Cast Face to Outermost Bearing Face (in): | 0.84 in |
| Inner Ring Outside Diameter (in): | 2.901 in | Bolt Circle (in): | 6.75 in |
| Bolt Spacing (in): | 4.77 in |
Technical Specifications
| Housing Material: | Cast Iron | End Cap: | B440EC |
| Product: | FB22400 | Housing Type: | Flange, Four Bolt |
| Housing Construction: | Solid | Cage Material: | Steel |
| Housing Style: | Flange Block | Rolling Element: | Spherical Roller |
| Radial Clearance: | C0 STANDARD | Static Load Rating (lb): | 53,500 lb |
| Shaft Locking Type: | Single Set Collar | Seal Type: | Multi-Lip Contact Seal |
| Series: | Flange Blocks | Misalignment Type: | Dynamic |
| Radial Dynamic Load Capacity (lb): | 38,300 lb | Fixed/Expansion: | Fixed |
| Housing Color: | Black | Seal Kit: | B440E7S |
| Maximum Speed (RPM): | 975 rpm | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Setscrew Torque (in-lbs): | 680 in/lbs | Ability to Relubricate: | Yes |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Insert: | B439L |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Max Operating Temperature (F): | 225 °F | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0607 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Locking Device Kit: | B440SC | Housing Coating: | POWDER COATED |
| Size Code: | B440 | Auxiliary Seals: | 1 LB STYLE CLOSED CAP STEEL |
| Vibration Frequency Inner Ring Defect: | 0.1791 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 662327645564 | Weight: | 18.00 LB |
| Packaged Length: | 7.75 IN | Packaged Width: | 3.69 IN |
| Packaged Height: | 7.88 IN | Country of Origin: | Mexico |
