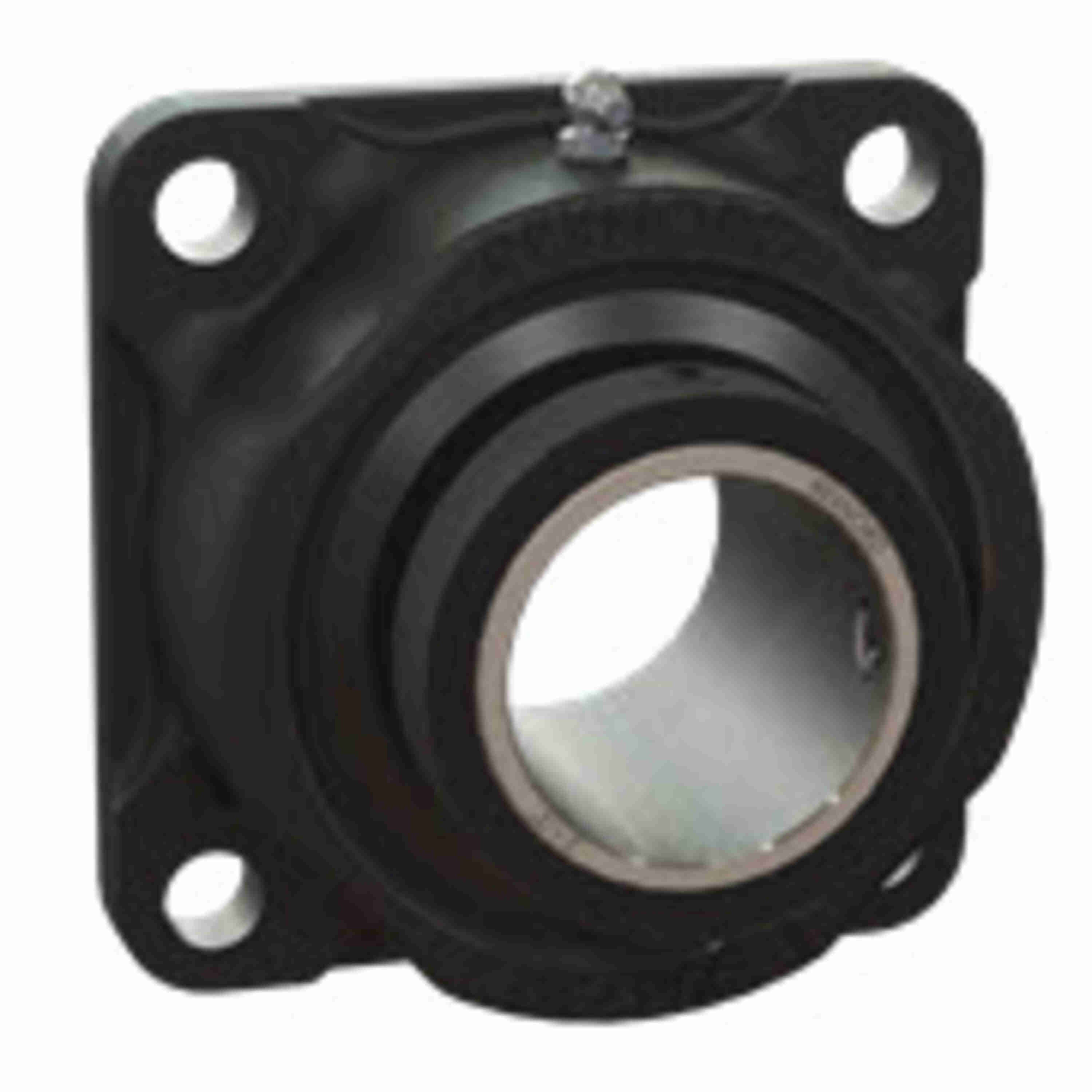

Rexnord FB315TE Flange Blocks PT Select Spherical Roller Bearings - FB315TE
Part #:10479793
Catalog #:FB315TE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 7/8 in | Housing Width (in): | 9.25 in |
| Overall Length (in): | 9.25 in | Bore Diameter (in): | 3.9375 in |
| Overall Width (in): | 9.25 in | Foot Height (in): | 1.06 in |
| Overall Height (in): | 5.02 in | Overall Height to End Cap (in): | 5.32 in |
| Standoff Distance (in): | 0.38 in | Locking Collar Outside Diameter (in): | 5.63 in |
| Square Distance Between Bolt Holes (in): | 7.6 in | Housing Cast Face to Outermost Bearing Face (in): | 1.61 in |
| Length Through Bore (in): | 4.64 in | Mounting Surface to Cap Face on Backside (in): | 1.38 in |
| Bolt Spacing (in): | 7.6 in | Inner Ring Outside Diameter (in): | 4.561 in |
| Expansion Capability (in): | 0.34 in | Bolt Circle (in): | 10.75 in |
Technical Specifications
| Housing Color: | Black | Misalignment Type: | Dynamic |
| End Cap: | SEE AUX CAP KIT | Fixed/Expansion: | Expansion |
| Cage Material: | Steel | Housing Material: | Cast Iron |
| Housing Type: | Flange, Four Bolt | Shaft Locking Type: | Single Set Collar |
| Housing Construction: | Solid | Product: | FB |
| Static Load Rating (lb): | 98,600 lb | Seal Type: | Multi-Lip Contact Seal |
| Rolling Element: | Spherical Roller | Housing Style: | Flange Block |
| Series: | Flange Blocks | Radial Dynamic Load Capacity (lb): | 80,000 lb |
| Setscrew Torque (in-lbs): | 1350 in/lbs | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1520 rpm |
| Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING | Vibration Frequency Outer Ring Defect: | 0.1196 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Fundamental Train: | 0.007 cps | Primary Seal: | BUNA TRIPLE LIP SEAL |
| Size Code: | 11 | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | POWDER COATED | Vibration Frequency Inner Ring Defect: | 0.1638 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Roller Spin: | 0.0514 cps |
General Specifications
| UPC: | 782934930416 | Weight: | 35.08 LB |
| Packaged Length: | 9.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 9.75 IN | HTC: | 8483204040 |
| Country of Origin: | China |
