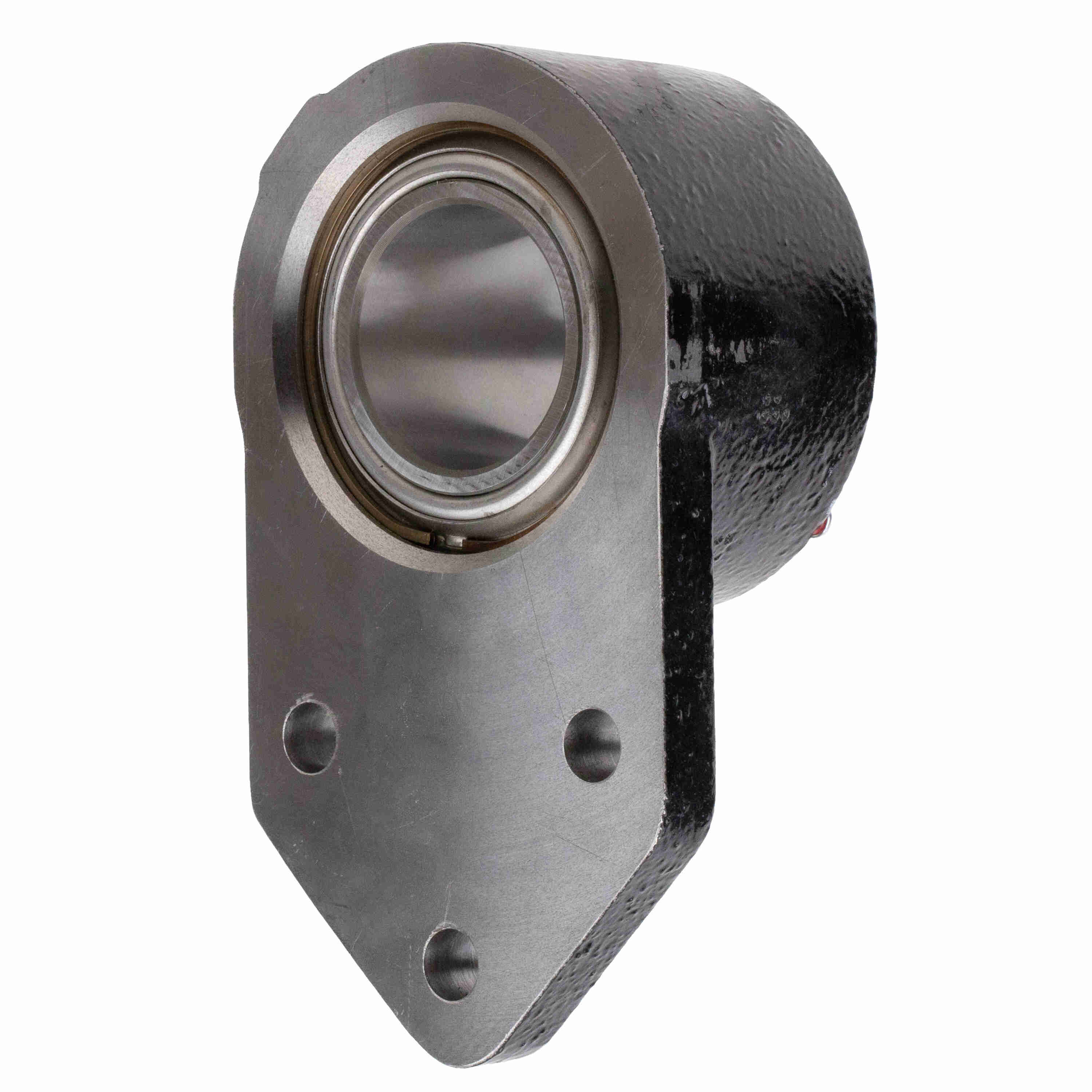

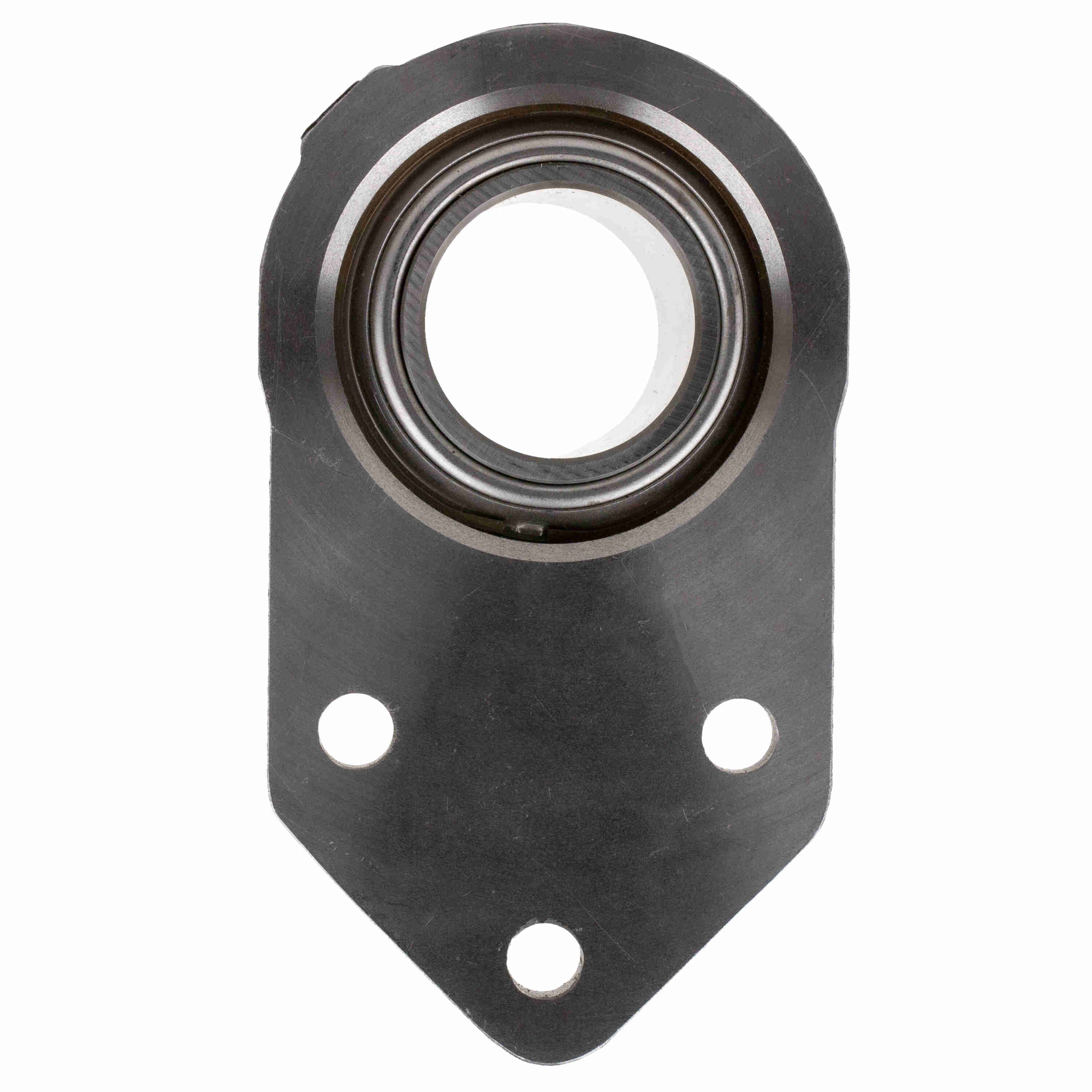

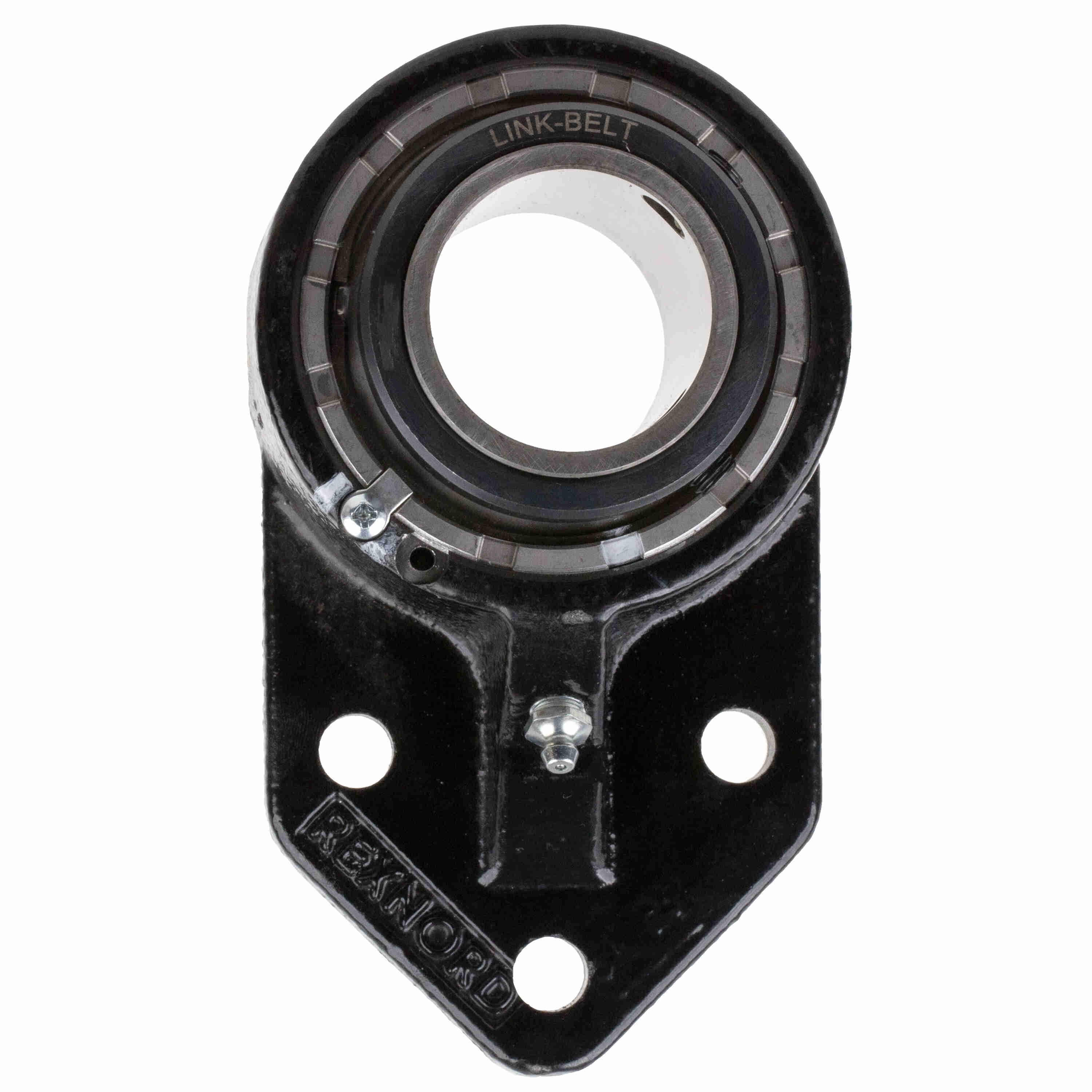

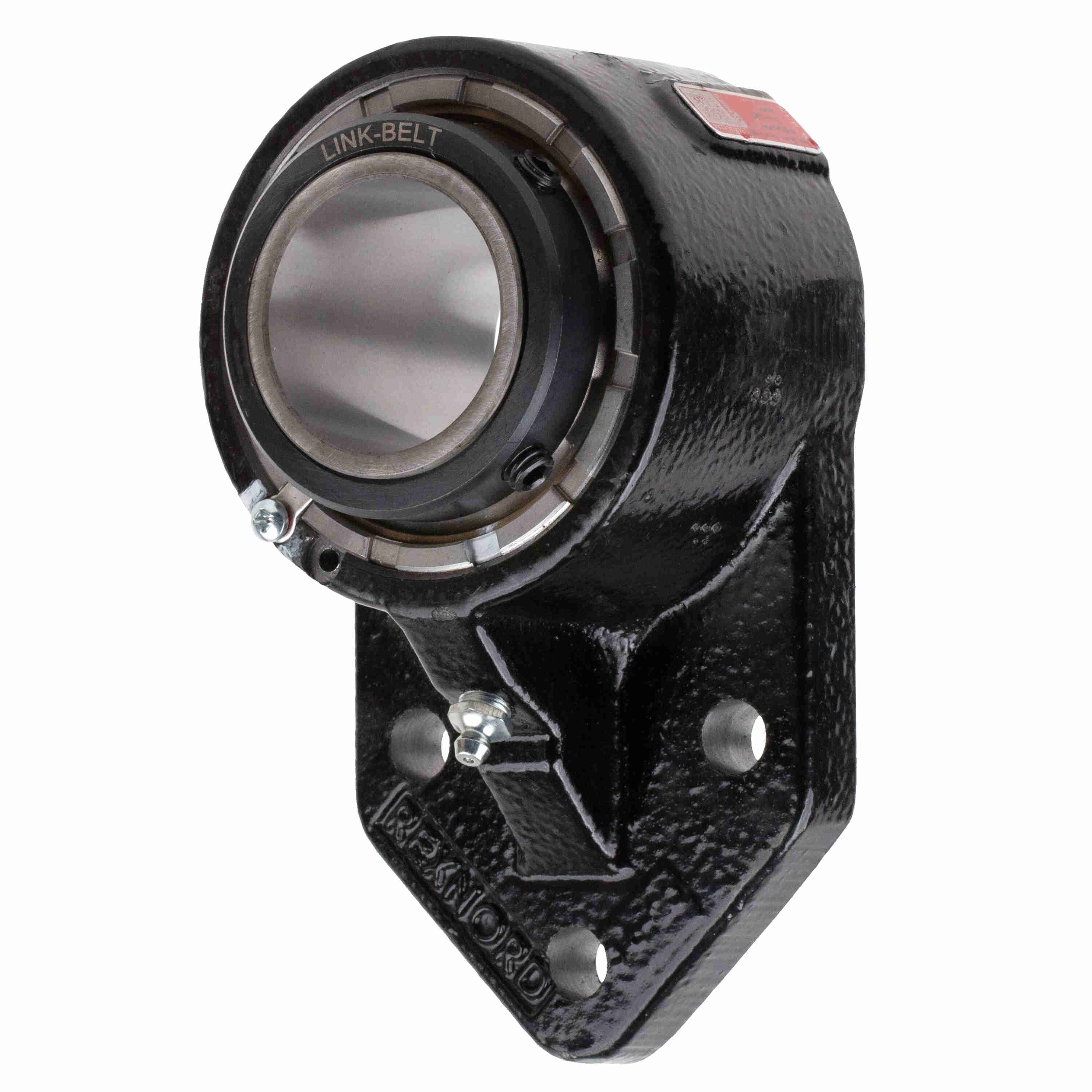

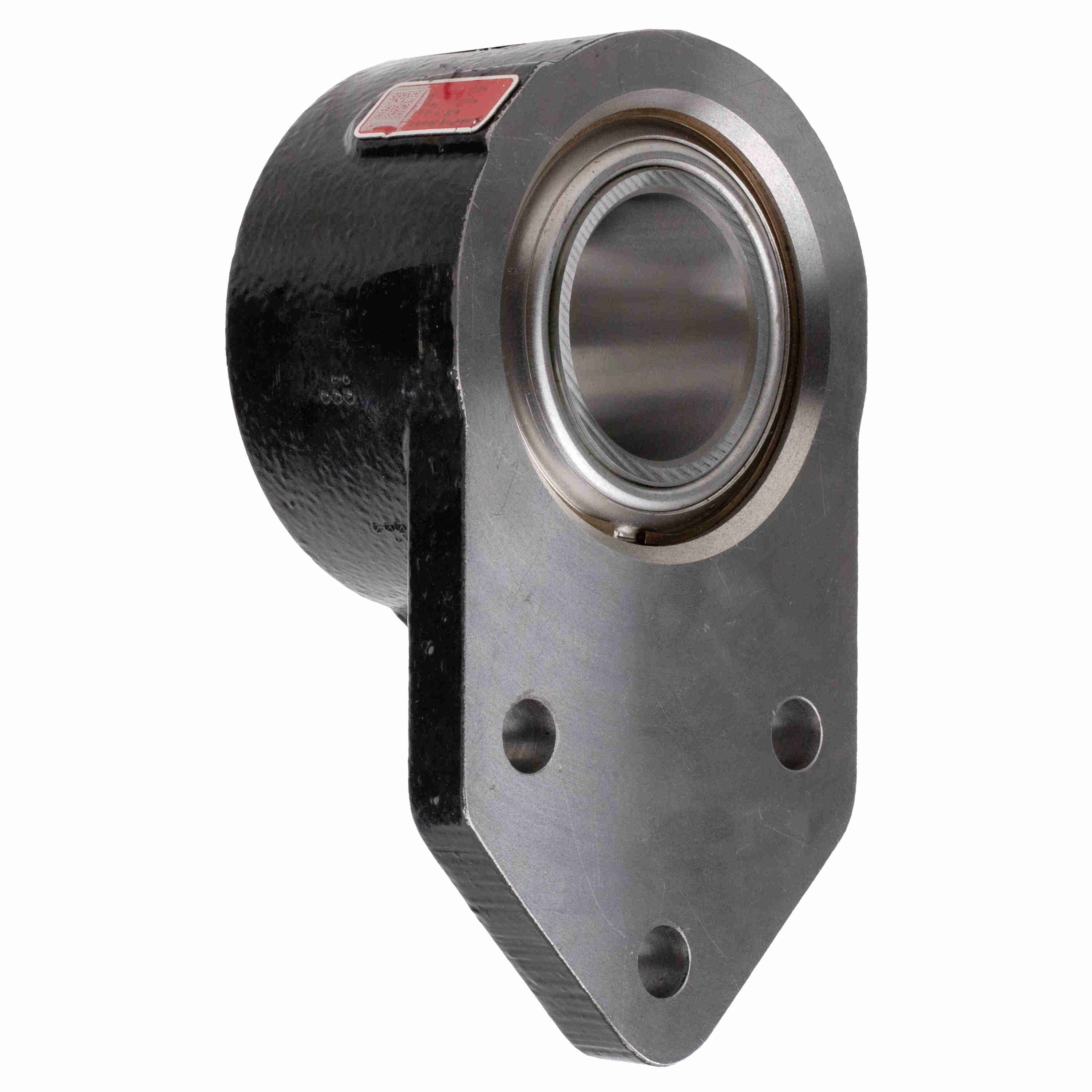

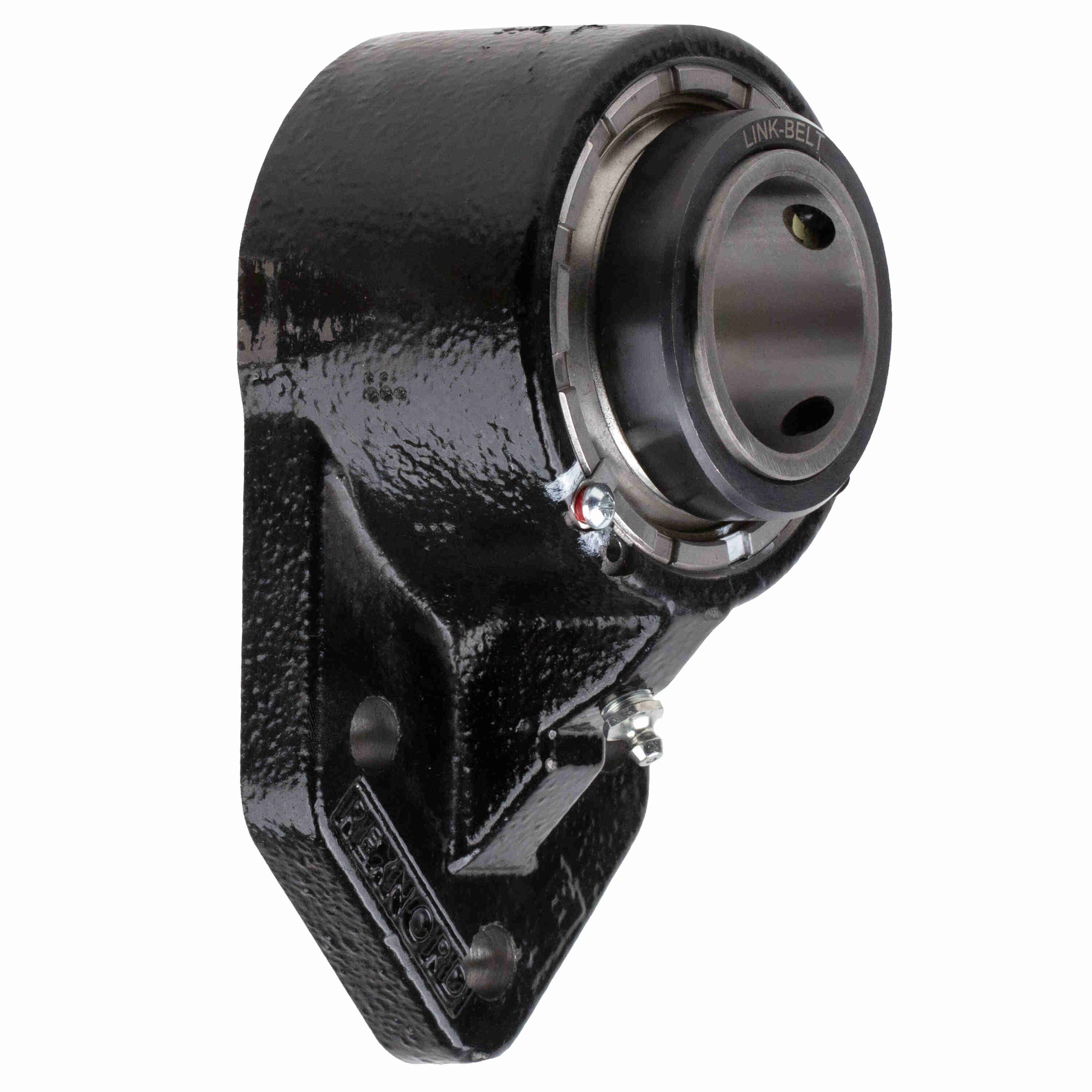

Link-Belt FBB22423H Flange Blocks Link-Belt Spherical Roller Bearings - FBB22423H
Part #:10415101
Catalog #:FBB22423H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 1/2 in | Overall Height (in): | 3.44 in |
| Overall Length (in): | 5.97 in | Foot Height (in): | 0.63 in |
| Bore Diameter (in): | 1.4375 in | Base to Center Height (in): | 4.25 in |
| Housing Width (in): | 3.25 in | Overall Width (in): | 2.91 in |
| Locking Collar Outside Diameter (in): | 2.31 in | Standoff Distance (in): | 0.03 in |
| Housing Outside Diameter (in): | 3.44 in | Bolt Spacing Width (in): | 2 in |
| Centerline to Bolt Hole Center (in): | 2.38 in | Inner Ring Outside Diameter (in): | 1.745 in |
| Bolt Spacing (in): | 1.25 in | Length Through Bore (in): | 2.88 in |
Technical Specifications
| Shaft Locking Type: | Single Set Collar | Housing Color: | Black |
| Radial Dynamic Load Capacity (lb): | 17,800 lb | End Cap: | B424DTC |
| Misalignment Type: | Dynamic | Housing Material: | Ductile Iron |
| Radial Clearance: | C0 STANDARD | Cage Material: | Steel |
| Housing Style: | Flange Block | Housing Type: | Flange, Bracket, Three Bolt |
| Series: | Flange Blocks | Rolling Element: | Spherical Roller |
| Product: | FBB22400 | Static Load Rating (lb): | 20,900 lb |
| Seal Type: | Clearance Seal | Fixed/Expansion: | Fixed |
| Housing Construction: | Solid | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Seal Kit: | B424HS | Microlock Kit: | B436MLK |
| Bolt Hole Shape: | Round Hole | Maximum Speed (RPM): | 3600 rpm |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 325 in/lbs |
| Vibration Frequency Outer Ring Defect: | 0.1055 cps | Max Operating Temperature (F): | 225 °F |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | POWDER COATED |
| Size Code: | B424 | Insert: | B423L |
| Vibration Frequency Fundamental Train: | 0.007 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Grease Fitting Thread Size: | 1/8 NPT | Locking Device Kit: | B424SC |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Roller Spin: | 0.0499 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Vibration Frequency Inner Ring Defect: | 0.1445 cps |
General Specifications
| UPC: | 793699323405 | Weight: | 5.83 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | Country of Origin: | Mexico |
