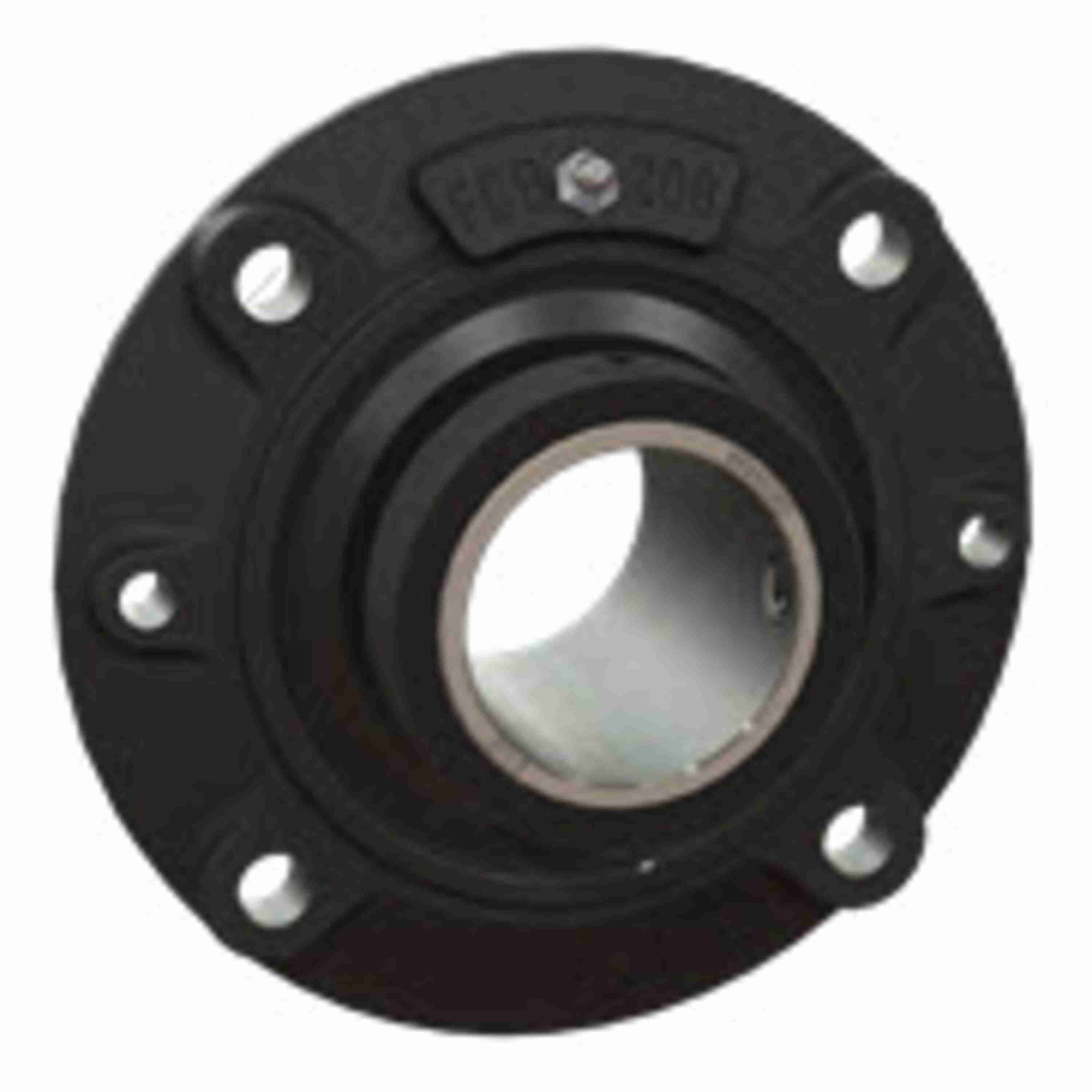

Rexnord FC307CE Flanged Cartridge Blocks PT Select Spherical Roller Bearings - FC307CE
Part #:10479872
Catalog #:FC307CE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 3.4375 in | Overall Height (in): | 4.12 in |
| Overall Height to End Cap (in): | 5.98 in | Pilot Diameter (in): | 7.375 in |
| Housing Height (in): | 2.95 in | Bolt Size (in): | 3/4 in |
| Overall Width (in): | 10.25 in | Foot Height (in): | 0.94 in |
| Overall Length (in): | 10.25 in | Locking Collar Outside Diameter (in): | 4.9 in |
| Housing Outside Diameter (in): | 10.25 in | Pilot Depth (in): | 1.27 in |
| Mounting Plate to Collar Face (in): | 2.56 in | Mounting Surface to End of Housing (in): | 1.52 in |
| Bolt Spacing (in): | 6.094 in | Mounting Surface to Cap Face on Backside (in): | 3.14 in |
| Length Through Bore (in): | 4.12 in | Housing Cast Face to Outermost Bearing Face (in): | 1.13 in |
| Bolt Circle (in): | 8.625 in | Expansion Capability (in): | 0.34 in |
Technical Specifications
| Radial Dynamic Load Capacity (lb): | 64,000 lb | Static Load Rating (lb): | 77,880 lb |
| Seal Type: | Clearance Seal | Product: | FC |
| Housing Style: | Flange Block | Fixed/Expansion: | Expansion |
| Housing Type: | Flange, Cartridge | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | Misalignment Type: | Dynamic |
| End Cap: | SEE AUX CAP KIT | Shaft Locking Type: | Single Set Collar |
| Housing Color: | Black | Cage Material: | Steel |
| Housing Construction: | Solid | Series: | Flanged Cartridge Blocks |
| Setscrew Torque (in-lbs): | 680 in/lbs | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Maximum Speed (RPM): | 1980 rpm | Bolt Hole Shape: | Round Hole |
| Ability to Relubricate: | Yes | Vibration Frequency Inner Ring Defect: | 0.1638 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Roller Spin: | 0.0513 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Vibration Frequency Outer Ring Defect: | 0.1195 cps | Size Code: | 10 |
| Max Operating Temperature (F): | 225 °F | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Fundamental Train: | 0.007 cps | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Housing Coating: | POWDER COATED | Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 782934929625 | Weight: | 26.19 LB |
| Packaged Length: | 11.00 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 10.75 IN | HTC: | 8483204080 |
| Country of Origin: | China |
