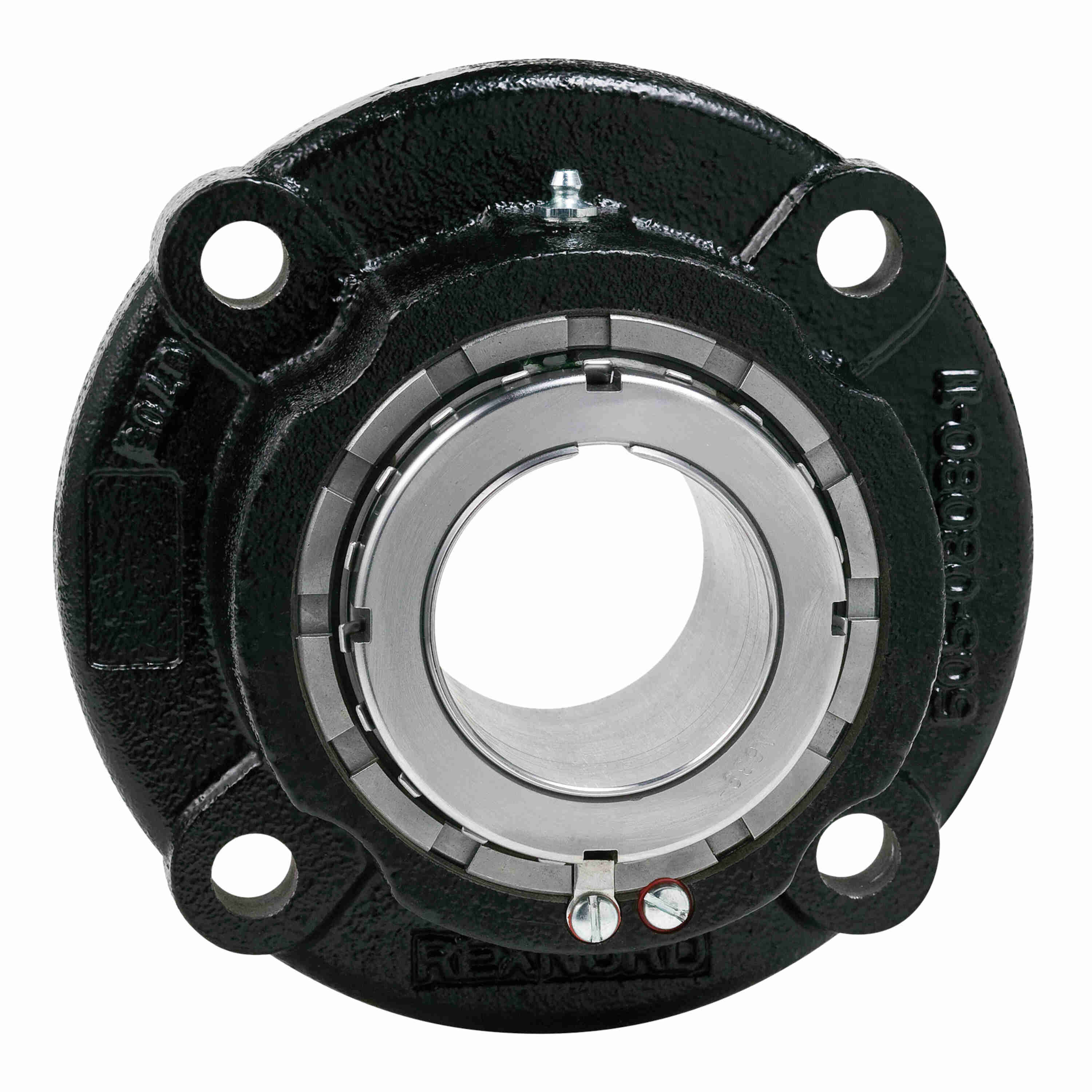

Link-Belt FEB22663E7 Flange Blocks Link-Belt Spherical Roller Bearings - FEB22663E7
Part #:10428632
Catalog #:FEB22663E7
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Length (in): | 9.75 in | Foot Height (in): | 1.13 in |
| Bolt Size (in): | 7/8 in | Housing Width (in): | 9.75 in |
| Overall Width (in): | 9.75 in | Overall Height (in): | 5.11 in |
| Bore Diameter (in): | 3.9375 in | Standoff Distance (in): | 0.17 in |
| Locking Collar Outside Diameter (in): | 5.44 in | Length Through Bore (in): | 4.94 in |
| Inner Ring Outside Diameter (in): | 4.561 in | Expansion Capability (in): | 0.38 in |
| Bolt Spacing (in): | 7.59 in | Housing Cast Face to Outermost Bearing Face (in): | 0.92 in |
| Bolt Circle (in): | 10.75 in |
Technical Specifications
| Cage Material: | Steel | Housing Material: | Cast Iron |
| Fixed/Expansion: | Expansion | Housing Style: | Flange Block |
| Misalignment Type: | Dynamic | Seal Type: | Multi-Lip Contact Seal |
| Rolling Element: | Spherical Roller | Housing Color: | Black |
| Product: | FEB22600 | Radial Dynamic Load Capacity (lb): | 96,500 lb |
| Shaft Locking Type: | Adapter Mount | Static Load Rating (lb): | 137,000 lb |
| Housing Type: | Flange, Four Bolt | Radial Clearance: | C0 STANDARD |
| Housing Construction: | Solid | Series: | Flange Blocks |
| Maximum Speed (RPM): | 625 rpm | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Seal Kit: | B464E7S | Ability to Relubricate: | Yes |
| Lubricant: | Lithium Complex NLGI 2 Grease | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Inner Ring Defect: | 0.1717 cps | Housing Coating: | POWDER COATED |
| Shaft Locking Collar Kit/Adapter Assembly: | SNW663 | Grease Fitting Thread Size: | 1/8 NPT |
| Insert: | CSEB22663E7 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0548 cps | Size Code: | B663 |
| Vibration Frequency Outer Ring Defect: | 0.1283 cps | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Locking Device Kit: | SNW663 | Expansion Lock Plug: | B225728A |
General Specifications
| UPC: | 793699540369 | Weight: | 54.80 LB |
| Packaged Length: | 9.13 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 15.75 IN | HTC: | 84833080 |
