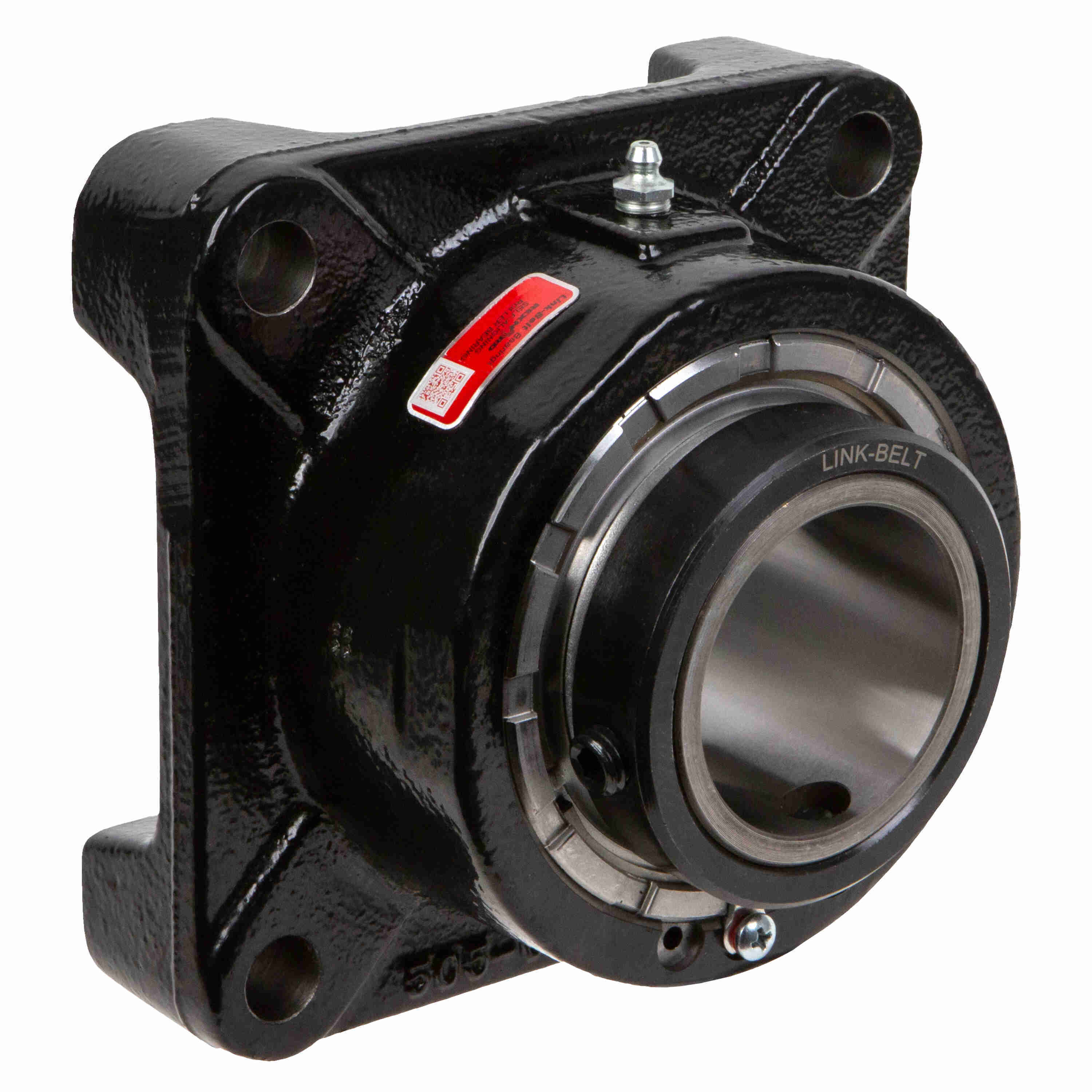

Rexnord GEF2208H Flange Blocks Rex Spherical Roller Bearings - GEF2208H
Part #:10464169
Catalog #:GEF2208H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 5/8 in | Overall Length (in): | 6.88 in |
| Foot Height (in): | 1.69 in | Housing Height (in): | 3.72 in |
| Overall Width (in): | 6.88 in | Bore Diameter (in): | 2.5000 in |
| Housing Width (in): | 6.88 in | Overall Height (in): | 4.56 in |
| Standoff Distance (in): | 1.06 in | Locking Collar Outside Diameter (in): | 3.56 in |
| Bolt Circle (in): | 7.594 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Bolt Spacing (in): | 5.38 in | Length Through Bore (in): | 3.5 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.88 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Misalignment Type: | Dynamic |
| Seal Type: | Multi-Lip Contact Seal | End Cap: | DTC8 |
| Static Load Rating (lb): | 53,500 lb | Housing Color: | Black |
| Product: | ZEF2000 | Housing Material: | Cast Iron |
| Housing Style: | Flange Block | Series: | Flange Blocks |
| Rolling Element: | Spherical Roller | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Housing Construction: | Solid | Cage Material: | Engineered Polymer |
| Fixed/Expansion: | Fixed | Housing Type: | Flange, Four Bolt |
| Shaft Locking Type: | Single Set Collar | Microlock Kit: | ML3 |
| Seal Kit: | GS8 | Setscrew Torque (in-lbs): | 680 in/lbs |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1350 rpm |
| Primary Seal: | BUNA TRIPLE LIP SEAL | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Insert: | 2208U | Lubricant: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Vibration Frequency Outer Ring Defect: | 0.1376 cps | Housing Coating: | POWDER COATED |
| Locking Device Kit: | SC8 | Size Code: | 8 |
| Vibration Frequency Roller Spin: | 0.0607 cps | Max Operating Temperature (F): | 225 °F |
| Max Operating Temperature (C): | 107 °C | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
General Specifications
| UPC: | 782934885808 | Weight: | 17.10 LB |
| Packaged Length: | 7.06 IN | Packaged Width: | 7.06 IN |
| Packaged Height: | 4.00 IN | HTC: | 8483204080 |
| Country of Origin: | Mexico |
