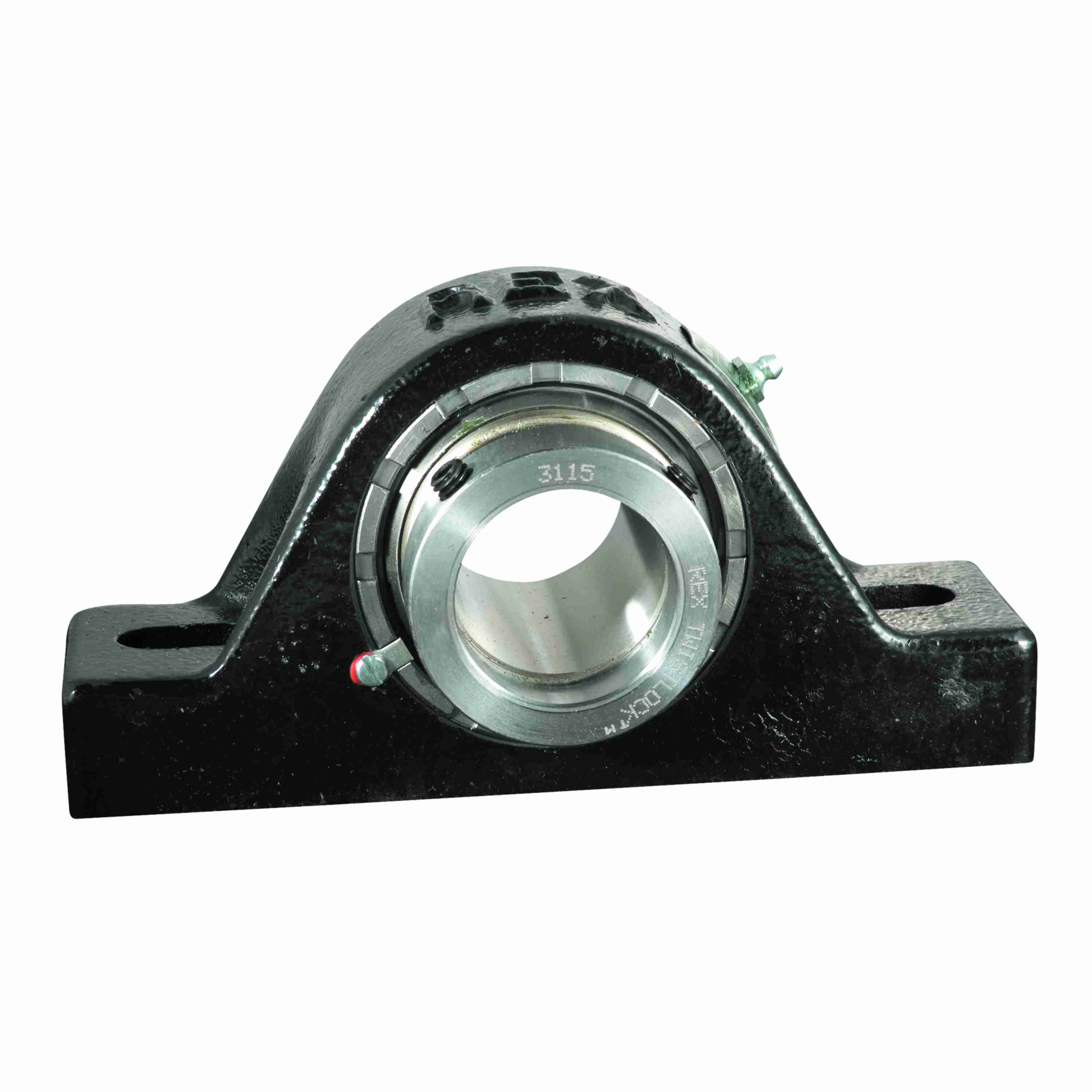

Rexnord KEP3307 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - KEP3307
Part #:10421269
Catalog #:KEP3307
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 2.25 in | Base to Center Height (in): | 3.75 in |
| Overall Length (in): | 13.81 in | Bolt Size (in): | 7/8 in |
| Bore Diameter (in): | 3.4375 in | Overall Width (in): | 4.56 in |
| Overall Height (in): | 7.5 in | Base Width (in): | 3.5 in |
| Locking Collar Outside Diameter (in): | 4.91 in | Bolt Spacing Min (in): | 9.31 in |
| Bolt Spacing Max (in): | 11.31 in | Base Length (in): | 13.81 in |
| Inner Ring Outside Diameter (in): | 3.975 in | Housing Cast Face to Outermost Bearing Face (in): | 1.14 in |
| Length Through Bore (in): | 4.56 in |
Technical Specifications
| Housing Material: | Cast Iron | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Housing Type: | Pillow Block, Two Bolt, Type E | Housing Construction: | Solid |
| Static Load Rating (lb): | 90,700 lb | Misalignment Type: | Dynamic |
| Seal Type: | Light Contact Seal | End Cap: | NEED EXT EC |
| Series: | Solid-housed Pillow Blocks | Product: | ZEP3000 |
| Radial Clearance: | C3 STANDARD | Shaft Locking Type: | Eccentric Collar |
| Cage Material: | Engineered Polymer | Housing Style: | Pillow Block |
| Housing Color: | Black | Rolling Element: | Spherical Roller |
| Fixed/Expansion: | Fixed | Setscrew Torque (in-lbs): | 460 in/lbs |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1700 rpm |
| Seal Kit: | KS10 | Microlock Kit: | ML4 |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip Seal | Locking Device Kit: | SC3307 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Insert: | 3307U |
| Housing Coating: | POWDER COATED | Vibration Frequency Roller Spin: | 0.0628 cps |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Size Code: | 10 |
| Max Operating Temperature (C): | 107 °C | Primary Seal: | BUNA SGL LIP LIGHT CONTACT |
| Max Operating Temperature (F): | 225 °F | Grease Fitting Thread Size: | 1/8 NPT |
| Vibration Frequency Fundamental Train: | 0.0073 cps |
General Specifications
| UPC: | 698210911355 | Weight: | 42.50 LB |
| Packaged Length: | 14.38 IN | Packaged Width: | 4.63 IN |
| Packaged Height: | 7.75 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
