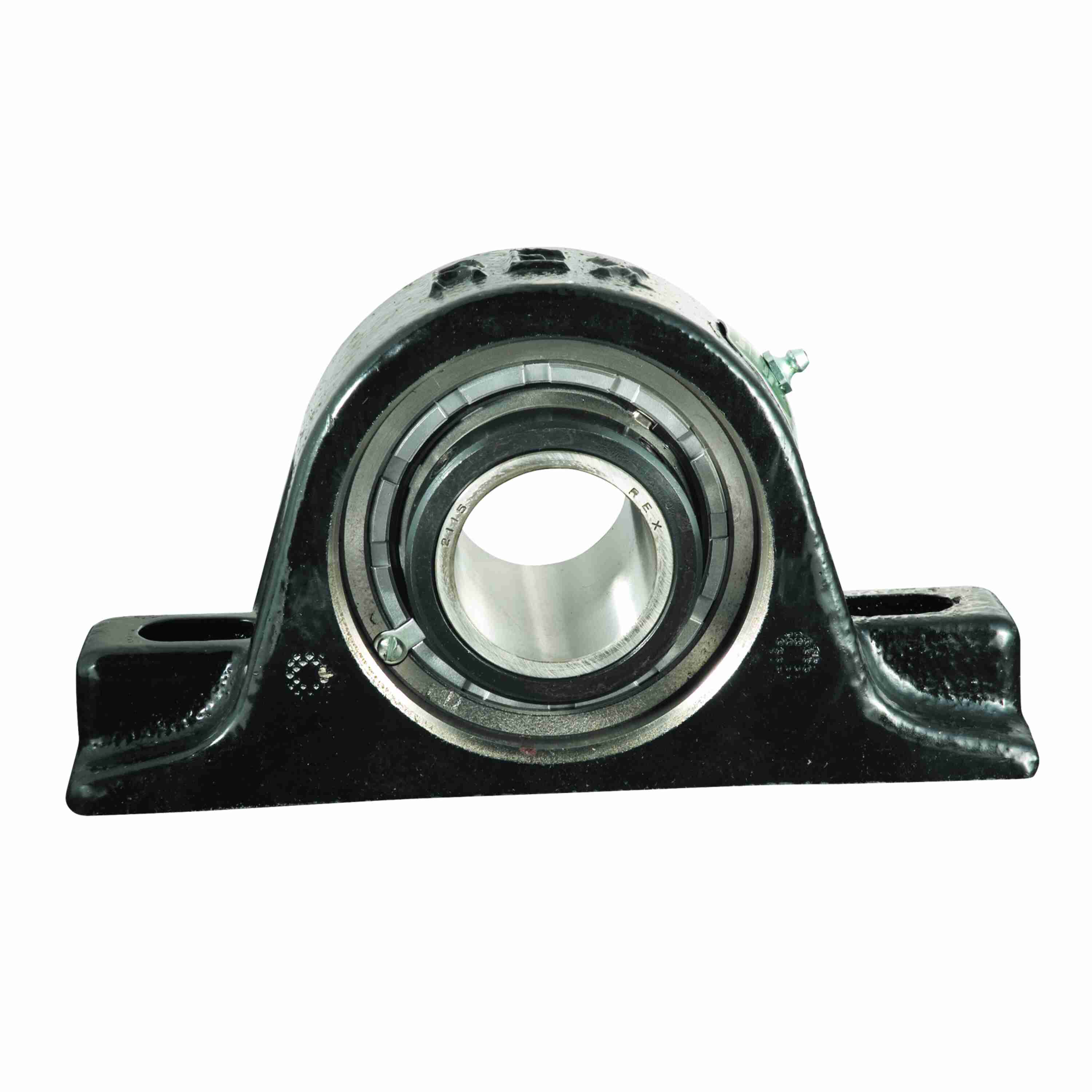

Rexnord KPS2215 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - KPS2215
Part #:10424239
Catalog #:KPS2215
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 3.88 in | Overall Width (in): | 4 in |
| Bolt Size (in): | 7/8 in | Base to Center Height (in): | 3.5 in |
| Overall Height (in): | 7.19 in | Overall Length (in): | 12.59 in |
| Slot Length (in): | 1.63 in | Bore Diameter (in): | 2.9375 in |
| Foot Height (in): | 2.06 in | Locking Collar Outside Diameter (in): | 4.06 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.75 in | Expansion Capability (in): | 0.55 in |
| Length Through Bore (in): | 4 in | Base Length (in): | 13 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Bolt Spacing (in): | 9.75 in |
Technical Specifications
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | End Cap: | DTC9 |
| Housing Type: | Pillow Block, Two Bolt | Fixed/Expansion: | Expansion |
| Cage Material: | Engineered Polymer | Product: | ZPS2000 |
| Seal Type: | Light Contact Seal | Series: | Solid-housed Pillow Blocks |
| Housing Color: | Black | Radial Clearance: | C3 STANDARD |
| Rolling Element: | Spherical Roller | Shaft Locking Type: | Single Set Collar |
| Housing Construction: | Solid | Housing Style: | Pillow Block |
| Static Load Rating (lb): | 71,500 lb | Microlock Kit: | ML3 |
| Ability to Relubricate: | Yes | Seal Kit: | KS9 |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Setscrew Torque (in-lbs): | 680 in/lbs |
| Maximum Speed (RPM): | 1900 rpm | Expansion Lock Plug: | 105-95008-24 |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Roller Spin: | 0.0591 cps |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Primary Seal: | BUNA SGL LIP LIGHT CONTACT |
| Lubricant: | Lithium Complex NLGI 2 Grease | Insert: | 2215U |
| Housing Coating: | POWDER COATED | Locking Device Kit: | SC9 |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Size Code: | 9 |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
General Specifications
| UPC: | 793699549904 | Weight: | 38.10 LB |
| Packaged Length: | 13.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 7.88 IN | HTC: | 84833080 |
