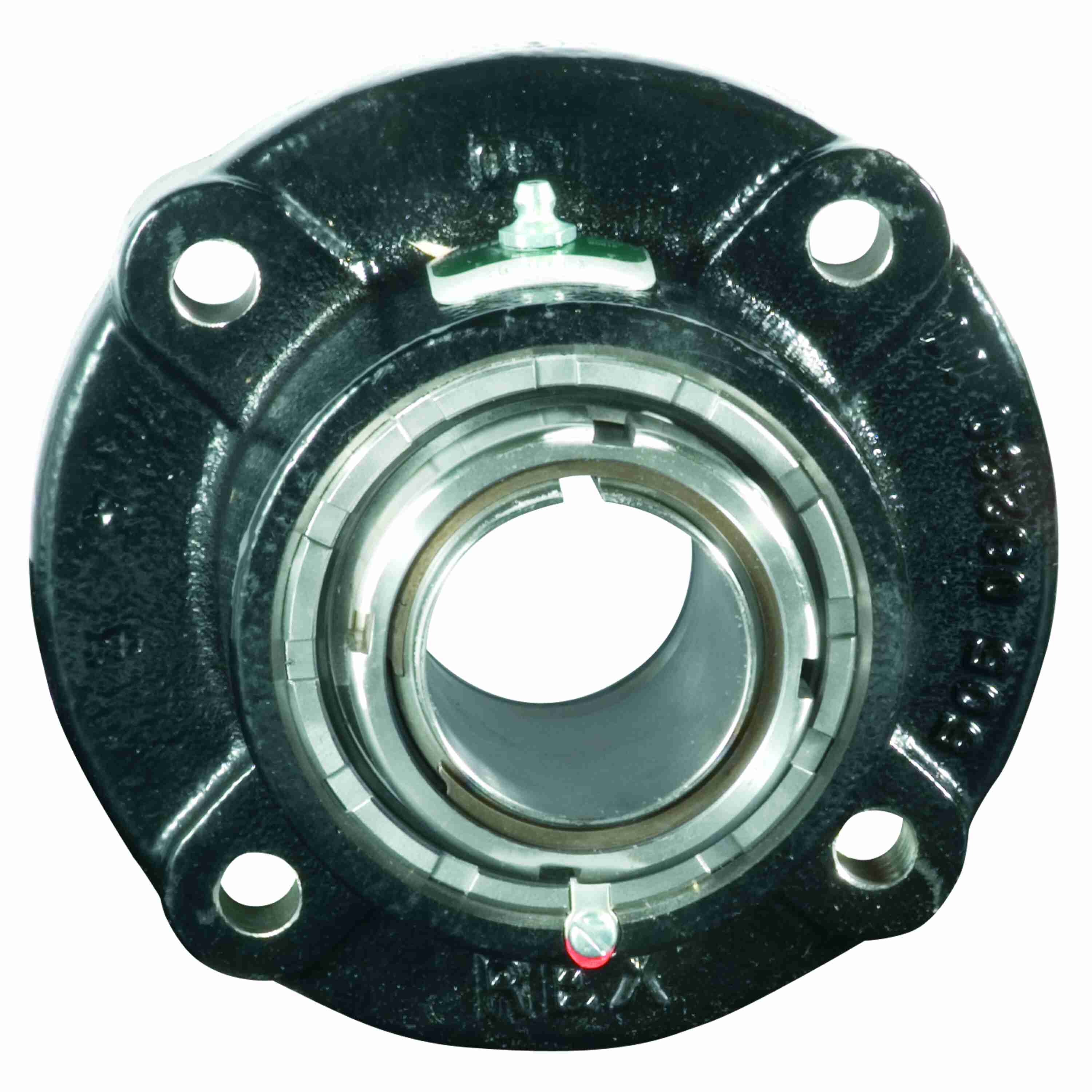

Rexnord MB6215 Flange Blocks Rex Spherical Roller Bearings - MB6215
Part #:10439740
Catalog #:MB6215
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 3/4 in | Overall Height (in): | 4.62 in |
| Overall Length (in): | 9.5 in | Overall Width (in): | 9.5 in |
| Bore Diameter (in): | 2.9375 in | Foot Height (in): | 0.88 in |
| Housing Outside Diameter (in): | 9.5 in | Standoff Distance (in): | 0.09 in |
| Locking Collar Outside Diameter (in): | 4.09 in | Inner Ring Outside Diameter (in): | 3.37 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.39 in | Bolt Spacing (in): | 5.56 in |
| Length Through Bore (in): | 4.53 in | Bolt Circle (in): | 7.875 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Series: | Flange Blocks |
| Housing Type: | Flange, Four Bolt | Housing Style: | Flange Block |
| Shaft Locking Type: | Adapter Mount | End Cap: | DTC91 |
| Static Load Rating (lb): | 71,500 lb | Housing Material: | Cast Iron |
| Misalignment Type: | Dynamic | Housing Color: | Black |
| Fixed/Expansion: | Fixed | Cage Material: | Engineered Polymer |
| Housing Construction: | Solid | Rolling Element: | Spherical Roller |
| Seal Type: | Heavy Contact Seal | Radial Dynamic Load Capacity (lb): | 57,750 lb |
| Product: | ZB6000 | Ability to Relubricate: | Yes |
| Seal Kit: | MS9 | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Maximum Speed (RPM): | 1700 rpm | Microlock Kit: | ML3 |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Wrench Style Shurlok Install Tool: | 105-90420-41 |
| Insert: | 6215U | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Size Code: | 9 | Shaft Locking Collar Kit/Adapter Assembly: | AK96215 |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Max Operating Temperature (F): | 225 °F | Impact Style Shurlok Install Tool: | 105-90425-41 |
| Vibration Frequency Roller Spin: | 0.0591 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Locking Device Kit: | AK96215 | Housing Coating: | POWDER COATED |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 793699903195 | Weight: | 25.60 LB |
| Packaged Length: | 9.50 IN | Packaged Width: | 4.50 IN |
| Packaged Height: | 9.25 IN | Country of Origin: | Mexico |
