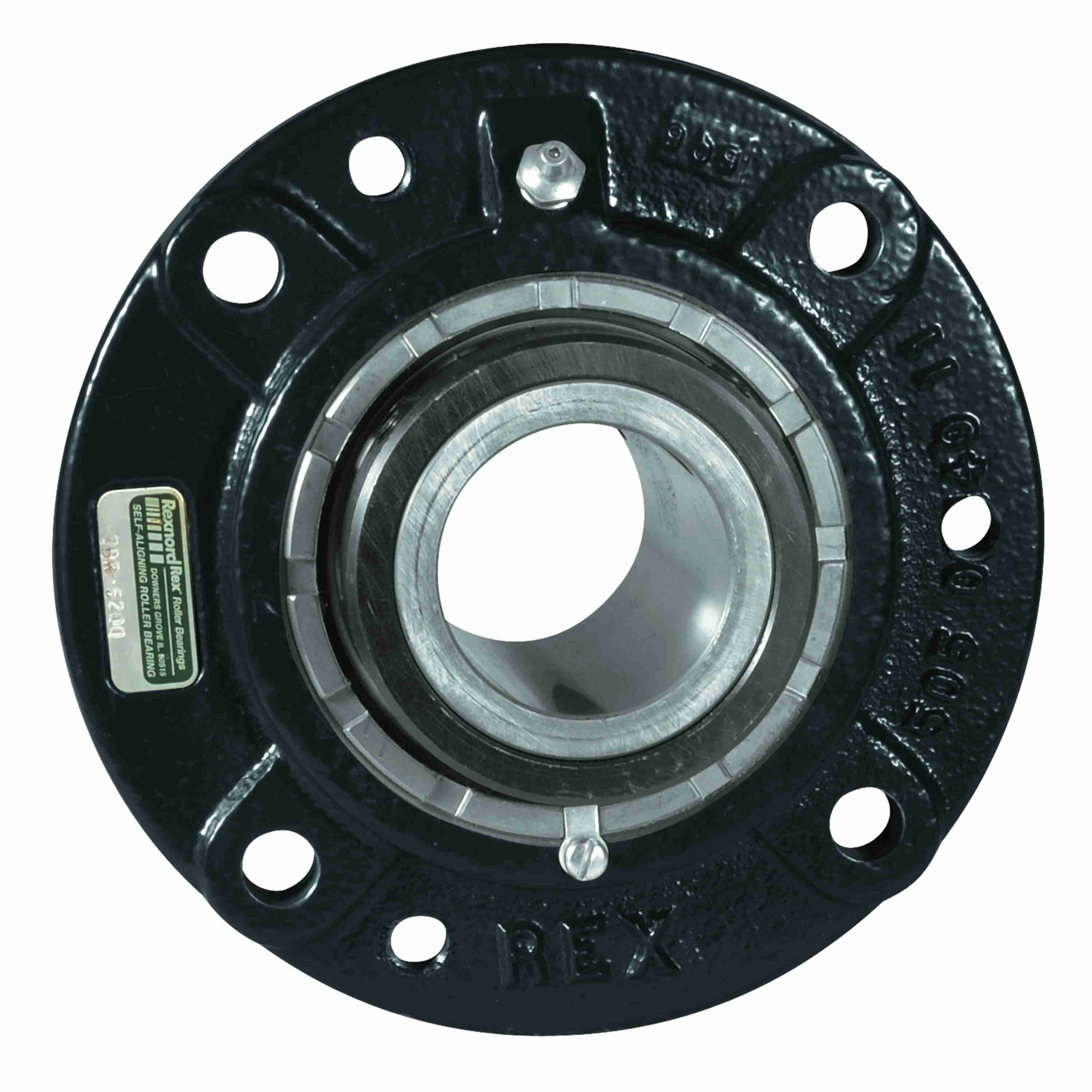

Rexnord MBR550040 Flanged Cartridge Blocks Rex Spherical Roller Bearings - MBR550040
Part #:10410882
Catalog #:MBR550040
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Height (in): | 7.88 in | Pilot Diameter (in): | 11 in |
| Housing Height (in): | 5.78 in | Foot Height (in): | 1.25 in |
| Overall Width (in): | 14.75 in | Overall Length (in): | 14.75 in |
| Bolt Size (in): | 7/8 in | Bore Diameter (in): | 5 in |
| Mounting Plate to Collar Face (in): | 2.97 in | Housing Outside Diameter (in): | 14.75 in |
| Locking Collar Outside Diameter (in): | 7.06 in | Pilot Depth (in): | 2.25 in |
| Length Through Bore (in): | 7.88 in | Mounting Surface to End of Housing (in): | 3.88 in |
| Bolt Circle (in): | 12.75 in | Bolt Spacing (in): | 6.375 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.16 in | Inner Ring Outside Diameter (in): | 5.75 in |
Technical Specifications
| Seal Type: | Heavy Contact Seal | Product: | ZBR5000 |
| Housing Construction: | Solid | Misalignment Type: | Dynamic |
| Static Load Rating (lb): | 241,900 lb | Radial Clearance: | C3 STANDARD |
| Fixed/Expansion: | Fixed | Housing Style: | Flange Block |
| Rolling Element: | Spherical Roller | Shaft Locking Type: | Double Set Collar |
| Housing Material: | Cast Iron | Radial Dynamic Load Capacity (lb): | 191,500 lb |
| Housing Type: | Flange, Cartridge | Housing Color: | Black |
| Series: | Flanged Cartridge Blocks | Cage Material: | Engineered Polymer |
| Microlock Kit: | ML4 | Setscrew Torque (in-lbs): | 1350 in/lbs |
| Seal Kit: | MS13 | Ability to Relubricate: | Yes |
| Bolt Hole Shape: | Round Hole | Maximum Speed (RPM): | 1000 rpm |
| Available Seal Type: | M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Insert: | 5500U |
| Size Code: | 13 | Vibration Frequency Inner Ring Defect: | 0.173 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lube Fill Percent: | 0% FILL |
| Vibration Frequency Roller Spin: | 0.0515 cps | Locking Device Kit: | SC13 QTY 2 |
| Max Operating Temperature (C): | 107 °C | Lubricant: | PRESERVATIVE ONLY - NO GREASE |
| Vibration Frequency Outer Ring Defect: | 0.127 cps | Housing Coating: | POWDER COATED |
| Grease Fitting Thread Size: | 1/4 NPT | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Fundamental Train: | 0.0071 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
General Specifications
| UPC: | 793699362466 | Weight: | 125.00 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
