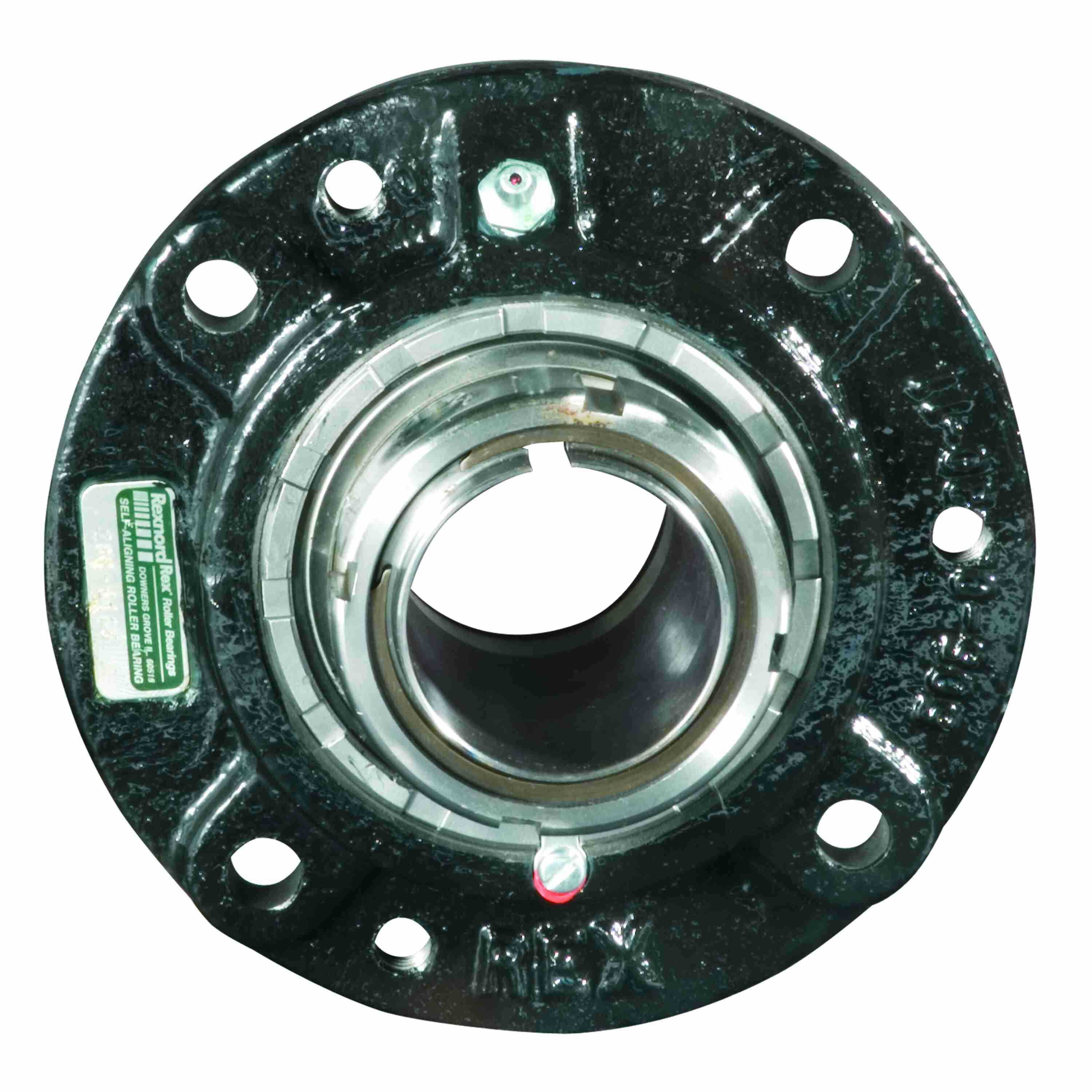

Rexnord MBR6211 Flanged Cartridge Blocks Rex Spherical Roller Bearings - MBR6211
Part #:10424313
Catalog #:MBR6211
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 5/8 in | Housing Height (in): | 3.13 in |
| Overall Width (in): | 8.75 in | Pilot Diameter (in): | 6.375 in |
| Overall Length (in): | 8.75 in | Bore Diameter (in): | 2.6875 in |
| Overall Height (in): | 4.53 in | Foot Height (in): | 0.75 in |
| Pilot Depth (in): | 1.25 in | Mounting Plate to Collar Face (in): | 2.53 in |
| Housing Outside Diameter (in): | 8.75 in | Locking Collar Outside Diameter (in): | 4.09 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Mounting Surface to End of Housing (in): | 2 in |
| Bolt Spacing (in): | 5.297 in | Length Through Bore (in): | 4.53 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.39 in | Bolt Circle (in): | 7.5 in |
Technical Specifications
| Housing Color: | Black | Cage Material: | Engineered Polymer |
| Shaft Locking Type: | Adapter Mount | Misalignment Type: | Dynamic |
| Housing Construction: | Solid | Housing Material: | Cast Iron |
| Seal Type: | Heavy Contact Seal | Radial Clearance: | C3 STANDARD |
| Series: | Flanged Cartridge Blocks | Housing Style: | Flange Block |
| Housing Type: | Flange, Cartridge | Radial Dynamic Load Capacity (lb): | 57,750 lb |
| Product: | ZBR6000 | Fixed/Expansion: | Fixed |
| End Cap: | DTC91 | Rolling Element: | Spherical Roller |
| Static Load Rating (lb): | 71,500 lb | Maximum Speed (RPM): | 1700 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Seal Kit: | MS9 | Ability to Relubricate: | Yes |
| Bolt Hole Shape: | Round Hole | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Size Code: | 9 | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | AK96211 | Insert: | 6211U |
| Housing Coating: | POWDER COATED | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Roller Spin: | 0.0591 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Locking Device Kit: | AK96211 | Impact Style Shurlok Install Tool: | 105-90425-41 |
| Max Operating Temperature (F): | 225 °F | Max Operating Temperature (C): | 107 °C |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic |
General Specifications
| UPC: | 793699906974 | Weight: | 22.30 LB |
| Packaged Length: | 8.63 IN | Packaged Width: | 3.94 IN |
| Packaged Height: | 8.63 IN | HTC: | 84833080 |
