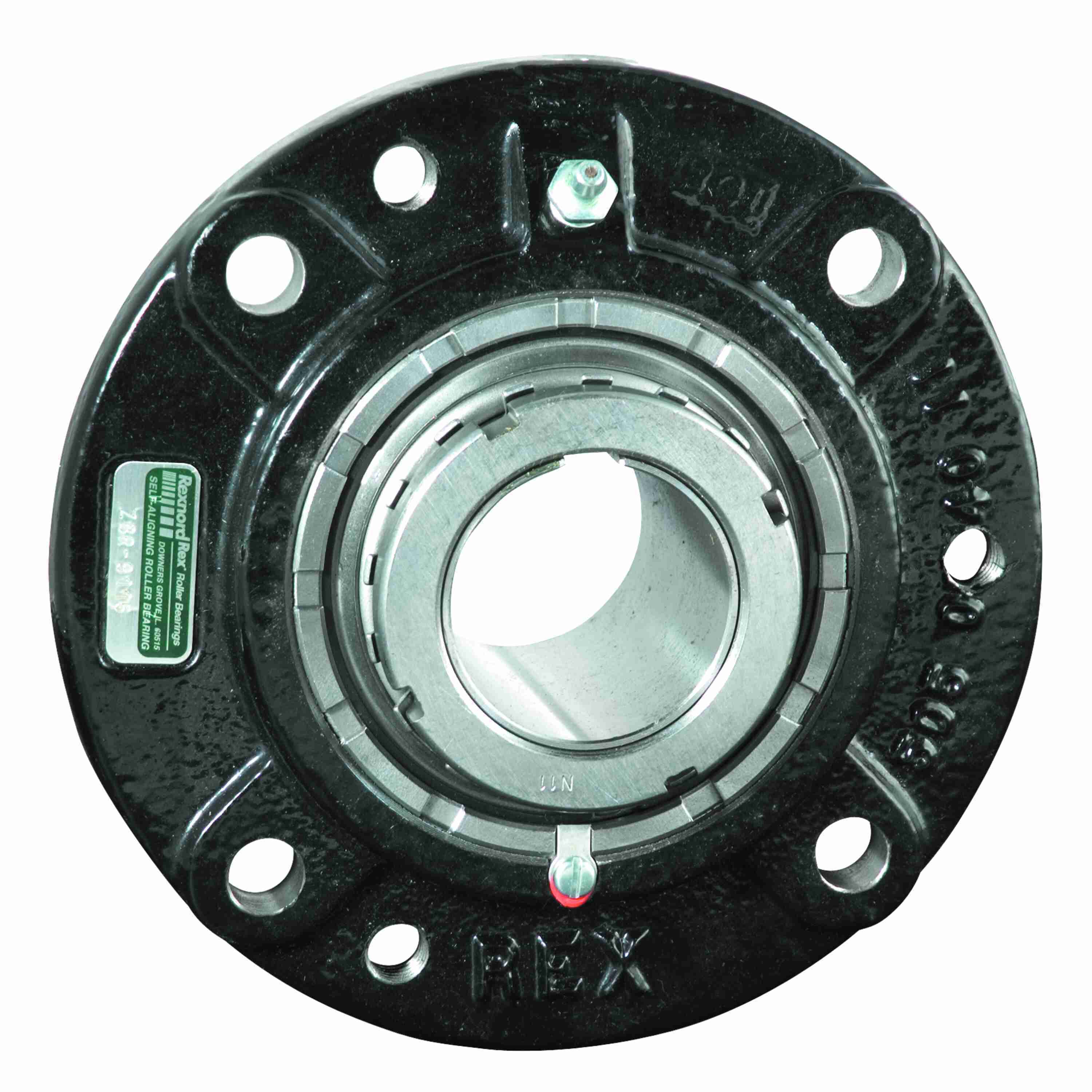

Rexnord MBR9515 Flanged Cartridge Blocks Rex Spherical Roller Bearings - MBR9515
Part #:10415368
Catalog #:MBR9515
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (in): | 5.9375 in | Overall Height (in): | 7.75 in |
| Bolt Size (in): | 1 in | Overall Width (in): | 19 in |
| Pilot Diameter (in): | 15 in | Overall Length (in): | 19 in |
| Housing Height (in): | 6.31 in | Foot Height (in): | 1 in |
| Mounting Plate to Collar Face (in): | 3.5 in | Pilot Depth (in): | 1.5 in |
| Locking Collar Outside Diameter (in): | 9.06 in | Housing Outside Diameter (in): | 19 in |
| Bolt Circle (in): | 17 in | Bolt Spacing (in): | 8.5 in |
| Length Through Bore (in): | 7.75 in | Housing Cast Face to Outermost Bearing Face (in): | 1.68 in |
| Mounting Surface to End of Housing (in): | 4.25 in | Inner Ring Outside Diameter (in): | 8.046 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Housing Style: | Flange Block |
| Static Load Rating (lb): | 395,500 lb | Rolling Element: | Spherical Roller |
| Product: | ZBR9000 | Housing Type: | Flange, Cartridge |
| Housing Construction: | Solid | Shaft Locking Type: | Adapter Mount |
| Radial Dynamic Load Capacity (lb): | 309,860 lb | Radial Clearance: | C3 STANDARD |
| Seal Type: | Heavy Contact Seal | Housing Material: | Cast Iron |
| Series: | Flanged Cartridge Blocks | Housing Color: | Black |
| Cage Material: | Steel | Misalignment Type: | Dynamic |
| Microlock Kit: | ML4 | Ability to Relubricate: | Yes |
| Bolt Hole Shape: | Round Hole | Available Seal Type: | M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal |
| Maximum Speed (RPM): | 700 rpm | Seal Kit: | MS16 |
| Insert: | 9515U | Housing Coating: | POWDER COATED |
| Vibration Frequency Inner Ring Defect: | 0.1729 cps | Size Code: | 16 |
| Locking Device Kit: | AK16515 | Vibration Frequency Fundamental Train: | 0.0071 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Roller Spin: | 0.0521 cps |
| Vibration Frequency Outer Ring Defect: | 0.1271 cps | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Shaft Locking Collar Kit/Adapter Assembly: | AK16515 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F | Grease Fitting Thread Size: | 1/4 NPT |
| Max Operating Temperature (C): | 107 °C |
General Specifications
| UPC: | 698210196158 | Weight: | 241.00 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
