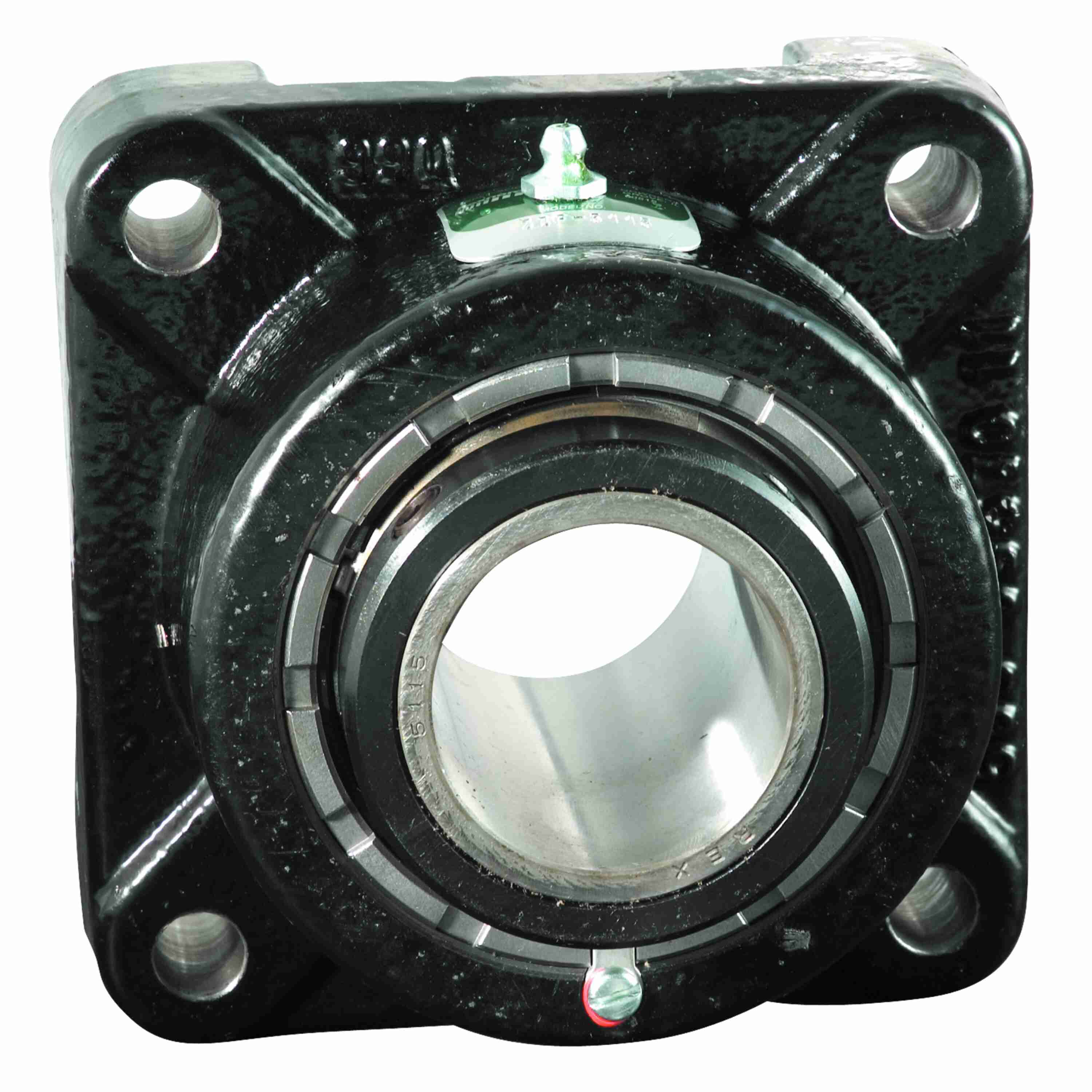

Rexnord MEF5307 Flange Blocks Rex Spherical Roller Bearings - MEF5307
Part #:10421394
Catalog #:MEF5307
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 3/4 in | Overall Height (in): | 5.31 in |
| Bore Diameter (in): | 3.4375 in | Overall Length (in): | 8.75 in |
| Foot Height (in): | 2.07 in | Housing Height (in): | 4.66 in |
| Overall Width (in): | 8.75 in | Housing Width (in): | 9.25 in |
| Standoff Distance (in): | 0.25 in | Locking Collar Outside Diameter (in): | 4.91 in |
| Inner Ring Outside Diameter (in): | 3.975 in | Housing Cast Face to Outermost Bearing Face (in): | 0.94 in |
| Length Through Bore (in): | 5.31 in | Bolt Spacing (in): | 7 in |
| Bolt Circle (in): | 9.906 in |
Technical Specifications
| Radial Clearance: | C3 STANDARD | Housing Style: | Flange Block |
| Housing Type: | Flange, Four Bolt | Series: | Flange Blocks |
| Cage Material: | Engineered Polymer | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Static Load Rating (lb): | 90,700 lb | Rolling Element: | Spherical Roller |
| Misalignment Type: | Dynamic | Seal Type: | Heavy Contact Seal |
| End Cap: | DTC10 | Fixed/Expansion: | Fixed |
| Product: | ZEF5000 | Housing Construction: | Solid |
| Housing Material: | Cast Iron | Shaft Locking Type: | Double Set Collar |
| Housing Color: | Black | Maximum Speed (RPM): | 1400 rpm |
| Microlock Kit: | ML4 | Ability to Relubricate: | Yes |
| Seal Kit: | MS10 | Setscrew Torque (in-lbs): | 680 in/lbs |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Max Operating Temperature (F): | 225 °F | Locking Device Kit: | SC10 QTY 2 |
| Lubricant: | Lithium Complex NLGI 2 Grease | Housing Coating: | POWDER COATED |
| Max Operating Temperature (C): | 107 °C | Size Code: | 10 |
| Vibration Frequency Roller Spin: | 0.0628 cps | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Insert: | 5307U |
General Specifications
| UPC: | 698210912062 | Weight: | 42.70 LB |
| Packaged Length: | 9.50 IN | Packaged Width: | 4.50 IN |
| Packaged Height: | 9.25 IN | HTC: | 8483204080 |
| Country of Origin: | Mexico |
