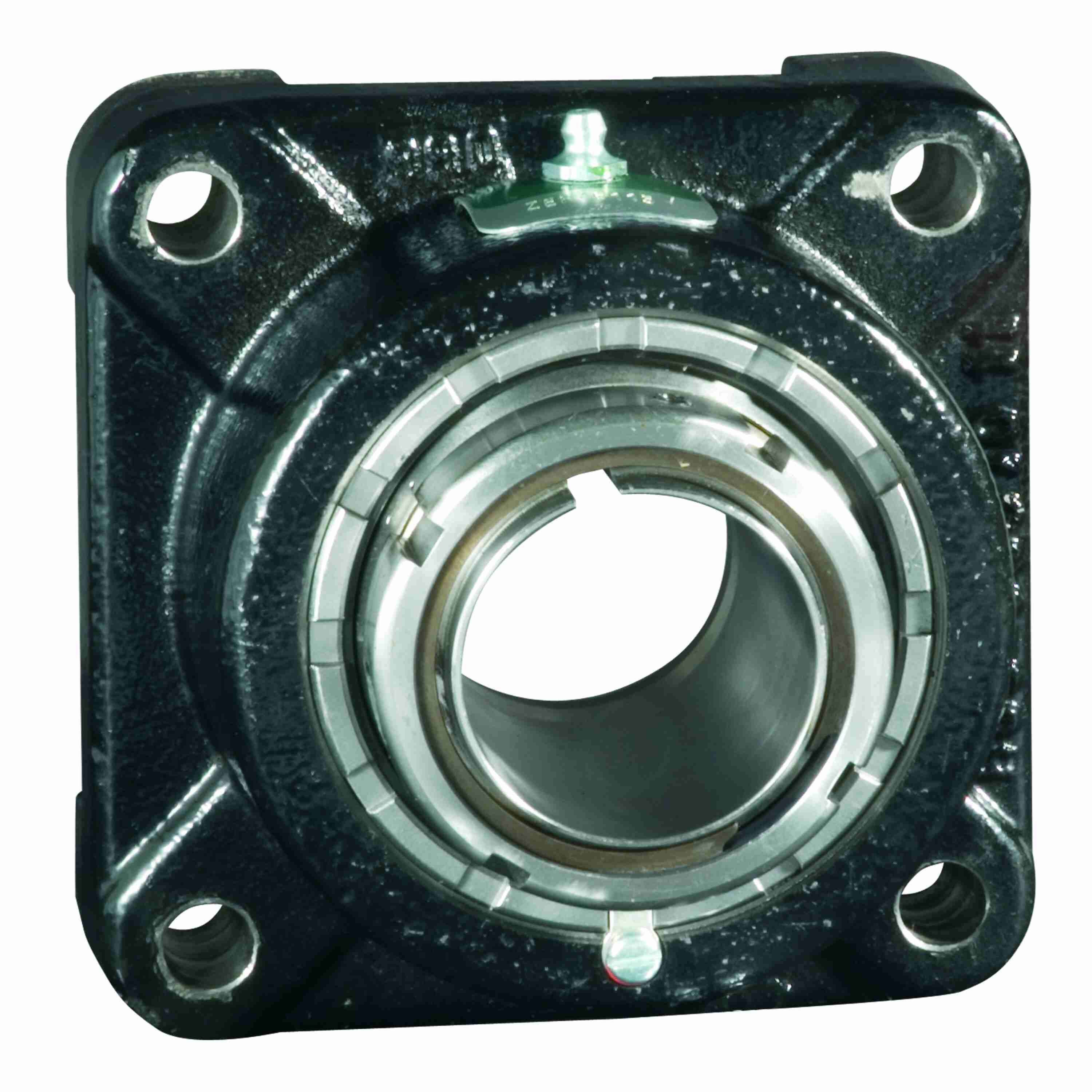

Rexnord MEF6307 Flange Blocks Rex Spherical Roller Bearings - MEF6307
Part #:10409363
Catalog #:MEF6307
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 8.75 in | Bolt Size (in): | 3/4 in |
| Bore Diameter (in): | 3.4375 in | Overall Height (in): | 6.2 in |
| Housing Height (in): | 4.66 in | Overall Length (in): | 8.75 in |
| Housing Width (in): | 9.25 in | Foot Height (in): | 2.07 in |
| Standoff Distance (in): | 1.17 in | Locking Collar Outside Diameter (in): | 4.95 in |
| Inner Ring Outside Diameter (in): | 3.975 in | Bolt Spacing (in): | 7 in |
| Bolt Circle (in): | 9.906 in | Length Through Bore (in): | 5.03 in |
| Housing Cast Face to Outermost Bearing Face (in): | 1.59 in |
Technical Specifications
| Shaft Locking Type: | Adapter Mount | Cage Material: | Engineered Polymer |
| Misalignment Type: | Dynamic | Product: | ZEF6000 |
| Series: | Flange Blocks | Rolling Element: | Spherical Roller |
| End Cap: | NEED EXT EC | Static Load Rating (lb): | 90,700 lb |
| Housing Material: | Cast Iron | Housing Construction: | Solid |
| Fixed/Expansion: | Fixed | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Housing Color: | Black | Housing Type: | Flange, Four Bolt |
| Housing Style: | Flange Block | Radial Clearance: | C3 STANDARD |
| Seal Type: | Heavy Contact Seal | Wrench Style Shurlok Install Tool: | 105-90420-51 |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Microlock Kit: | ML4 |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1400 rpm |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Seal Kit: | MS10 |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Impact Style Shurlok Install Tool: | 105-90425-51 | Insert: | 6307U |
| Locking Device Kit: | AK106307 | Housing Coating: | POWDER COATED |
| Grease Fitting Thread Size: | 1/8 NPT | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Size Code: | 10 | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Shaft Locking Collar Kit/Adapter Assembly: | AK106307 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0628 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
General Specifications
| UPC: | 698210110697 | Weight: | 43.00 LB |
| Packaged Length: | 9.69 IN | Packaged Width: | 9.69 IN |
| Packaged Height: | 6.25 IN | Country of Origin: | Mexico |
