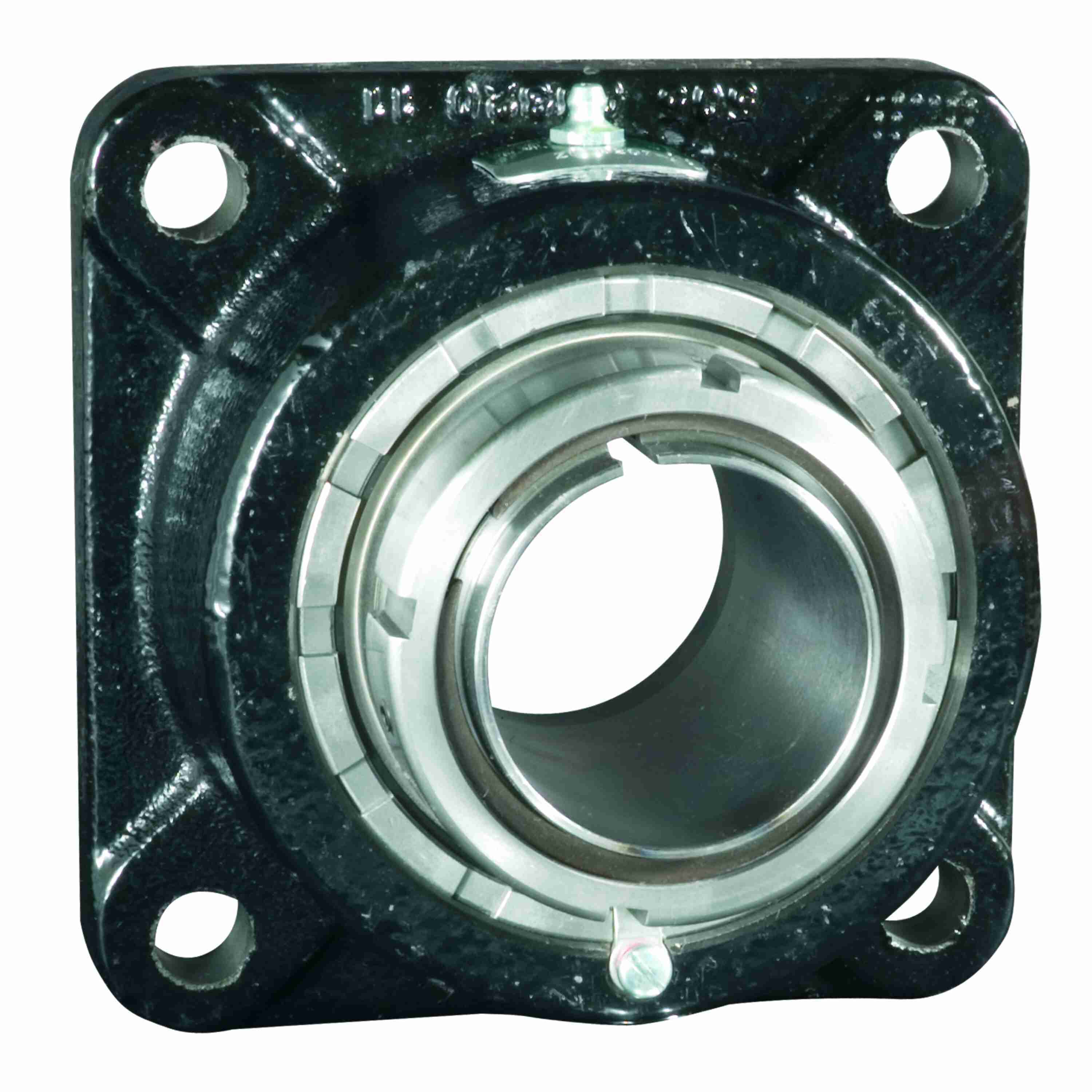

Rexnord MF6050MMAV044378 Flange Blocks Rex Spherical Roller Bearings - MF6050MMAV044378
Part #:10526262
Catalog #:MF6050MMAV044378
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 5.88 in | Overall Height (in): | 3.77 in |
| Bore Diameter (mm): | 50 mm | Foot Height (in): | 0.69 in |
| Overall Length (in): | 5.88 in | Housing Width (in): | 5.88 in |
| Bolt Size (in): | 5/8 in | Locking Collar Outside Diameter (in): | 3.24 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Housing Cast Face to Outermost Bearing Face (in): | 1.16 in |
| Length Through Bore (in): | 3.77 in | Bolt Circle (in): | 6.375 in |
| Bolt Spacing (in): | 4.5 in |
Technical Specifications
| Shaft Locking Type: | Adapter Mount | Series: | Flange Blocks |
| Cage Material: | Steel | Seal Type: | Heavy Contact Seal, Viton |
| Radial Clearance: | C5 INCREASED | Housing Type: | Flange, Four Bolt |
| Fixed/Expansion: | Fixed | Housing Style: | Flange Block |
| Rolling Element: | Spherical Roller | Housing Material: | Cast Iron |
| Housing Construction: | Solid | Housing Color: | Black |
| Radial Dynamic Load Capacity (lb): | 36,370 lb | Product: | ZF6000 |
| Misalignment Type: | Dynamic | Static Load Rating (lb): | 44,400 lb |
| Seal Kit: | MS7V | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 2200 rpm |
| Microlock Kit: | ML2 | Vibration Frequency Roller Spin: | 0.0606 cps |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Locking Device Kit: | AK76050MM |
| Insert: | 6050MMU78 | Grease Fitting Thread Size: | 1/8 NPT |
| Size Code: | 7 | Housing Coating: | POWDER COATED |
| Lubricant: | MOBIL MOBILITH SHC460 | Shaft Locking Collar Kit/Adapter Assembly: | AK76050MM |
| Vibration Frequency Outer Ring Defect: | 0.1377 cps | Max Operating Temperature (C): | 150 °C |
| Primary Seal: | VITON SPRING LOADED LIP SEAL | Max Operating Temperature (F): | 300 °F |
| Impact Style Shurlok Install Tool: | 105-90425-21 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Inner Ring Defect: | 0.179 cps |
General Specifications
| UPC: | 782934935244 | Weight: | 13.67 LB |
| Country of Origin: | Mexico |
