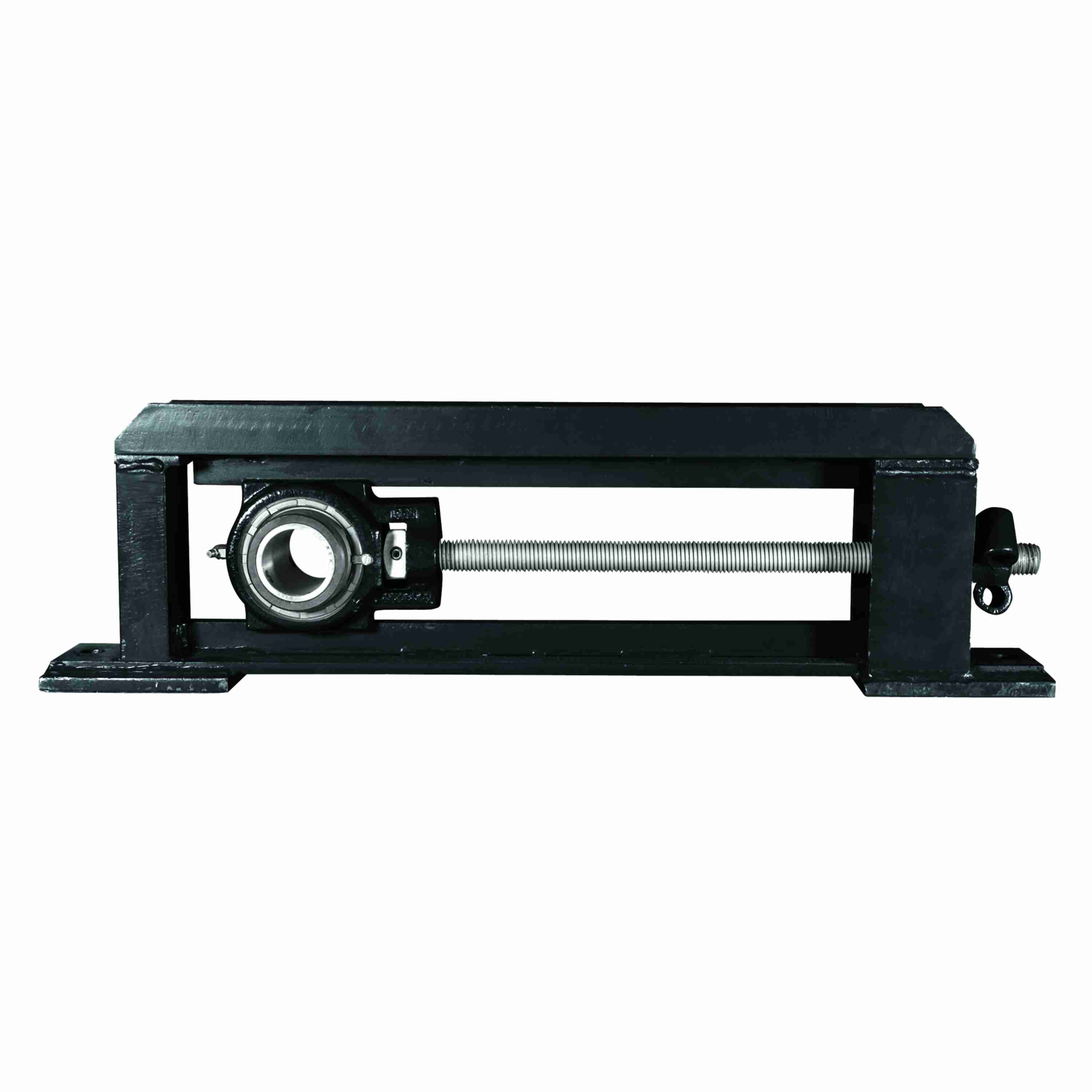

Rexnord MHT7520318 Take-up Assemblies Rex Spherical Roller Bearings - MHT7520318
Part #:10439795
Catalog #:MHT7520318
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 1.19 in | Base to Center Height (in): | 4.438 in |
| Overall Height (in): | 9 in | Overall Length (in): | 35.5 in |
| Bore Diameter (in): | 2.1875 in | Bolt Size (in): | 5/8 in |
| Overall Width (in): | 4.13 in | Frame Width (in): | 4 in |
| Travel Length (in): | 18 in | Frame Height (in): | 9 in |
| Overall Rod Length (in): | 26 in | Frame Length (in): | 35.5 in |
| Length Through Bore (in): | 4.13 in | Frame Bolt Hole Center to Bearing Centerline (in): | 6.81 in |
| Bolt Spacing (in): | 33.5 in |
Technical Specifications
| Cage Material: | Engineered Polymer | Housing Color: | Black |
| Radial Dynamic Load Capacity (lb): | 36,370 lb | Fixed/Expansion: | Fixed |
| Product: | ZHT5000 | Frame Type: | Center Pull Type Heavy Duty |
| Housing Material: | Cast Iron | Housing Construction: | Solid |
| Frame Material: | Welded Steel | Misalignment Type: | Dynamic |
| Housing Type: | Take-Up Assembly | Series: | Take-up Assemblies |
| Shaft Locking Type: | Double Set Collar | Housing Style: | Take-Up Assembly |
| Rolling Element: | Spherical Roller | Static Load Rating (lb): | 44,400 lb |
| Seal Type: | Heavy Contact Seal | End Cap: | DTC7 |
| Radial Clearance: | C3 STANDARD | Adjusting Screw Thread Size: | 1 1/4-7 NC |
| Ability to Relubricate: | Yes | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Seal Kit: | MS7 | Setscrew Torque (in-lbs): | 460 in/lbs |
| Frame: | ZHT718 | Microlock Kit: | ML2 |
| Allowable Working Load [2/3 Yield Strength] (lb): | 13,000 lb | Maximum Speed (RPM): | 2200 rpm |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Outer Ring Defect: | 0.1377 cps |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Roller Spin: | 0.0606 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Inner Ring Defect: | 0.179 cps |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Insert: | 5203U |
| Housing Coating: | POWDER COATED | Lubricant: | Lithium Complex NLGI 2 Grease |
| Locking Device Kit: | SC7 QTY 2 | Size Code: | 7 |
| Grease Fitting Thread Size: | 1/8 NPT | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Replacement Take-up Block: | MT75203 |
General Specifications
| UPC: | 698210708498 | Weight: | 81.00 LB |
| HTC: | 84833080 |
