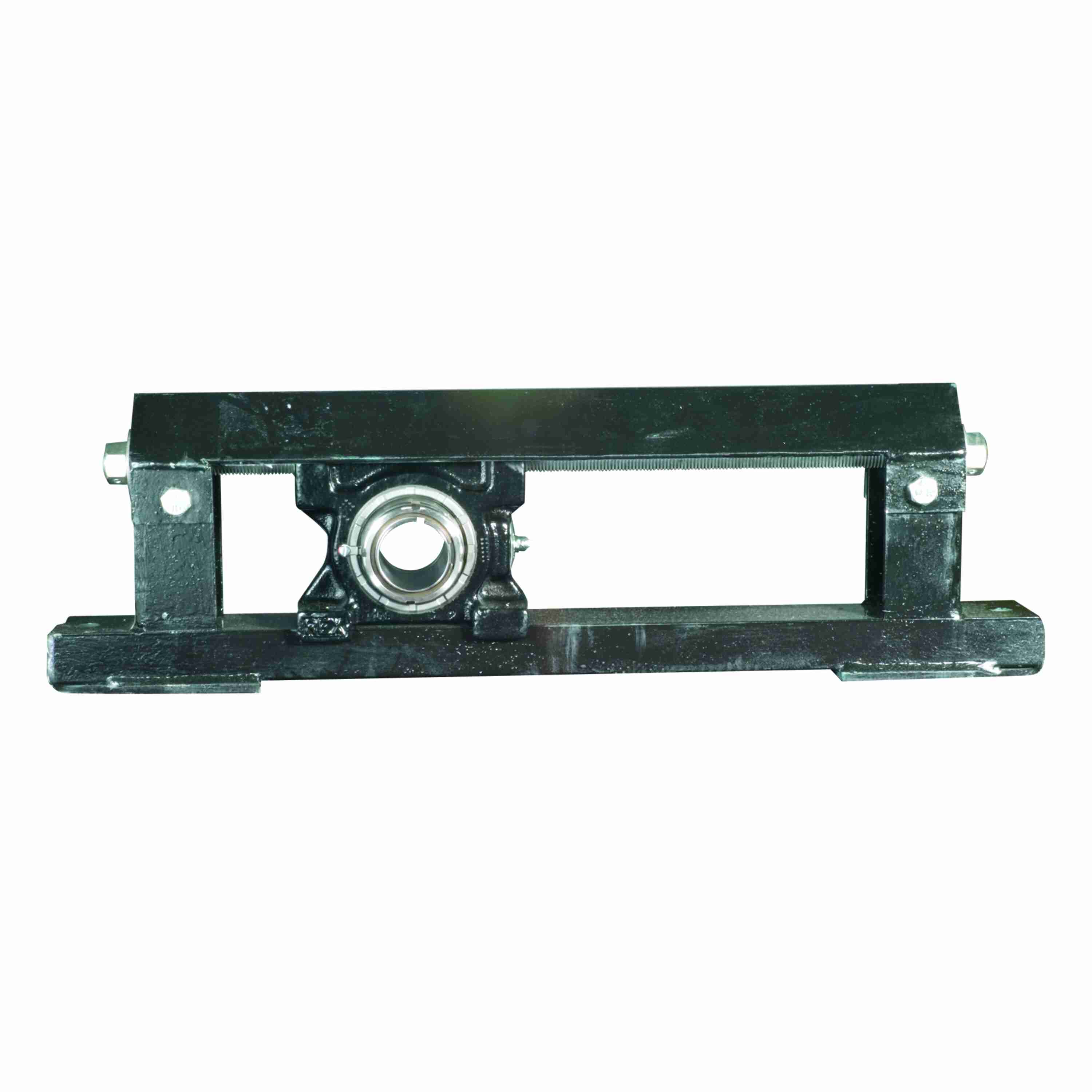

Rexnord MNT8620724 Take-up Assemblies Rex Spherical Roller Bearings - MNT8620724
Part #:10411917
Catalog #:MNT8620724
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 4.16 in | Overall Height (in): | 9.13 in |
| Base to Center Height (in): | 4.375 in | Overall Length (in): | 42.5 in |
| Bore Diameter (in): | 2.4375 in | Foot Height (in): | 1.75 in |
| Bolt Size (in): | 3/4 in | Housing Width (in): | 4.13 in |
| Frame Length (in): | 42.5 in | Channel Width (in): | 3 in |
| Frame Height (in): | 9.13 in | Frame Width (in): | 3.5 in |
| Travel Length (in): | 24 in | Overall Rod Length (in): | 39.75 in |
| Distance from Bearing Centerline to Housing Face (in): | 1.38 in | Bolt Spacing (in): | 40.5 in |
| Length Through Bore (in): | 4.16 in | Frame Bolt Hole Center to Bearing Centerline (in): | 8.25 in |
Technical Specifications
| End Cap: | DTC8138 | Fixed/Expansion: | Fixed |
| Housing Material: | Cast Iron | Housing Construction: | Solid |
| Radial Clearance: | C3 STANDARD | Seal Type: | Heavy Contact Seal |
| Shaft Locking Type: | Adapter Mount | Misalignment Type: | Dynamic |
| Housing Color: | Black | Cage Material: | Engineered Polymer |
| Rolling Element: | Spherical Roller | Radial Dynamic Load Capacity (lb): | 43,240 lb |
| Static Load Rating (lb): | 53,500 lb | Product: | ZNT6000 |
| Frame Type: | Protected Screw Take-up Assembly | Series: | Take-up Assemblies |
| Frame Material: | Welded Steel | Housing Type: | Take-Up Assembly |
| Housing Style: | Take-Up Assembly | Microlock Kit: | ML3 |
| Adjusting Screw Thread Size: | 7/8-9 NC | Allowable Working Load [2/3 Yield Strength] (lb): | 4,400 lb |
| Maximum Speed (RPM): | 2000 rpm | Ability to Relubricate: | Yes |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Frame: | ZNT824 |
| Seal Kit: | MS8 | Vibration Frequency Roller Spin: | 0.0607 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Replacement Take-up Block: | MN86207 |
| Max Operating Temperature (C): | 107 °C | Lubricant: | Lithium Complex NLGI 2 Grease |
| Shaft Locking Collar Kit/Adapter Assembly: | AK86207 | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (F): | 225 °F | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Vibration Frequency Inner Ring Defect: | 0.1791 cps | Locking Device Kit: | AK86207 |
| Impact Style Shurlok Install Tool: | 105-90425-31 | Housing Coating: | POWDER COATED |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Size Code: | 8 | Insert: | 6207U |
General Specifications
| UPC: | 698210152543 | Weight: | 75.00 LB |
| HTC: | 84833080 |
