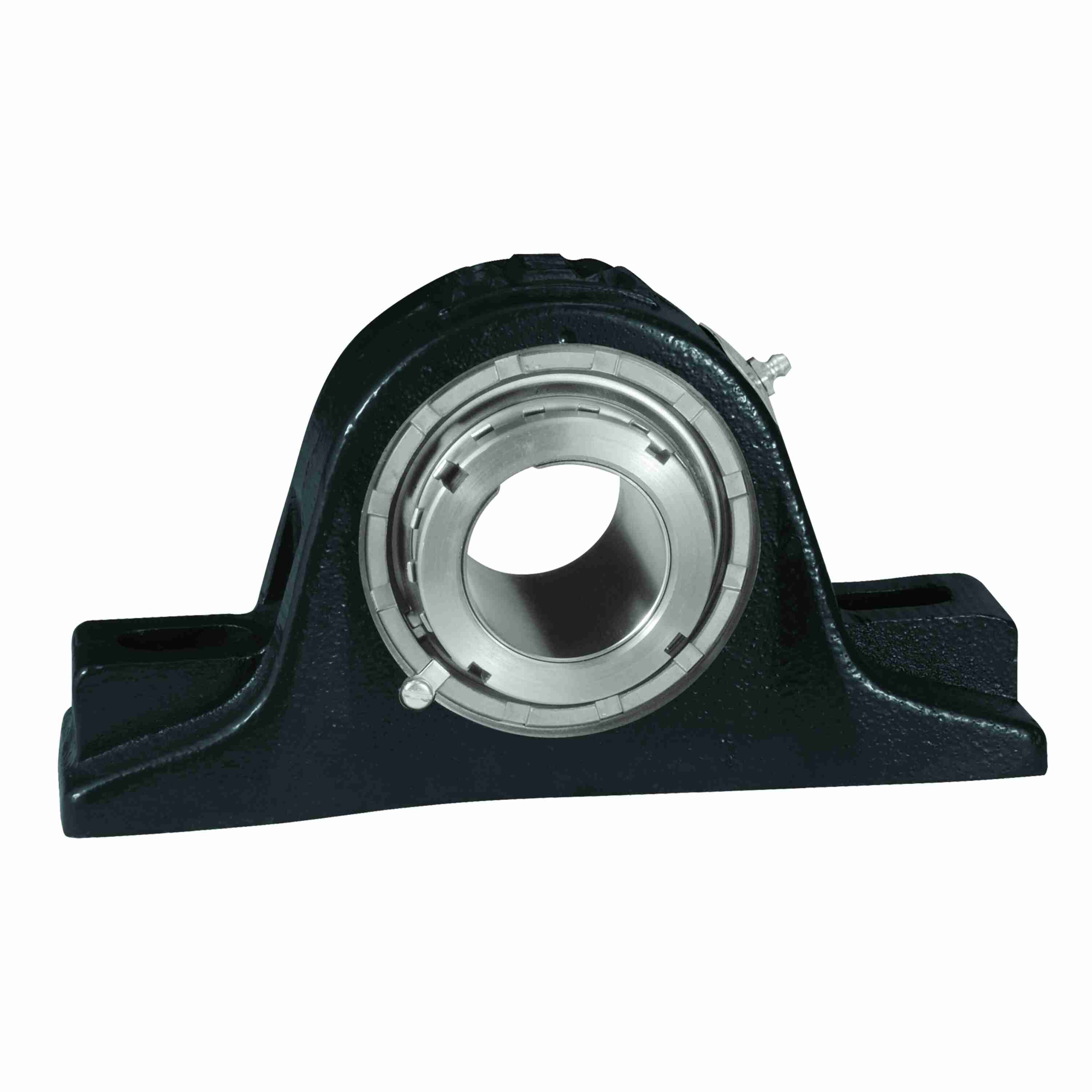

Rexnord MPS9207 Solid-housed Pillow Blocks Rex Spherical Roller Bearings - MPS9207
Part #:10433709
Catalog #:MPS9207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 3.5 in | Overall Length (in): | 12.59 in |
| Base Width (in): | 3.88 in | Slot Length (in): | 1.63 in |
| Bore Diameter (in): | 2.4375 in | Overall Height (in): | 7.19 in |
| Overall Width (in): | 3.88 in | Bolt Size (in): | 7/8 in |
| Foot Height (in): | 2.06 in | Locking Collar Outside Diameter (in): | 3.63 in |
| Base Length (in): | 13 in | Bolt Spacing (in): | 9.75 in |
| Length Through Bore (in): | 3.75 in | Expansion Capability (in): | 0.55 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Housing Cast Face to Outermost Bearing Face (in): | 0.59 in |
Technical Specifications
| Misalignment Type: | Dynamic | Seal Type: | Heavy Contact Seal |
| Housing Style: | Pillow Block | Series: | Solid-housed Pillow Blocks |
| Fixed/Expansion: | Expansion | Static Load Rating (lb): | 71,500 lb |
| Shaft Locking Type: | Adapter Mount | Housing Construction: | Solid |
| Housing Material: | Cast Iron | Product: | ZPS9000 |
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Radial Clearance: | C3 STANDARD |
| Housing Type: | Pillow Block, Two Bolt | Rolling Element: | Spherical Roller |
| Cage Material: | Engineered Polymer | Housing Color: | Black |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1700 rpm |
| Microlock Kit: | ML3 | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Seal Kit: | MS9 | Shaft Locking Collar Kit/Adapter Assembly: | AK9207 |
| Housing Coating: | POWDER COATED | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Expansion Lock Plug: | 105-95008-24 | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Size Code: | 9 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Insert: | 9207U |
| Vibration Frequency Roller Spin: | 0.0591 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Locking Device Kit: | AK9207 | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 698210712655 | Weight: | 40.60 LB |
| Packaged Length: | 13.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 7.88 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
