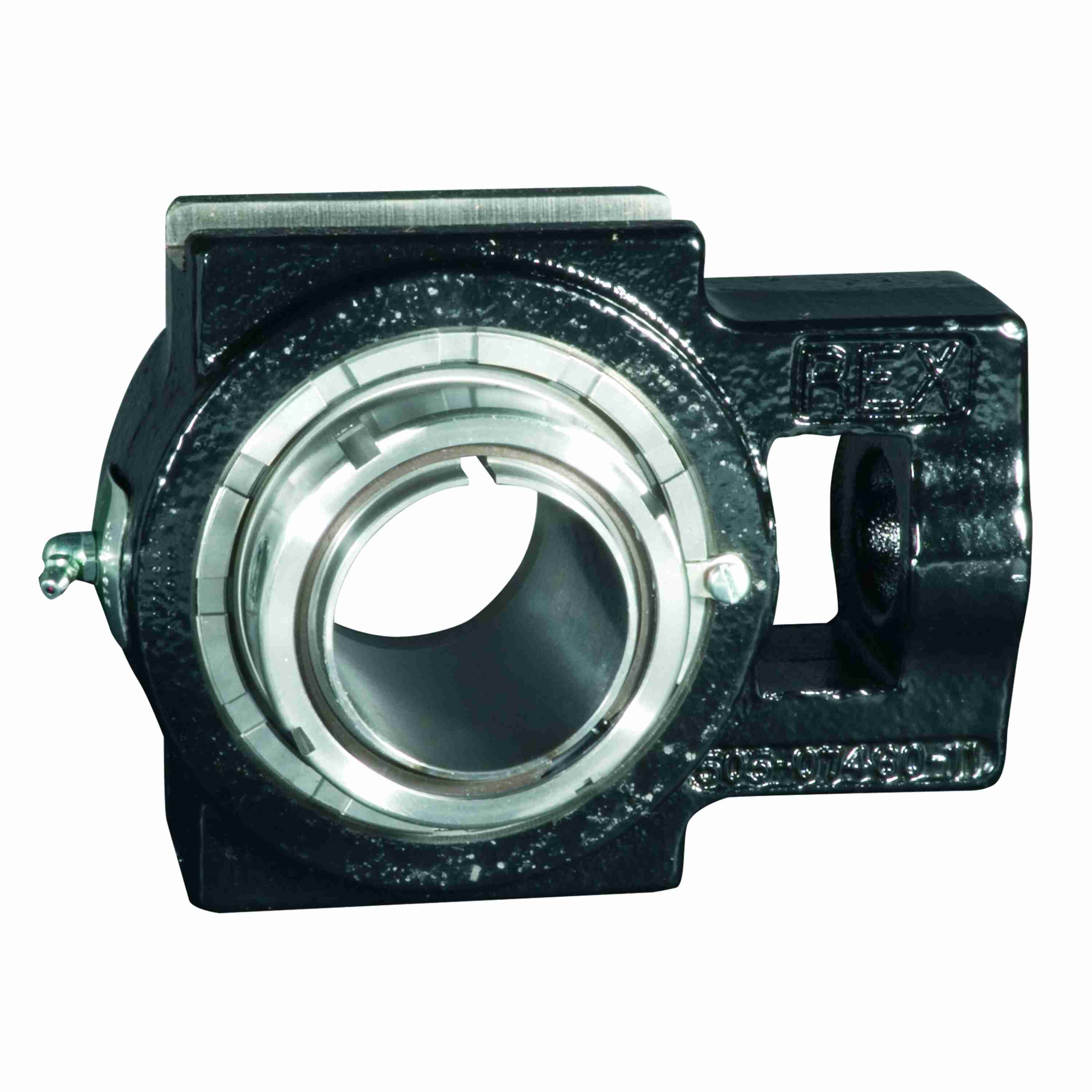

Rexnord MT76203V40 Take-up Blocks Rex Spherical Roller Bearings - MT76203V40
Part #:10445368
Catalog #:MT76203V40
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 3.77 in | Slot Length (in): | 3.75 in |
| Overall Length (in): | 7.13 in | Housing Width (in): | 2.5 in |
| Bore Diameter (in): | 2.1875 in | Slot Width (in): | 0.81 in |
| Overall Height (in): | 5.25 in | Base to Center Height (in): | 4.625 in |
| Adjusting Screw Clearance Hole Diameter (in): | 1.38 in | Locking Collar Outside Diameter (in): | 3.24 in |
| Adjustment Slot Width (in): | 1.25 in | Adjustment Pad Height (in): | 3.88 in |
| Slot Spacing (in): | 4.5 in | Adjusting Screw Square Nut Seat Height (in): | 2.25 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Housing Cast Face to Outermost Bearing Face (in): | 1.16 in |
| Length Through Bore (in): | 3.77 in | Centerline to Outermost Bearing Face (in): | 2.41 in |
| Housing Outside Diameter to Cast Square Nut Slot Face (in): | 5 in |
Technical Specifications
| Seal Type: | Heavy Contact Seal, Viton | Radial Dynamic Load Capacity (lb): | 36,370 lb |
| Housing Construction: | Solid | End Cap: | NEED EXT EC |
| Shaft Locking Type: | Adapter Mount | Cage Material: | Engineered Polymer |
| Housing Color: | Black | Static Load Rating (lb): | 44,400 lb |
| Fixed/Expansion: | Fixed | Rolling Element: | Spherical Roller |
| Product: | ZT6000 | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | Housing Style: | Take-Up Block |
| Housing Type: | Take Up, Wide Slot | Series: | Take-up Blocks |
| Radial Clearance: | C3 STANDARD | Setscrew Torque (in-lbs): | 87-92 in/lbs |
| Seal Kit: | MS7V | Maximum Speed (RPM): | 2500 rpm |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip Seal | Allowable Working Load [2/3 Yield Strength] (lb): | 13,500 lb |
| Ability to Relubricate: | Yes | Microlock Kit: | ML2 |
| Size Code: | 7 | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (C): | 107 °C | Housing Coating: | POWDER COATED |
| Insert: | 6203U | Max Operating Temperature (F): | 225 °F |
| Impact Style Shurlok Install Tool: | 105-90425-21 | Lube Fill Percent: | 0% FILL |
| Vibration Frequency Inner Ring Defect: | 0.179 cps | Shaft Locking Collar Kit/Adapter Assembly: | AK76203 |
| Primary Seal: | VITON SPRING LOADED LIP SEAL | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Lubricant: | PRESERVATIVE ONLY - NO GREASE | Vibration Frequency Roller Spin: | 0.0606 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Locking Device Kit: | AK76203 |
| Vibration Frequency Outer Ring Defect: | 0.1377 cps |
General Specifications
| UPC: | 662864916288 | Weight: | 13.60 LB |
| HTC: | 8483204080 | Country of Origin: | Mexico |
