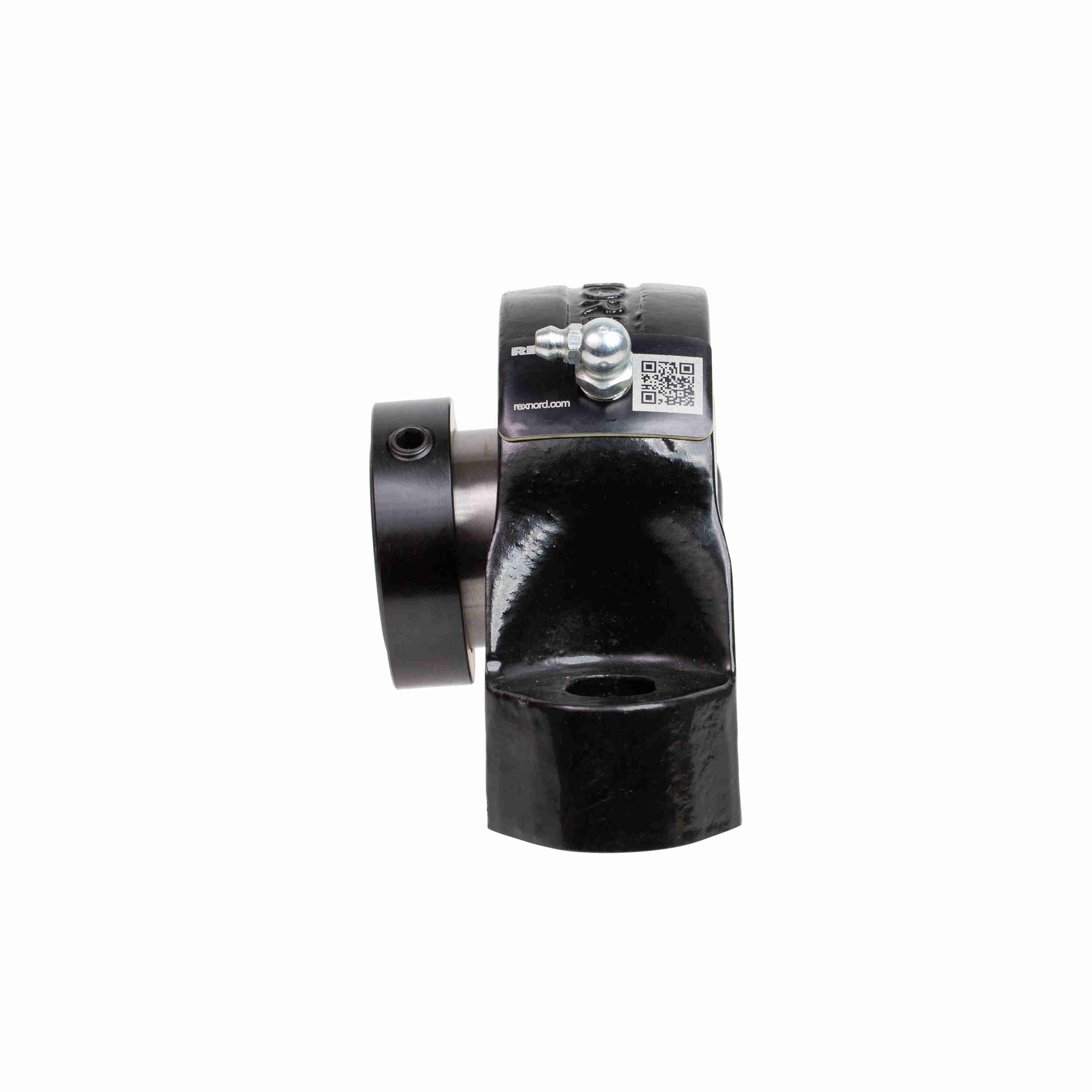

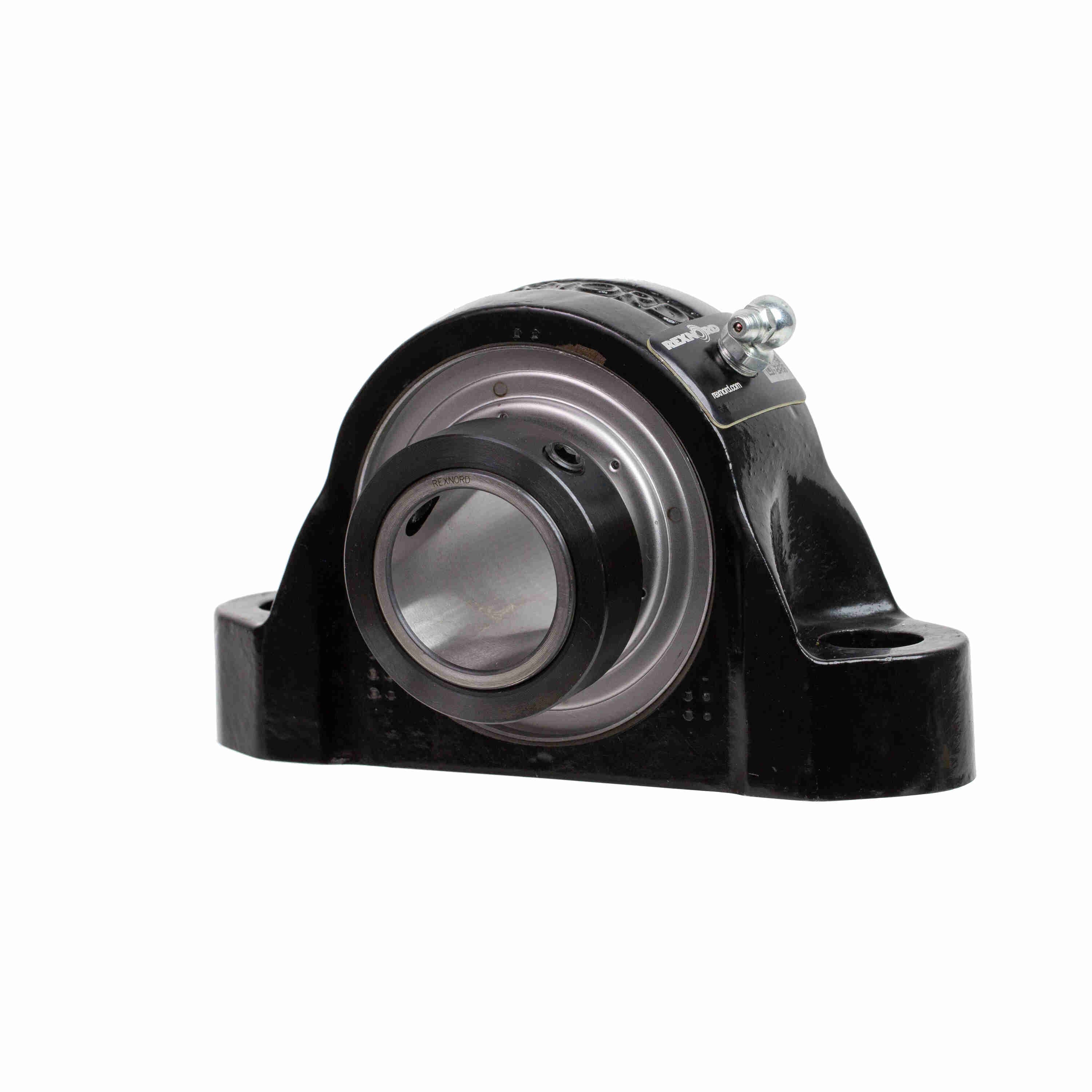

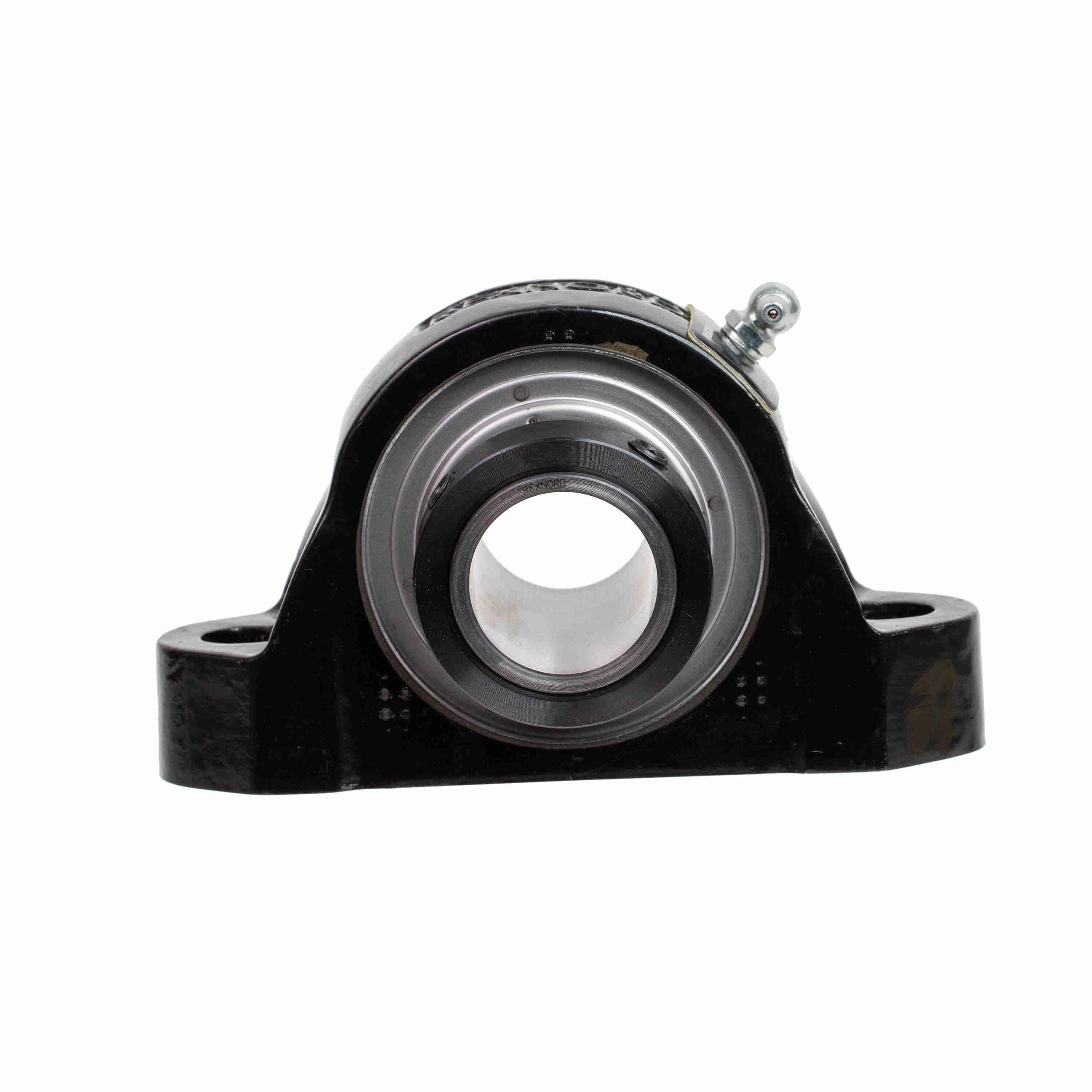

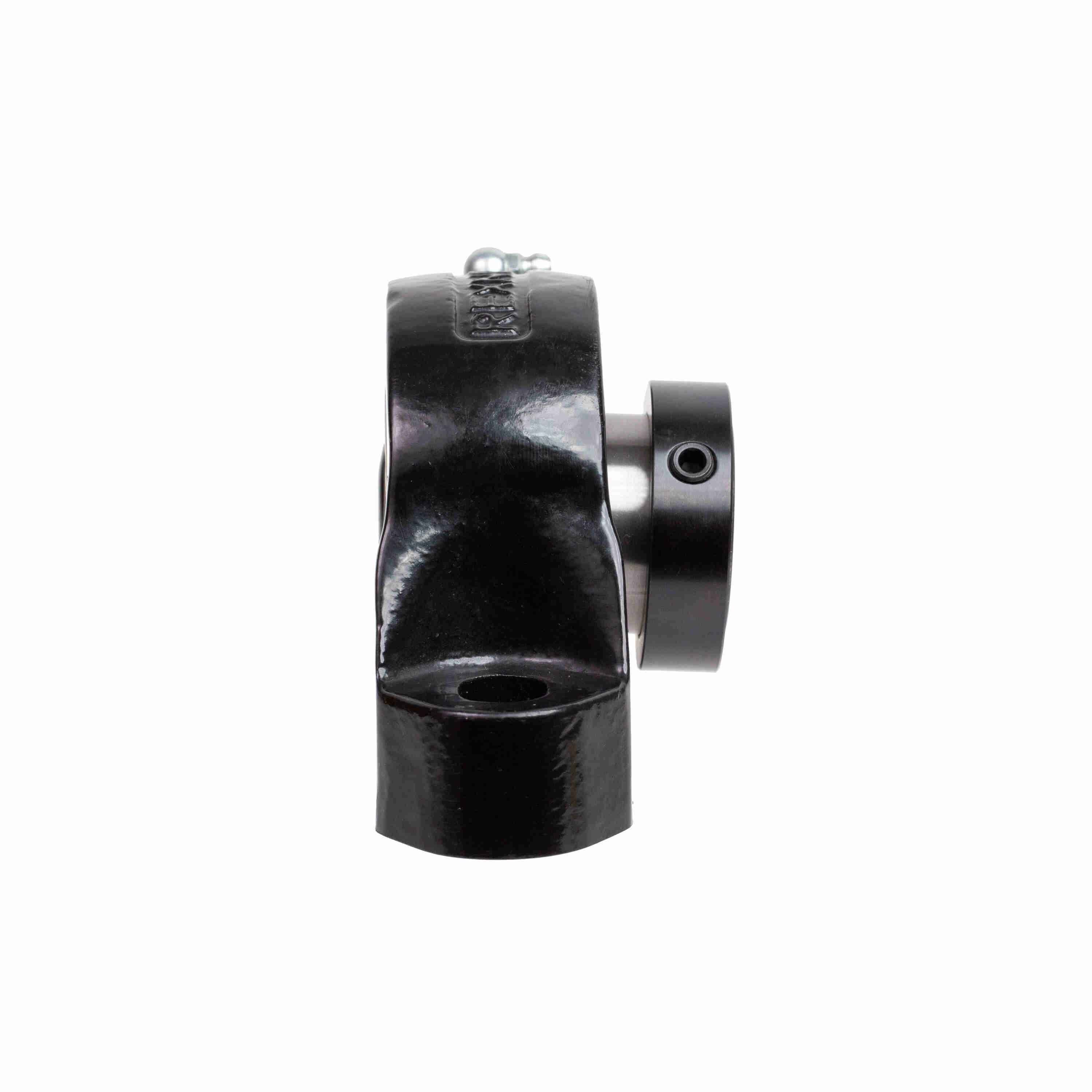

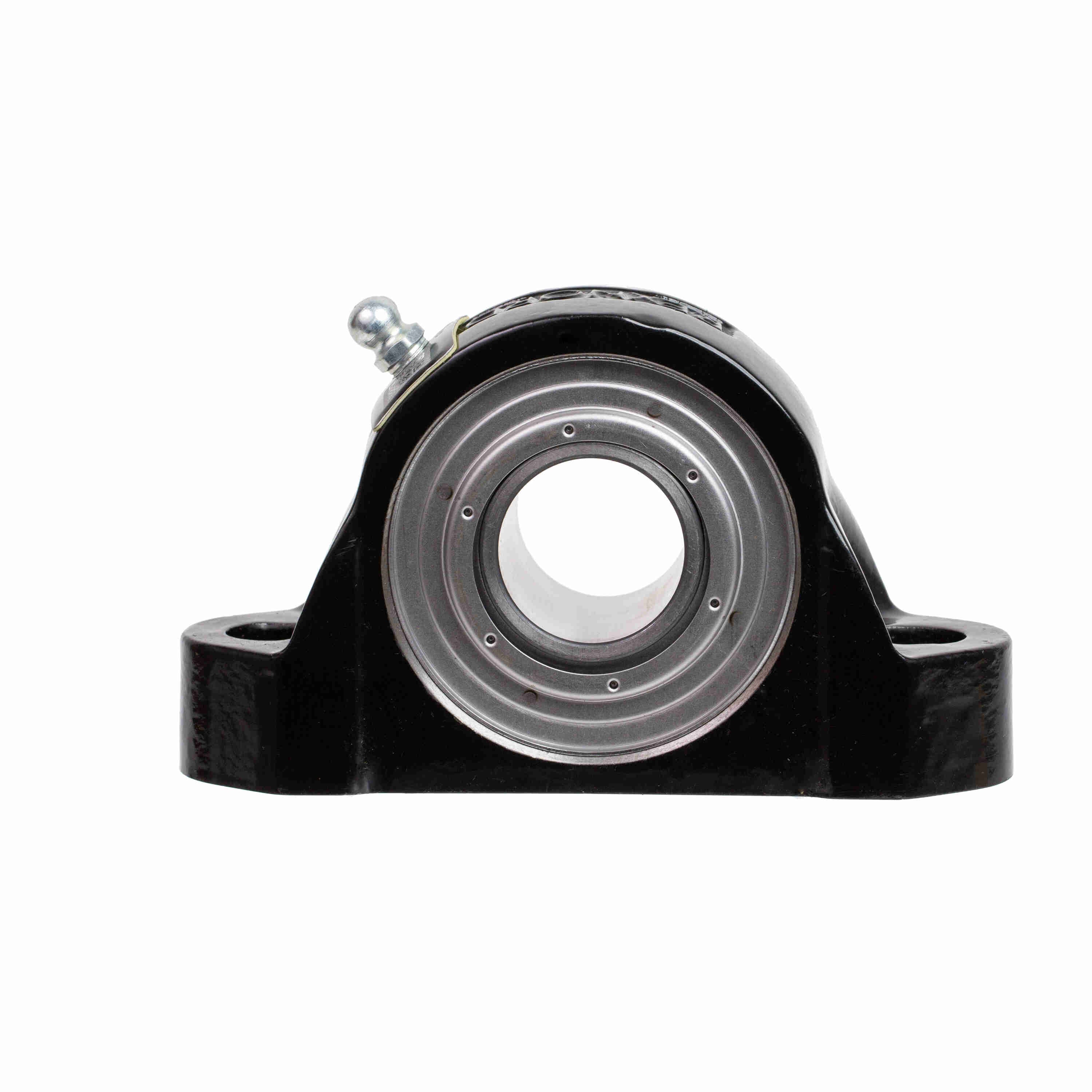

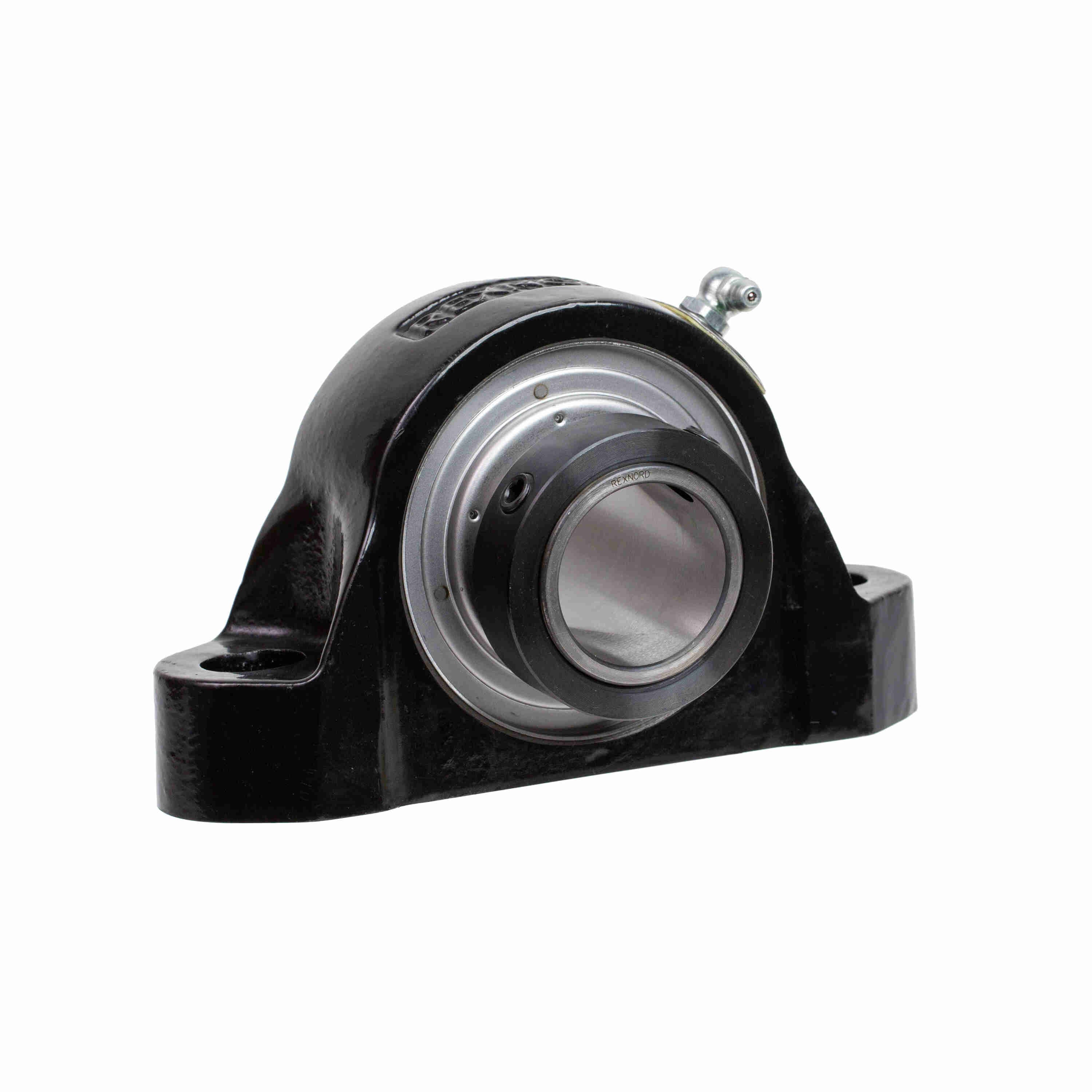

Rexnord P2B107T Solid-housed Pillow Blocks PT Select Spherical Roller Bearings - P2B107T
Part #:10479631
Catalog #:P2B107T
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 1.875 in | Slot Length (in): | 0.82 in |
| Bolt Size (in): | 1/2 in | Overall Height (in): | 3.85 in |
| Bore Diameter (in): | 1.4375 in | Base Width (in): | 1.95 in |
| Foot Height (in): | 1.13 in | Overall Length (in): | 6.62 in |
| Overall Width (in): | 2.71 in | Locking Collar Outside Diameter (in): | 2.3 in |
| Length Through Bore (in): | 2.71 in | Centerline to Outermost Bearing Face (in): | 1.83 in |
| Bolt Spacing Min (in): | 4.81 in | Bolt Spacing Max (in): | 5.2 in |
| Base Length (in): | 6.62 in | Housing Cast Face to Outermost Bearing Face (in): | 0.98 in |
Technical Specifications
| Static Load Rating (lb): | 21,360 lb | Rolling Element: | Spherical Roller |
| End Cap: | SEE AUX CAP KIT | Series: | Solid-housed Pillow Blocks |
| Radial Dynamic Load Capacity (lb): | 20,000 lb | Product: | P2B |
| Misalignment Type: | Dynamic | Housing Type: | Pillow Block, Two Bolt |
| Cage Material: | Steel | Shaft Locking Type: | Single Set Collar |
| Housing Color: | Black | Housing Construction: | Solid |
| Housing Style: | Pillow Block | Fixed/Expansion: | Fixed |
| Seal Type: | Multi-Lip Contact Seal | Housing Material: | Cast Iron |
| Setscrew Torque (in-lbs): | 325 in/lbs | Available Seal Type: | C Clearance Seal; T Triple Lip Seal |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 3490 rpm |
| Vibration Frequency Inner Ring Defect: | 0.148 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Lube Fitting Type: | STRAIGHT AND 90 DEG FITTING |
| Vibration Frequency Fundamental Train: | 0.0068 cps | Vibration Frequency Outer Ring Defect: | 0.102 cps |
| Housing Coating: | POWDER COATED | Max Operating Temperature (C): | 107 °C |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Roller Spin: | 0.0431 cps |
| Max Operating Temperature (F): | 225 °F | Primary Seal: | BUNA TRIPLE LIP SEAL |
| Size Code: | 4 |
General Specifications
| UPC: | 782934932014 | Weight: | 5.00 LB |
| Packaged Length: | 8.50 IN | Packaged Width: | 3.50 IN |
| Packaged Height: | 4.50 IN | HTC: | 8483204080 |
| Country of Origin: | China |
