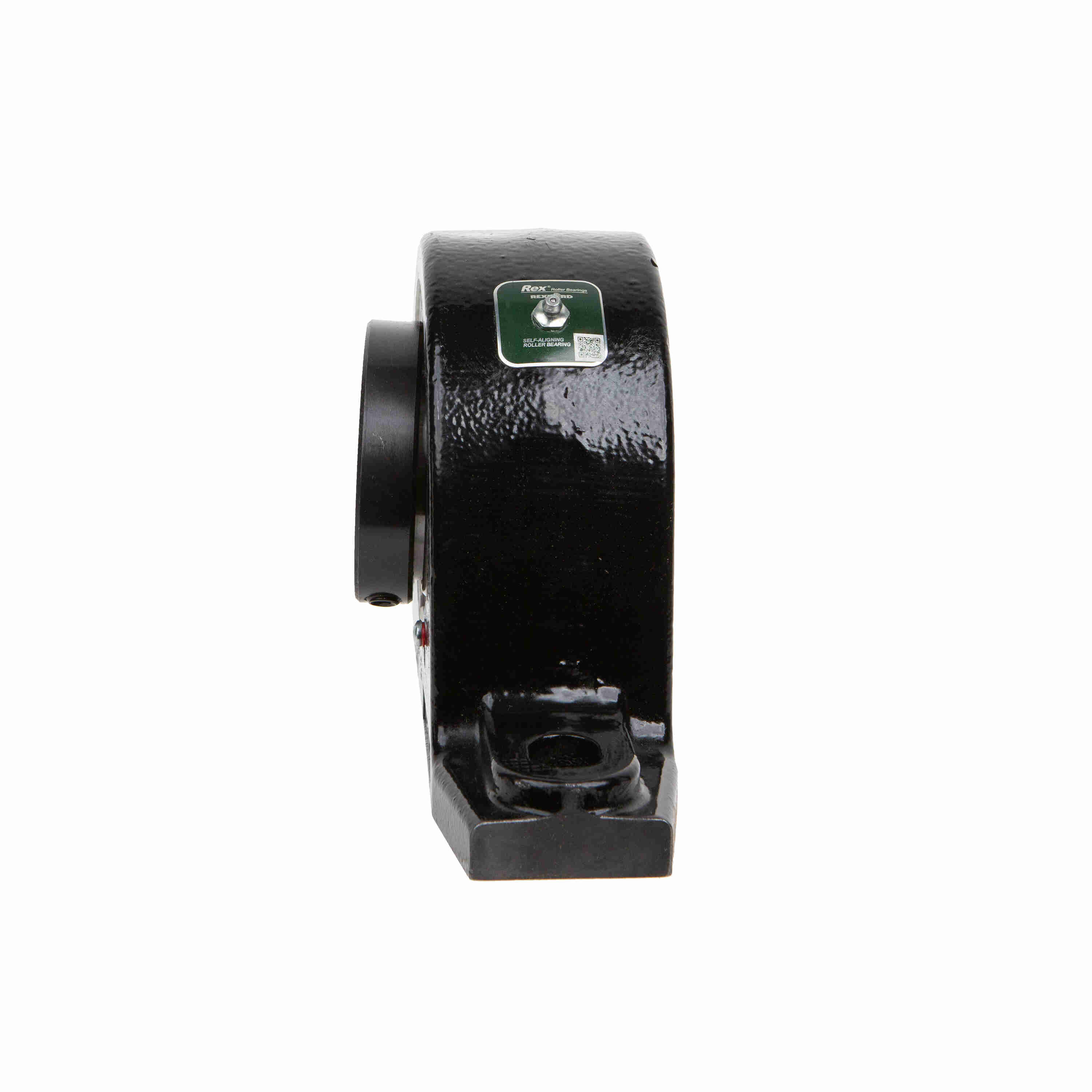

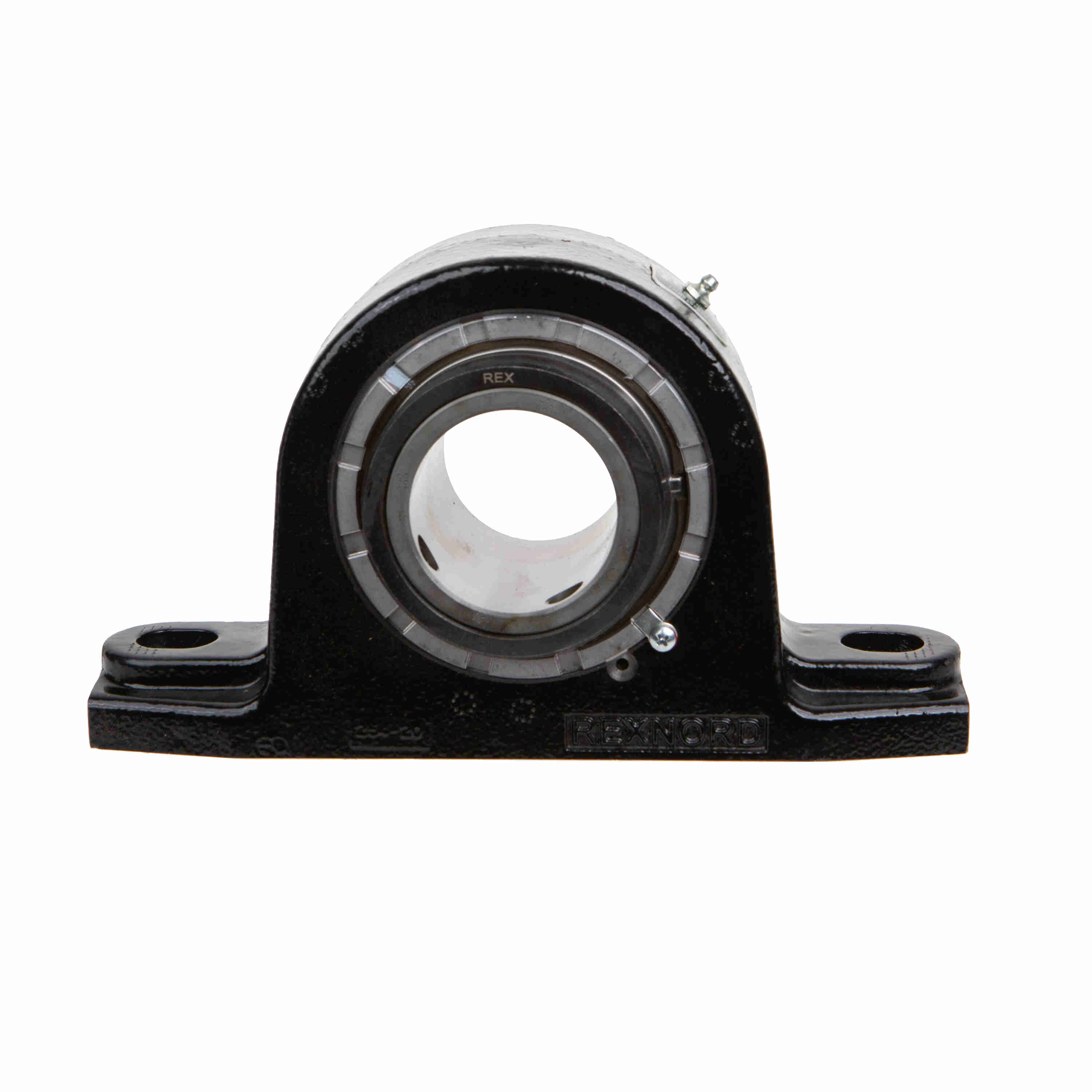

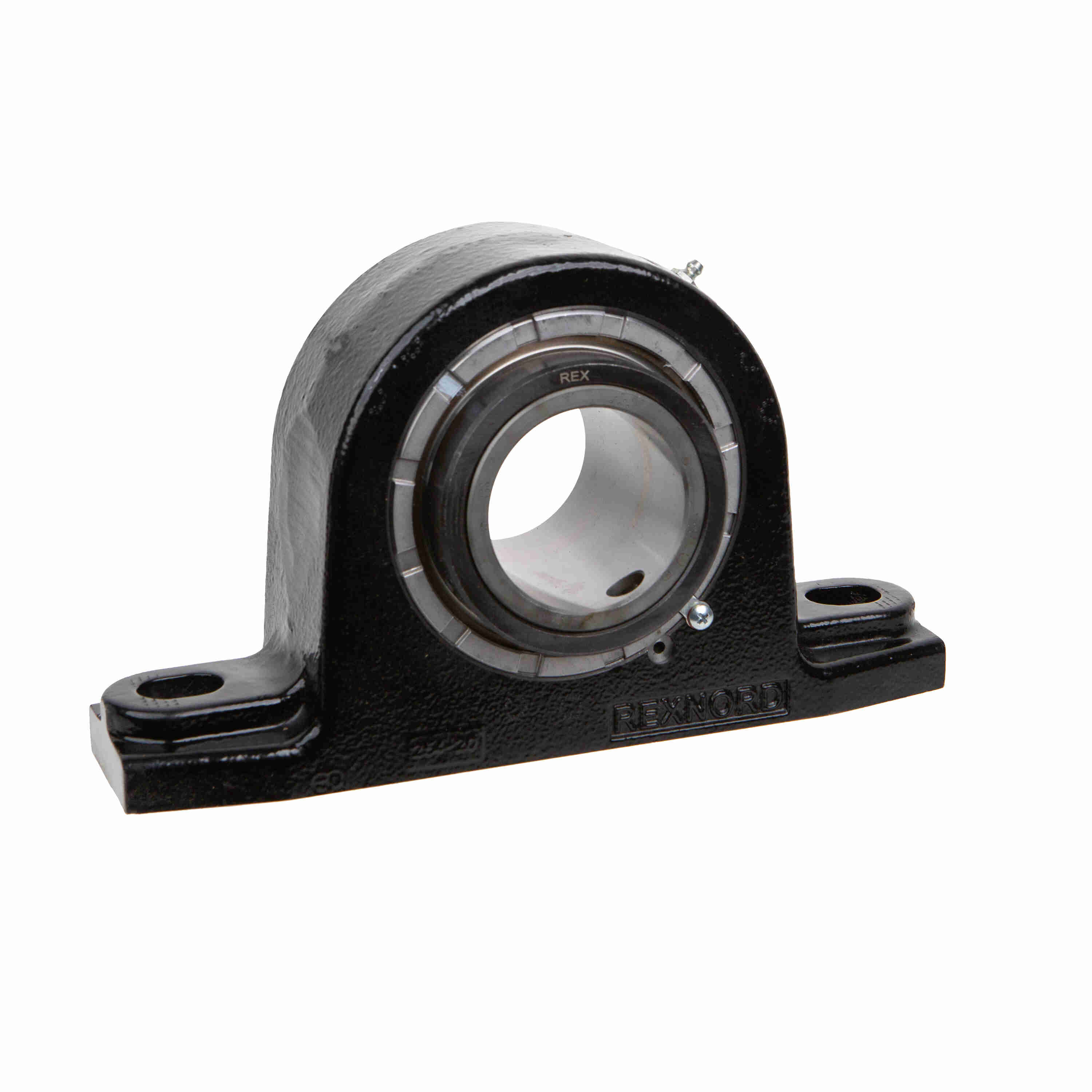

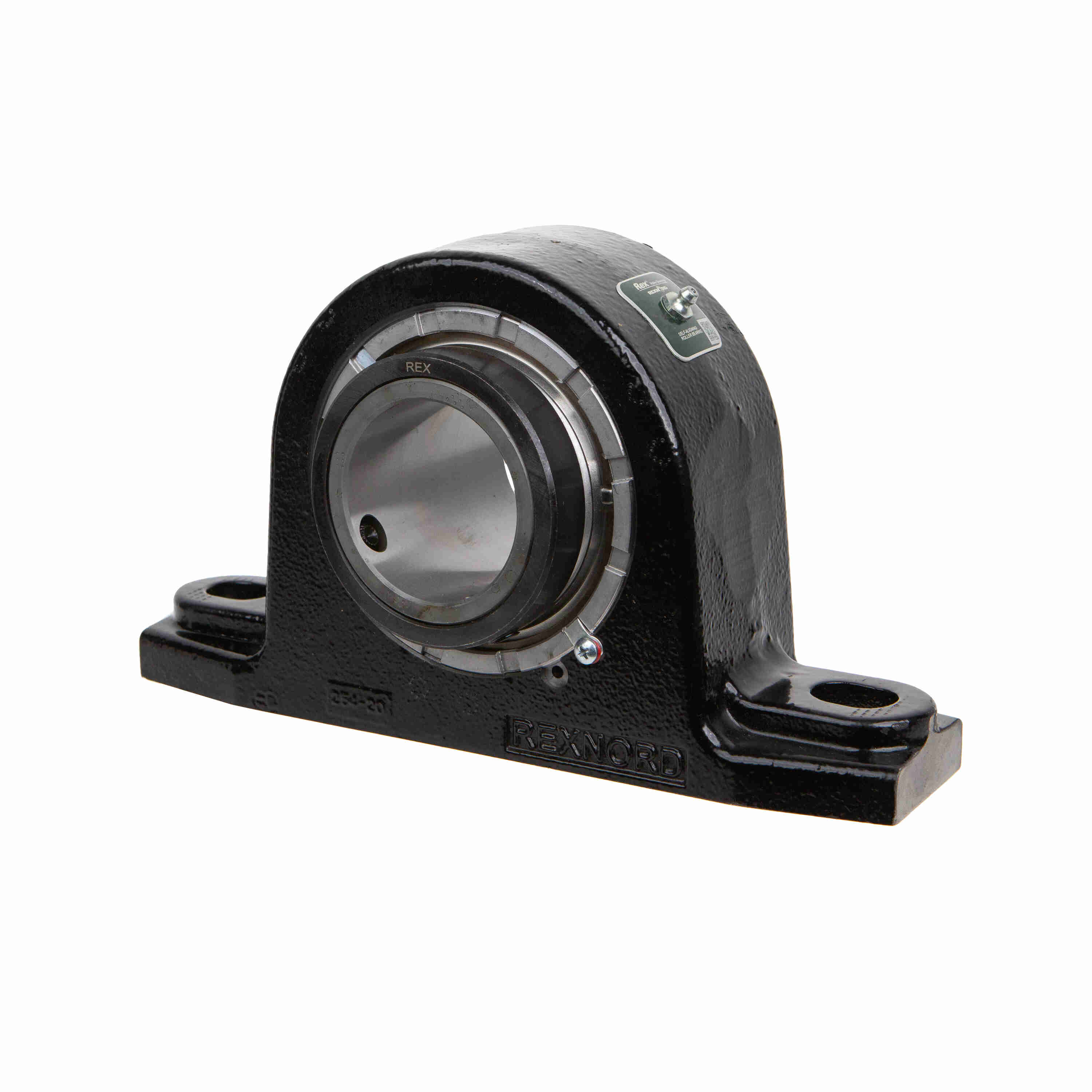

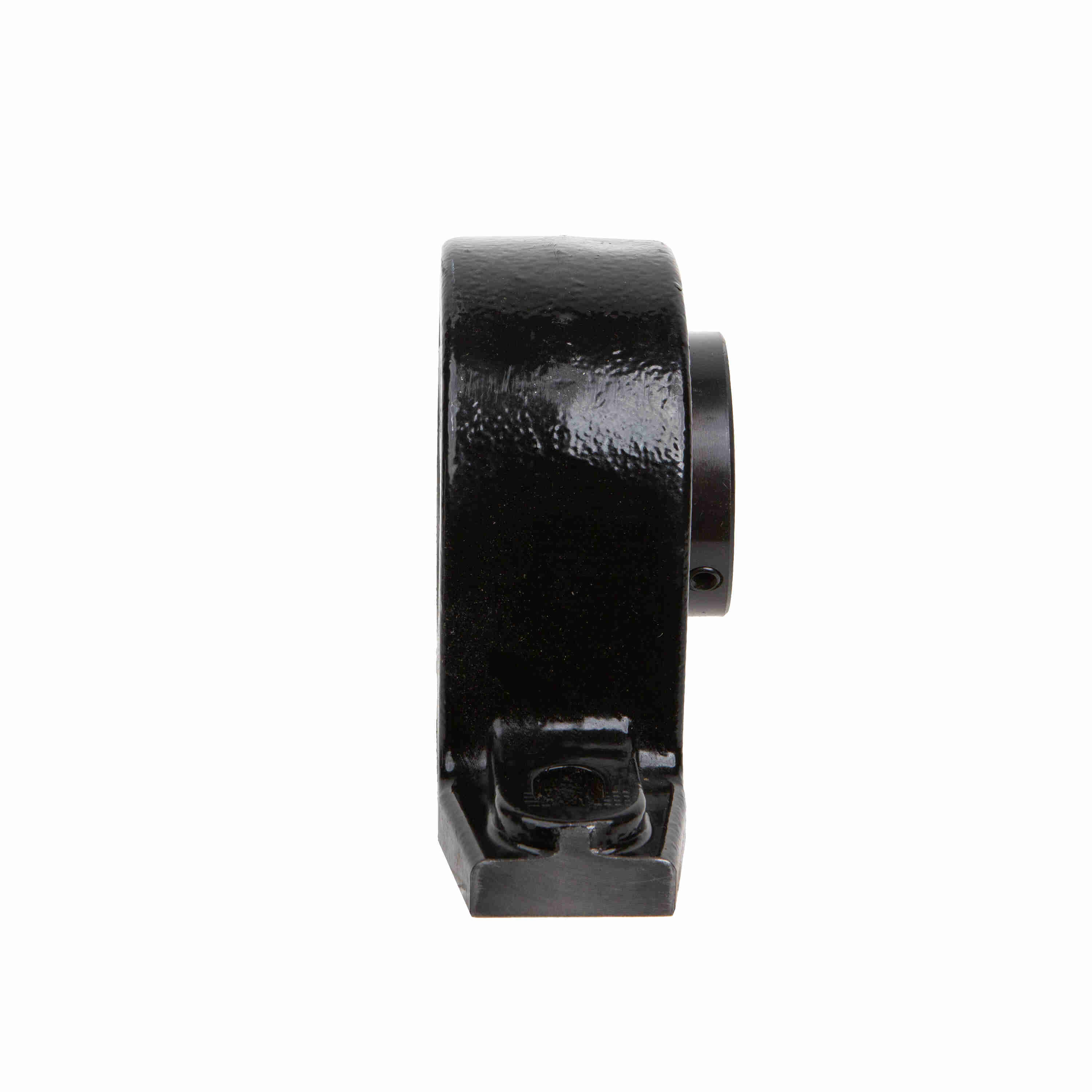

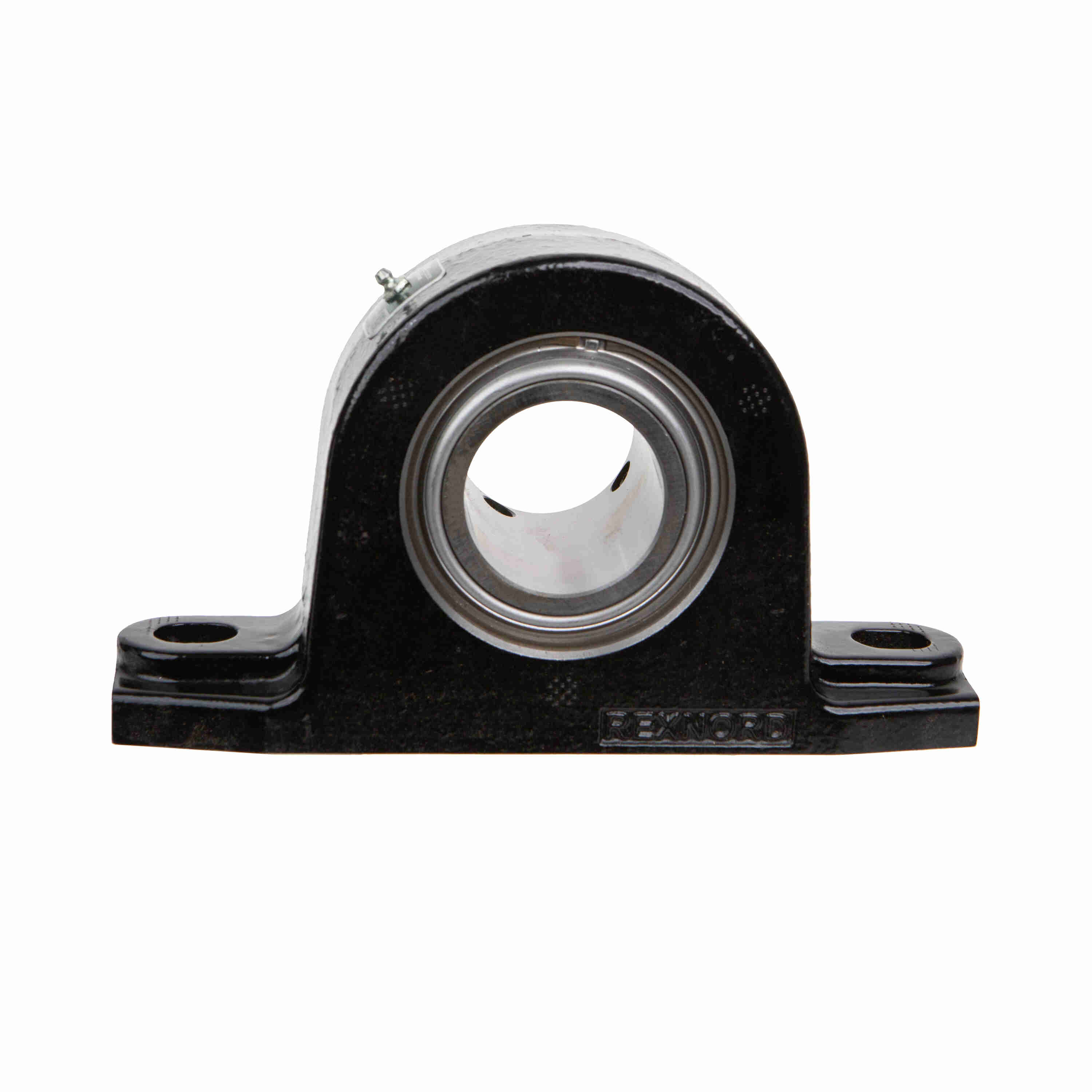

Rexnord P2BRN092070MMZ Solid-housed Pillow Blocks Spherical Roller Bearings - P2BRN092070MMZ
Part #:10803731
Catalog #:P2BRN092070MMZ
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (mm): | 70 mm | Bolt Size (mm): | 20 mm |
| Slot Length (mm): | 30 mm | Locking Collar Outside Diameter (mm): | 102.7 mm |
| Housing Height (mm): | 180.1 mm | Length Through Bore (mm): | 101.6 mm |
| Housing Cast Face to Outermost Bearing Face (mm): | 21.4 mm | Base to Center Height (mm): | 95 mm |
| Overall Height (mm): | 180.1 mm | Foot Height (mm): | 32 mm |
| Bolt Spacing Max (mm): | 280 mm | Base Length (mm): | 315 mm |
| Inner Ring Outside Diameter (mm): | 85.6 mm | Overall Length (mm): | 315 mm |
| Base Width (mm): | 81 mm |
Technical Specifications
| Static Load Rating (lb): | 71,500 lb | End Cap: | DTC9 |
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Housing Construction: | Solid |
| Housing Color: | Black | Housing Style: | Pillow Block |
| Shaft Locking Type: | Single Set Collar | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | Housing Type: | Pillow Block, Two Bolt, Hard Metric |
| Rolling Element: | Spherical Roller | Cage Material: | Engineered Polymer |
| Seal Type: | Clearance Seal | Series: | Solid-housed Pillow Blocks |
| Fixed/Expansion: | Fixed | Product: | P2BRN2000Z |
| Radial Clearance: | C3 STANDARD | Setscrew Torque (in-lbs): | 680 in/lbs |
| Microlock Kit: | ML3 | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Ability to Relubricate: | Yes | Seal Kit: | ZS9 |
| Maximum Speed (RPM): | 2800 rpm | Size Code: | 9 |
| Max Operating Temperature (C): | 107 °C | Insert: | 2070MMU |
| Housing Coating: | POWDER COATED | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Roller Spin: | 0.0591 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Locking Device Kit: | SC9 | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Max Operating Temperature (F): | 225 °F | Primary Seal: | STEEL CLEARANCE SEAL |
| Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 782935329516 | Weight: | 28.80 LB |
| Packaged Length: | 7.25 IN | Packaged Width: | 5.50 IN |
| Packaged Height: | 13.50 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
