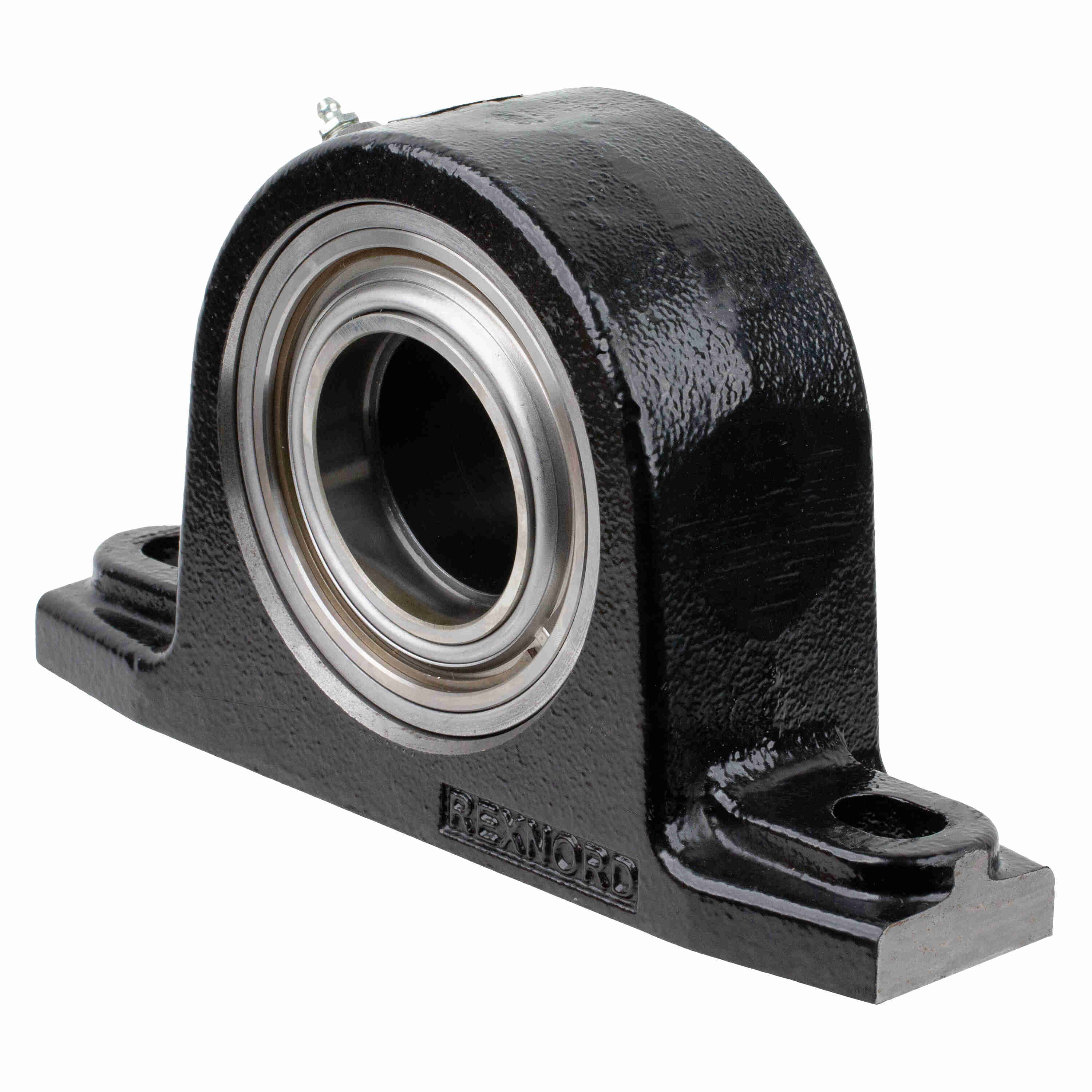

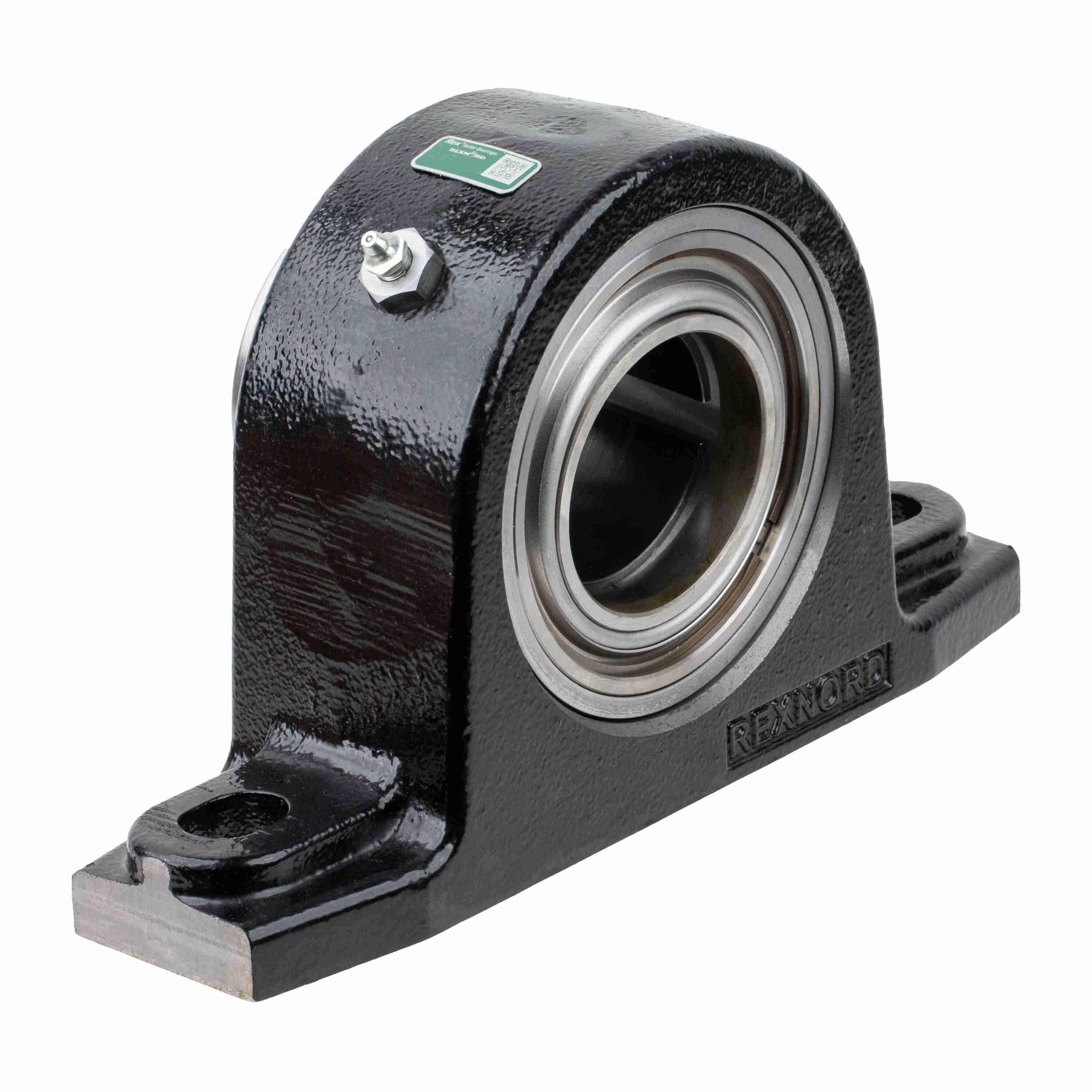

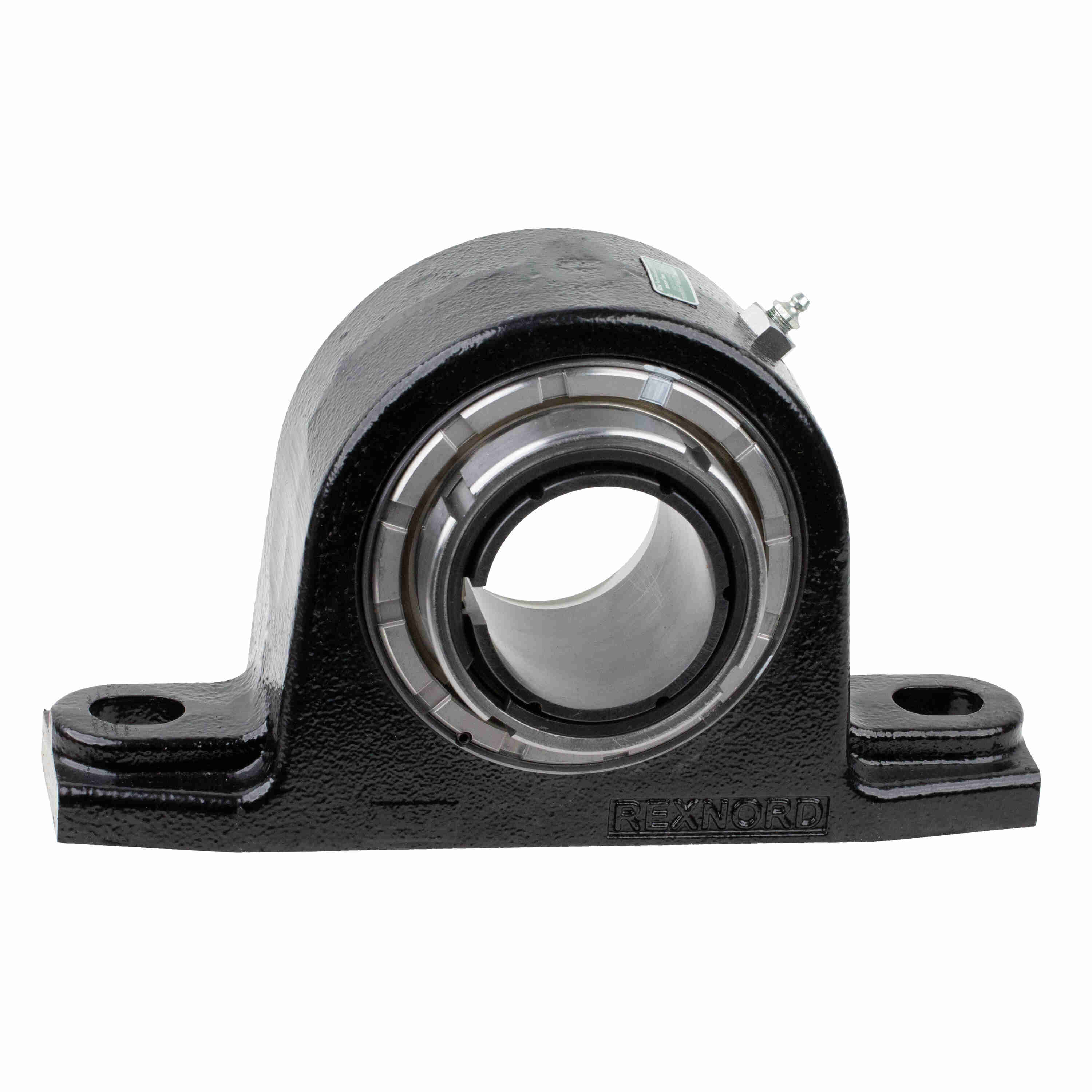

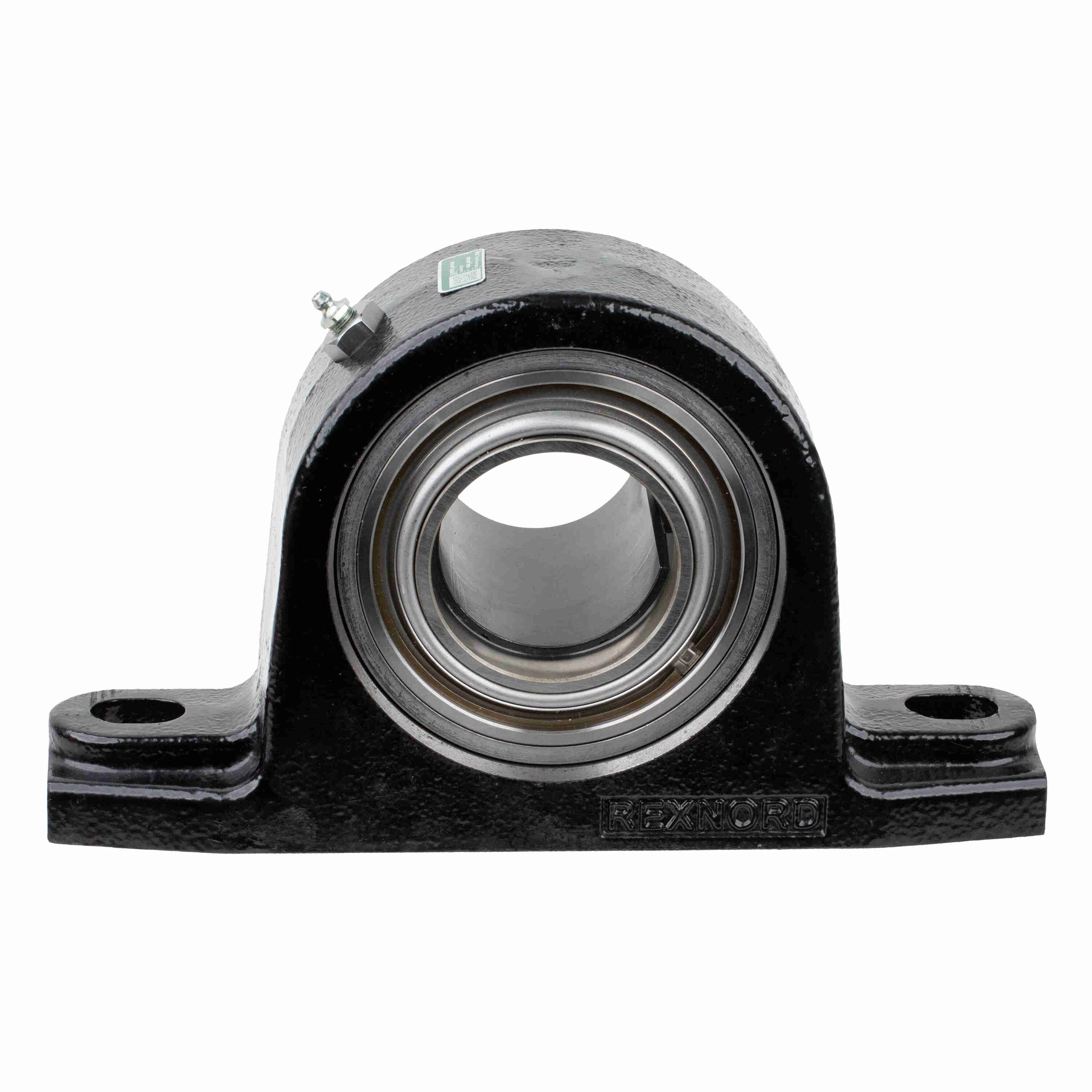

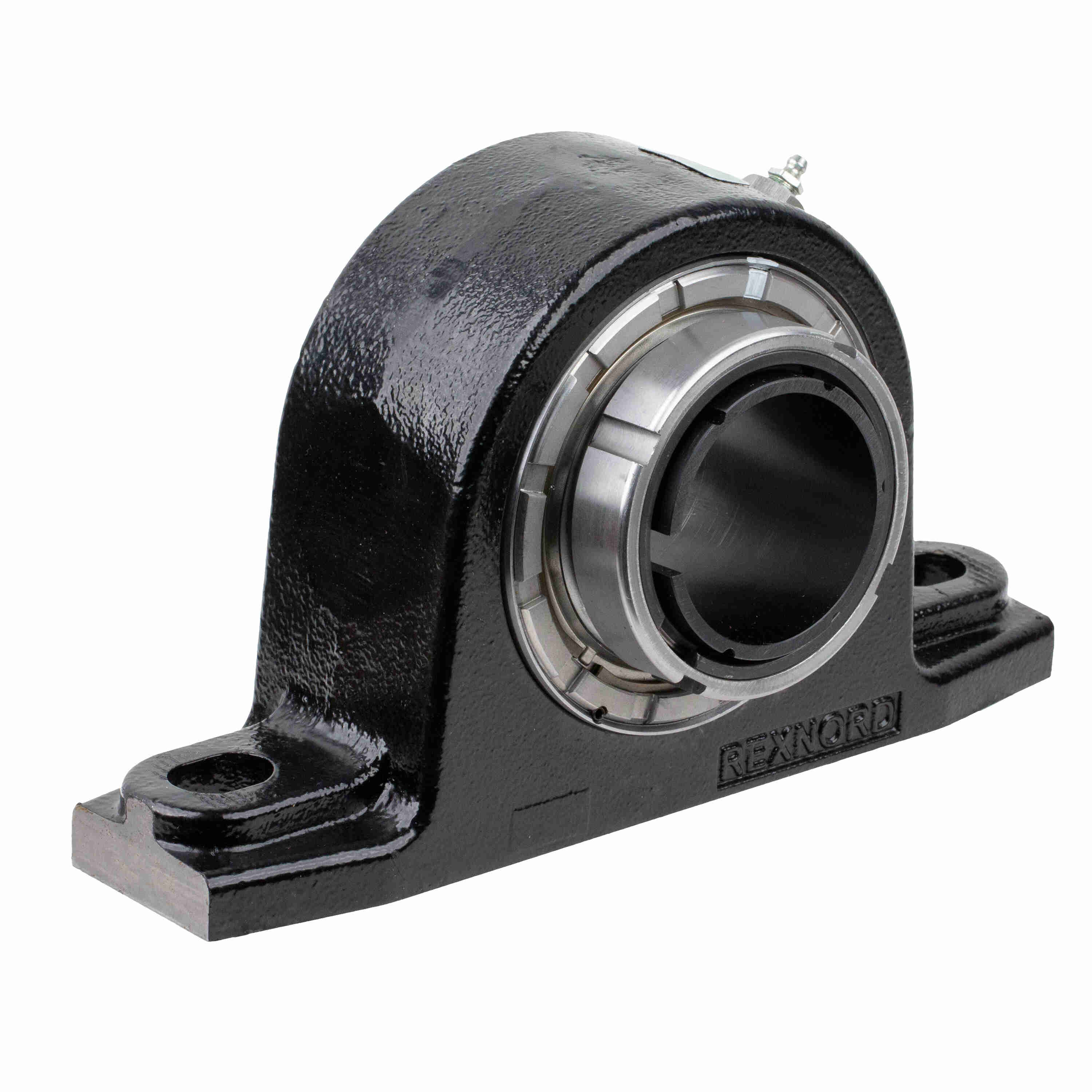

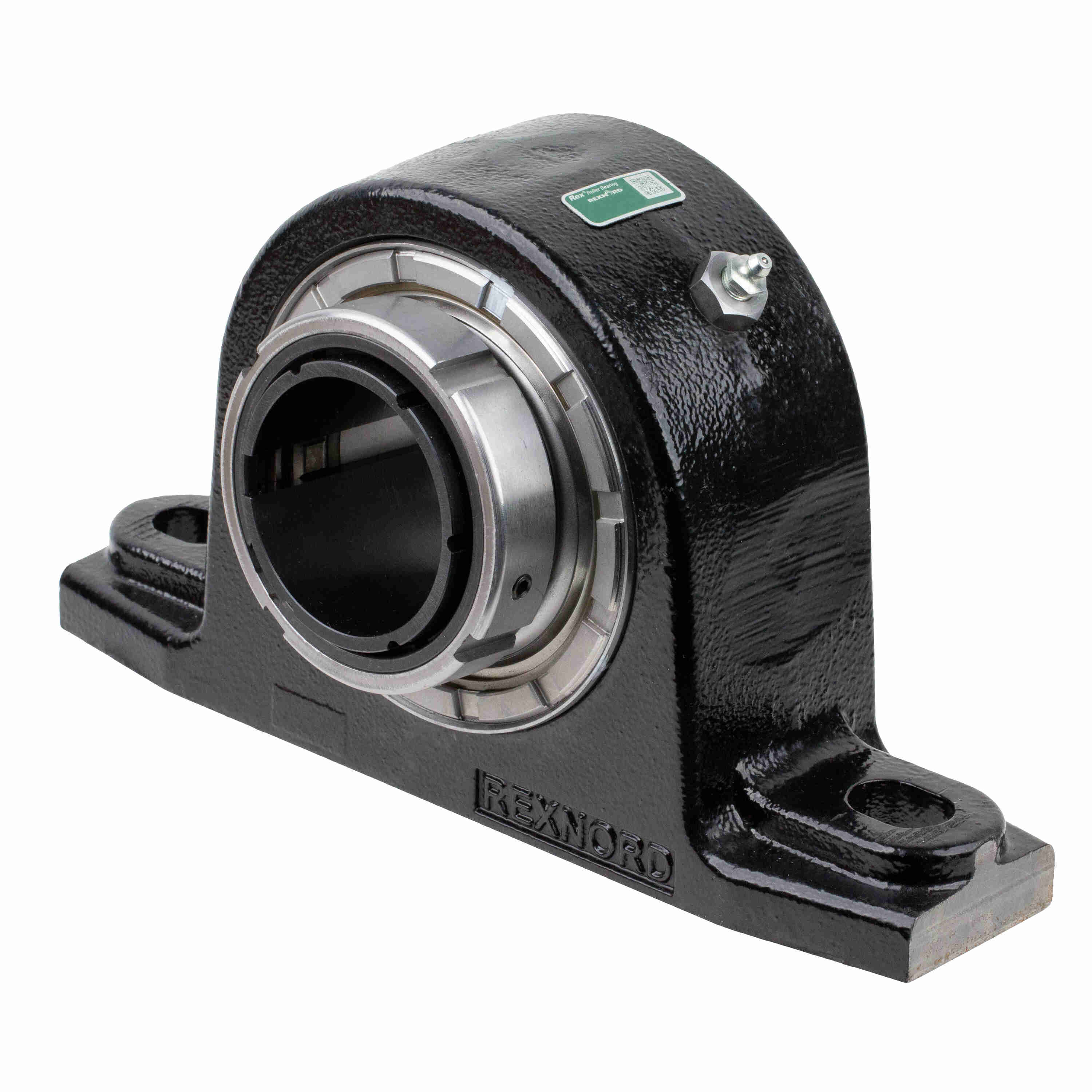

Rexnord P2BRN096070MMZE Solid-housed Pillow Blocks Spherical Roller Bearings - P2BRN096070MMZE
Part #:10811185
Catalog #:P2BRN096070MMZE
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (mm): | 20 mm | Bore Diameter (mm): | 70 mm |
| Locking Collar Outside Diameter (mm): | 104.1 mm | Slot Length (mm): | 30 mm |
| Housing Height (mm): | 180.1 mm | Housing Cast Face to Outermost Bearing Face (mm): | 35 mm |
| Base to Center Height (mm): | 95 mm | Bolt Spacing Max (mm): | 280 mm |
| Length Through Bore (mm): | 114.7 mm | Inner Ring Outside Diameter (mm): | 85.6 mm |
| Expansion Capability (in): | 0.38 in | Base Length (mm): | 315 mm |
| Overall Height (mm): | 180.1 mm | Base Width (mm): | 81 mm |
| Foot Height (mm): | 32 mm | Overall Length (mm): | 315 mm |
Technical Specifications
| Shaft Locking Type: | Adapter Mount | Cage Material: | Engineered Polymer |
| Housing Type: | Pillow Block, Two Bolt, Hard Metric | Misalignment Type: | Dynamic |
| Housing Material: | Cast Iron | Housing Color: | Black |
| Fixed/Expansion: | Expansion | Seal Type: | Clearance Seal |
| Static Load Rating (lb): | 71,500 lb | Rolling Element: | Spherical Roller |
| Radial Dynamic Load Capacity (lb): | 57,750 lb | Housing Construction: | Solid |
| Product: | P2BRN6000ZE | Series: | Solid-housed Pillow Blocks |
| Housing Style: | Pillow Block | Radial Clearance: | C3 STANDARD |
| Maximum Speed (RPM): | 2800 rpm | Setscrew Torque (in-lbs): | 165-185 in/lbs |
| Ability to Relubricate: | Yes | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Housing Coating: | POWDER COATED | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Shaft Locking Collar Kit/Adapter Assembly: | AK96070MM |
| Vibration Frequency Roller Spin: | 0.0591 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Primary Seal: | STEEL CLEARANCE SEAL | Expansion Lock Plug: | RN098A |
| Max Operating Temperature (F): | 225 °F | Lubricant: | Lithium Complex NLGI 2 Grease |
| Locking Device Kit: | AK96070MM | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Size Code: | 9 | Insert: | ZCS6070MM |
| Impact Style Shurlok Install Tool: | 105-90425-41 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps |
General Specifications
| UPC: | 782935335357 | Weight: | 26.00 LB |
| HTC: | 8483208080 | Country of Origin: | Mexico |
