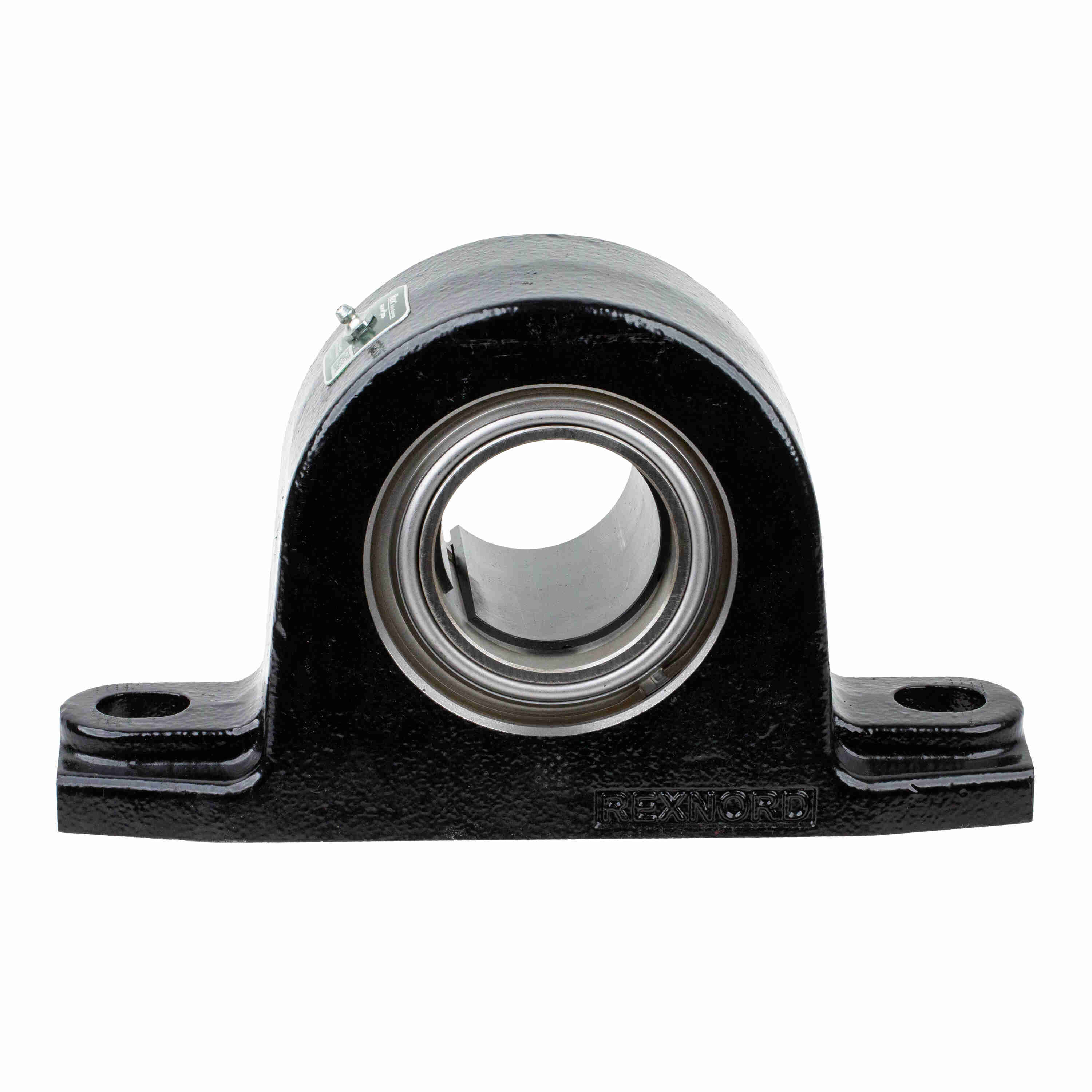

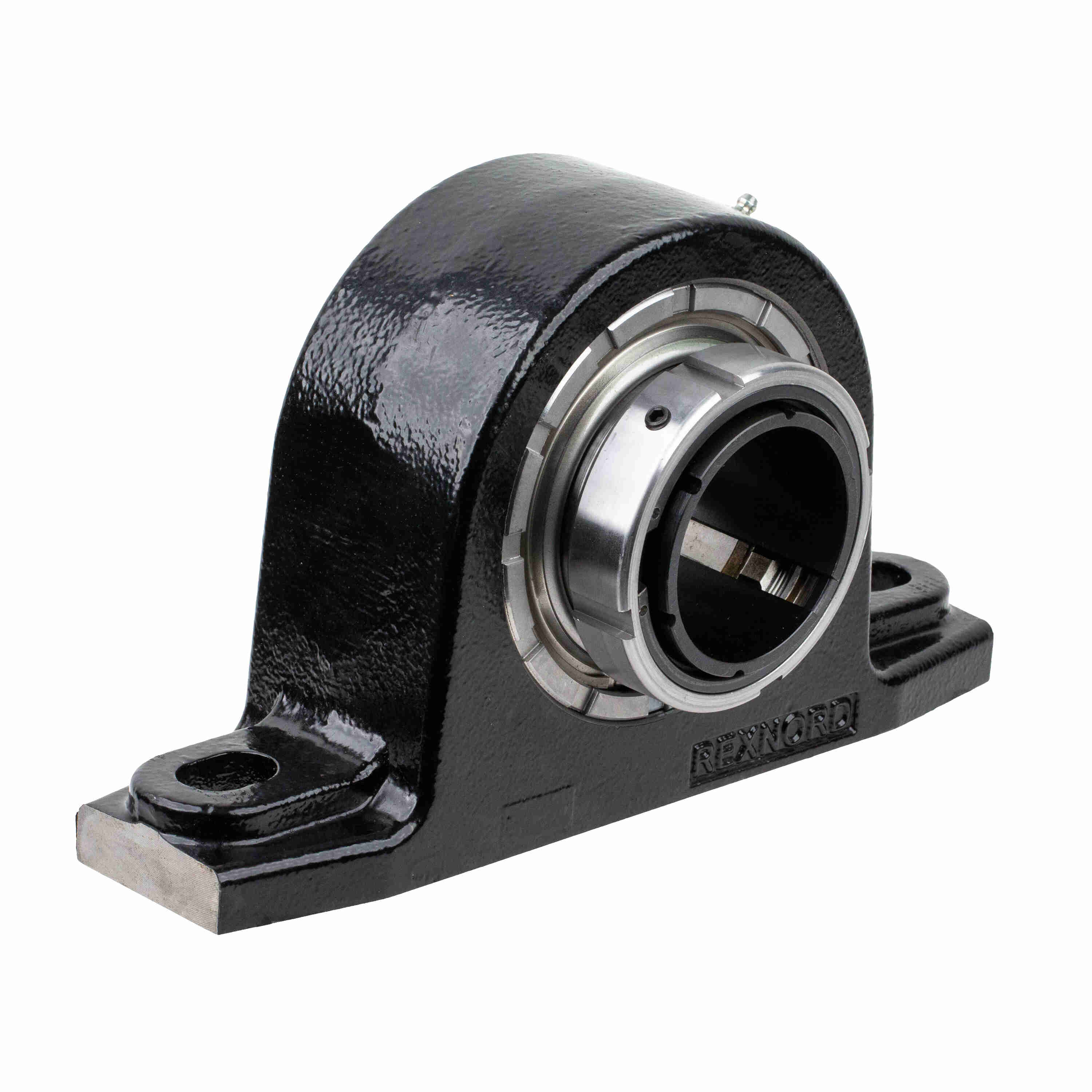

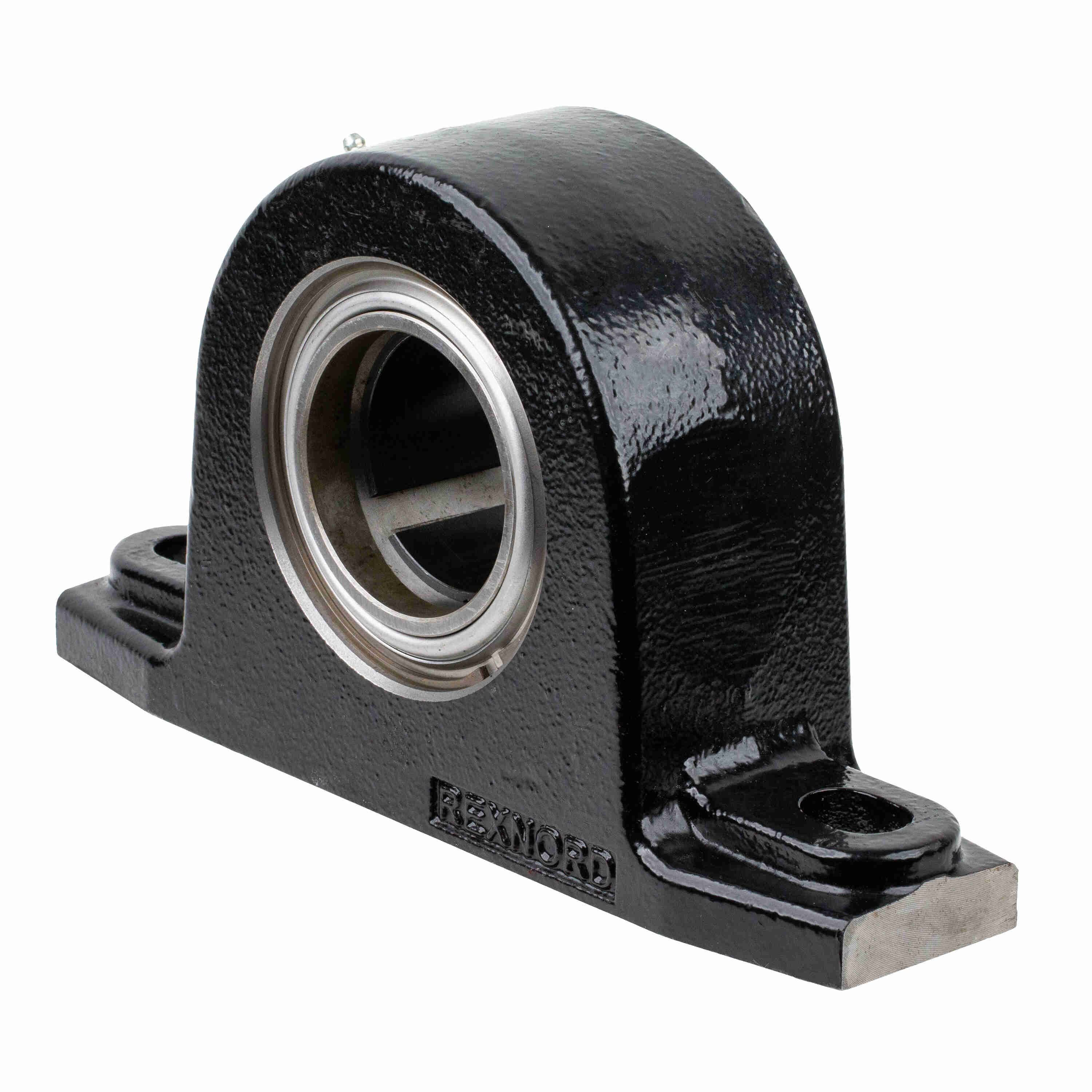

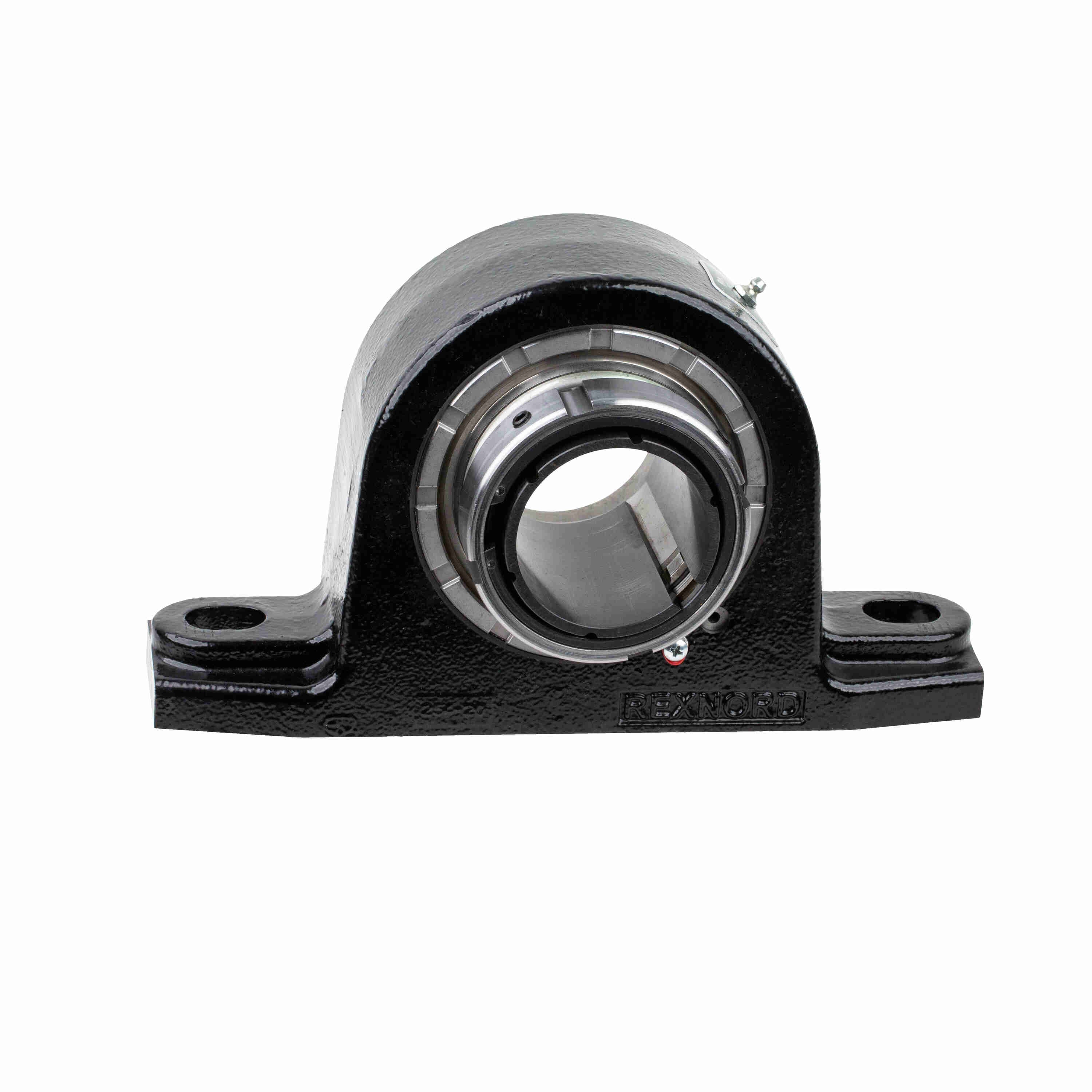

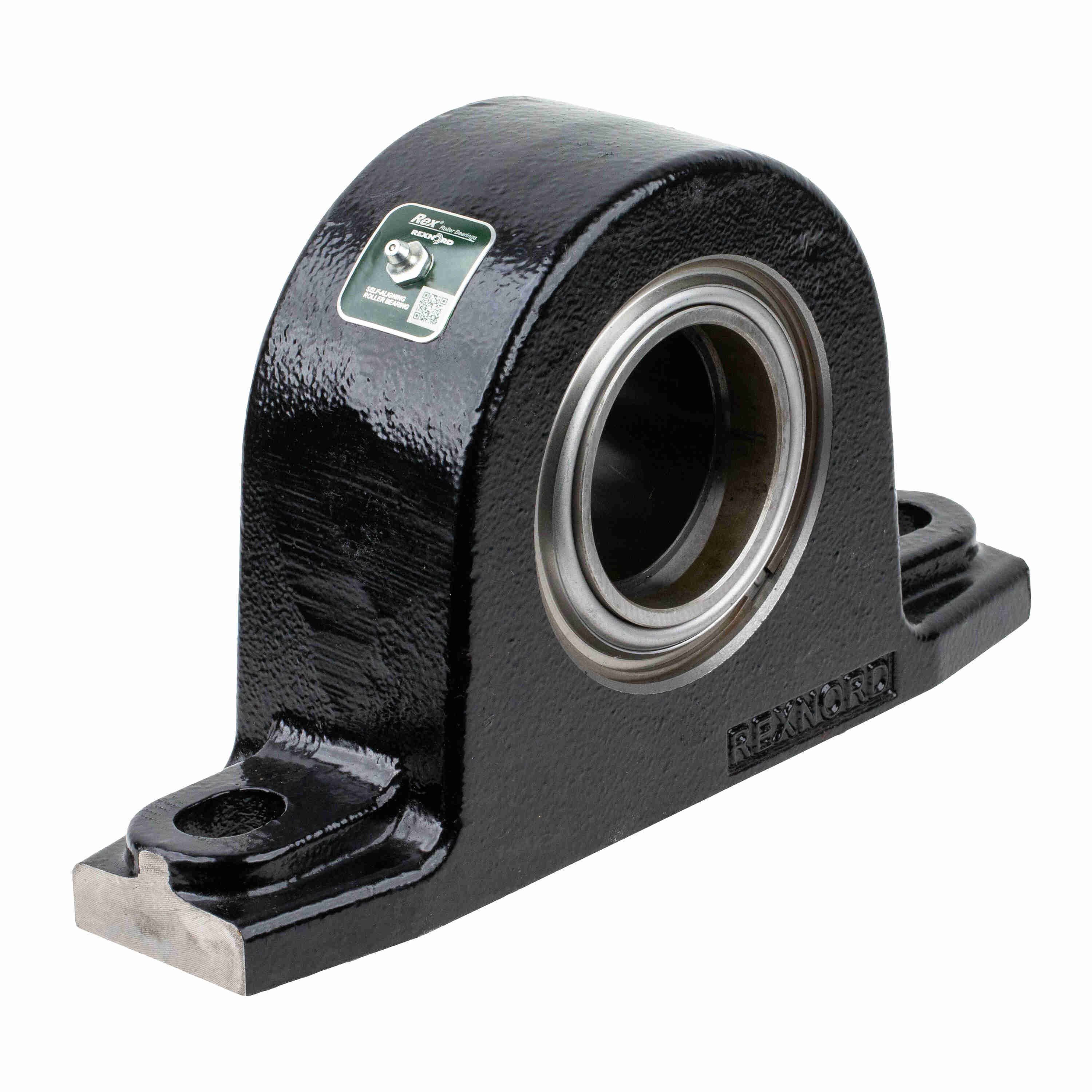

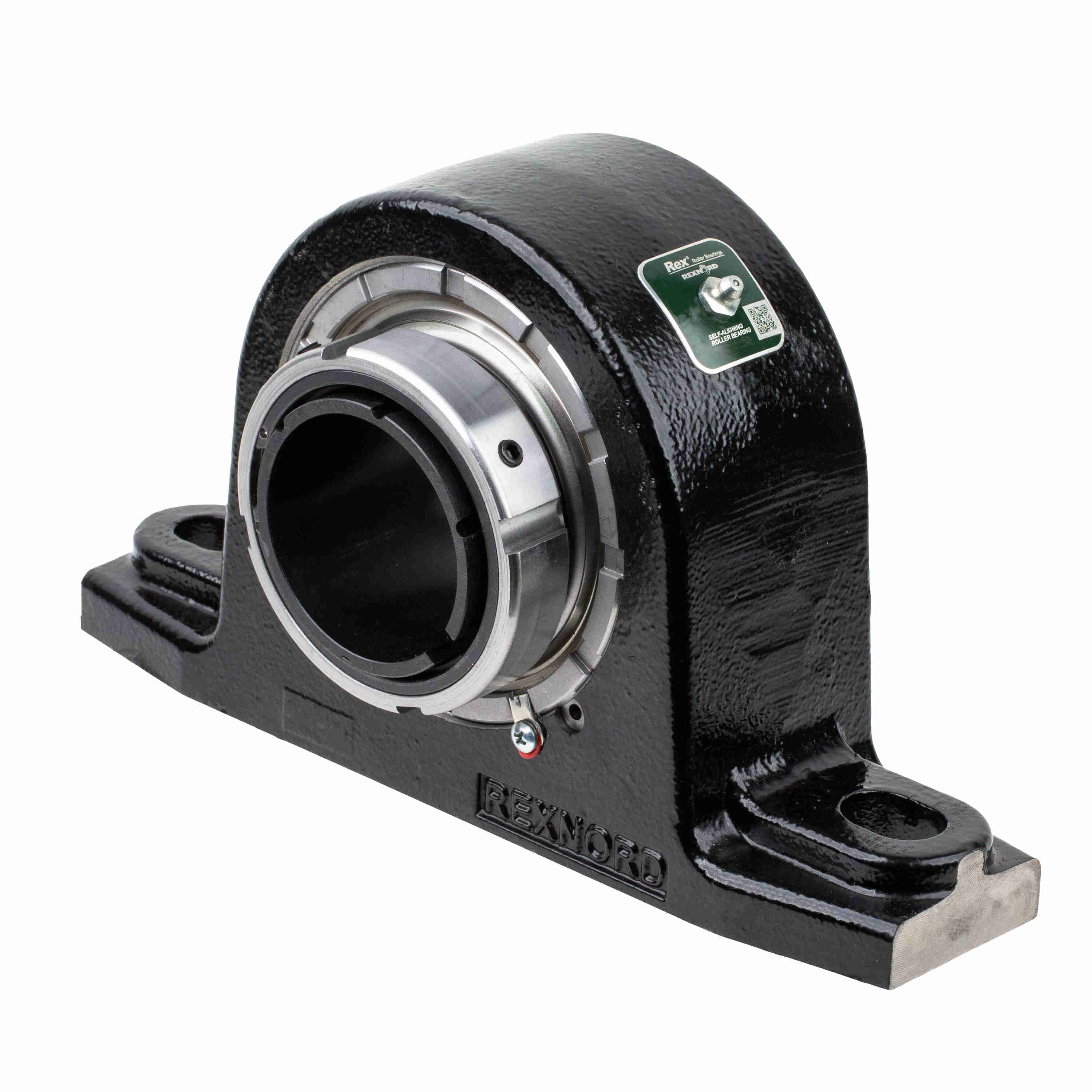

Rexnord P2BRN106080MMZ Solid-housed Pillow Blocks Spherical Roller Bearings - P2BRN106080MMZ
Part #:10803716
Catalog #:P2BRN106080MMZ
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (mm): | 80 mm | Bolt Size (mm): | 20 mm |
| Overall Width (in): | 5.03 in | Housing Height (mm): | 195.8 mm |
| Locking Collar Outside Diameter (mm): | 125.7 mm | Slot Length (mm): | 28 mm |
| Length Through Bore (mm): | 127.8 mm | Bolt Spacing Max (mm): | 307 mm |
| Overall Height (mm): | 195.8 mm | Foot Height (mm): | 35 mm |
| Base Length (mm): | 345 mm | Base Width (mm): | 87.4 mm |
| Overall Length (mm): | 345 mm | Housing Cast Face to Outermost Bearing Face (mm): | 40.3 mm |
| Base to Center Height (mm): | 100 mm | Inner Ring Outside Diameter (mm): | 101 mm |
Technical Specifications
| Housing Construction: | Solid | Housing Type: | Pillow Block, Two Bolt, Hard Metric |
| Seal Type: | Clearance Seal | Series: | Solid-housed Pillow Blocks |
| Product: | P2BRN6000Z | Shaft Locking Type: | Adapter Mount |
| End Cap: | NEED EXT EC | Housing Color: | Black |
| Static Load Rating (lb): | 90,700 lb | Cage Material: | Engineered Polymer |
| Rolling Element: | Spherical Roller | Housing Style: | Pillow Block |
| Misalignment Type: | Dynamic | Radial Dynamic Load Capacity (lb): | 84,330 lb |
| Fixed/Expansion: | Fixed | Radial Clearance: | C3 STANDARD |
| Housing Material: | Cast Iron | Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip |
| Seal Kit: | ZS10 | Maximum Speed (RPM): | 2400 rpm |
| Ability to Relubricate: | Yes | Microlock Kit: | ML4 |
| Setscrew Torque (in-lbs): | 165-185 in/lbs | Shaft Locking Collar Kit/Adapter Assembly: | AK106080MM |
| Impact Style Shurlok Install Tool: | 105-90425-51 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Vibration Frequency Roller Spin: | 0.0628 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Primary Seal: | STEEL CLEARANCE SEAL |
| Housing Coating: | POWDER COATED | Insert: | 6080MMU |
| Vibration Frequency Fundamental Train: | 0.0073 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Inner Ring Defect: | 0.1784 cps | Size Code: | 10 |
| Locking Device Kit: | AK106080MM | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F): | 225 °F |
General Specifications
| UPC: | 782935329370 | Weight: | 38.00 LB |
| Packaged Length: | 13.50 IN | Packaged Width: | 5.00 IN |
| Packaged Height: | 7.88 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
