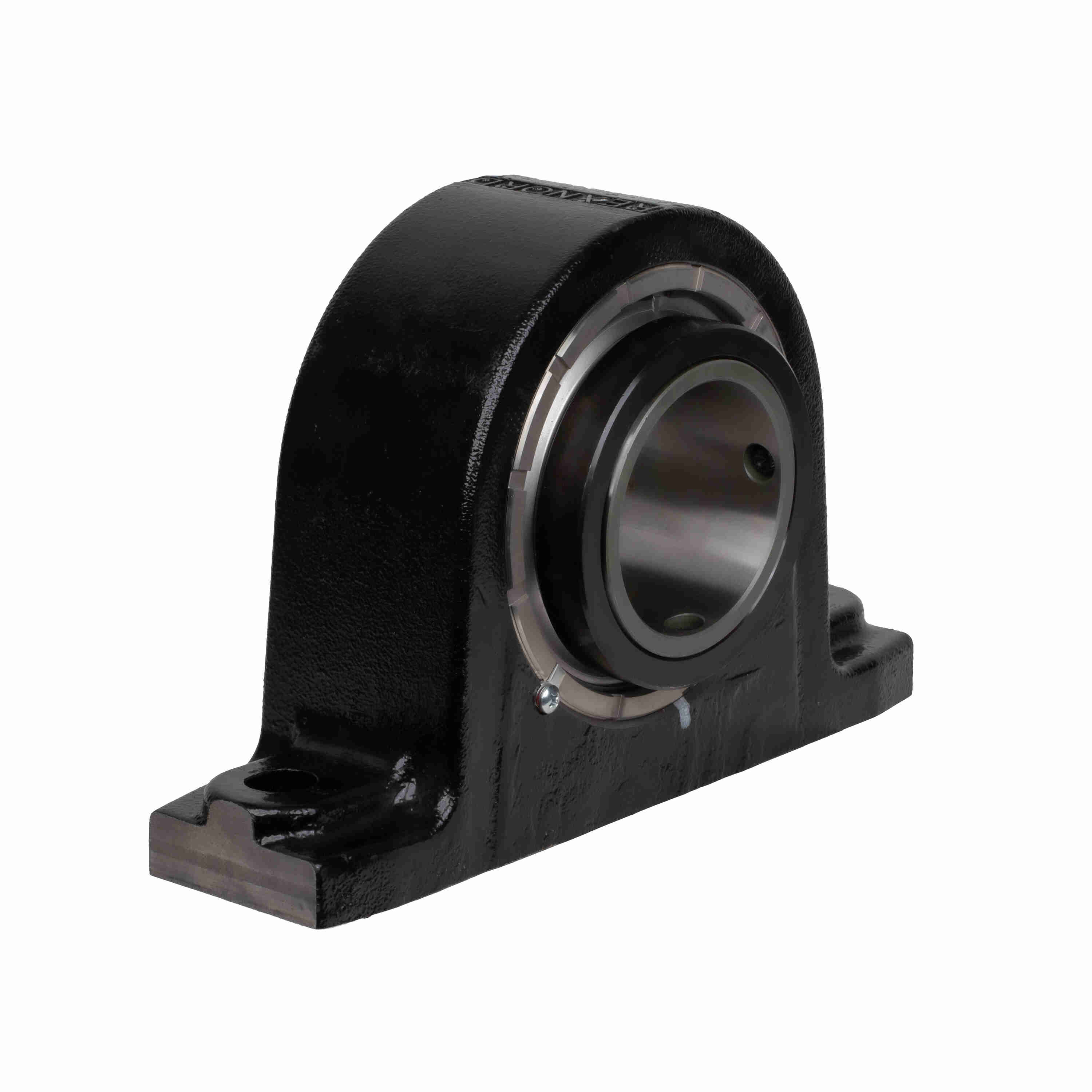

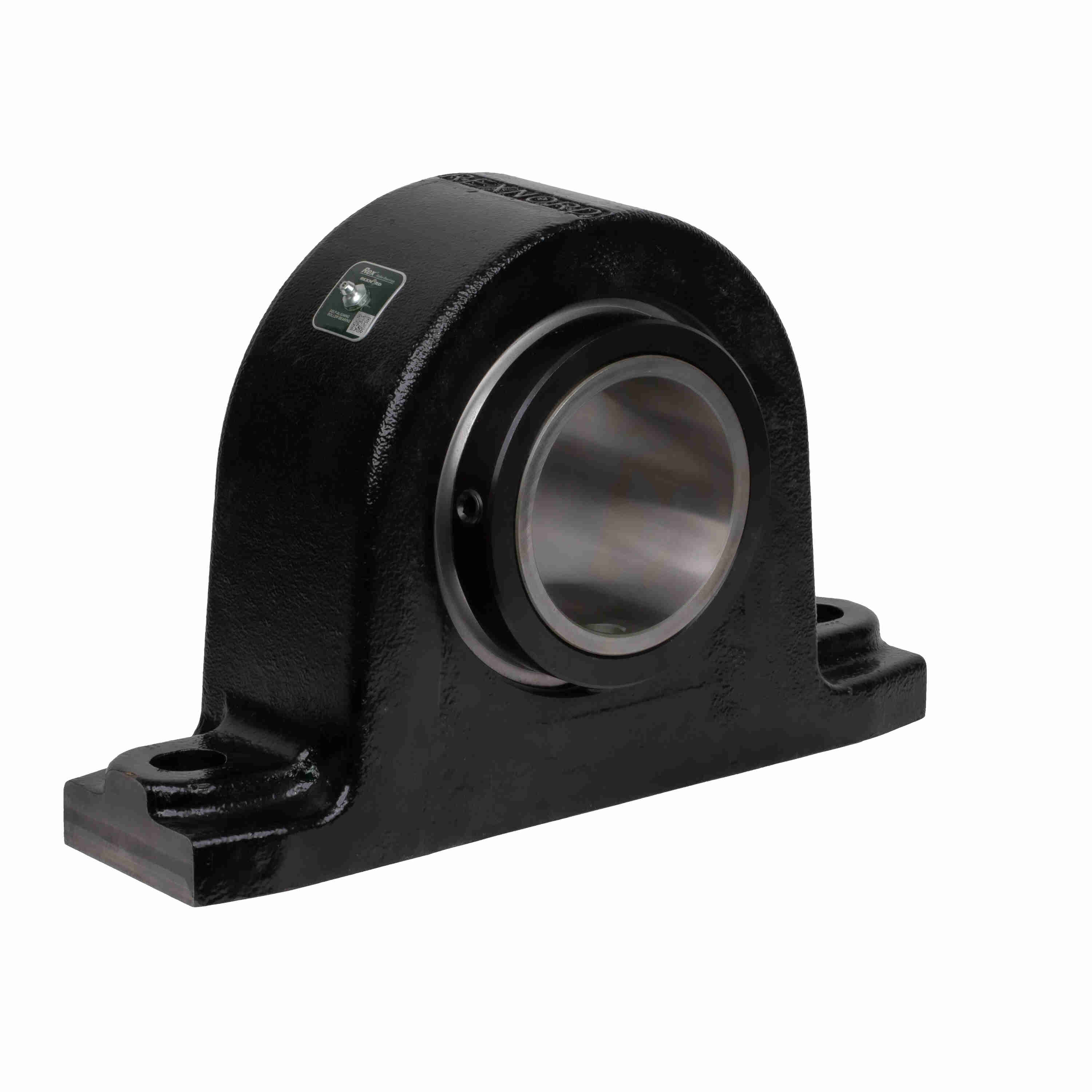

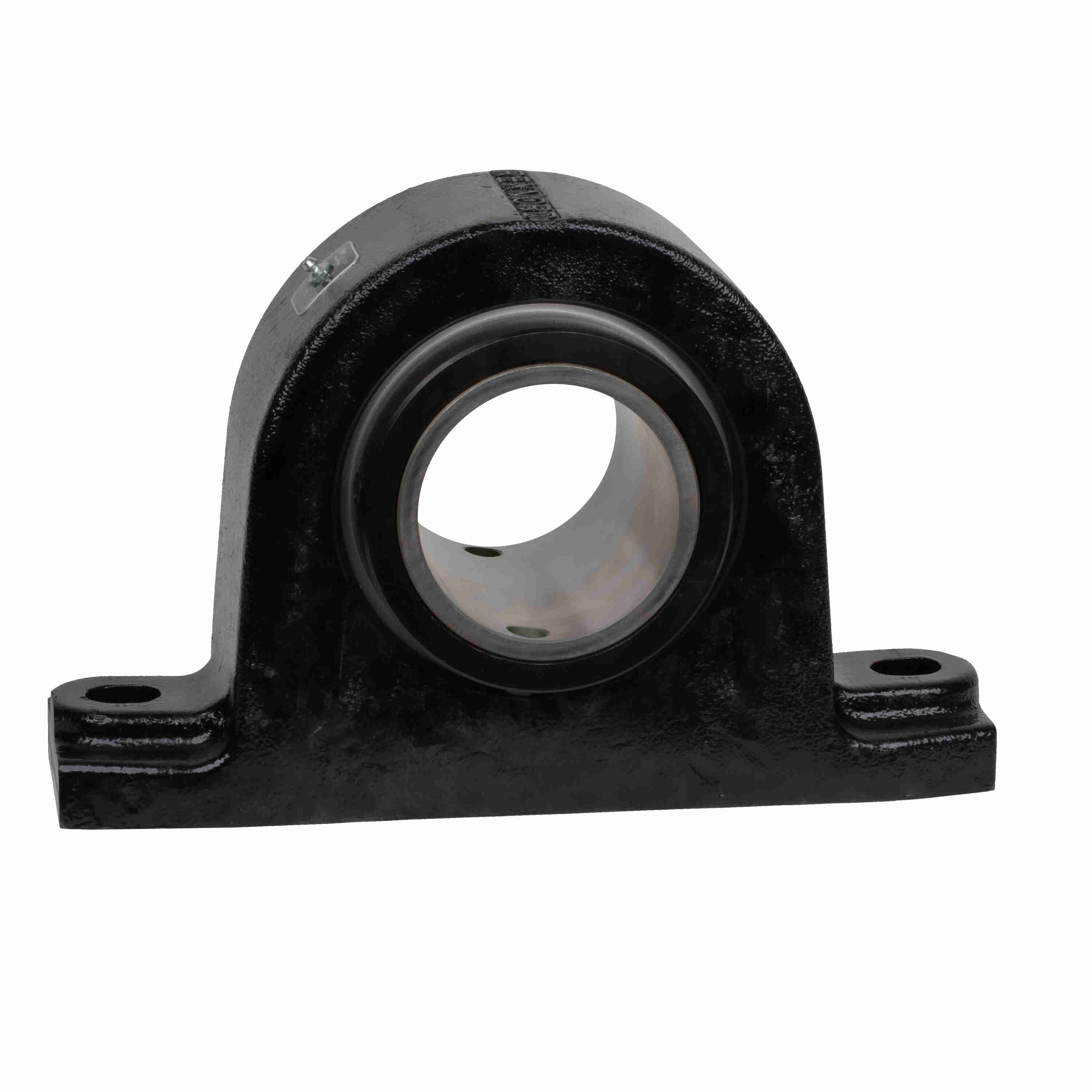

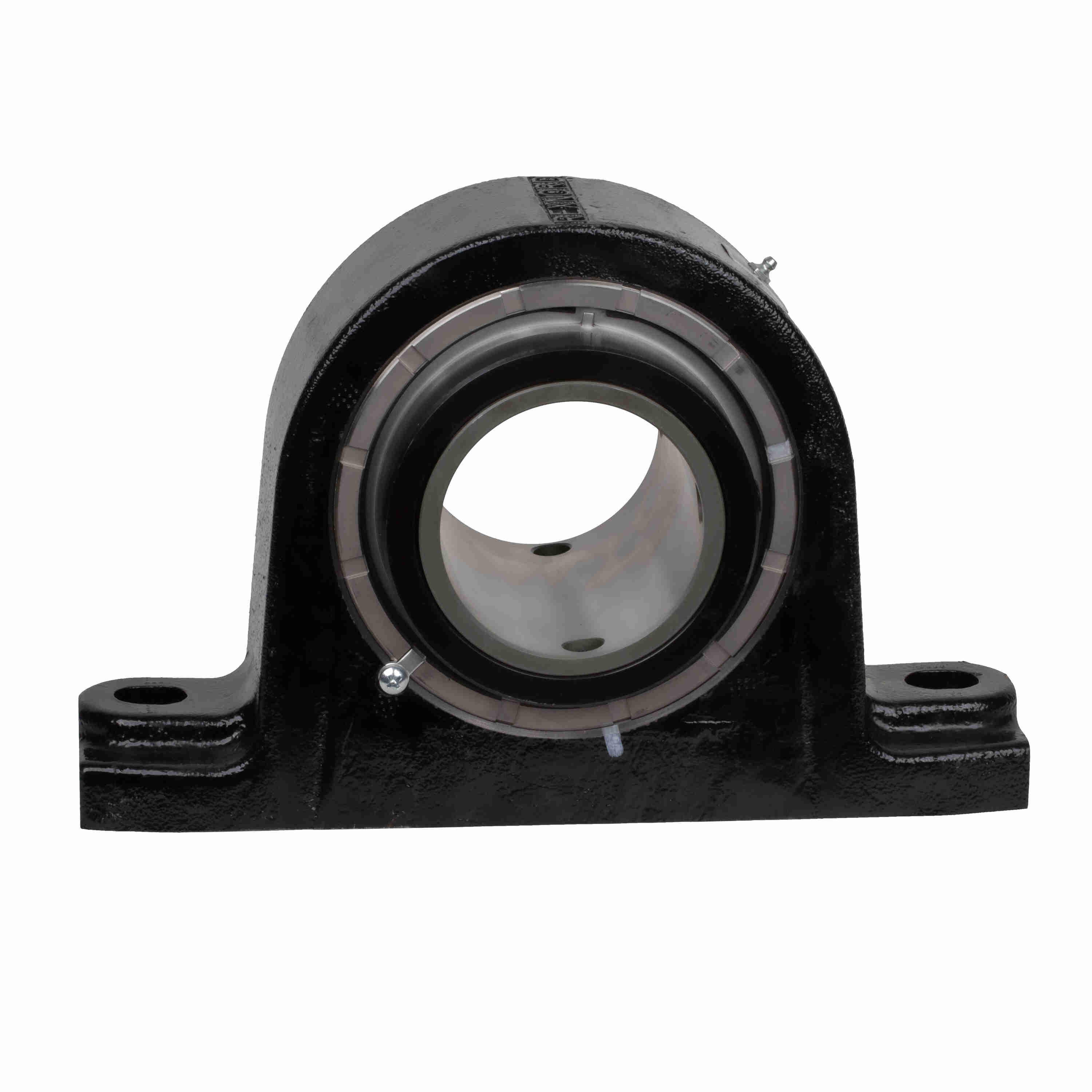

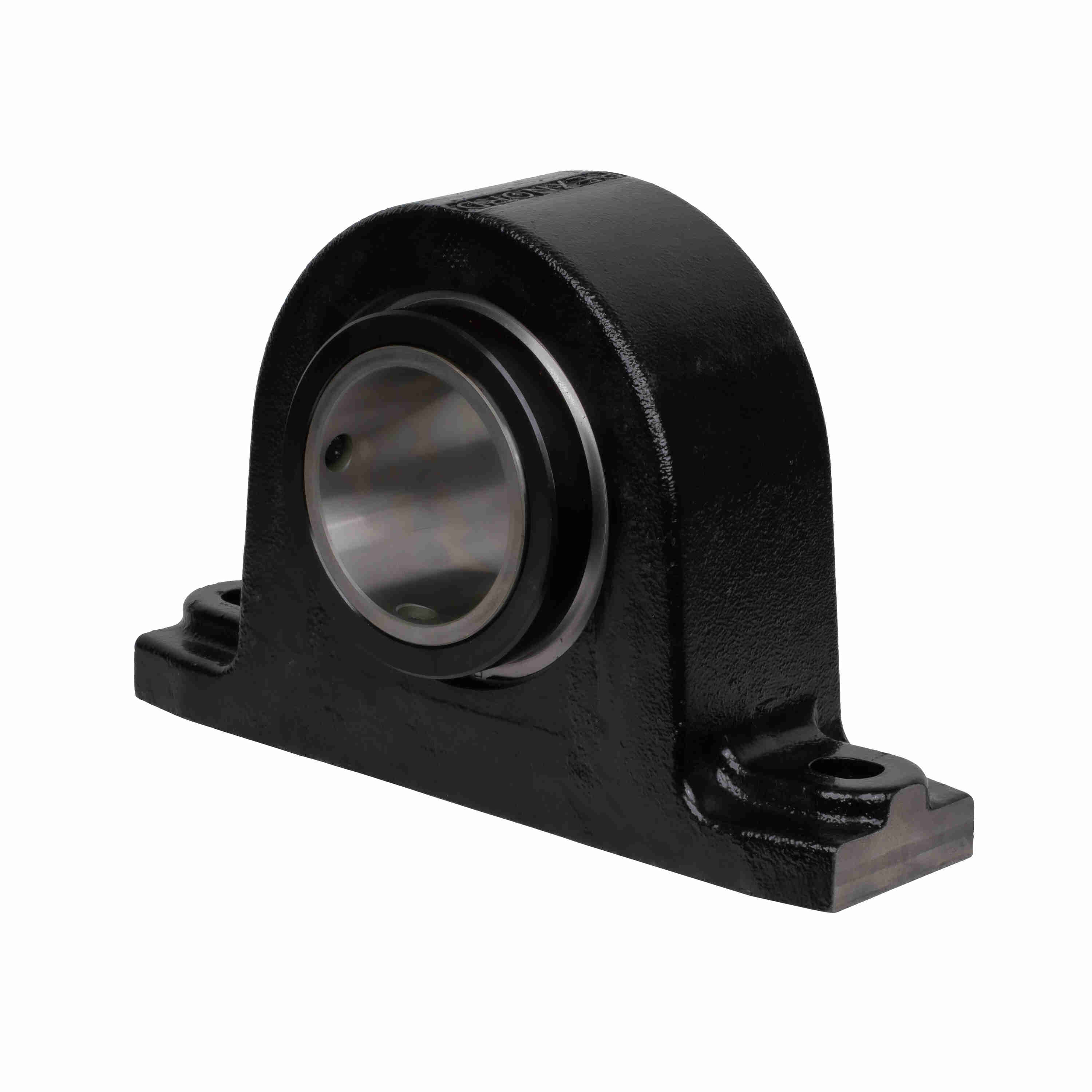

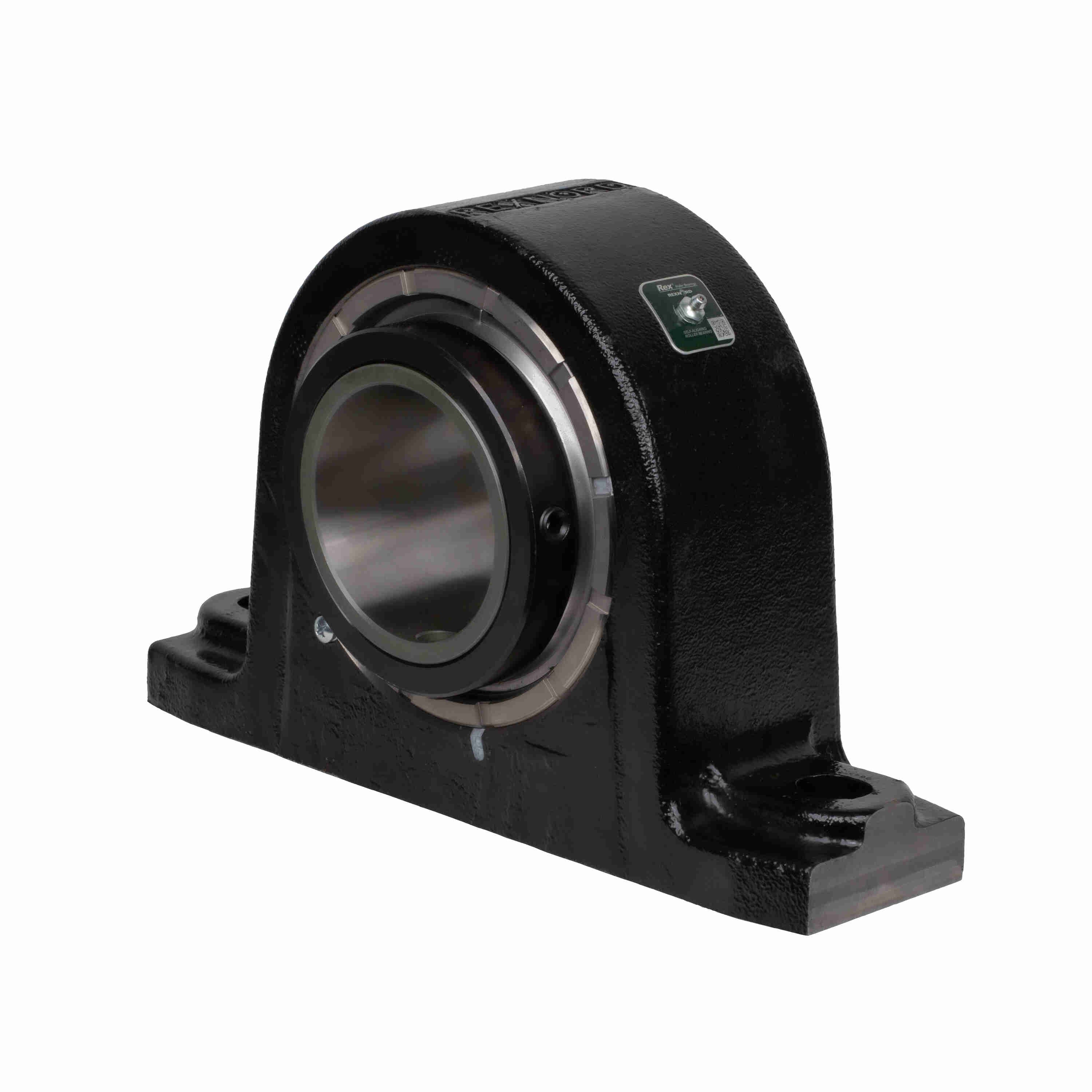

Rexnord P2BRN125115MMZ Solid-housed Pillow Blocks Spherical Roller Bearings - P2BRN125115MMZ
Part #:10803740
Catalog #:P2BRN125115MMZ
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bore Diameter (mm): | 115 mm | Bolt Size (mm): | 24 mm |
| Overall Width (in): | 6.25 in | Housing Height (mm): | 273.1 mm |
| Locking Collar Outside Diameter (mm): | 157.2 mm | Slot Length (mm): | 35 mm |
| Bolt Spacing Max (mm): | 403 mm | Foot Height (mm): | 50 mm |
| Housing Cast Face to Outermost Bearing Face (mm): | 25.4 mm | Base Width (mm): | 108 mm |
| Length Through Bore (mm): | 158.8 mm | Base Length (mm): | 445 mm |
| Base to Center Height (mm): | 150 mm | Inner Ring Outside Diameter (mm): | 127.8 mm |
| Overall Height (mm): | 273.1 mm | Overall Length (mm): | 445 mm |
Technical Specifications
| Product: | P2BRN5000Z | Radial Clearance: | C3 STANDARD |
| Housing Construction: | Solid | Seal Type: | Clearance Seal |
| Series: | Solid-housed Pillow Blocks | Radial Dynamic Load Capacity (lb): | 149,500 lb |
| Shaft Locking Type: | Double Set Collar | Rolling Element: | Spherical Roller |
| Housing Style: | Pillow Block | Housing Type: | Pillow Block, Two Bolt, Hard Metric |
| Cage Material: | Engineered Polymer | Misalignment Type: | Dynamic |
| Static Load Rating (lb): | 159,300 lb | Housing Material: | Cast Iron |
| Fixed/Expansion: | Fixed | Housing Color: | Black |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1850 rpm |
| Microlock Kit: | ML4 | Seal Kit: | ZS12Y |
| Available Seal Type: | K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip | Setscrew Torque (in-lbs): | 1350 in/lbs |
| Grease Fitting Thread Size: | 1/4 NPT | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Vibration Frequency Roller Spin: | 0.0568 cps | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Inner Ring Defect: | 0.1901 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Vibration Frequency Outer Ring Defect: | 0.1433 cps |
| Size Code: | 12 | Max Operating Temperature (C): | 107 °C |
| Housing Coating: | POWDER COATED | Insert: | 5115MMU |
| Locking Device Kit: | SC12Y QTY 2 | Primary Seal: | STEEL CLEARANCE SEAL |
General Specifications
| UPC: | 782935329585 | Weight: | 76.00 LB |
| Packaged Length: | 17.50 IN | Packaged Width: | 6.38 IN |
| Packaged Height: | 9.88 IN | Country of Origin: | Mexico |
