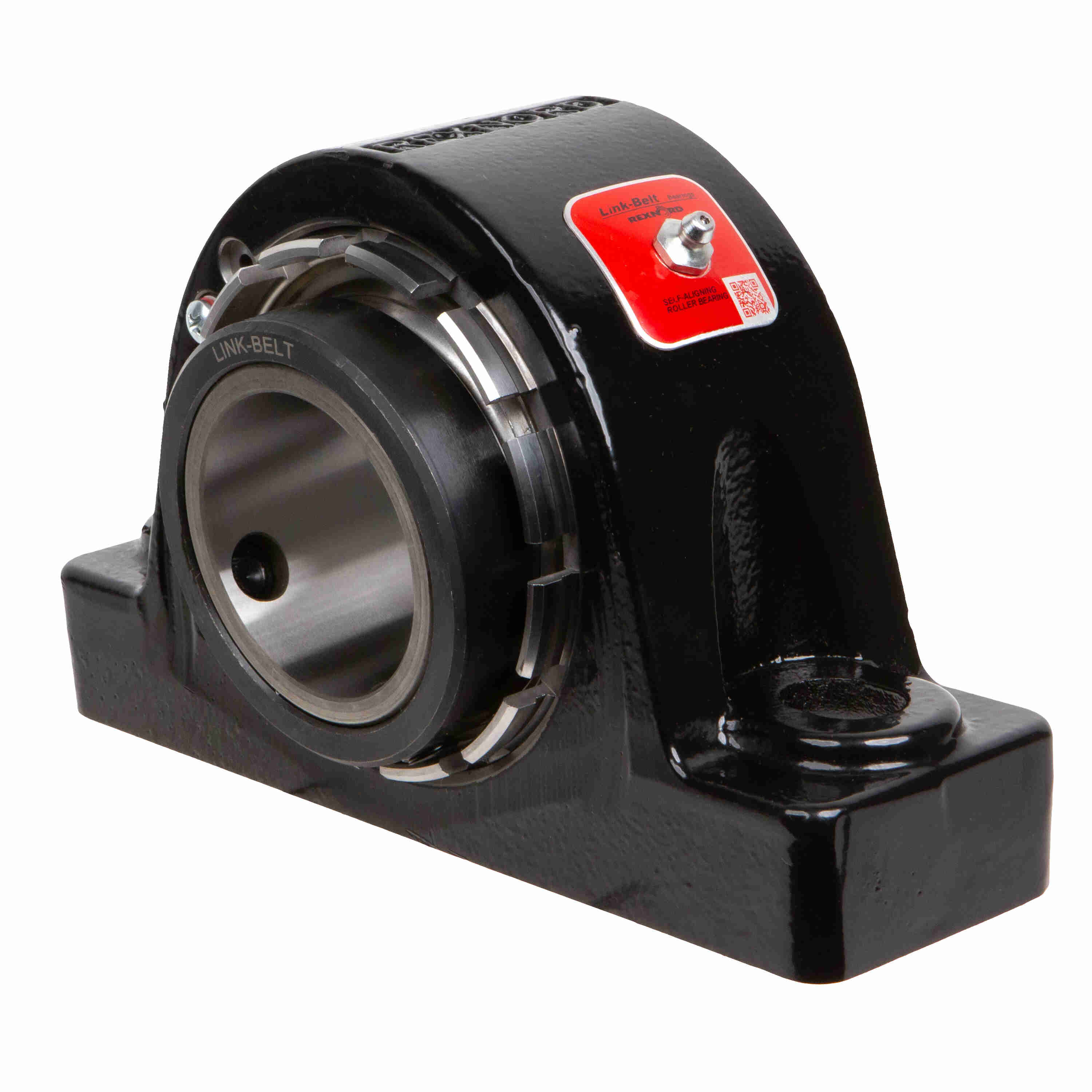

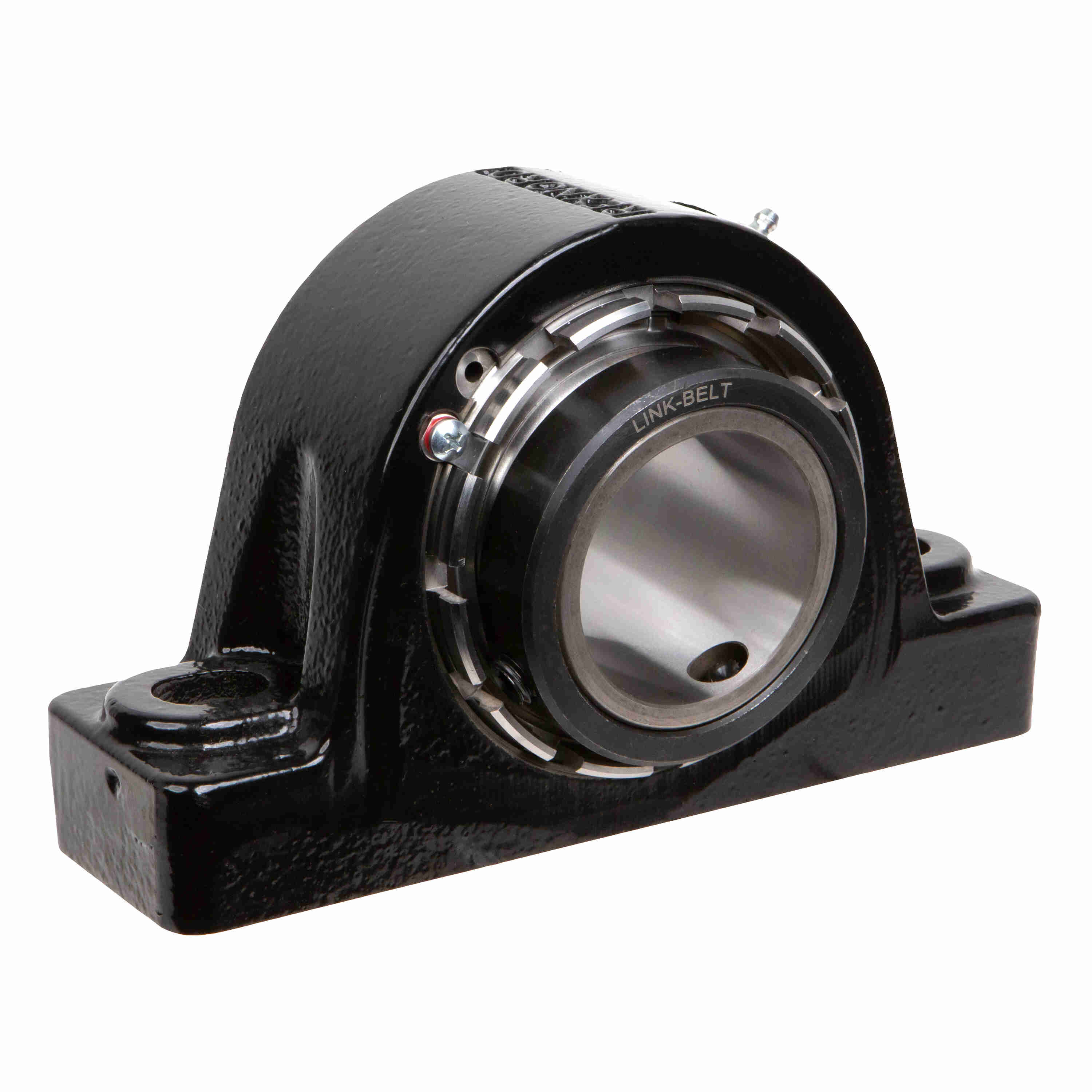

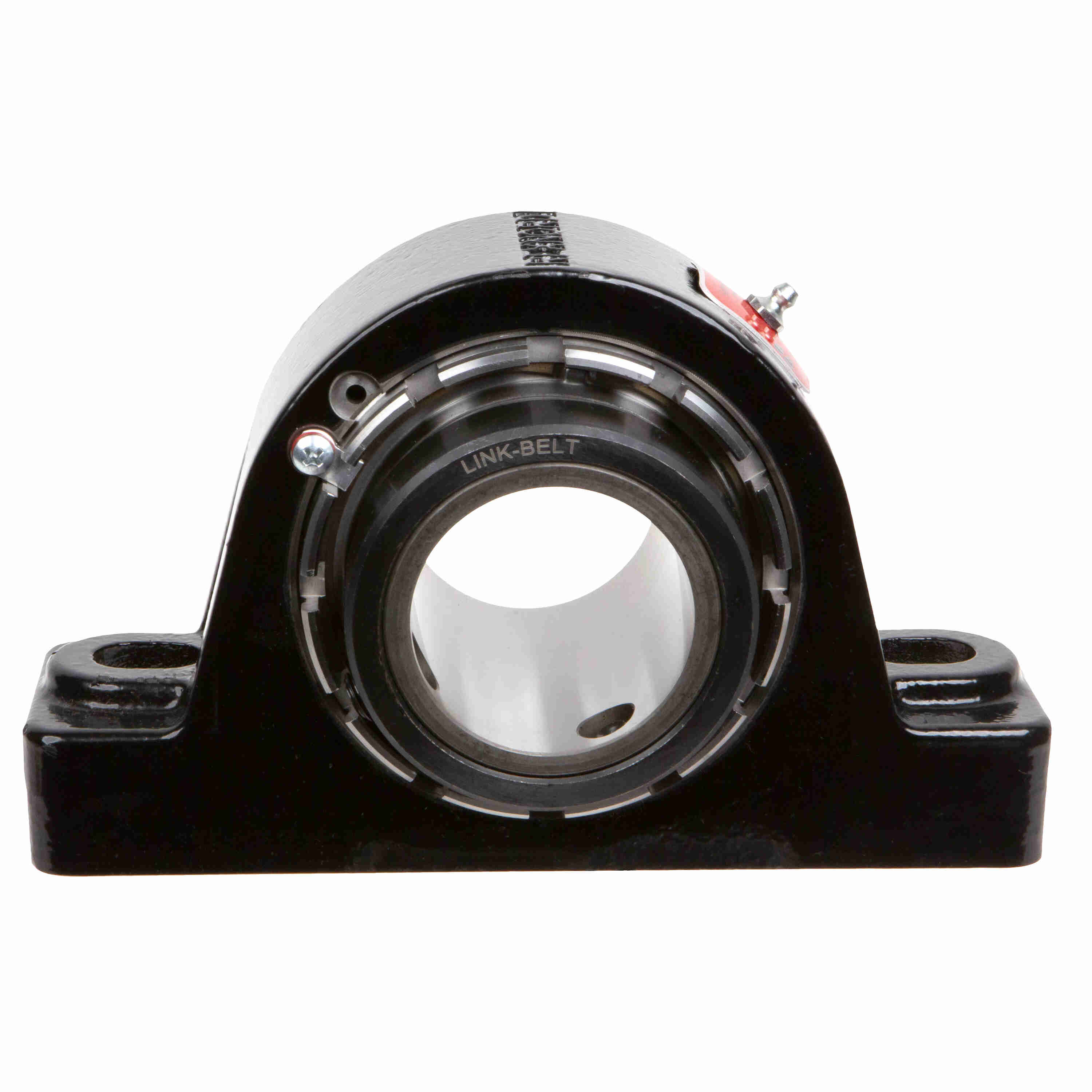

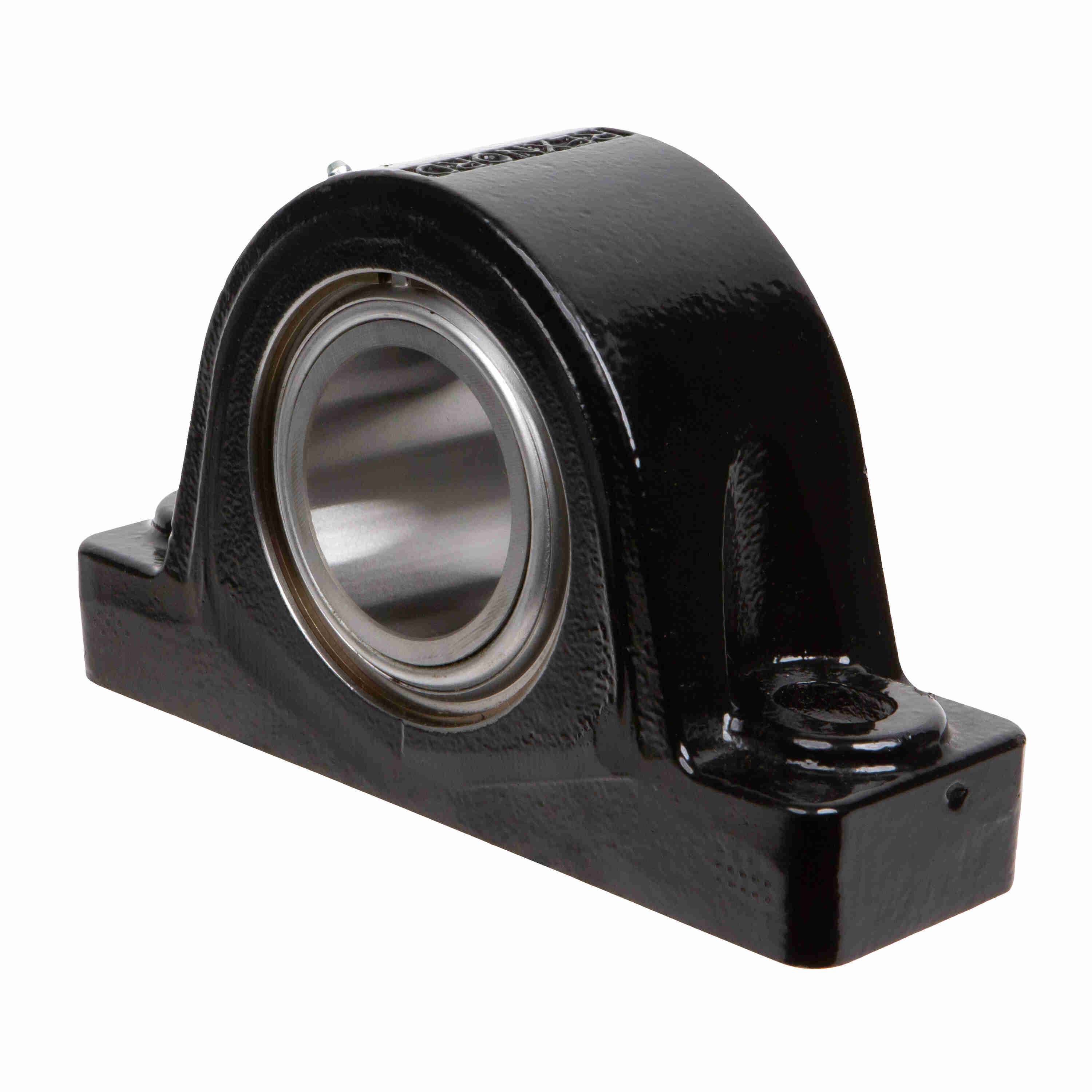

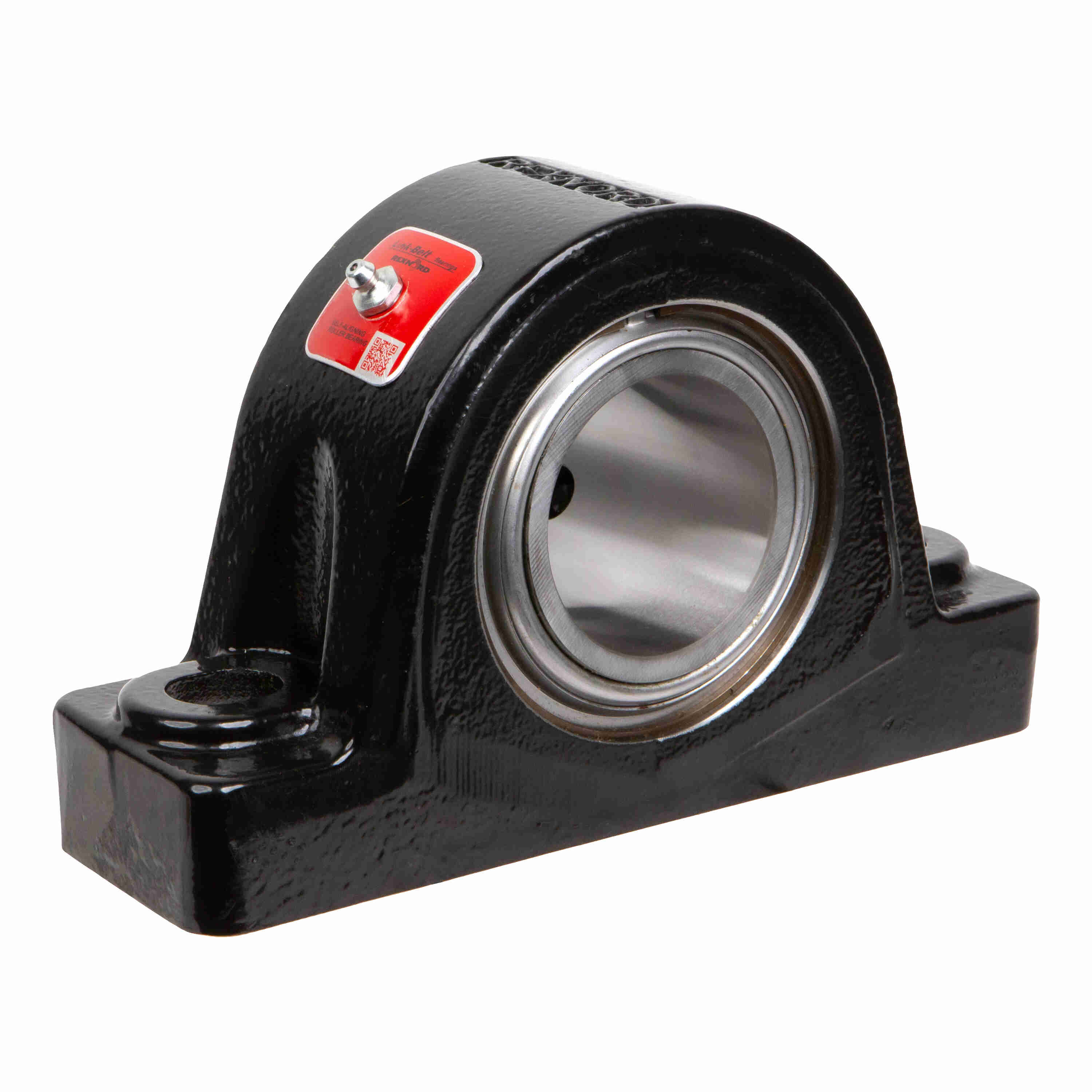

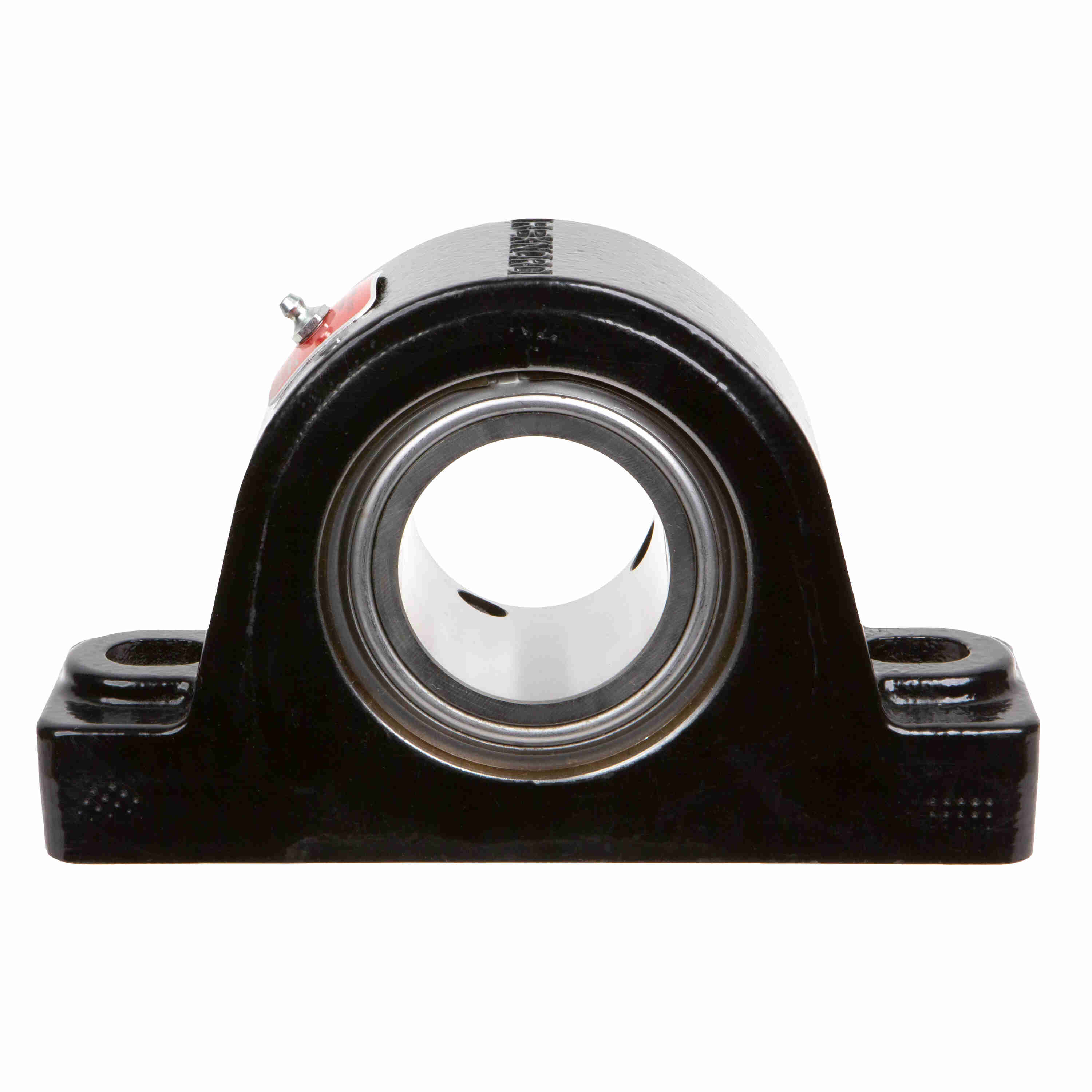

Link-Belt PB22439HHC Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22439HHC
Part #:10412027
Catalog #:PB22439HHC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base Width (in): | 2.69 in | Base to Center Height (in): | 2.75 in |
| Overall Length (in): | 9.13 in | Bolt Size (in): | 5/8 in |
| Slot Length (in): | 0.94 in | Overall Height (in): | 5.5 in |
| Bore Diameter (in): | 2.4375 in | Foot Height (in): | 1.63 in |
| Overall Width (in): | 3.5 in | Locking Collar Outside Diameter (in): | 3.56 in |
| Centerline to Outermost Bearing Face (in): | 2.19 in | Inner Ring Outside Diameter (in): | 2.901 in |
| Length Through Bore (in): | 3.5 in | Housing Cast Face to Outermost Bearing Face (in): | 0.84 in |
| Bolt Spacing (in): | 7.13 in | Base Length (in): | 9.13 in |
| Centerline to Cap Face (in): | 2.56 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | Static Load Rating (lb): | 53,500 lb |
| Housing Style: | Pillow Block | Radial Clearance: | C0 STANDARD |
| Cage Material: | Steel | Series: | Solid-housed Pillow Blocks |
| Product: | PB22400 | Radial Dynamic Load Capacity (lb): | 38,300 lb |
| Misalignment Type: | Dynamic | Housing Color: | Black |
| Seal Type: | Clearance Seal | End Cap: | B440EC |
| Shaft Locking Type: | Single Set Collar | Housing Type: | Pillow Block, Two Bolt |
| Housing Construction: | Solid | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Setscrew Torque (in-lbs): | 680 in/lbs | Ability to Relubricate: | Yes |
| Maximum Speed (RPM): | 2300 rpm | Seal Kit: | B440HS |
| Housing Coating: | POWDER COATED | Locking Device Kit: | B440SC |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.1376 cps |
| Vibration Frequency Roller Spin: | 0.0607 cps | Insert: | B439L |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Size Code: | B440 |
| Auxiliary Seals: | 1 LB STYLE CLOSED CAP STEEL | Grease Fitting Thread Size: | 1/8 NPT |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Inner Ring Defect: | 0.1791 cps |
| Primary Seal: | STEEL CLEARANCE SEAL | Max Operating Temperature (C): | 107 °C |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic |
General Specifications
| UPC: | 662327110048 | Weight: | 18.19 LB |
| Packaged Length: | 9.56 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 5.50 IN | Country of Origin: | Mexico |
