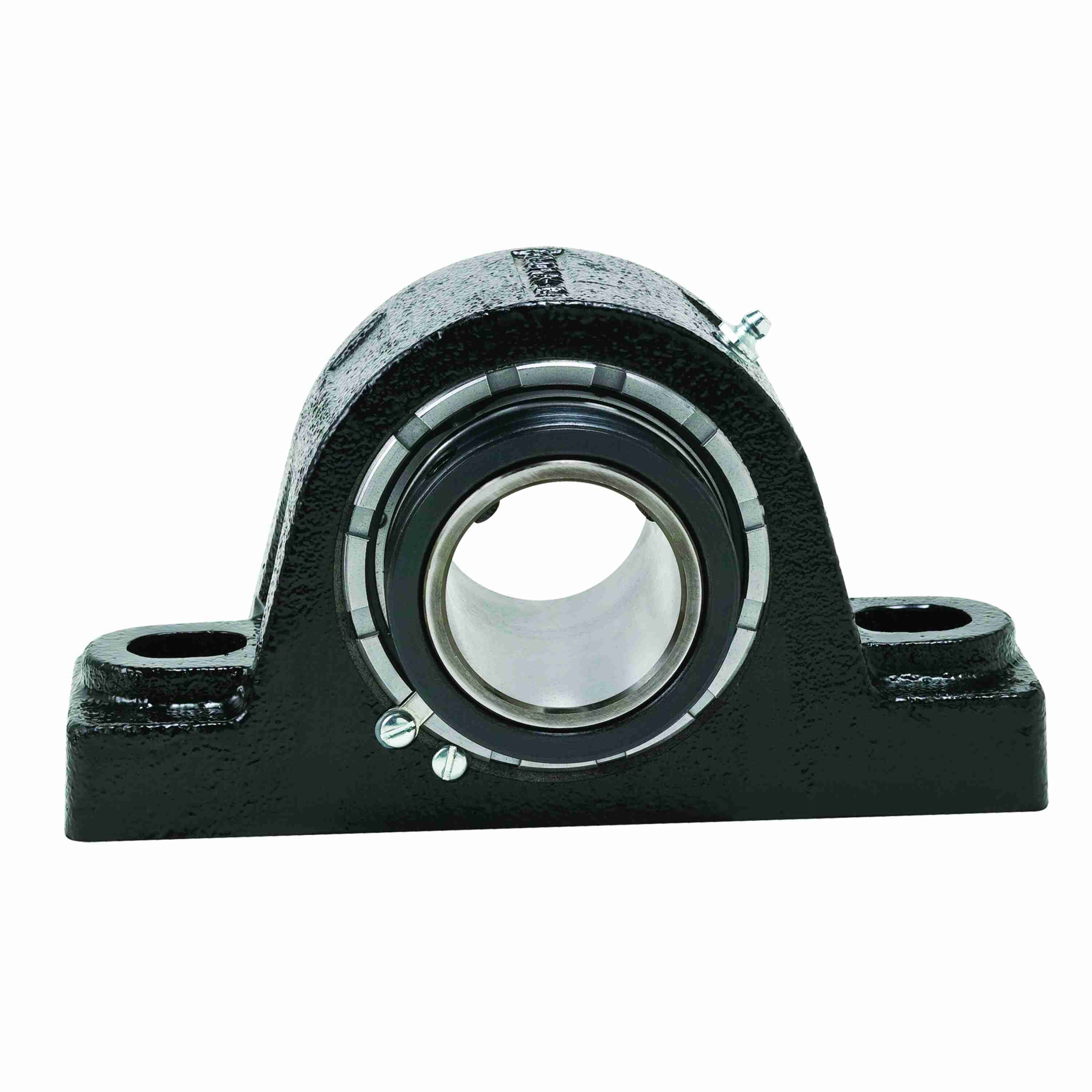

Link-Belt PB22444EK75 Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22444EK75
Part #:10833016
Catalog #:PB22444EK75
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 1.06 in | Foot Height (in): | 2 in |
| Overall Width (in): | 4 in | Bolt Size (in): | 3/4 in |
| Base Width (in): | 3.19 in | Bore Diameter (in): | 2.7500 in |
| Overall Height (in): | 6.44 in | Overall Length (in): | 10.44 in |
| Base to Center Height (in): | 3.25 in | Locking Collar Outside Diameter (in): | 4.06 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.84 in | Inner Ring Outside Diameter (in): | 3.37 in |
| Bolt Spacing (in): | 8.13 in | Length Through Bore (in): | 4 in |
| Centerline to Outermost Bearing Face (in): | 2.44 in | Base Length (in): | 10.44 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Housing Style: | Pillow Block |
| Static Load Rating (lb): | 71,500 lb | End Cap: | B448DTC |
| Housing Construction: | Solid | Shaft Locking Type: | Single Set Collar |
| Radial Clearance: | C0 STANDARD | Rolling Element: | Spherical Roller |
| Misalignment Type: | Dynamic | Radial Dynamic Load Capacity (lb): | 51,100 lb |
| Series: | Solid-housed Pillow Blocks | Housing Material: | Cast Iron |
| Cage Material: | Steel | Product: | PB22400 |
| Housing Color: | Silver | Housing Type: | Pillow Block, Two Bolt |
| Seal Type: | Heavy Contact Seal | Seal Kit: | B448ES |
| Microlock Kit: | B448MLK | Maximum Speed (RPM): | 1500 rpm |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 680 in/lbs |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Insert: | B444L |
| Vibration Frequency Roller Spin: | 0.0591 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Housing Coating: | NICKEL PLATED | Primary Seal: | BUNA SPRING LOADED LIP SEAL |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Size Code: | B448 |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (C): | 107 °C |
| Misalignment Capability: | ±2.0° Misalignment - Dynamic | Max Operating Temperature (F): | 225 °F |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps | Locking Device Kit: | B448SC |
General Specifications
| UPC: | 782935356949 | Weight: | 29.00 LB |
| Packaged Length: | 6.56 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 10.56 IN | Country of Origin: | Mexico |
