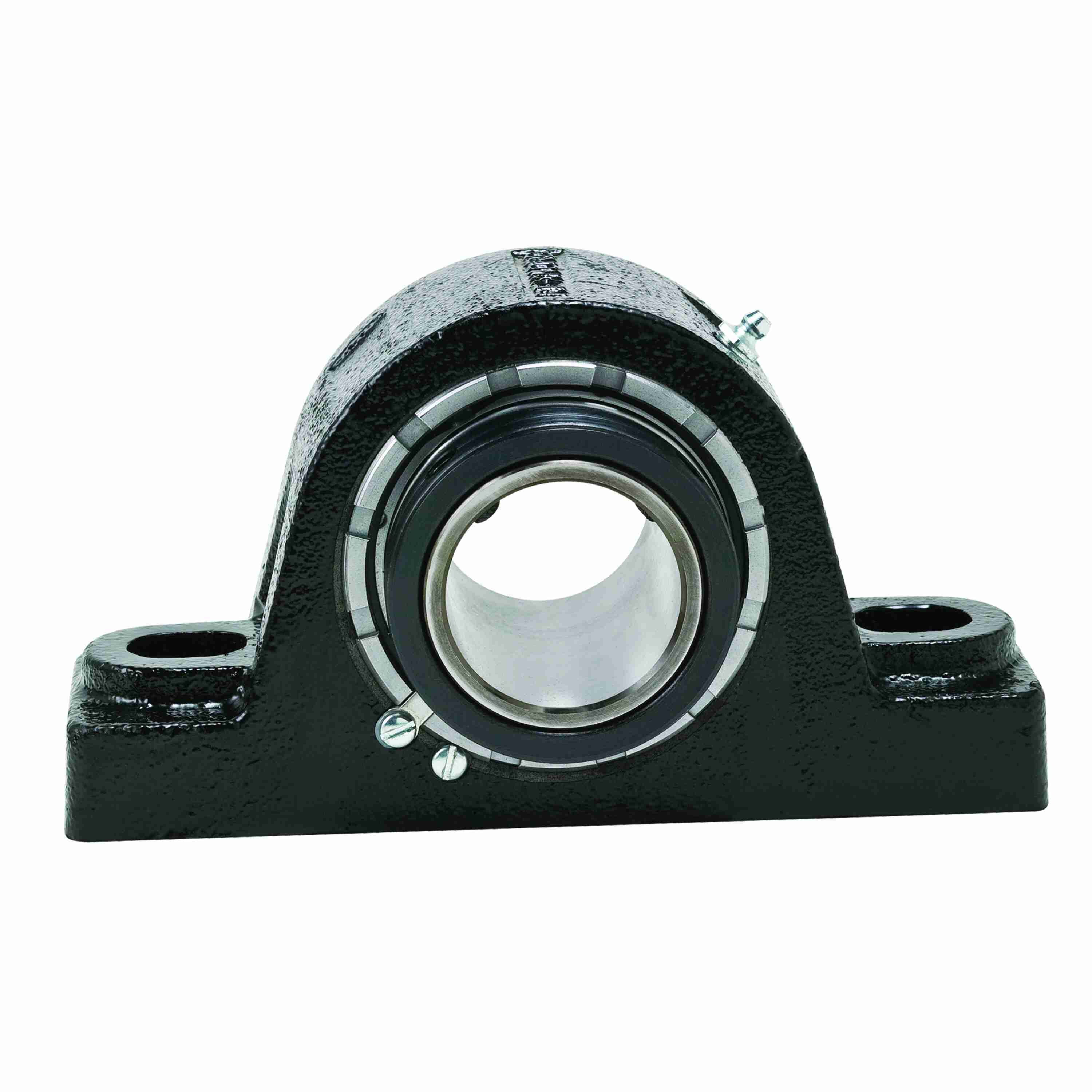

Link-Belt PB22447EEC Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22447EEC
Part #:10415542
Catalog #:PB22447EEC
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 3.25 in | Base Width (in): | 3.19 in |
| Bore Diameter (in): | 2.9375 in | Overall Width (in): | 4 in |
| Overall Height (in): | 6.44 in | Slot Length (in): | 1.06 in |
| Bolt Size (in): | 3/4 in | Overall Length (in): | 10.44 in |
| Foot Height (in): | 2 in | Locking Collar Outside Diameter (in): | 4.06 in |
| Bolt Spacing (in): | 8.13 in | Inner Ring Outside Diameter (in): | 3.37 in |
| Length Through Bore (in): | 4 in | Base Length (in): | 10.44 in |
| Centerline to Cap Face (in): | 2.78 in | Centerline to Outermost Bearing Face (in): | 2.44 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.84 in |
Technical Specifications
| Fixed/Expansion: | Fixed | Rolling Element: | Spherical Roller |
| Radial Dynamic Load Capacity (lb): | 51,100 lb | Housing Color: | Black |
| Housing Construction: | Solid | Seal Type: | Heavy Contact Seal |
| Misalignment Type: | Dynamic | Cage Material: | Steel |
| Housing Material: | Cast Iron | Radial Clearance: | C0 STANDARD |
| Housing Type: | Pillow Block, Two Bolt | Static Load Rating (lb): | 71,500 lb |
| End Cap: | B448EC | Shaft Locking Type: | Single Set Collar |
| Housing Style: | Pillow Block | Series: | Solid-housed Pillow Blocks |
| Product: | PB22400 | Seal Kit: | B448ES |
| Ability to Relubricate: | Yes | Setscrew Torque (in-lbs): | 680 in/lbs |
| Maximum Speed (RPM): | 1500 rpm | Microlock Kit: | B448MLK |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Roller Spin: | 0.0591 cps |
| Lubricant: | Lithium Complex NLGI 2 Grease | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Locking Device Kit: | B448SC | Vibration Frequency Inner Ring Defect: | 0.1701 cps |
| Max Operating Temperature (F): | 225 °F | Insert: | B447L |
| Vibration Frequency Fundamental Train: | 0.0072 cps | Housing Coating: | POWDER COATED |
| Grease Fitting Thread Size: | 1/8 NPT | Size Code: | B448 |
| Auxiliary Seals: | 1 LB STYLE CLOSED CAP STEEL |
General Specifications
| UPC: | 662327110215 | Weight: | 26.90 LB |
| Country of Origin: | Mexico |
