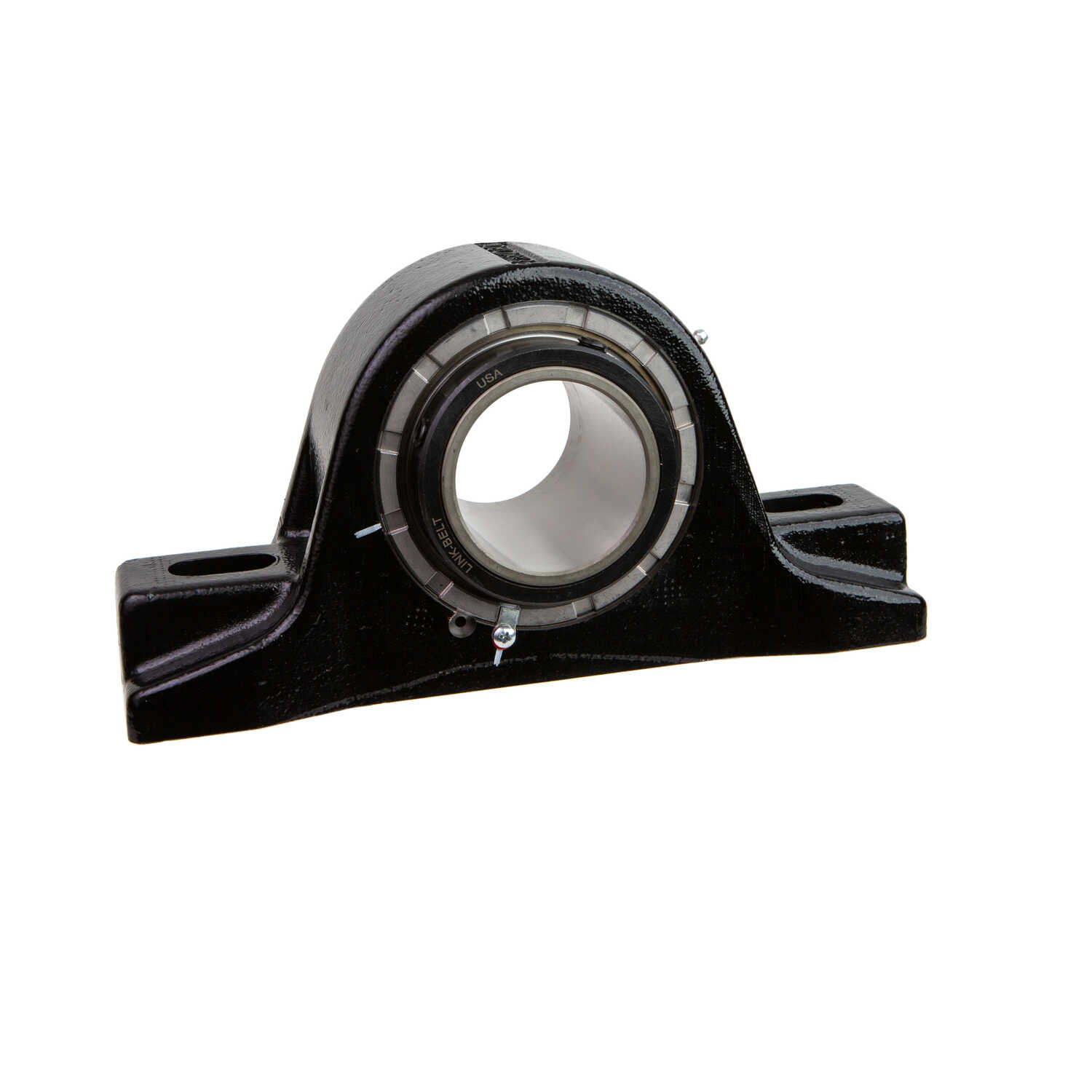

Link-Belt PB22547H Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22547H
Part #:10406506
Catalog #:PB22547H
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Overall Width (in): | 4.75 in | Slot Length (in): | 1.63 in |
| Bore Diameter (in): | 2.9375 in | Base Width (in): | 3.88 in |
| Base to Center Height (in): | 3.5 in | Foot Height (in): | 2.06 in |
| Overall Length (in): | 13 in | Overall Height (in): | 6.72 in |
| Bolt Size (in): | 7/8 in | Locking Collar Outside Diameter (in): | 4.06 in |
| Bolt Spacing (in): | 9.75 in | Centerline to Outermost Bearing Face (in): | 2.44 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Housing Cast Face to Outermost Bearing Face (in): | 0.91 in |
| Base Length (in): | 13 in | Length Through Bore (in): | 4.88 in |
Technical Specifications
| Product: | PB22500 | Static Load Rating (lb): | 71,500 lb |
| Housing Style: | Pillow Block | End Cap: | B448DTC |
| Housing Construction: | Solid | Housing Type: | Pillow Block, Two Bolt |
| Housing Color: | Black | Seal Type: | Clearance Seal |
| Radial Dynamic Load Capacity (lb): | 51,100 lb | Housing Material: | Cast Iron |
| Shaft Locking Type: | Double Set Collar | Series: | Solid-housed Pillow Blocks |
| Radial Clearance: | C0 STANDARD | Rolling Element: | Spherical Roller |
| Misalignment Type: | Dynamic | Fixed/Expansion: | Fixed |
| Cage Material: | Steel | Setscrew Torque (in-lbs): | 680 in/lbs |
| Microlock Kit: | B448MLK | Seal Kit: | B448HS |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 1950 rpm |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Vibration Frequency Outer Ring Defect: | 0.1299 cps |
| Housing Coating: | POWDER COATED | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Locking Device Kit: | B448SC QTY 2 | Vibration Frequency Roller Spin: | 0.0591 cps |
| Size Code: | B548 | Lubricant: | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Grease Fitting Thread Size: | 1/8 NPT | Primary Seal: | STEEL CLEARANCE SEAL |
| Max Operating Temperature (F): | 225 °F | Insert: | B547L |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps |
General Specifications
| UPC: | 662327110970 | Weight: | 38.50 LB |
| Packaged Length: | 7.25 IN | Packaged Width: | 5.50 IN |
| Packaged Height: | 13.50 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
