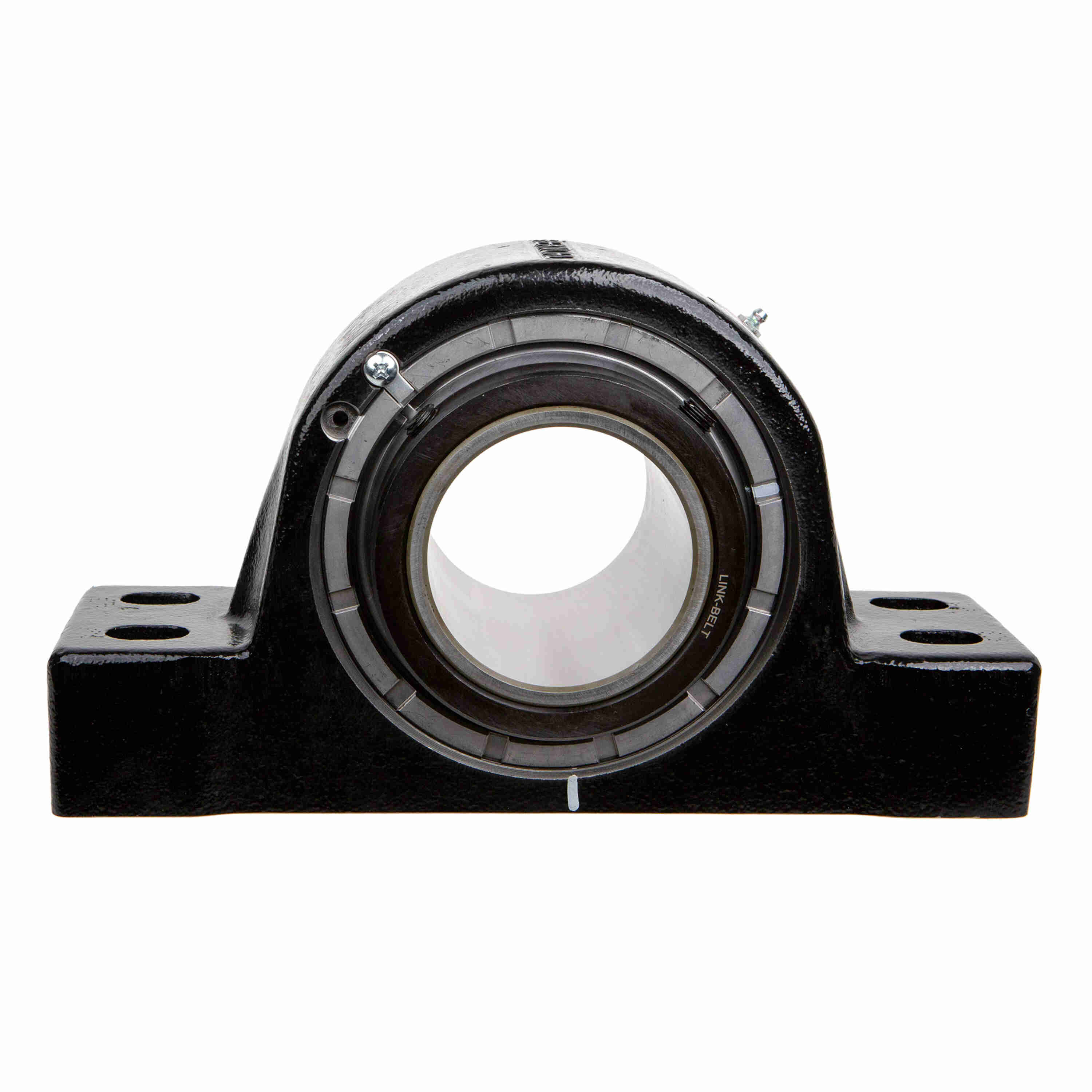

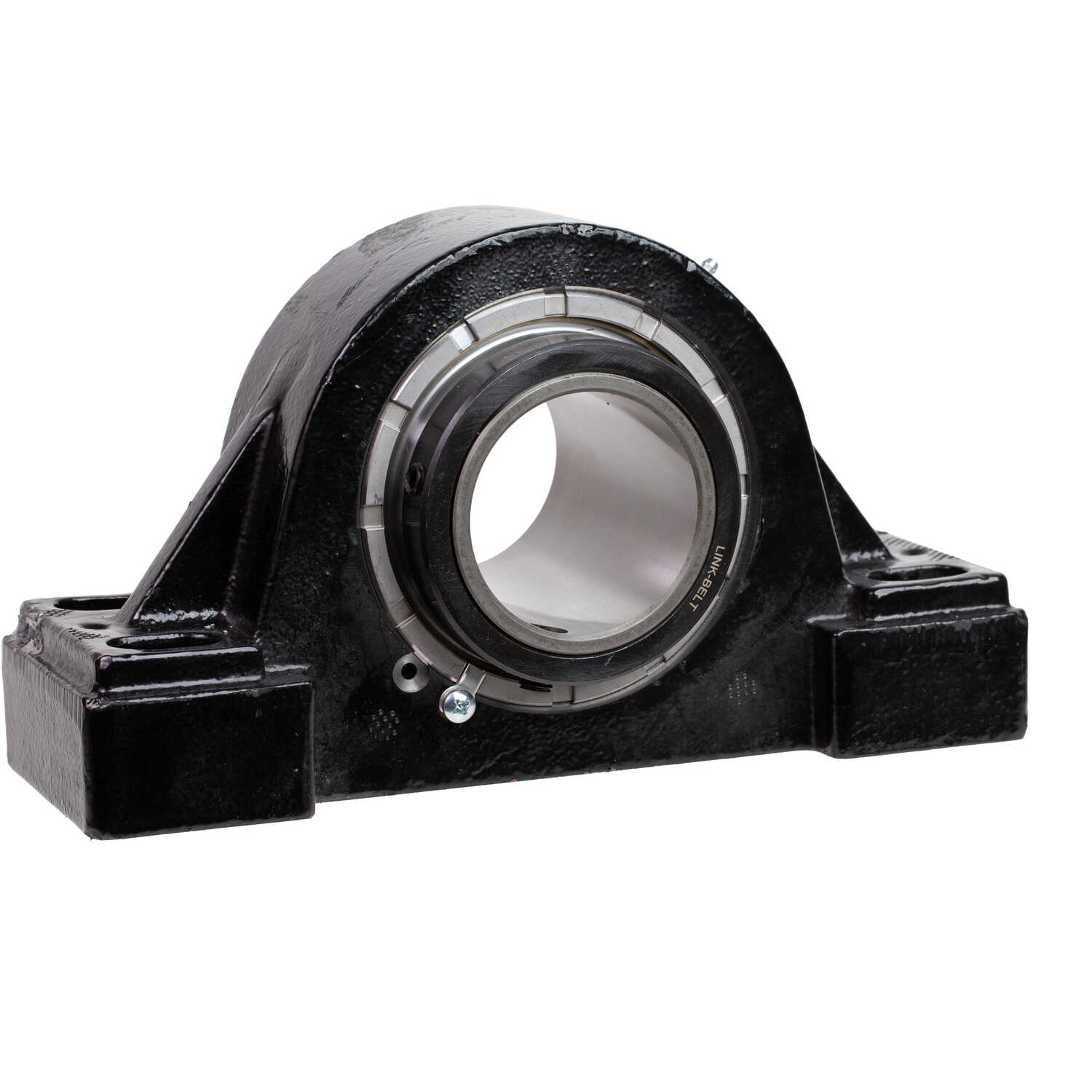

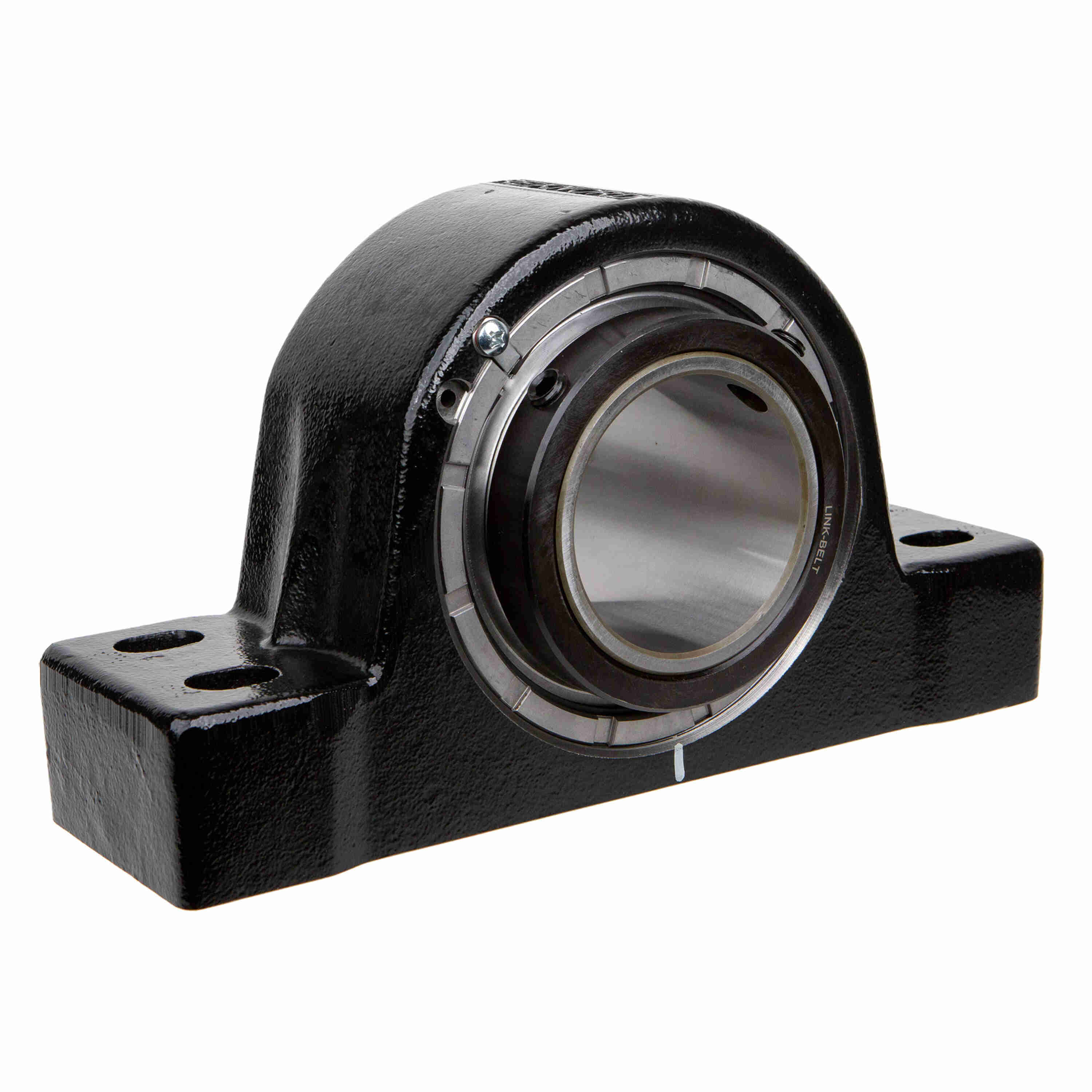

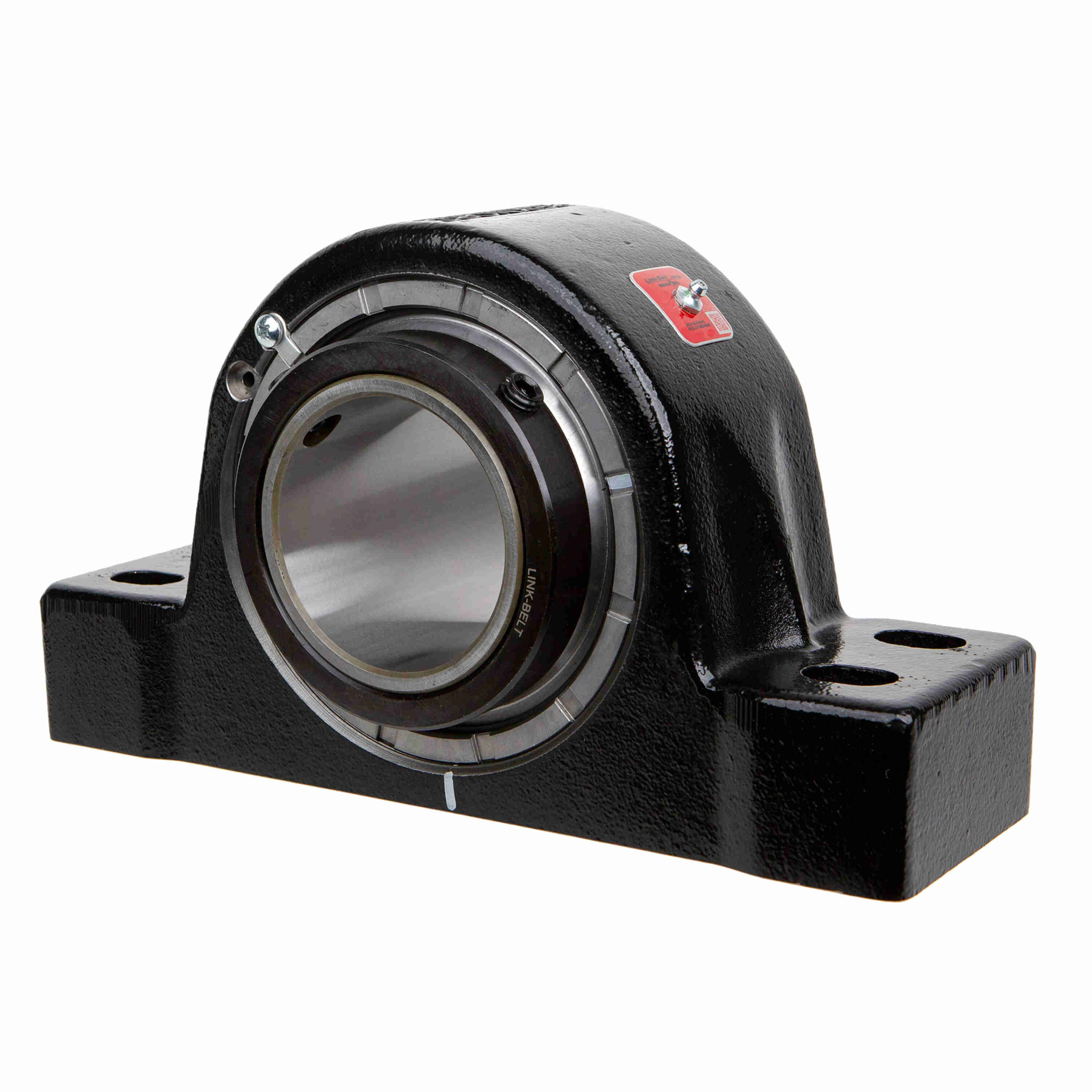

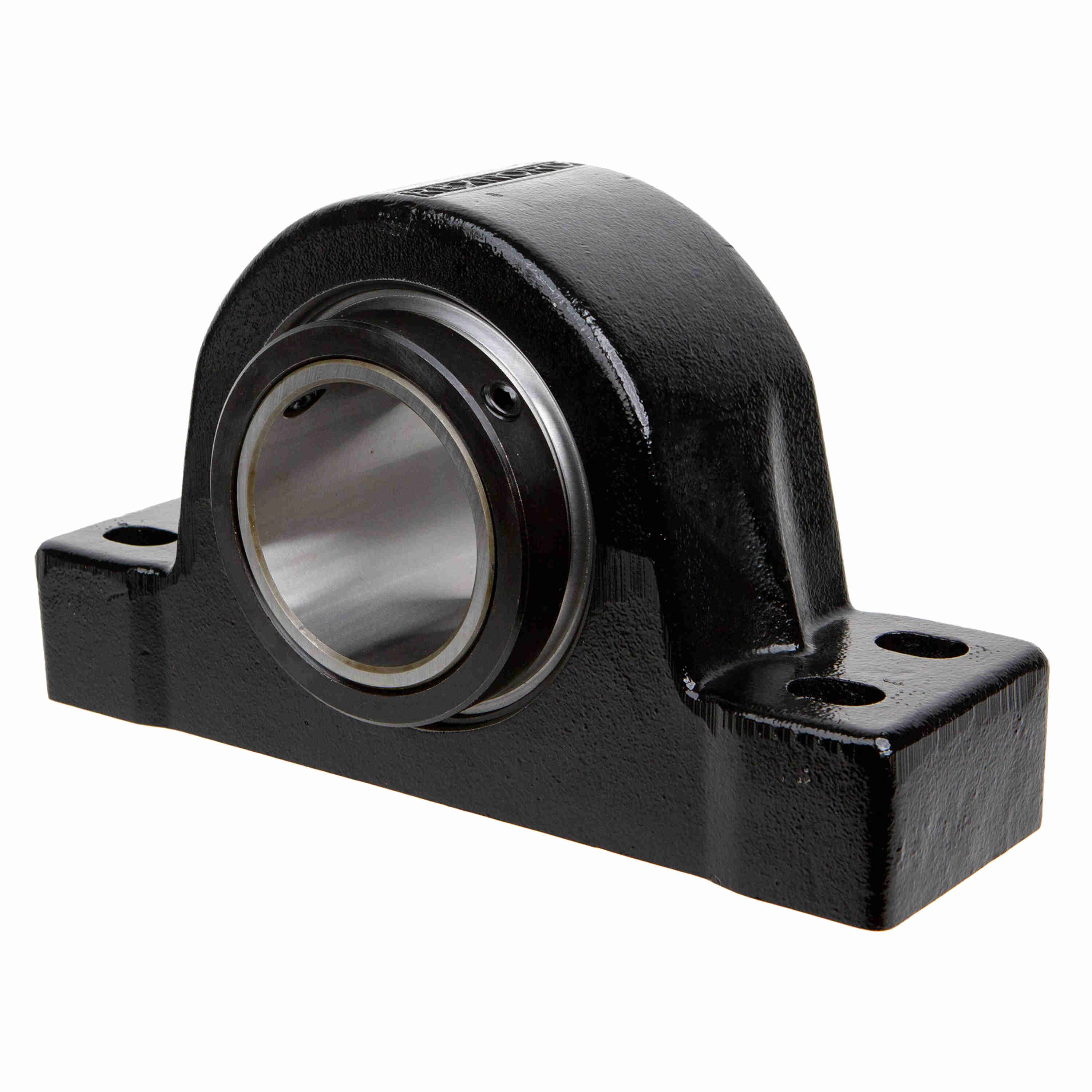

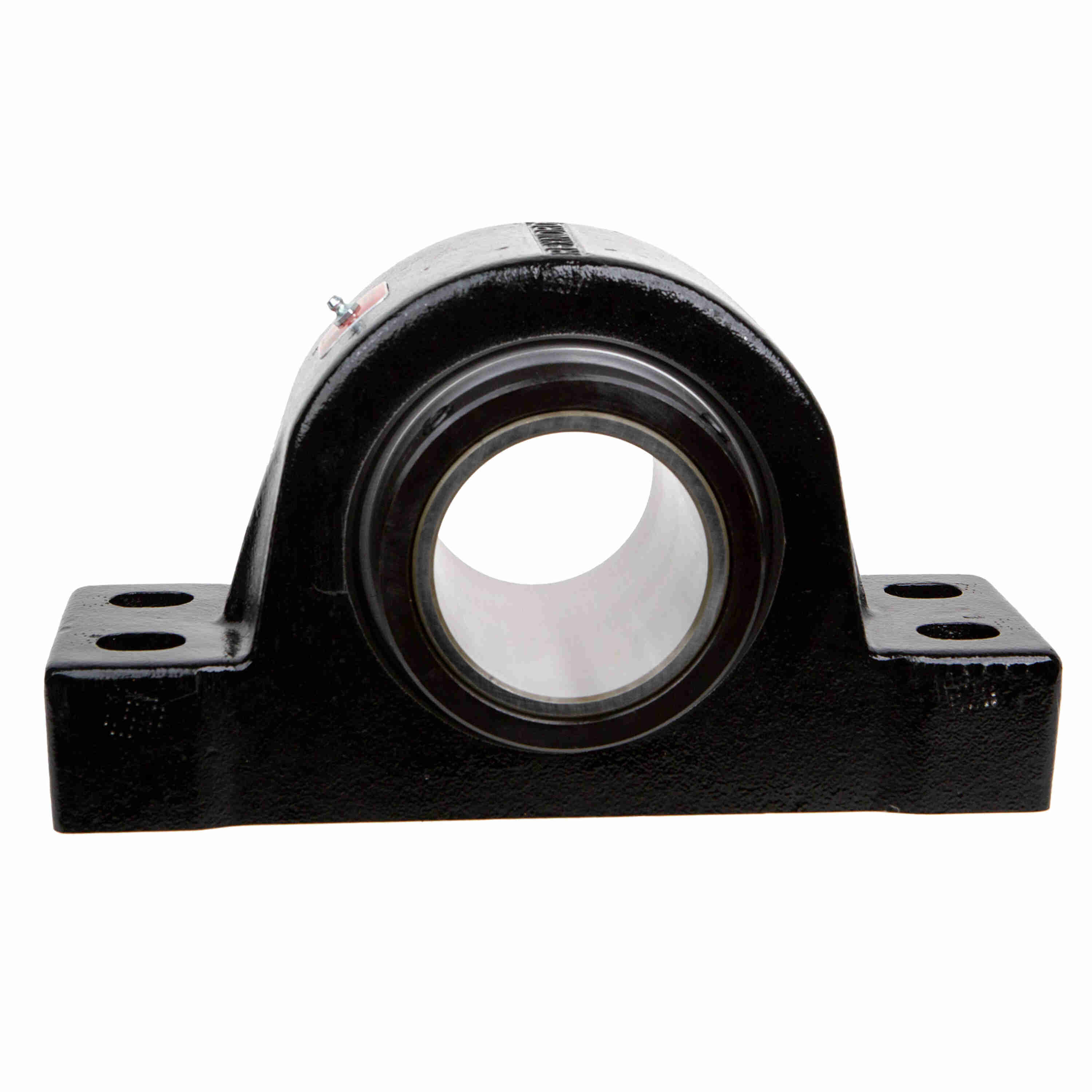

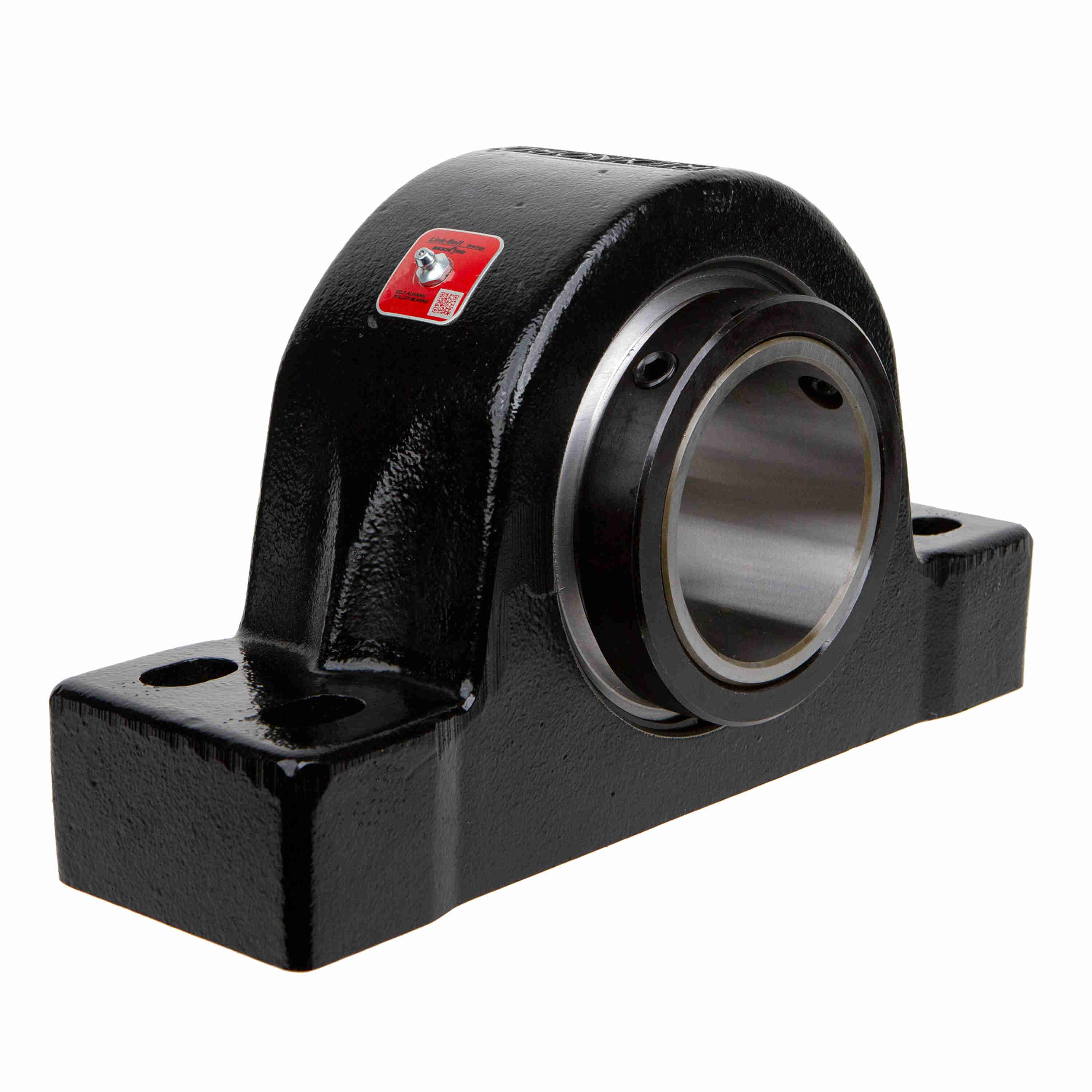

Link-Belt PB22555FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22555FH
Part #:10406507
Catalog #:PB22555FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Foot Height (in): | 2.5 in | Base to Center Height (in): | 4 in |
| Base Width (in): | 5 in | Bolt Size (in): | 3/4 in |
| Slot Length (in): | 1.5 in | Overall Length (in): | 14.25 in |
| Bore Diameter (in): | 3.4375 in | Overall Height (in): | 8 in |
| Overall Width (in): | 5.31 in | Locking Collar Outside Diameter (in): | 4.91 in |
| Length Through Bore (in): | 5.31 in | Housing Cast Face to Outermost Bearing Face (in): | 0.94 in |
| Bolt Spacing Width (in): | 3 in | Inner Ring Outside Diameter (in): | 3.975 in |
| Bolt Spacing (in): | 11.5 in | Centerline to Outermost Bearing Face (in): | 2.66 in |
| Base Length (in): | 14.25 in |
Technical Specifications
| Housing Material: | Cast Iron | Radial Clearance: | C0 STANDARD |
| Misalignment Type: | Dynamic | Rolling Element: | Spherical Roller |
| Series: | Solid-housed Pillow Blocks | Shaft Locking Type: | Double Set Collar |
| Product: | PB22500F | Static Load Rating (lb): | 90,700 lb |
| Cage Material: | Steel | Housing Type: | Pillow Block, Four Bolt |
| Radial Dynamic Load Capacity (lb): | 62,300 lb | End Cap: | B456DTC |
| Housing Construction: | Solid | Housing Color: | Black |
| Fixed/Expansion: | Fixed | Housing Style: | Pillow Block |
| Seal Type: | Clearance Seal | Microlock Kit: | B580MLK |
| Maximum Speed (RPM): | 1650 rpm | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Ability to Relubricate: | Yes | Seal Kit: | B456HS |
| Setscrew Torque (in-lbs): | 680 in/lbs | Insert: | B555L |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | B456SC QTY 2 |
| Vibration Frequency Inner Ring Defect: | 0.1784 cps | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (C): | 107 °C | Primary Seal: | STEEL CLEARANCE SEAL |
| Housing Coating: | POWDER COATED | Vibration Frequency Outer Ring Defect: | 0.1383 cps |
| Size Code: | B556 | Vibration Frequency Fundamental Train: | 0.0073 cps |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Roller Spin: | 0.0628 cps |
| Grease Fitting Thread Size: | 1/8 NPT |
General Specifications
| UPC: | 662327111014 | Weight: | 57.80 LB |
| Packaged Length: | 8.38 IN | Packaged Width: | 5.25 IN |
| Packaged Height: | 14.63 IN | HTC: | 8483208080 |
| Country of Origin: | United States of America |
