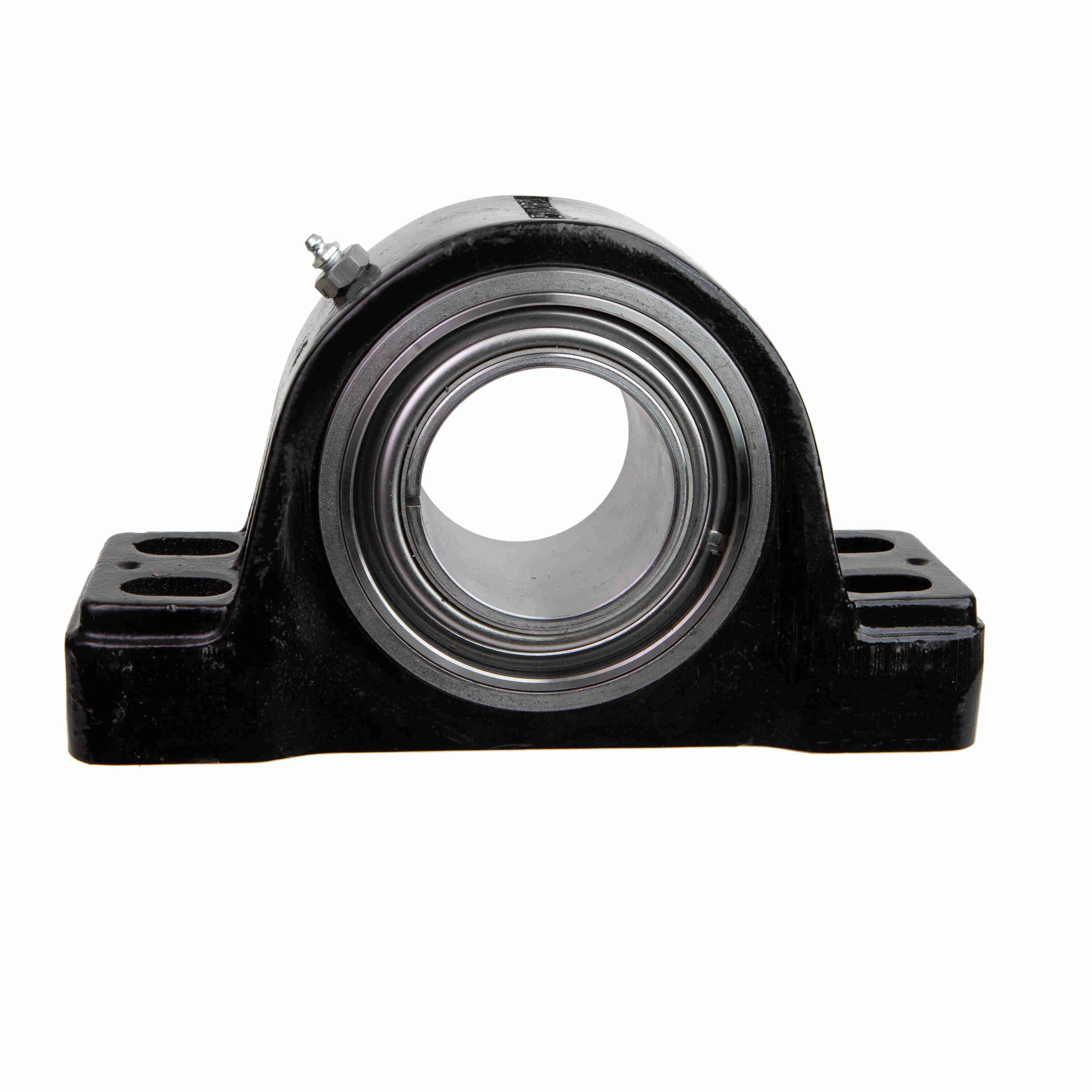

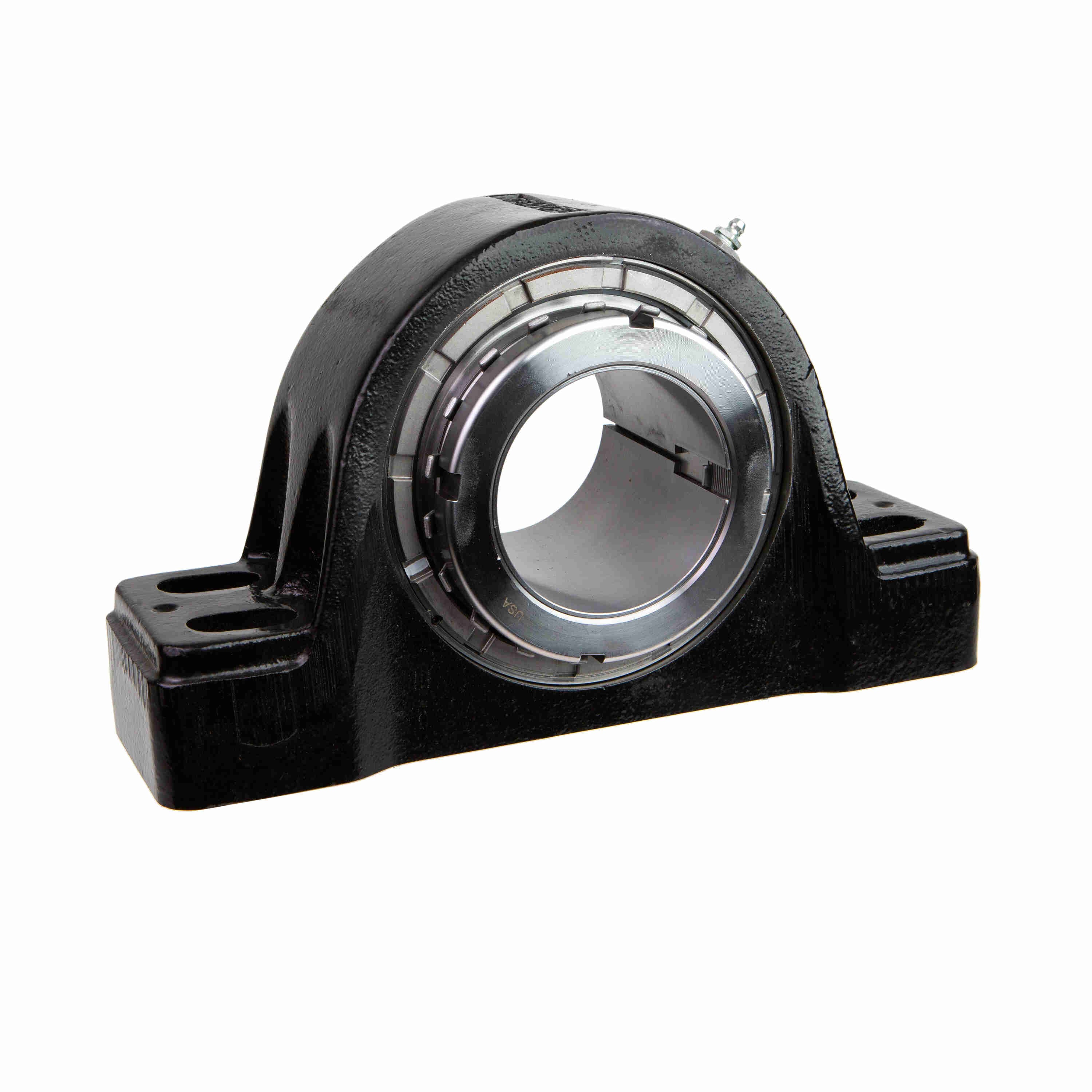

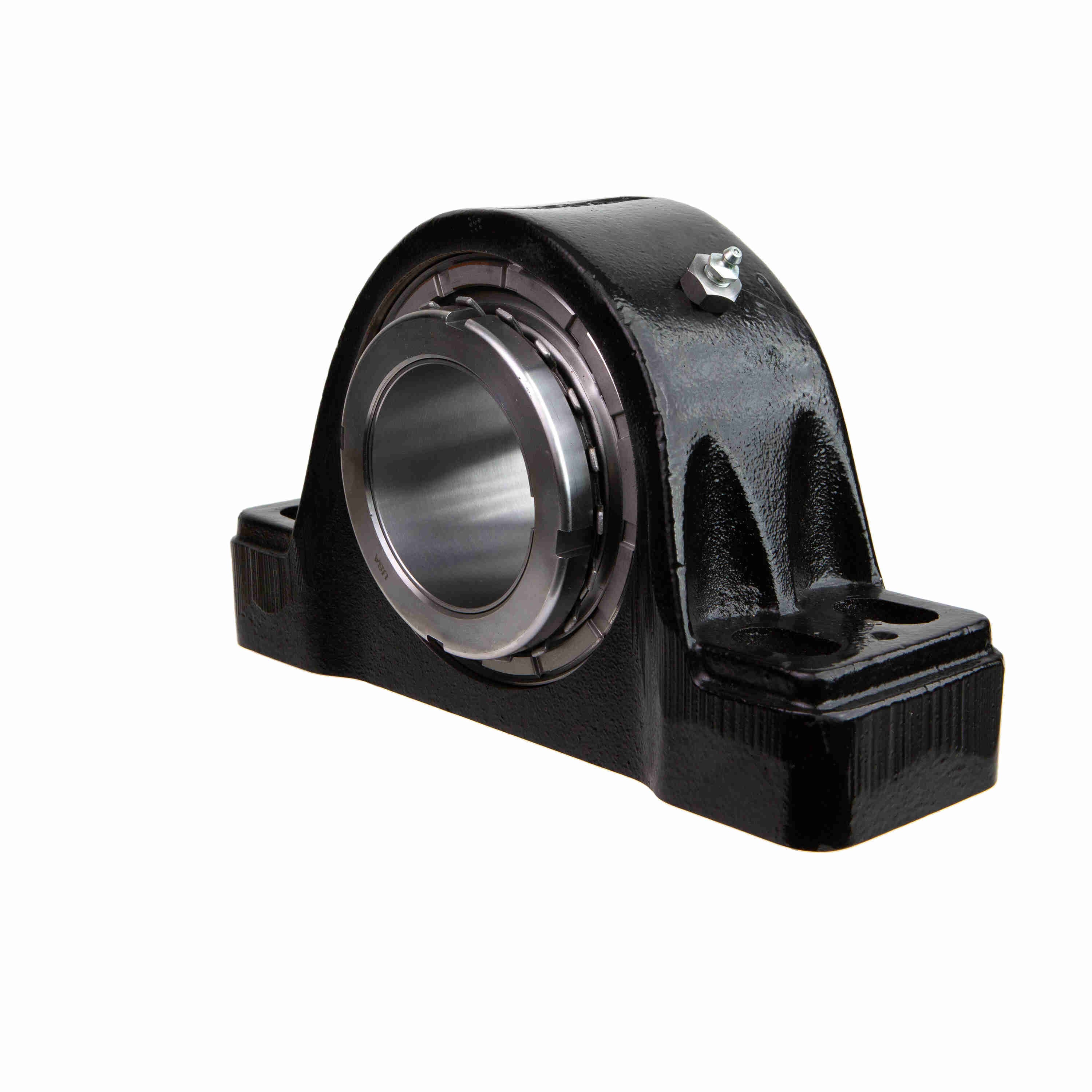

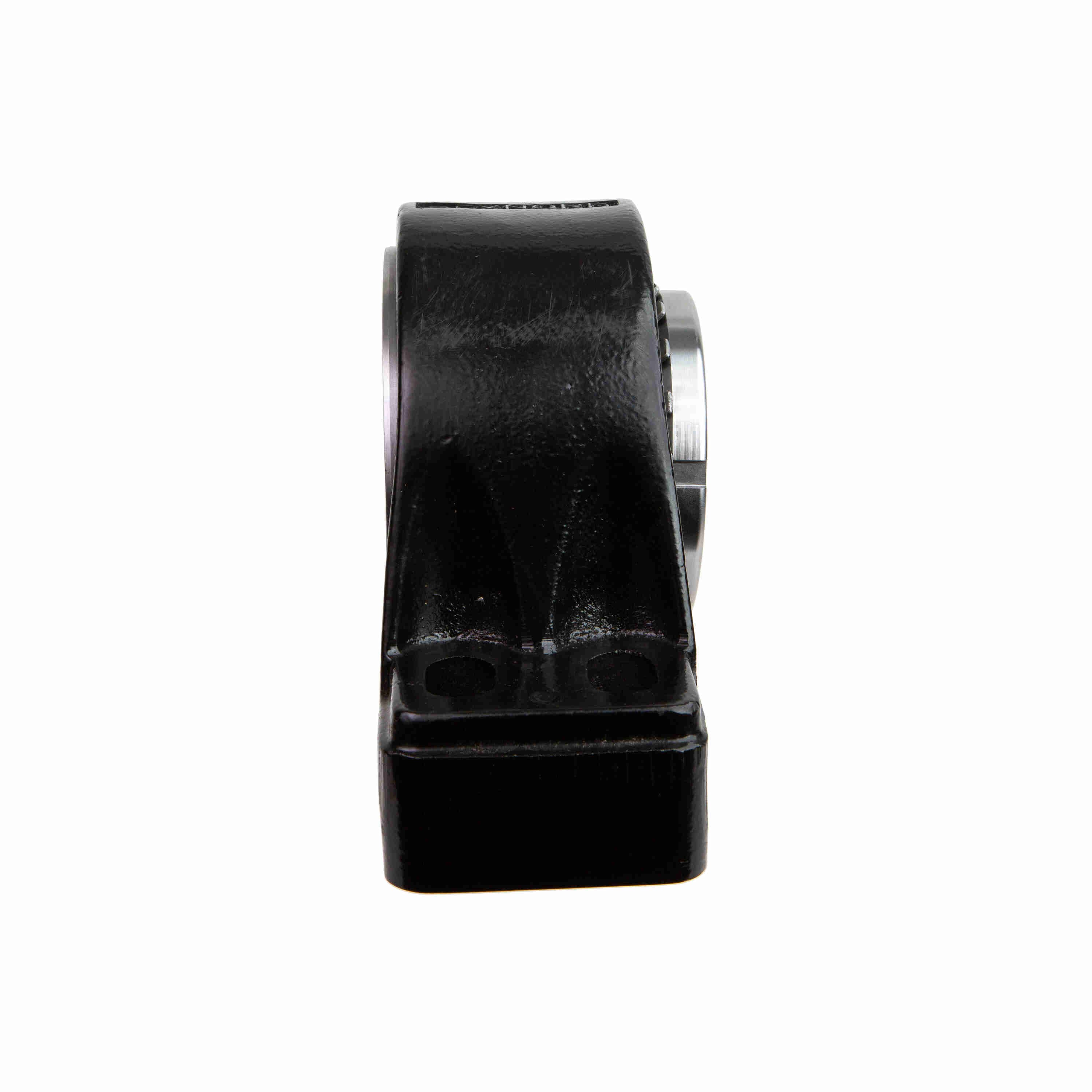

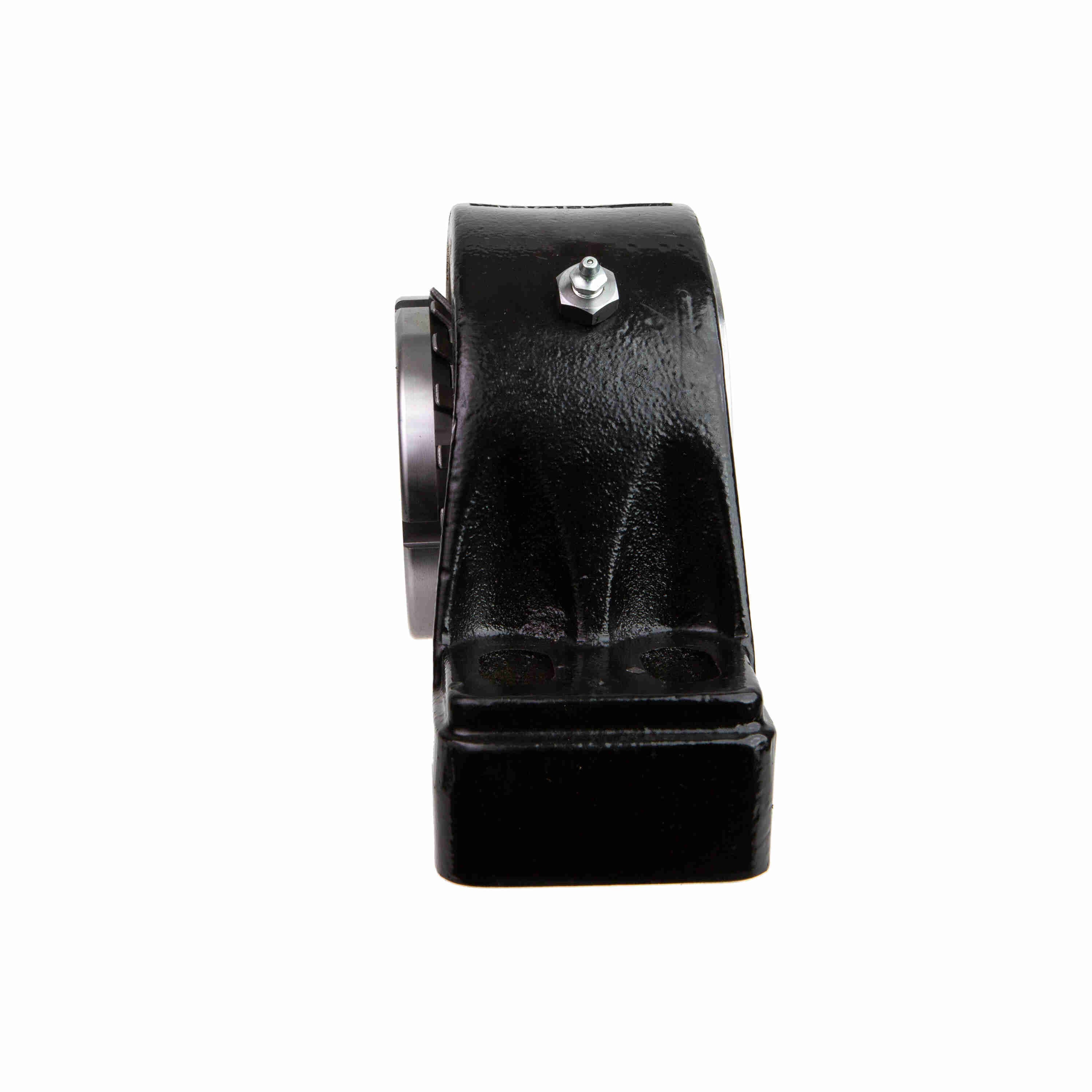

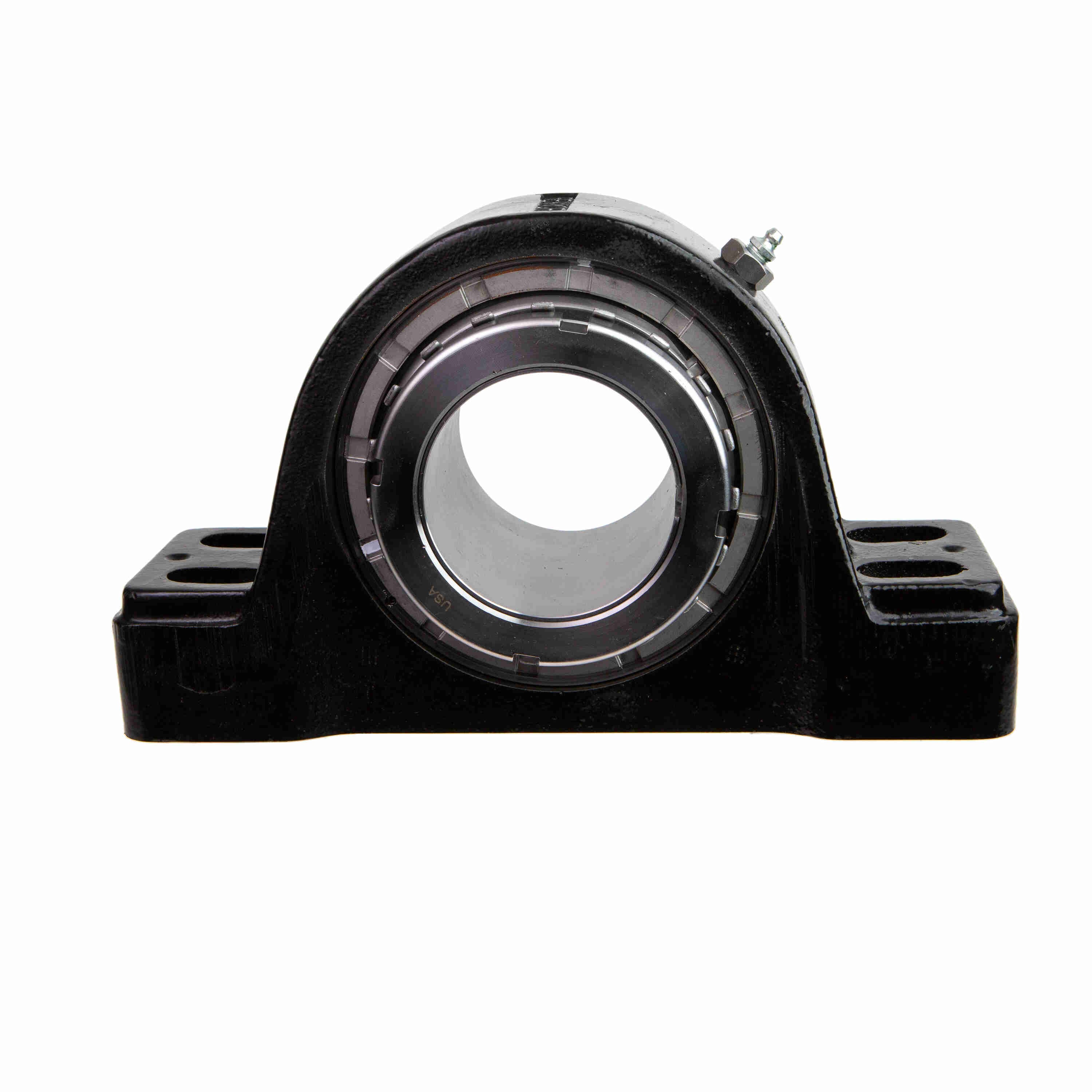

Link-Belt PB22635FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22635FH
Part #:10408067
Catalog #:PB22635FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 2.5 in | Overall Width (in): | 3.25 in |
| Base Width (in): | 3.25 in | Slot Length (in): | 0.81 in |
| Bolt Size (in): | 1/2 in | Foot Height (in): | 1.63 in |
| Overall Length (in): | 8.88 in | Bore Diameter (in): | 2.1875 in |
| Overall Height (in): | 5 in | Locking Collar Outside Diameter (in): | 3.16 in |
| Bolt Spacing Width (in): | 1.69 in | Bolt Spacing (in): | 6.75 in |
| Inner Ring Outside Diameter (in): | 2.62 in | Housing Cast Face to Outermost Bearing Face (in): | 0.63 in |
| Centerline to Outermost Bearing Face (in): | 1.91 in | Length Through Bore (in): | 3.16 in |
| Base Length (in): | 8.88 in |
Technical Specifications
| Housing Style: | Pillow Block | Radial Clearance: | C0 STANDARD |
| Housing Material: | Cast Iron | End Cap: | B436DTC |
| Radial Dynamic Load Capacity (lb): | 32,500 lb | Misalignment Type: | Dynamic |
| Series: | Solid-housed Pillow Blocks | Fixed/Expansion: | Fixed |
| Rolling Element: | Spherical Roller | Housing Color: | Black |
| Product: | PB22600F | Housing Type: | Pillow Block, Four Bolt |
| Cage Material: | Steel | Shaft Locking Type: | Adapter Mount |
| Housing Construction: | Solid | Static Load Rating (lb): | 44,400 lb |
| Seal Type: | Clearance Seal | Microlock Kit: | B436MLK |
| Seal Kit: | B436HS | Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal |
| Ability to Relubricate: | Yes | Maximum Speed (RPM): | 2500 rpm |
| Lubricant: | Lithium Complex NLGI 2 Grease | Primary Seal: | STEEL CLEARANCE SEAL |
| Vibration Frequency Inner Ring Defect: | 0.179 cps | Grease Fitting Thread Size: | 1/8 NPT |
| Size Code: | B635 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Vibration Frequency Outer Ring Defect: | 0.1377 cps | Insert: | B635L |
| Locking Device Kit: | SNW635 | Shaft Locking Collar Kit/Adapter Assembly: | SNW635 |
| Vibration Frequency Roller Spin: | 0.0606 cps | Max Operating Temperature (C): | 107 °C |
| Max Operating Temperature (F): | 225 °F | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Housing Coating: | POWDER COATED |
General Specifications
| UPC: | 662327990312 | Weight: | 14.40 LB |
| Packaged Length: | 9.56 IN | Packaged Width: | 4.00 IN |
| Packaged Height: | 5.50 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
