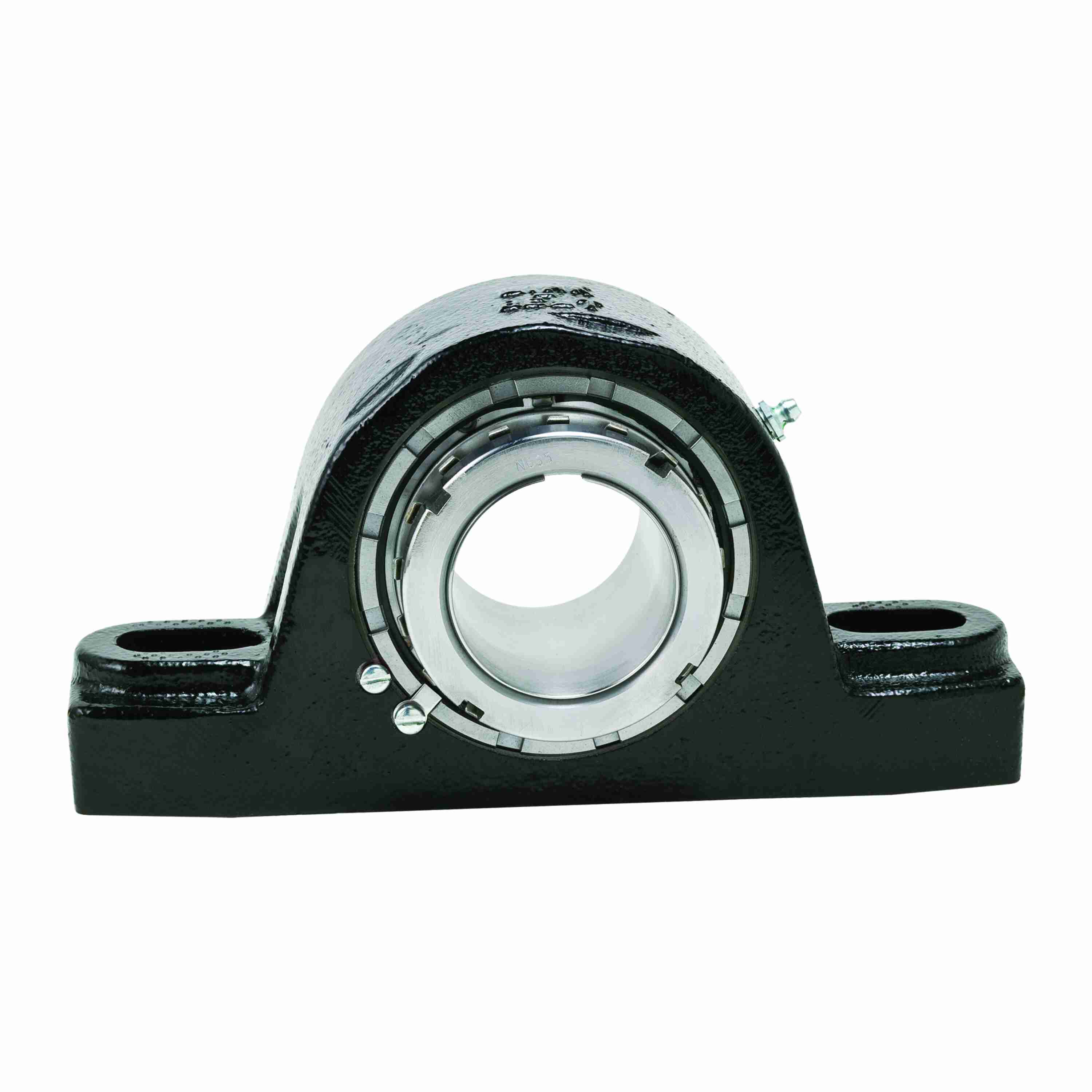

Link-Belt PB22647E Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PB22647E
Part #:10433847
Catalog #:PB22647E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Bolt Size (in): | 3/4 in | Base Width (in): | 3.19 in |
| Base to Center Height (in): | 3.25 in | Overall Length (in): | 10.44 in |
| Overall Width (in): | 3.86 in | Foot Height (in): | 2 in |
| Bore Diameter (in): | 2.9375 in | Slot Length (in): | 1.06 in |
| Overall Height (in): | 6.44 in | Locking Collar Outside Diameter (in): | 4.16 in |
| Length Through Bore (in): | 3.86 in | Base Length (in): | 10.44 in |
| Inner Ring Outside Diameter (in): | 3.37 in | Housing Cast Face to Outermost Bearing Face (in): | 0.75 in |
| Bolt Spacing (in): | 8.13 in |
Technical Specifications
| Housing Style: | Pillow Block | Rolling Element: | Spherical Roller |
| Housing Material: | Cast Iron | Product: | PB22600 |
| End Cap: | B448DTC | Fixed/Expansion: | Fixed |
| Radial Dynamic Load Capacity (lb): | 51,100 lb | Cage Material: | Steel |
| Shaft Locking Type: | Adapter Mount | Seal Type: | Heavy Contact Seal |
| Housing Color: | Black | Series: | Solid-housed Pillow Blocks |
| Radial Clearance: | C0 STANDARD | Housing Construction: | Solid |
| Static Load Rating (lb): | 71,500 lb | Misalignment Type: | Dynamic |
| Housing Type: | Pillow Block, Two Bolt | Maximum Speed (RPM): | 1500 rpm |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Ability to Relubricate: | Yes |
| Seal Kit: | B448ES | Microlock Kit: | B448MLK |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Insert: | B647L | Vibration Frequency Fundamental Train: | 0.0072 cps |
| Vibration Frequency Inner Ring Defect: | 0.1701 cps | Size Code: | B647 |
| Grease Fitting Thread Size: | 1/8 NPT | Housing Coating: | POWDER COATED |
| Lubricant: | Lithium Complex NLGI 2 Grease | Max Operating Temperature (F): | 225 °F |
| Shaft Locking Collar Kit/Adapter Assembly: | SNW647 | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Roller Spin: | 0.0591 cps | Locking Device Kit: | SNW647 |
| Vibration Frequency Outer Ring Defect: | 0.1299 cps |
General Specifications
| UPC: | 793699014365 | Weight: | 25.85 LB |
| Packaged Length: | 6.56 IN | Packaged Width: | 4.25 IN |
| Packaged Height: | 10.56 IN | Country of Origin: | Mexico |
