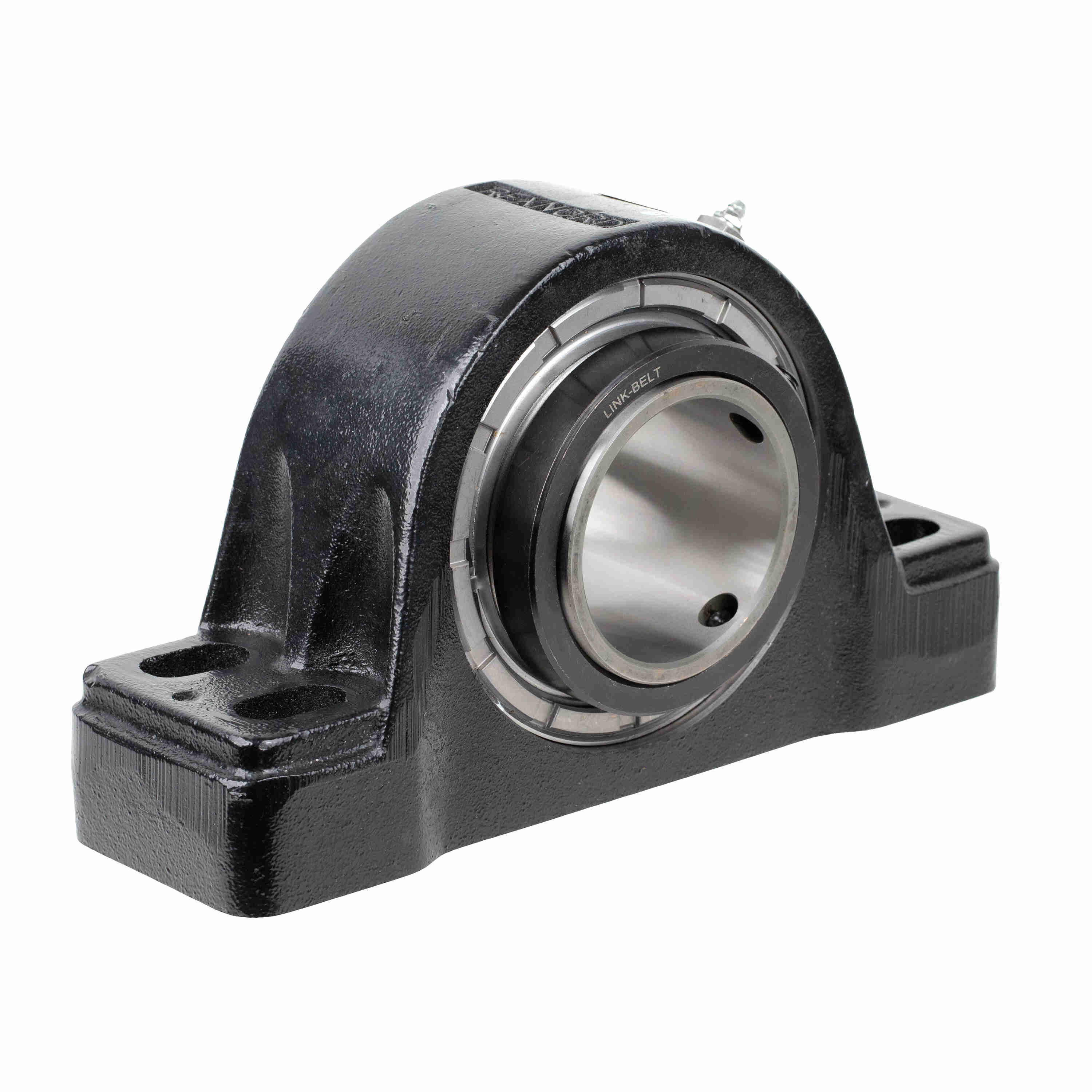

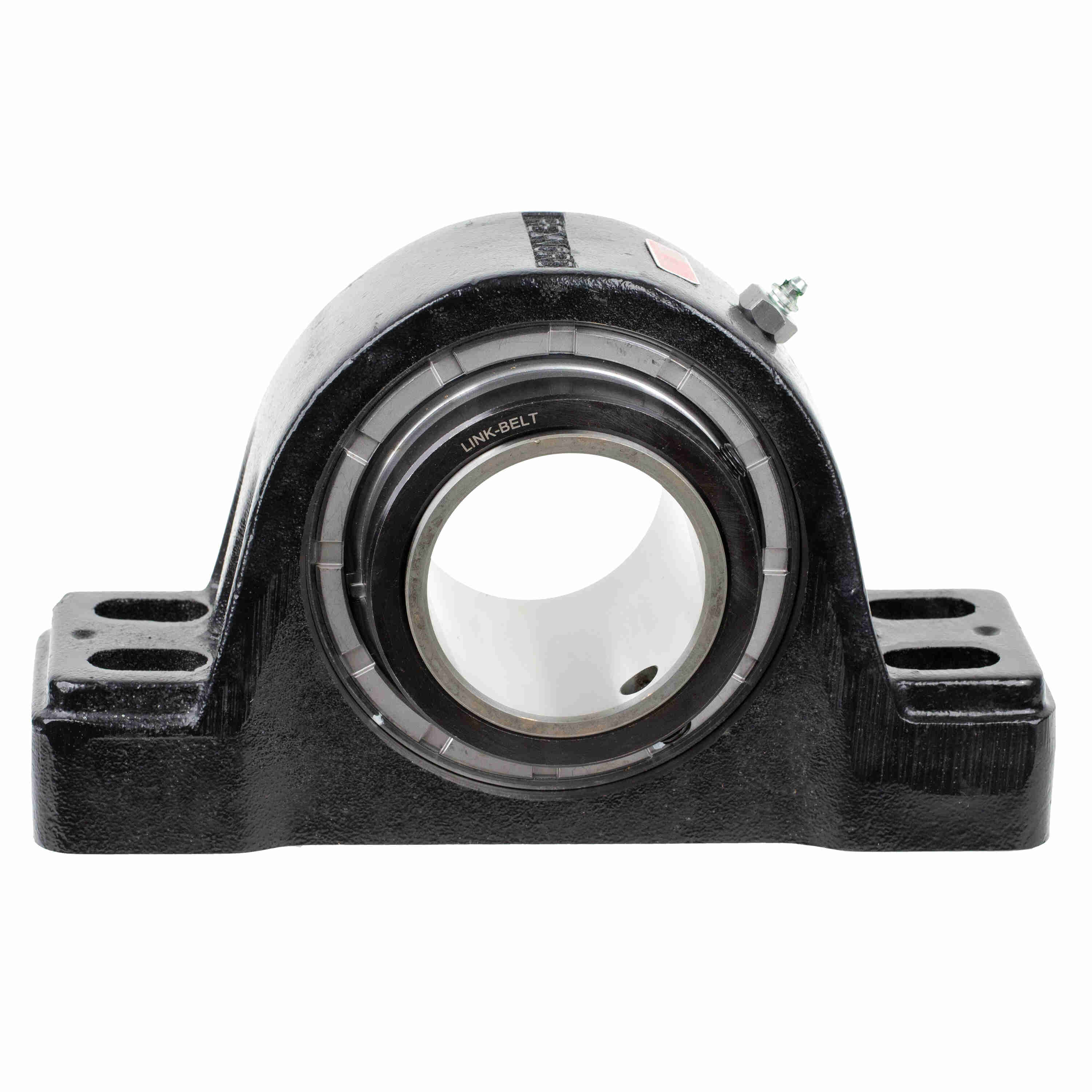

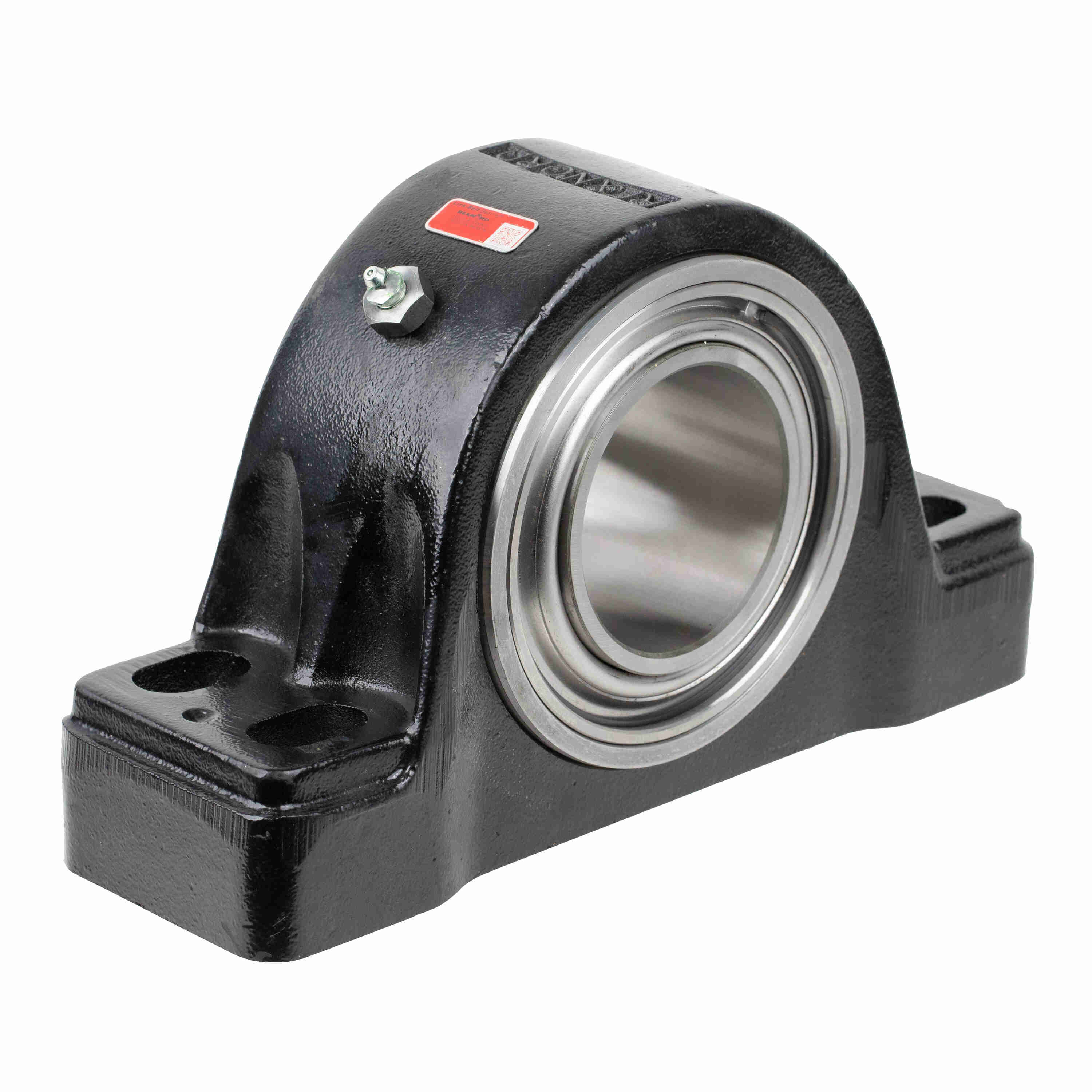

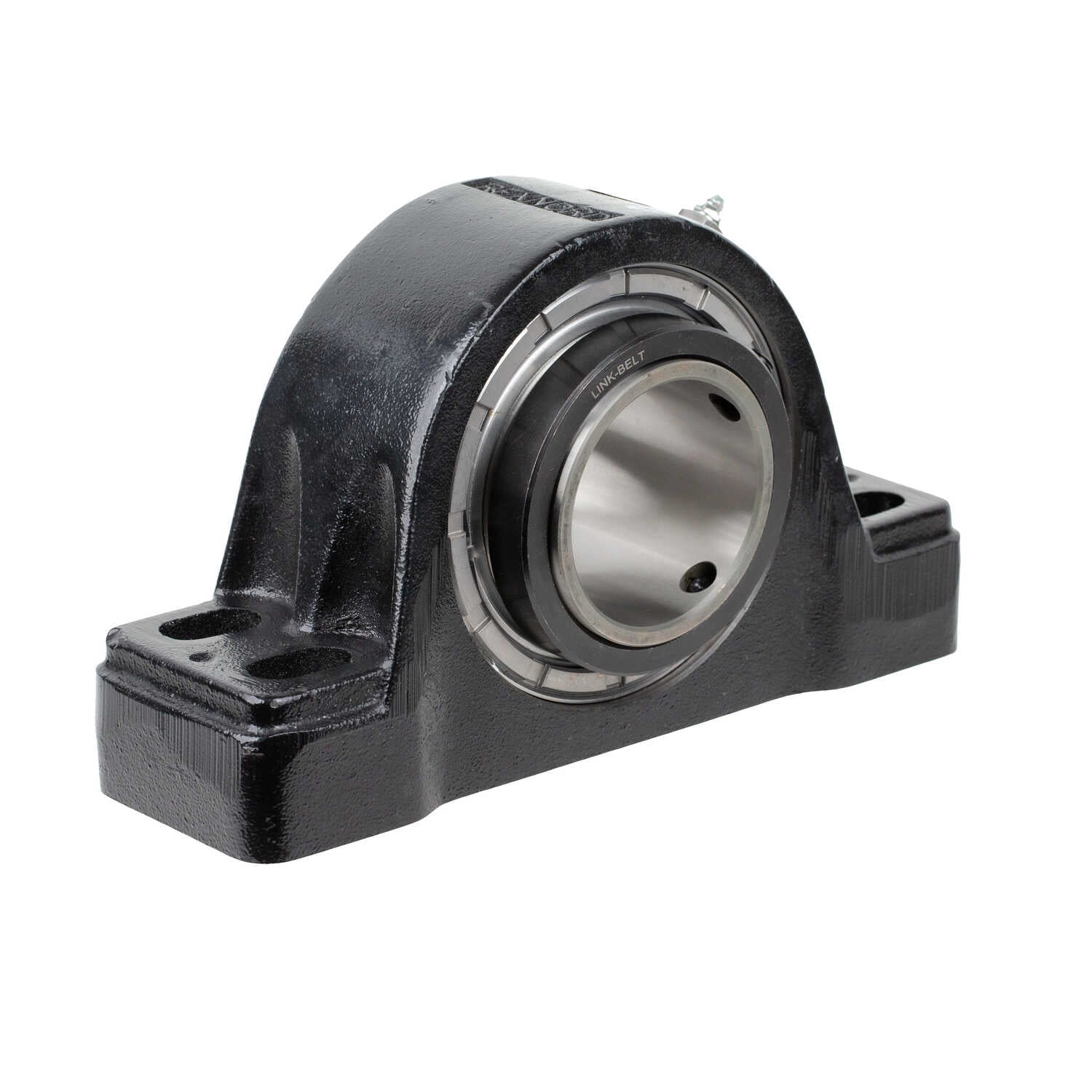

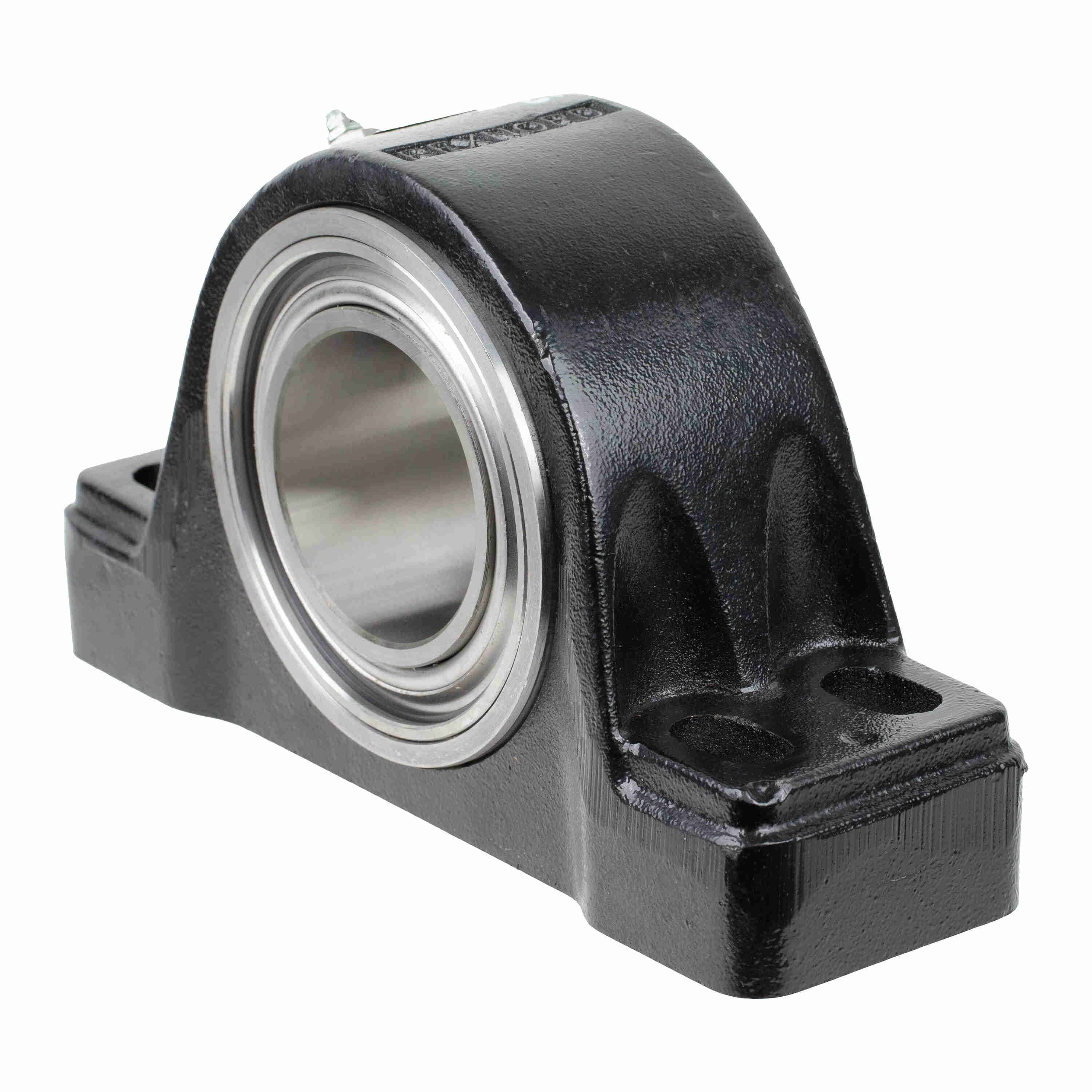

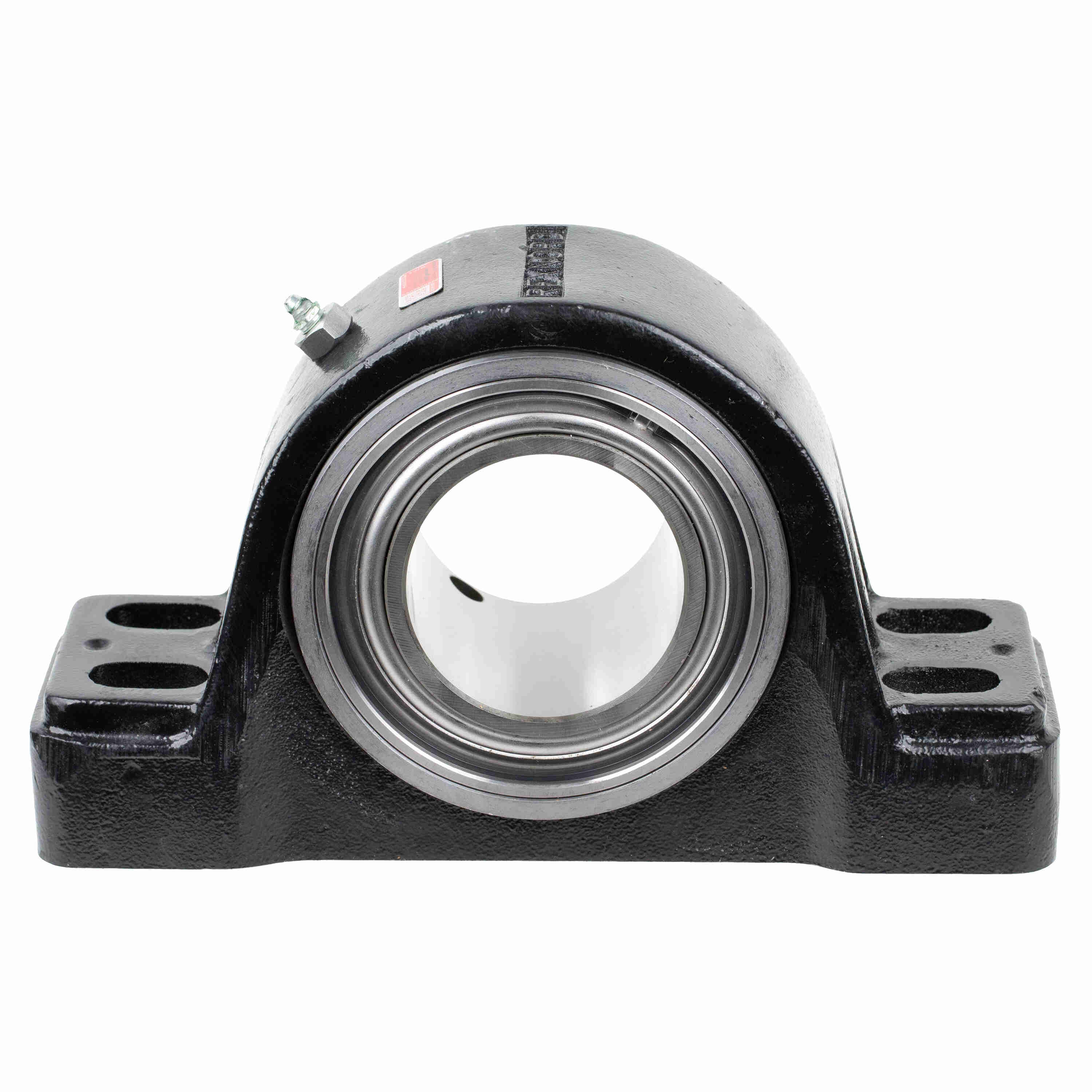

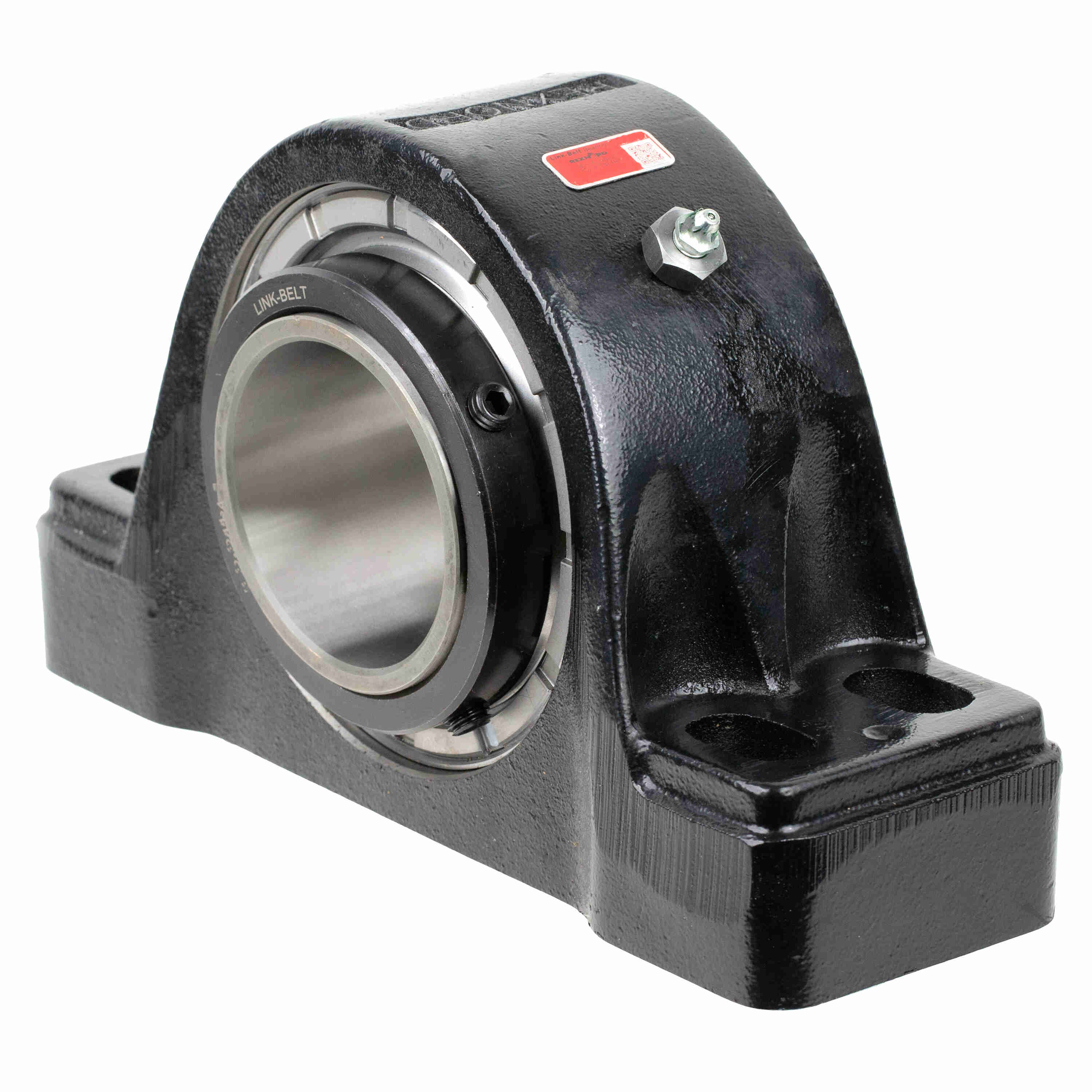

Link-Belt PEB22455FH Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PEB22455FH
Part #:10418686
Catalog #:PEB22455FH
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Base to Center Height (in): | 3.75 in | Overall Height (in): | 7.5 in |
| Bolt Size (in): | 3/4 in | Overall Width (in): | 4.38 in |
| Overall Length (in): | 13 in | Slot Length (in): | 1.5 in |
| Foot Height (in): | 2.25 in | Base Width (in): | 4.13 in |
| Bore Diameter (in): | 3.4375 in | Locking Collar Outside Diameter (in): | 4.91 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.94 in | Centerline to Outermost Bearing Face (in): | 2.66 in |
| Length Through Bore (in): | 4.38 in | Bolt Spacing (in): | 10 in |
| Expansion Capability (in): | 0.38 in | Base Length (in): | 13 in |
| Inner Ring Outside Diameter (in): | 3.975 in | Bolt Spacing Width (in): | 2 in |
Technical Specifications
| Fixed/Expansion: | Expansion | Housing Color: | Black |
| Series: | Solid-housed Pillow Blocks | Housing Type: | Pillow Block, Four Bolt |
| Radial Dynamic Load Capacity (lb): | 62,300 lb | Housing Construction: | Solid |
| Seal Type: | Clearance Seal | Static Load Rating (lb): | 90,700 lb |
| Product: | PEB22400F | Shaft Locking Type: | Single Set Collar |
| Housing Material: | Cast Iron | Misalignment Type: | Dynamic |
| Radial Clearance: | C0 STANDARD | Rolling Element: | Spherical Roller |
| Housing Style: | Pillow Block | Cage Material: | Steel |
| Seal Kit: | B456HS | Setscrew Torque (in-lbs): | 680 in/lbs |
| Available Seal Type: | E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal | Ability to Relubricate: | Yes |
| Maximum Speed (RPM): | 1650 rpm | Insert: | CSEB22455H |
| Vibration Frequency Outer Ring Defect: | 0.1383 cps | Lubricant: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 1/8 NPT | Housing Coating: | POWDER COATED |
| Size Code: | B456 | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Max Operating Temperature (C): | 107 °C | Vibration Frequency Inner Ring Defect: | 0.1784 cps |
| Vibration Frequency Fundamental Train: | 0.0073 cps | Primary Seal: | STEEL CLEARANCE SEAL |
| Expansion Lock Plug: | B225728A | Vibration Frequency Roller Spin: | 0.0628 cps |
| Max Operating Temperature (F): | 225 °F | Locking Device Kit: | B456SC |
General Specifications
| UPC: | 662327111793 | Weight: | 45.00 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 13.00 IN | HTC: | 8483208080 |
| Country of Origin: | Mexico |
