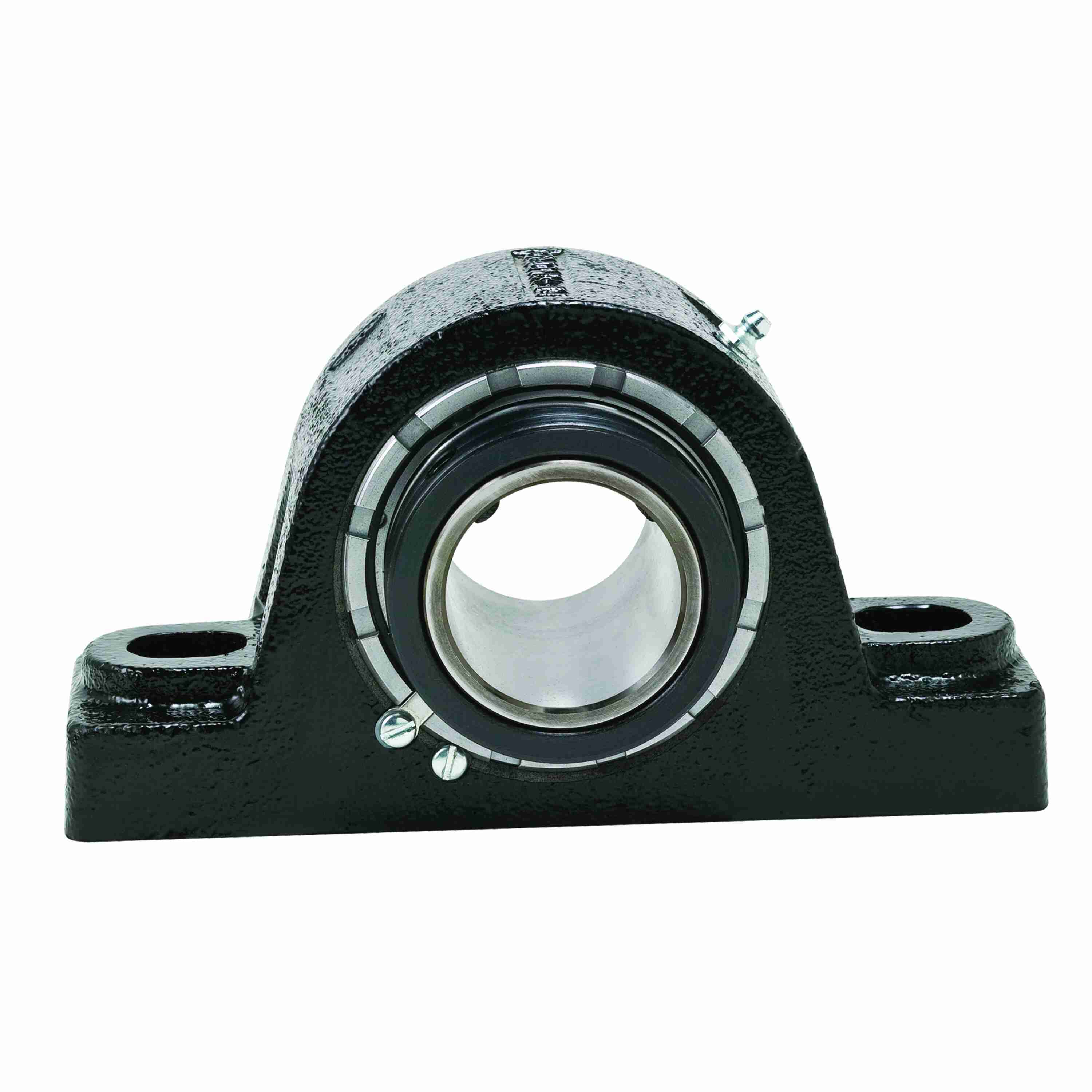

Link-Belt PEB224M35E Solid-housed Pillow Blocks Link-Belt Spherical Roller Bearings - PEB224M35E
Part #:10919762
Catalog #:PEB224M35E
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Dimensions
| Slot Length (in): | 0.88 in | Bolt Size (in): | 1/2 in |
| Bore Diameter (mm): | 35 mm | Locking Collar Outside Diameter (in): | 2.31 in |
| Foot Height (in): | 1.19 in | Overall Length (in): | 6.56 in |
| Base Width (in): | 2.25 in | Overall Height (in): | 3.88 in |
| Overall Width (in): | 2.88 in | Base to Center Height (in): | 1.875 in |
| Base Length (in): | 6.56 in | Bolt Spacing (in): | 5 in |
| Centerline to Outermost Bearing Face (in): | 1.78 in | Length Through Bore (in): | 2.88 in |
| Housing Cast Face to Outermost Bearing Face (in): | 0.66 in | Inner Ring Outside Diameter (in): | 1.745 in |
| Expansion Capability (in): | 0.38 in |
Technical Specifications
| Cage Material: | Steel | Product: | PEB22400 |
| Radial Dynamic Load Capacity (lb): | 17,800 lb | Series: | Solid-housed Pillow Blocks |
| Housing Construction: | Solid | Seal Kit: | B424ES |
| Seal Type: | Heavy Contact Seal | Setscrew Torque (in-lbs): | 325 in/lbs |
| Housing Material: | Cast Iron | Static Load Rating (lb): | 20,900 lb |
| Fixed/Expansion: | Expansion | Housing Type: | Pillow Block, Two Bolt |
| Radial Clearance: | C0 STANDARD | Rolling Element: | Spherical Roller |
| Misalignment Type: | Dynamic | Housing Color: | Black |
| Maximum Speed (RPM): | 2750 rpm | Housing Style: | Pillow Block |
| Ability to Relubricate: | Yes | Shaft Locking Type: | Single Set Collar |
| Lubricant: | Lithium Complex NLGI 2 Grease | Locking Device Kit: | B424SC |
| Size Code: | B424 | Vibration Frequency Roller Spin: | 0.0499 cps |
| Expansion Lock Plug: | B224408A | Insert: | CSEB224M35E |
| Vibration Frequency Inner Ring Defect: | 0.1445 cps | Max Operating Temperature (F): | 225 °F |
| Primary Seal: | BUNA SPRING LOADED LIP SEAL | Misalignment Capability: | ±2.0° Misalignment - Dynamic |
| Grease Fitting Thread Size: | 1/8 NPT | Max Operating Temperature (C): | 107 °C |
| Vibration Frequency Outer Ring Defect: | 0.1055 cps | Housing Coating: | Powder Coated |
| Vibration Frequency Fundamental Train: | 0.007 cps |
General Specifications
| UPC: | 782935459862 | Weight: | 8.31 LB |
| Packaged Length: | 5.75 IN | Packaged Width: | 5.75 IN |
| Packaged Height: | 2.25 IN | Country of Origin: | Mexico |
